A trommel screen is widely used in mining and bulk material processing where continuous size separation is required under demanding operating conditions. For coal applications, stable drum rotation, accurate alignment, reliable transmission, and sufficient internal clearance are just as important as screening capacity itself. A machine that performs well on paper can still develop vibration, uneven wear, chain misalignment, or internal interference if assembly and commissioning are not carefully controlled. This project shows how a large coal rotary drum screen was assembled, inspected, tested, and prepared for customer acceptance at TOTEM Machinery.
A trommel screen, also called a rotary drum screen or rotary screen, separates bulk materials by particle size as they travel through a rotating cylindrical drum. Openings in the screening surface allow smaller particles to pass through, while larger pieces continue toward the discharge end. In coal processing, this principle can be used to separate lump coal, fines, and other size fractions before the material enters downstream crushing, conveying, or processing equipment.
Compared with screening equipment that relies mainly on high-frequency vibration, a rotary drum screen uses continuous rotation and material tumbling to promote separation. The drum angle, rotational speed, screen aperture, feed characteristics, and internal configuration all influence screening behavior. Wet, sticky, or irregular coal can be particularly challenging because material may adhere to the screening surface or form uneven loads. Proper machine design and installation therefore affect both screening performance and mechanical reliability.
Material enters the drum through the feed section and is carried forward as the cylinder rotates. Gravity, drum inclination, and continuous tumbling expose the feed to the screen openings repeatedly, giving smaller particles opportunities to pass through the apertures. Oversized material remains inside the drum and moves toward the discharge end, while undersized material is collected below or around the screening section.
The operating principle is mechanically simple, but stable performance depends on several interacting factors. Excessive drum run-out can alter the gap between moving and stationary parts, while poor alignment may introduce uneven loads into bearings and transmission components. Incorrect chain-to-sprocket engagement can also create impact loads or abnormal noise. For this reason, commissioning should evaluate the complete mechanical system rather than only confirm that the drum can rotate.
A large mining trommel screen is built from several systems that must function together. The rotating drum performs the screening task, but the feeder, liner, end covers, transmission system, bearing assemblies, sealing structure, and supporting frame all influence long-term operation. During this project, particular attention was given to the relationship between these components because assembly tolerances can affect vibration, wear, and serviceability.
| Component | Main Function | Key Inspection Focus |
|---|---|---|
| Rotary drum | Carries and screens material | Alignment, straightness, run-out |
| Screen or liner section | Controls particle separation and wear | Clearance, installation, contact |
| Feeder | Introduces material into the drum | Position and interference |
| End covers | Close and support drum ends | Fit and synchronized assembly |
| Sprocket and chain | Transfers drive torque | Alignment and meshing |
| Bearing housing | Supports rotating assembly | Lubrication, sealing, temperature |
| Labyrinth seal | Limits dust ingress | Fit and sealing condition |
| Support structure | Maintains machine geometry | Level, rigidity, connection |
Each component should be considered part of a single mechanical system. A small positional error in one area may change loads or clearances elsewhere, particularly on a large-diameter machine. That is why dimensional checks and trial rotation are valuable before full powered testing begins.
The correct trommel screen cannot be selected on drum diameter alone. Capacity, feed size, required product size, screen aperture, material moisture, bulk density, drum length, rotational speed, motor power, wear conditions, and available installation space should all be evaluated. Coal containing a high proportion of fines or moisture may behave differently from dry, uniformly sized material, so actual feed characteristics should be discussed during equipment selection.
For a project case, technical data should come from approved engineering documents rather than be estimated for marketing purposes. Relevant figures may include drum diameter, screening length, feed size, design throughput, aperture size, installed power, operating speed, and allowable run-out. Where a manufacturer does not publish project-specific values, qualitative engineering guidance is preferable to unsupported numbers. This is especially important for acceptance tolerances because permissible values depend on machine size, structure, drive arrangement, and design requirements.
Coal screening often requires equipment that can handle large volumes of irregular material while maintaining continuous operation. A rotary drum provides repeated exposure of material to the screen surface, and its relatively straightforward mechanical layout can be suitable for primary or intermediate sizing duties. Depending on the process arrangement, a coal trommel screen may separate fines before crushing, remove oversized pieces, or prepare material for subsequent conveying and classification.
Mechanical simplicity does not eliminate operational challenges. Sticky coal can reduce open screen area, abrasive particles can accelerate wear, and uneven feed may create fluctuating loads. Machine configuration should therefore match the material rather than rely on a standard design for every application. Access for inspection, screen replacement, lubrication, and cleaning should also be considered during the selection stage.

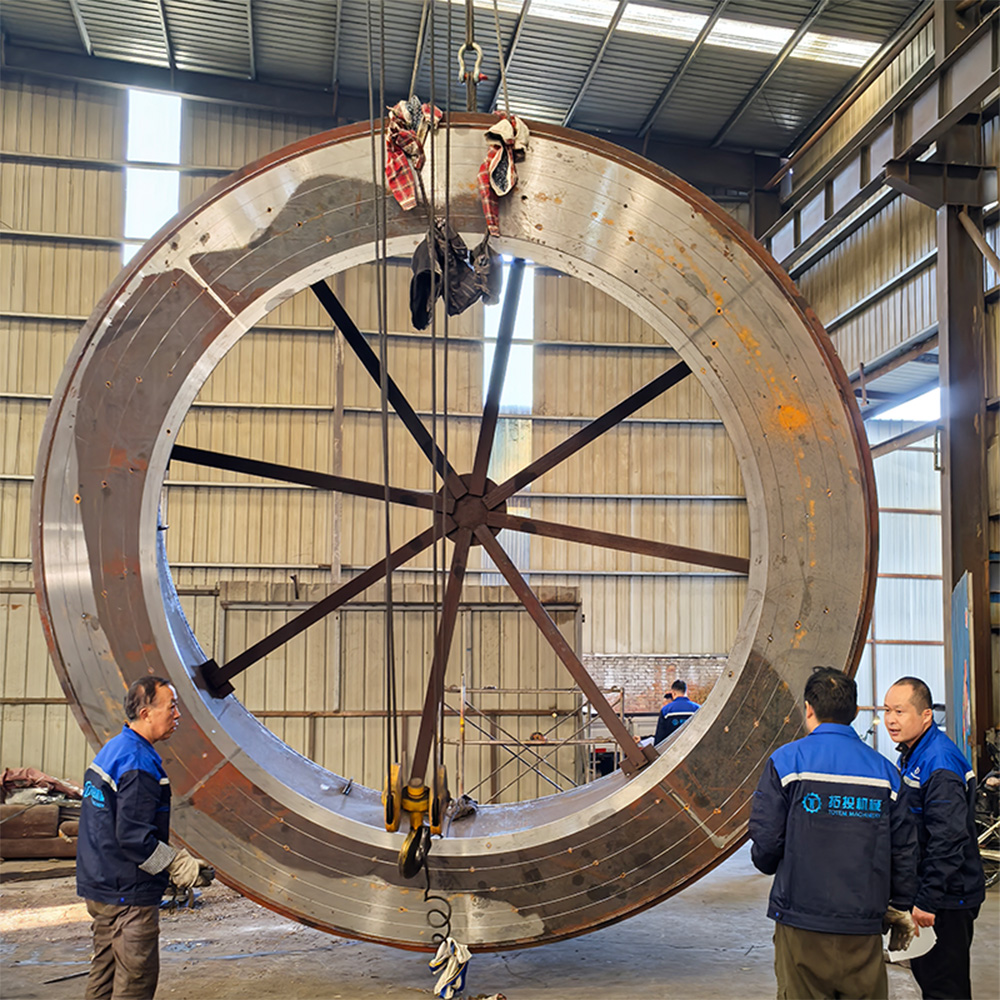

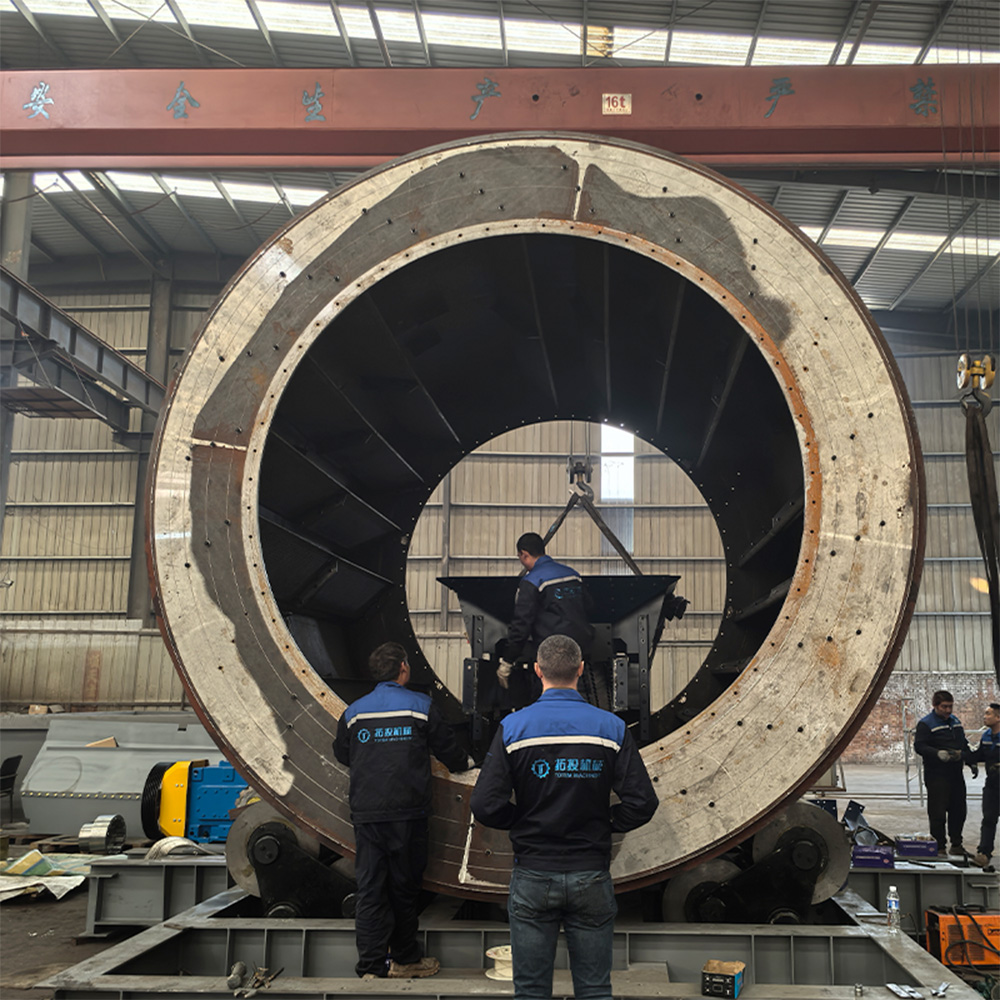

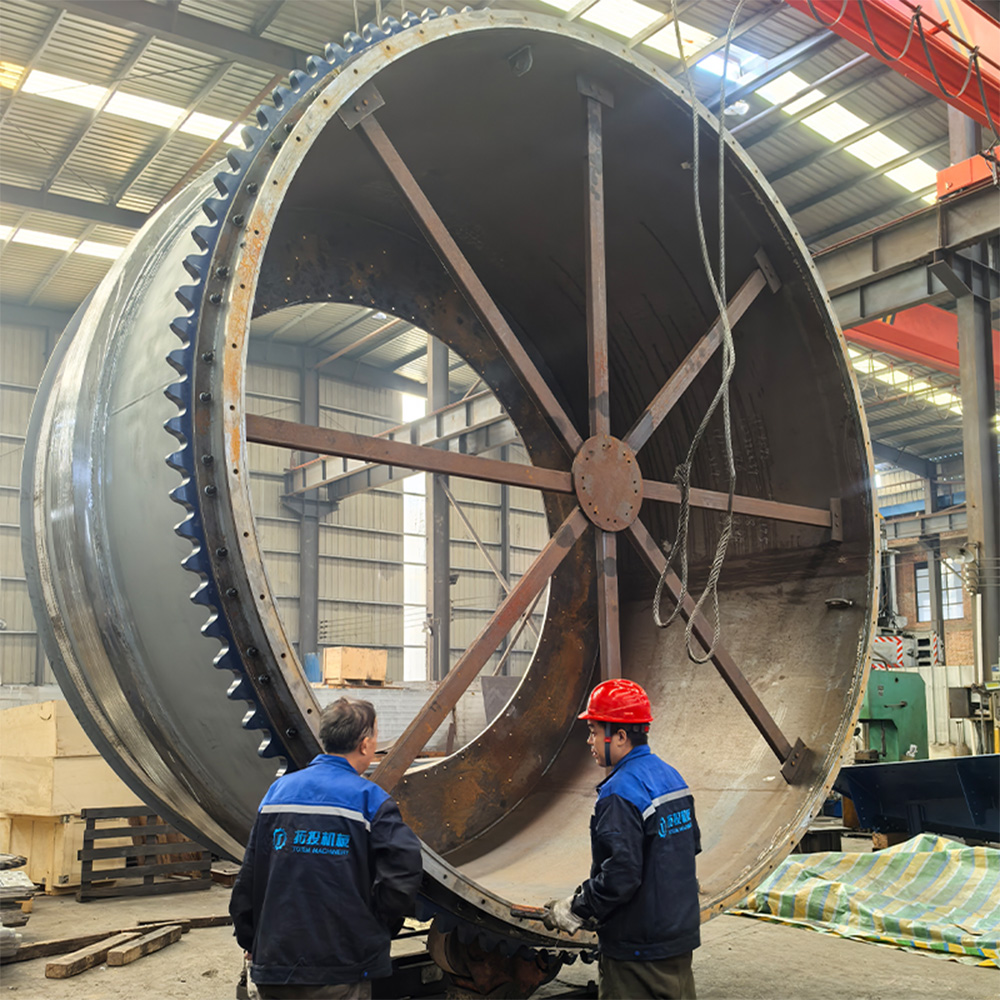

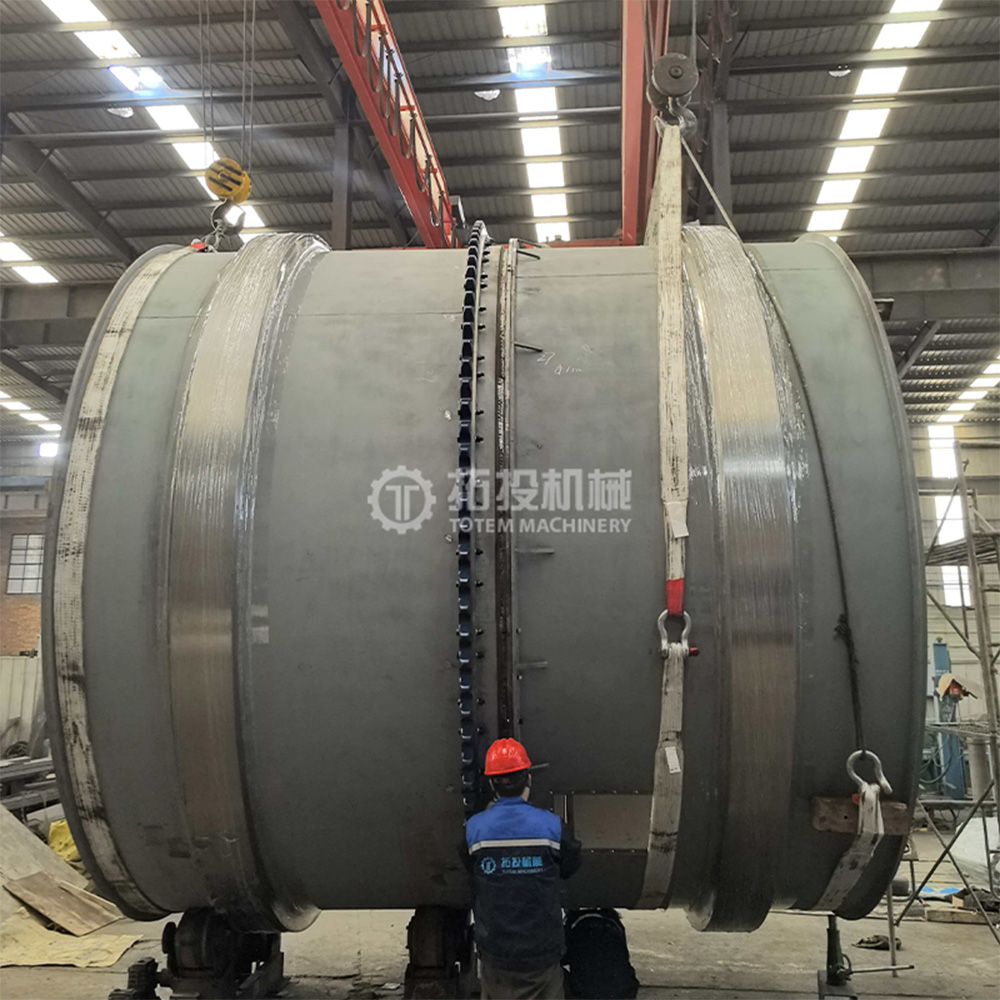

One of the most critical stages in this project was the alignment of the large drum assembly. Because the machine used multiple cylindrical sections, the engineering team needed to maintain a common axis through the assembled structure. Misalignment at the connection between drum sections could create radial deviation, uneven rotation, and additional loading on the transmission and support system.
The alignment process began with reference-point verification and end-face positioning. Inner-wall straightness was then checked to identify local deviation across the assembled cylinder. Rather than relying on a single measurement, the drum was rotated and run-out was inspected repeatedly at relevant locations. Adjustments were made until the assembly met the applicable project requirements before work continued to the next stage.
Run-out describes how much a rotating surface deviates from its intended rotational path. Excessive deviation can cause cyclic loading because the drum does not rotate concentrically around its designed axis. Over time, this may contribute to abnormal vibration, uneven wear, changes in internal clearance, and additional stress on bearings, chains, sprockets, or supporting structures.
For a large trommel screen, run-out should therefore be treated as an acceptance parameter rather than a cosmetic dimensional issue. The inspection method should use stable reference points and repeatable measurement positions. Results also need to be interpreted against project drawings and approved tolerances rather than a generic value taken from another machine.

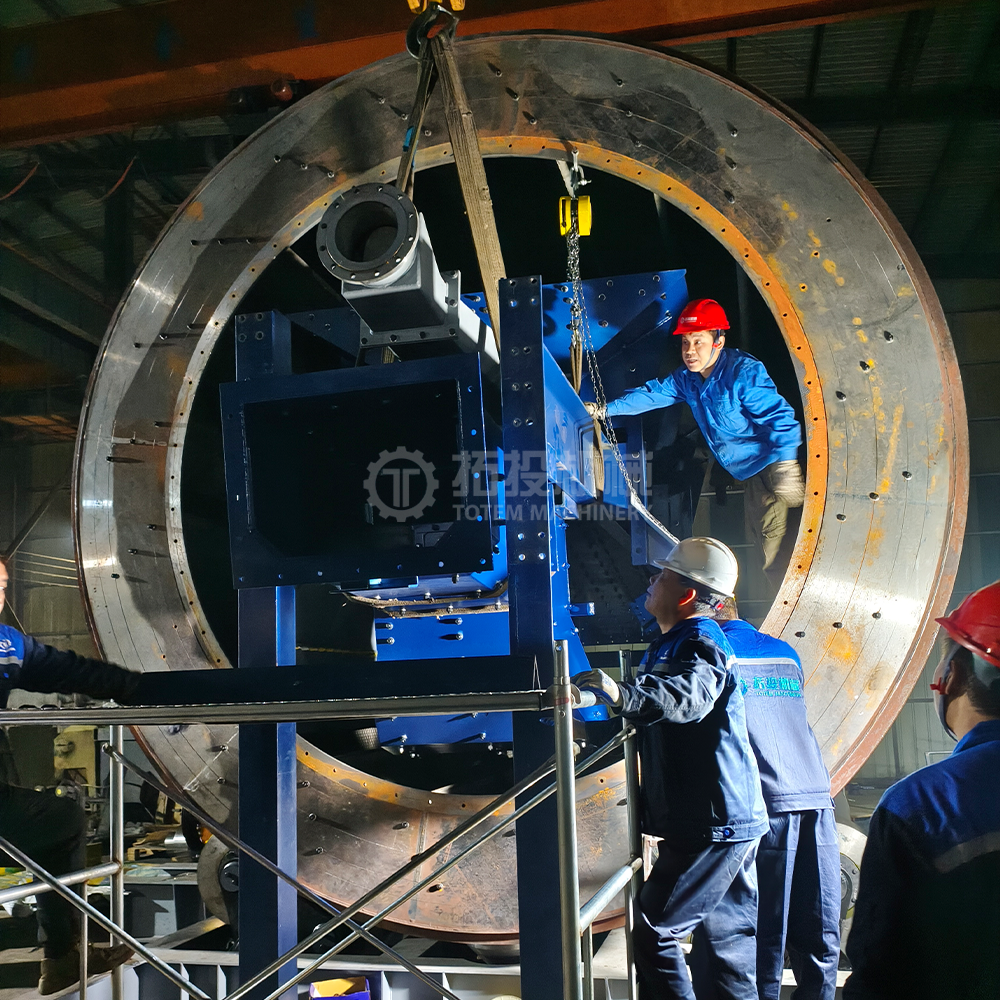

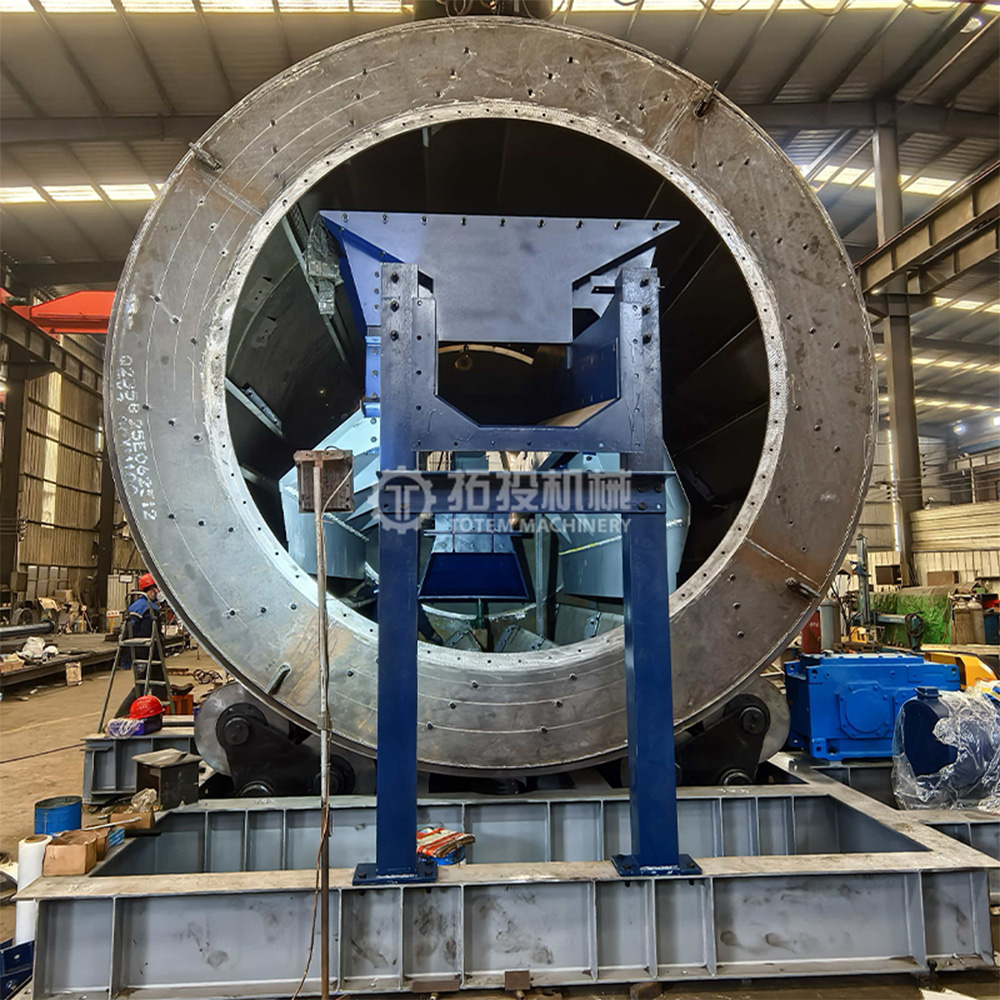

After drum alignment, the feeder and internal components were installed and checked for proper position. Particular attention was given to the clearance between the feeder, liner, and surrounding rotating surfaces. These components may appear correctly positioned while the drum is stationary, yet contact can occur when the assembly turns through a full revolution.
A manual or low-speed rotation check helps identify this type of interference before a powered trial begins. Engineers can observe resistance, unusual contact marks, scraping, or changing gaps as the drum moves. Correcting an interference problem at this stage is far easier than addressing damage after full-speed operation. The same inspection also provides an opportunity to confirm that liners are secured and do not project into unintended contact zones.

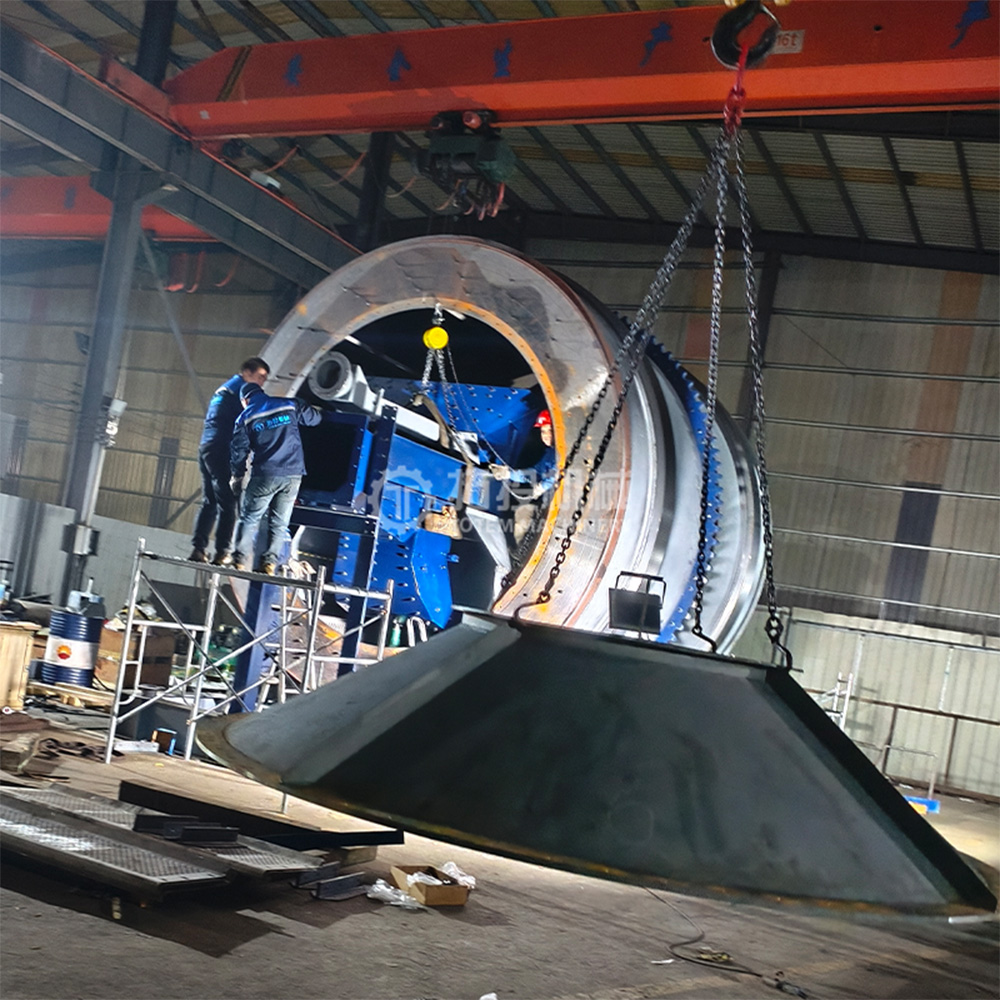

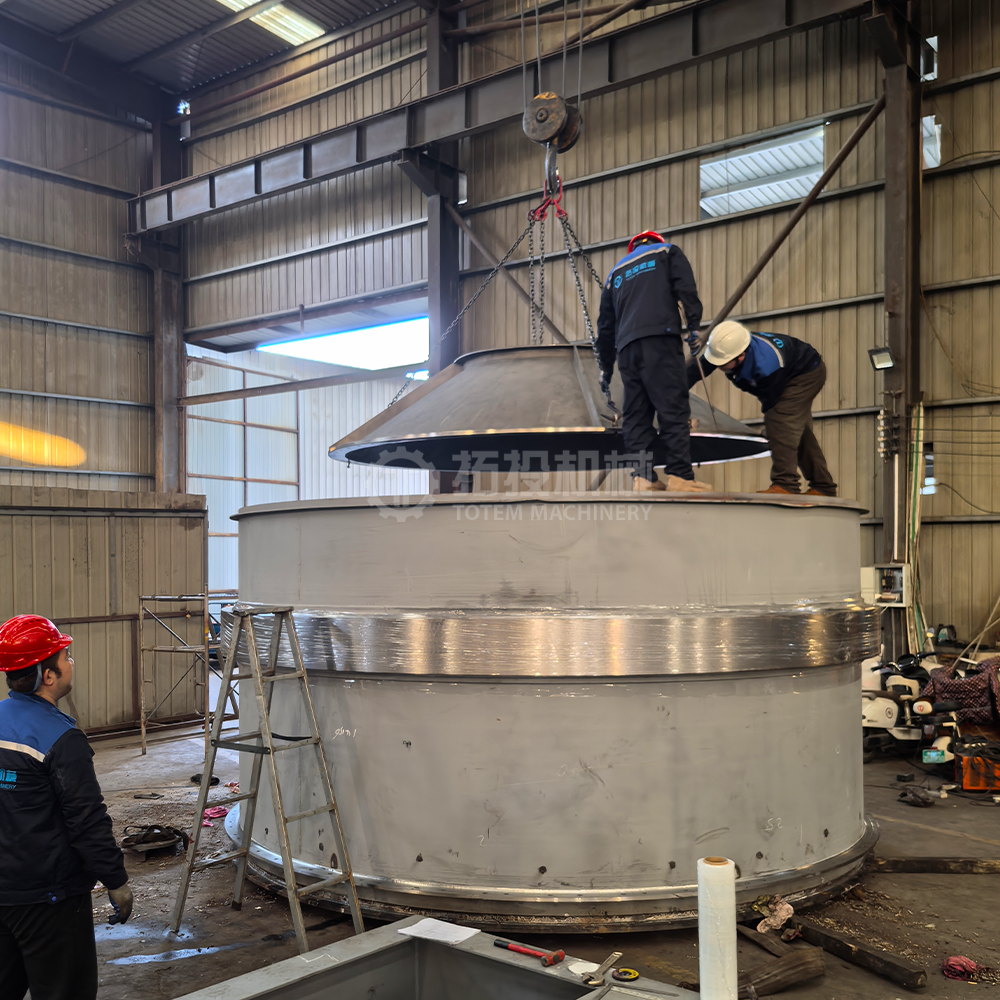

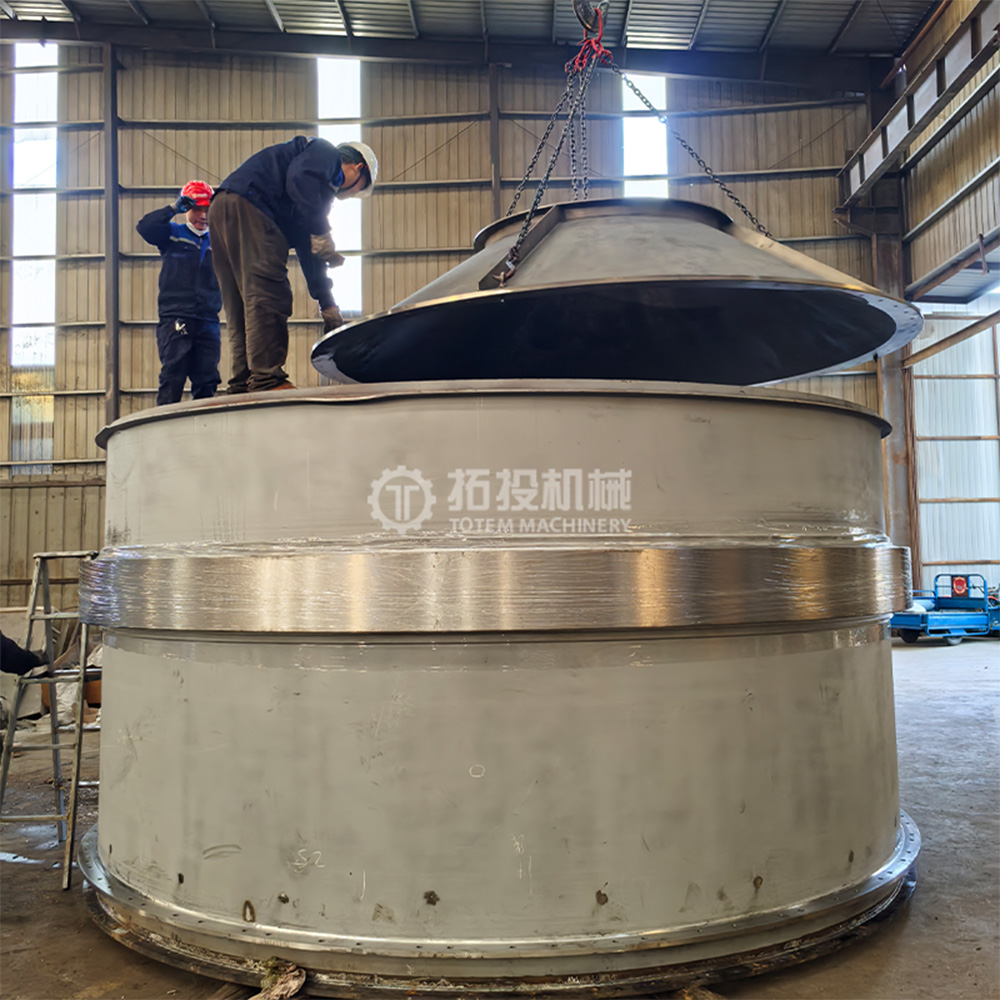

Large end covers require controlled installation because their weight and geometry can influence the final drum position. During this project, both end covers were assembled with coordinated handling to avoid uneven loading or distortion. Alignment was checked during fitting rather than assuming that bolt engagement alone would establish the correct position.
The goal is not simply to close the drum ends. End-cover assembly must preserve the centerline and maintain the clearances established during earlier alignment work. Uneven tightening or forced fitting can introduce local stress into a large welded structure. A synchronized installation procedure therefore reduces the risk of shifting previously verified geometry.

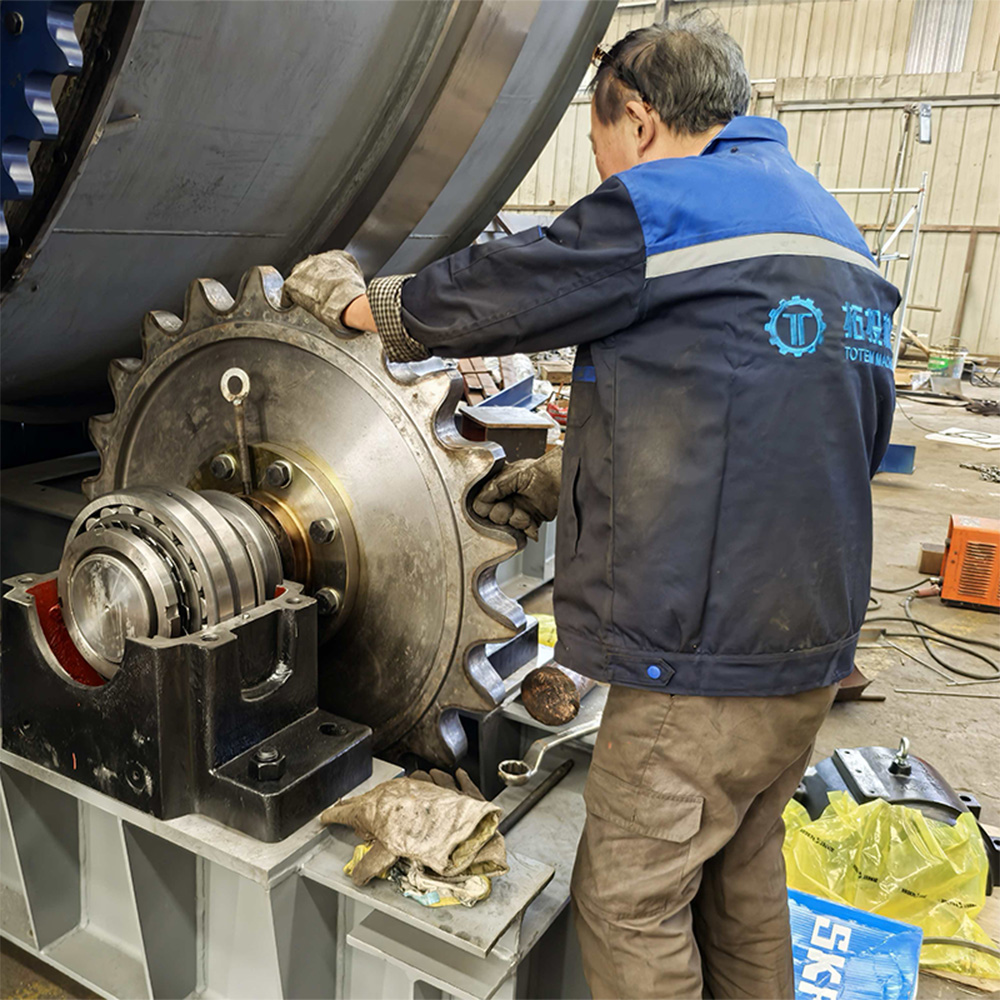

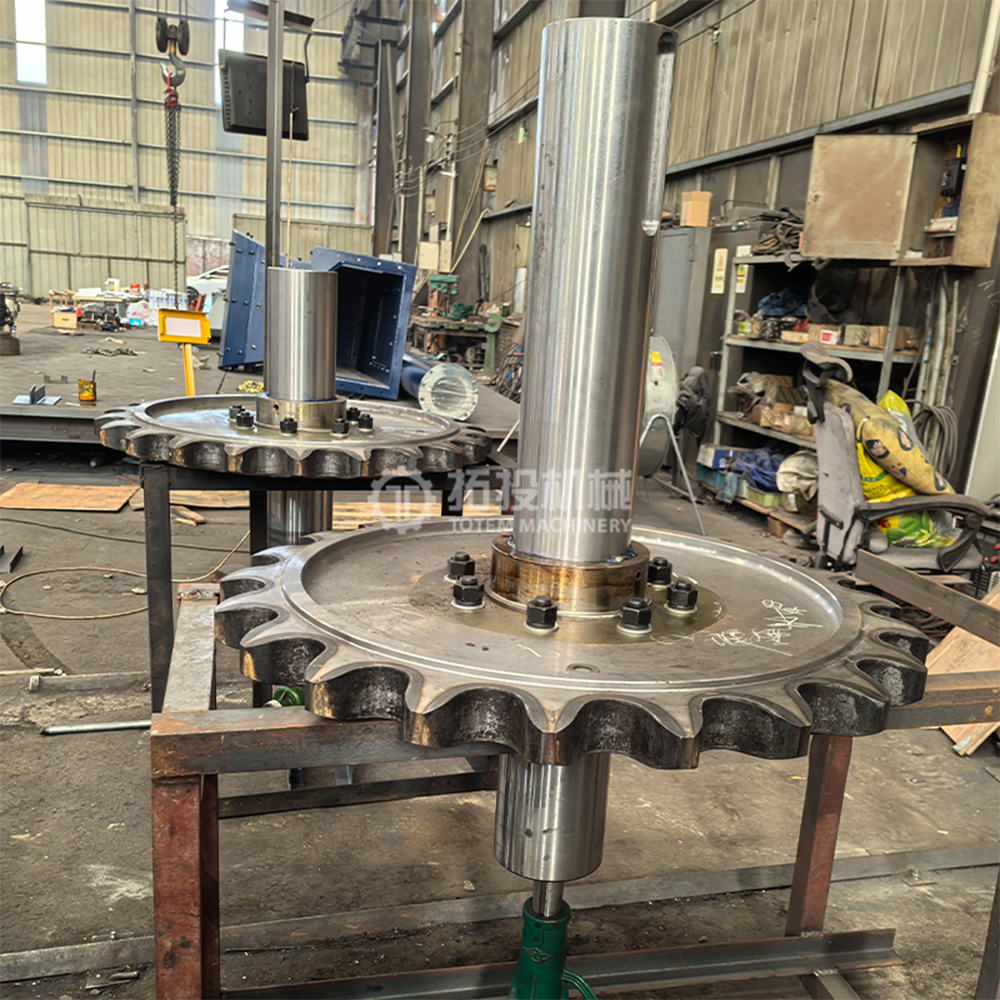

The transmission system used sprocket and chain components to drive the drum. Correct installation required attention to shaft position, tooth engagement, chain alignment, and the relationship between the drive components and bearing assemblies. Poor meshing can create repeated impact as each tooth enters the chain, while lateral misalignment may accelerate wear on both components.

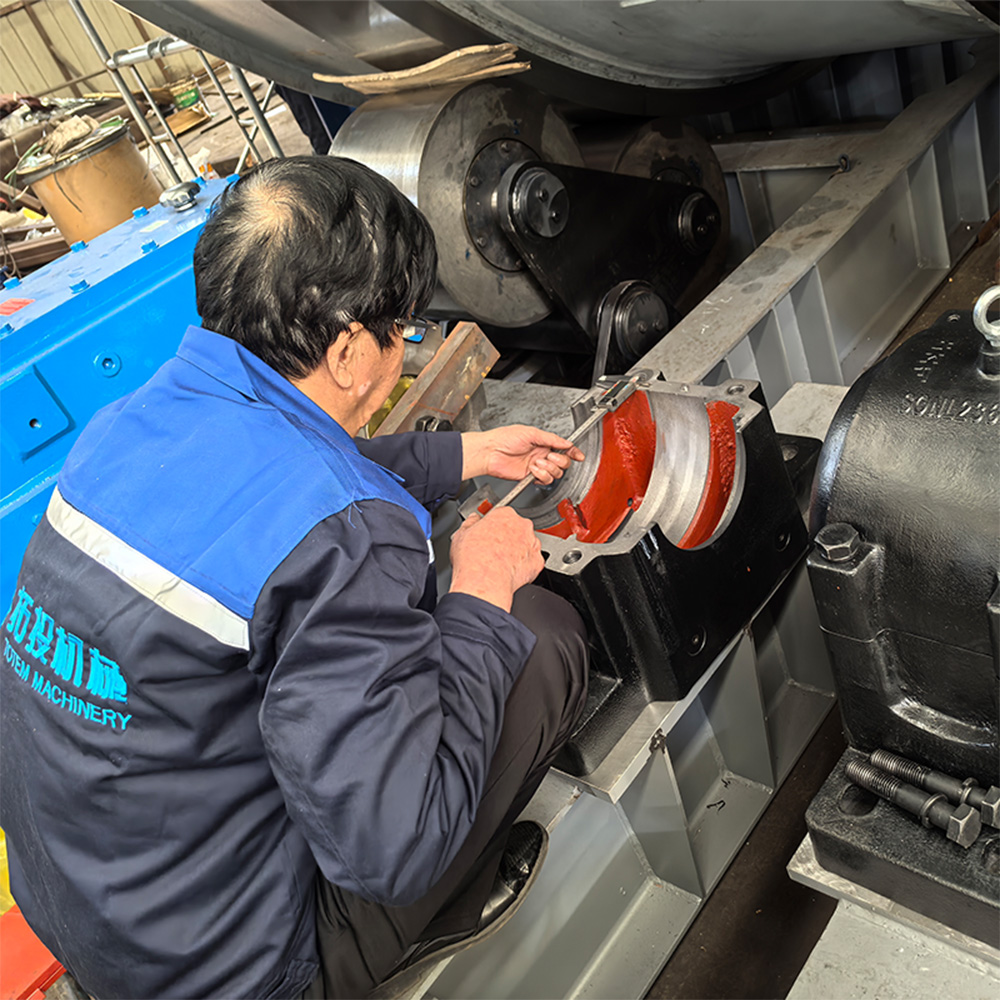

Bearing housings were also checked as part of the drive assembly. Lubrication passages must remain unobstructed, and sealing arrangements need to be correctly fitted before commissioning. In dusty coal environments, a labyrinth seal can help limit contamination reaching the bearing area, but its effectiveness depends on proper installation and maintained clearance. Transmission inspection should therefore include both power transfer and protection of supporting components.
Factory acceptance testing provides an opportunity to identify mechanical issues before equipment reaches the customer site. For a large coal trommel screen, the process should verify not only whether the machine runs, but whether critical relationships remain stable during rotation. Alignment, internal clearance, transmission behavior, lubrication, and vibration all need to be observed together.
During this project, the assembled machine was inspected through dimensional checks and operational testing. Welded areas, rotating components, drive engagement, and internal interfaces were reviewed before final acceptance. The purpose of this stage was to confirm that the assembled equipment matched engineering requirements and showed no obvious abnormal behavior during the test.
Verify drum alignment and measured run-out against approved project requirements.
Inspect chain and sprocket engagement through a complete operating cycle.
Confirm that the feeder, liners, and drum maintain adequate clearance during rotation.
Check bearing housings, lubrication passages, seals, and accessible connection points.
Observe the machine for abnormal vibration, impact, scraping, or irregular mechanical noise.
Confirm that the drum rotates smoothly and that the transmission operates without visible instability.
Inspect accessible welds, fasteners, and structural connections before final release.
Record test observations so site installation and commissioning teams have a reference.
A checklist should never replace project-specific drawings or inspection procedures. Its value is to make sure that basic mechanical relationships are not overlooked during a busy pre-shipment test. For customized mining machinery, traceable inspection records can also improve communication between the manufacturer, customer, and site installation team.
A no-load or controlled trial run reveals problems that static dimensional inspection may not show. Once the machine begins rotating, engineers can observe how the drum, chain drive, bearings, feeder, and internal components behave as one system. Abnormal vibration, periodic noise, changing clearances, or inconsistent chain motion may indicate alignment or installation issues that require further inspection.
The machine should also be observed for smooth acceleration and stable rotation. If vibration changes cyclically with drum position, run-out or imbalance may deserve attention; if noise repeats at the transmission frequency, chain and sprocket engagement should be checked. Any contact between liners and surrounding components needs to be investigated before prolonged operation. A successful trial run is therefore an engineering verification process, not simply a demonstration that the motor can turn the drum.
Several mechanical issues deserve attention before a rotary drum screen enters service. Excessive run-out may indicate alignment or fabrication deviation, while abnormal vibration can result from multiple causes, including misalignment, uneven loading, loose components, or transmission problems. Chain noise may be associated with poor sprocket engagement, incorrect alignment, or unsuitable tension.
Internal rubbing usually requires a clearance inspection around feeders, liners, end structures, and other stationary parts. Bearing temperature should be monitored because overheating may be related to lubrication, contamination, alignment, or excessive load. Troubleshooting should proceed systematically rather than changing several components at once. Identifying the operating symptom, locating its frequency or position, and comparing it with assembly measurements usually provides a clearer path to the cause.
Large mining equipment is costly and complex to correct after delivery, particularly when site access, lifting equipment, and production schedules are involved. A thorough factory inspection can reduce the likelihood that basic assembly problems are first discovered during field commissioning. It also allows the customer to review workmanship, mechanical operation, and acceptance records before shipment.
For this coal screening project, the overseas client visited TOTEM Machinery to inspect the completed assembly and trial operation on site. The inspection covered the major mechanical systems and confirmed the completion of the agreed manufacturing and testing stages. More importantly, the process demonstrated why practical assembly controls—such as drum alignment, clearance checks, transmission inspection, and repeated trial rotation—are essential for customized rotary screening equipment.
A reliable trommel screen depends on more than drum size and screening area. Alignment, run-out control, feeder and liner clearance, transmission installation, bearing protection, and disciplined factory testing all influence mechanical stability once the equipment enters service. This coal rotary drum screen project illustrates how repeated dimensional checks and controlled trial operation can identify problems before shipment. Combining correct equipment selection with careful assembly and acceptance testing gives mining operators a stronger foundation for stable screening performance and easier field commissioning.
The terms are commonly used to describe the same general screening principle: material moves through a rotating cylindrical drum while smaller particles pass through openings in the screening surface. Naming conventions vary by industry and manufacturer. In mining, “trommel screen,” “rotary screen,” and “rotary drum screen” may all be used for similar equipment, although individual machine designs can differ.
Possible causes include fabrication deviation, incorrect assembly, poor alignment between drum sections, distorted connections, or movement during installation. Run-out should be measured at defined positions using an appropriate reference system. The acceptable value must come from the specific machine design or approved project documentation.
Inspection typically includes drum alignment, run-out, internal clearances, chain and sprocket engagement, bearing condition, lubrication, structural connections, and trial rotation. Engineers should also watch for abnormal vibration, unusual noise, rubbing, and unstable transmission behavior. Project-specific acceptance procedures take priority over generic checklists.
A rotary screen can be configured for difficult feed conditions, but performance depends on material moisture, particle characteristics, screen opening, drum design, and cleaning arrangements. Sticky material may reduce open screening area and lower efficiency. The feed should therefore be evaluated before equipment selection rather than assuming one screen configuration will suit every coal source.
Start with drum run-out, alignment, loose structural connections, transmission engagement, bearing condition, and any evidence of internal contact. The timing of the vibration can help narrow the cause; cyclic vibration linked to drum rotation may indicate a different issue from vibration associated with the drive system. Measurements should be compared with baseline commissioning records whenever available.
