As a cornerstone of national energy security, the petrochemical industry's supply chain continuity and stability directly impact the operational efficiency of the macroeconomy. In integrated refining–chemical complexes, core turbomachinery (e.g., cracking gas compressors, rich gas compressors, high-pressure feed pumps, etc.) operates continuously under extreme conditions—high temperature, high pressure, hydrogen-rich environments, and severe corrosion. Regression analysis based on historical operation and maintenance data shows that the failure rate curve of such equipment follows the classic "bathtub curve", and toward the end of the operating cycle, the risk of unplanned shutdown due to fatigue accumulation and material degradation rises exponentially.
Currently, petrochemical enterprises are transitioning from traditional "periodic planned maintenance" to "condition‑based predictive maintenance". However, supply chain responsiveness often lags behind this transition. According to incomplete statistics, delays in overhaul schedules caused by shortages or substandard quality of critical spare parts account for more than 15% of total unplanned downtime, resulting in production losses amounting to several hundred million yuan.
This project addresses exactly this pain point. Leveraging our profound mechanical processing expertise, we aim to build a spare‑part production and service system that integrates "data sensing – precision manufacturing – agile delivery". We do not merely produce parts. Instead, by analyzing vibration spectra, temperature gradients, and medium corrosion rates during unit operation, we accurately predict part service life. Through advanced manufacturing processes, we fill the gap in domestic production of high‑end spare parts, resolve "bottleneck" challenges, and provide solid support for the safe, long‑term operation of petrochemical plants.
Targeting the high‑frequency demands and critical bottlenecks of petrochemical unit overhauls, this project defines four major product series. All products strictly comply with API (American Petroleum Institute), ASME (American Society of Mechanical Engineers), and GB standards, ensuring full interchangeability with original equipment.
Centrifugal Compressor Core Spare Parts Series focuses on dynamic performance and material strength of high‑speed rotating components. Key products include closed/open three‑dimensional flow impellers, forged from 17‑4PH precipitation‑hardening stainless steel or Ti‑6Al‑4V titanium alloy, with a maximum outer diameter up to Φ1200 mm, blade profile machining accuracy controlled to IT5 grade, and dynamic balance precision reaching G2.5, ensuring stability at speeds above 10,000 rpm. Rotor assemblies are manufactured from 34CrNiMo6 high‑strength alloy steel, with journal surfaces coated via High‑Velocity Oxygen‑Fuel (HVOF) spraying, achieving a coating hardness of HV800 or above and runout tolerance within 0.02 mm.
Industrial Pump Wear‑Resistant Spare Parts Series addresses cavitation and corrosive‑wear issues. Double‑suction/single‑suction pump impellers are precision‑cast from CF8M or CD4MCu duplex stainless steel, with flow‑channel surface roughness Ra ≤ 3.2 μm to enhance hydraulic efficiency. Pump shafts and sleeves are made of 2Cr13 or 17‑4PH, subjected to quenching and tempering followed by surface induction hardening, with a hardened layer depth of 3–5 mm. Mechanical seal friction pairs use silicon carbide vs. antimony‑impregnated graphite, with flatness controlled within 0.0009 mm (measured by optical interference method), ensuring zero‑leakage operation.

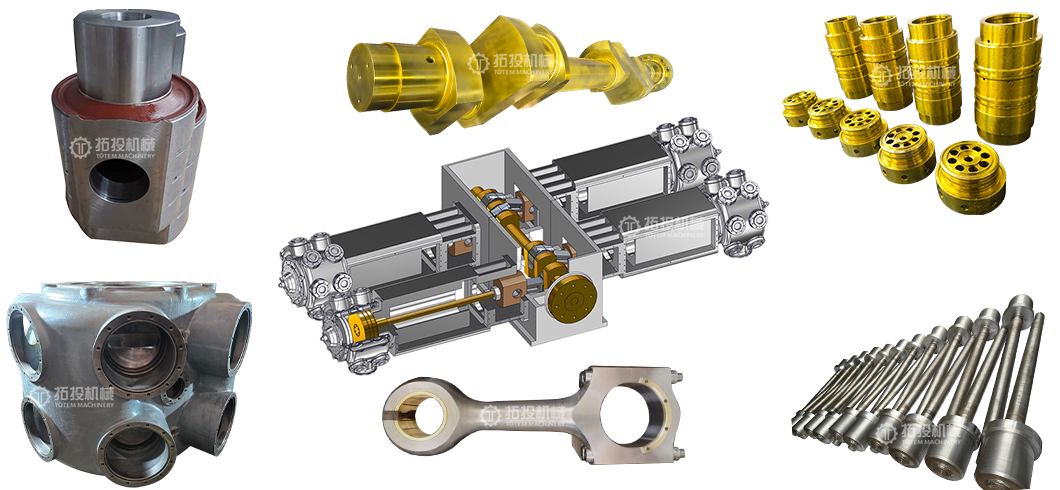

Reciprocating Compressor Load‑Bearing Parts Series emphasizes fatigue resistance under high impact loads. Crosshead bodies are made of ZG35CrMo, with slide surfaces lined with Babbitt alloy, achieving a bonding strength ≥ 60 MPa. Piston rods are manufactured from 40CrNiMoA, with hard chromium plating (0.05–0.10 mm thickness), and undergo 100% ultrasonic testing (UT) and magnetic particle testing (MT), conforming to SEP 1921‑84 Ultrasonic Testing of Forgings and Forged Materials. Connecting rod bolts have a tensile strength ≥ 900 MPa, ensuring no fracture under alternating stresses.
Valve and Piping Critical Components Series is designed for high‑temperature, high‑pressure hydrogen‑rich environments. High‑temperature gate valve bodies are made of WC6/WC9 heat‑resistant steel, with pressure ratings covering Class 150–2500. Hard‑sealed spheres and seats are overlaid with Stellite alloy, achieving a hardness of HRC 55–60 and metal‑to‑metal zero‑leakage sealing. High‑pressure flanges and fasteners (B7/B7M materials) are strictly controlled for yield strength and impact toughness, passing hydrogen‑induced cracking (HIC) tests.
To guarantee the manufacturing quality of these high‑end spare parts, this project will implement full‑stream digital process control and a stringent quality inspection system, achieving a leap from “manufacturing” to “quality‑driven manufacturing”.
Precision Forming and Microstructure Control form the foundation of product quality. In the forging stage, thermo‑mechanical coupled finite element simulation (FEM) is used to optimize the forging ratio (>3.0) and temperature field, ensuring intact metal flow lines and grain size controlled to ASTM class 6 or finer. For complex structural parts, Magma software is employed to simulate casting filling and solidification, with chills and insulating risers arranged to achieve directional solidification, eliminating shrinkage porosity, and achieving casting soundness to ASTM E446 class 2.
Surface Modification and Strengthening Technologies are key to extending spare‑part service life. For critical friction pairs such as compressor rotors and piston rods, high‑velocity arc spraying and laser cladding are applied. By precisely controlling laser power, scanning speed, and powder feed rate, a metallurgically bonded high‑performance alloy coating is produced on the substrate, with a bond strength exceeding 400 MPa and wear resistance 3–5 times higher than the base material, significantly prolonging service life in particulate‑containing media.
Digital Machining and Precision Assurance Systems span the entire production cycle. Five‑axis linkage machining centers are introduced for complex surfaces like impellers, with NURBS interpolation algorithms reducing machine tool vibration. In the inspection stage, a metrology center consisting of Coordinate Measuring Machines (CMM) and laser scanners is established to perform 100% inspection of critical dimensions. Statistical Process Control (SPC) is implemented to monitor the process capability index (Cpk) of key operations in real time, requiring Cpk ≥ 1.33 to ensure machining stability.
Full‑Lifecycle Quality Traceability System (MES) assigns a unique “digital ID” to each spare part. All data—from raw material heat number, heat treatment curves, machining parameters, to NDT reports—are stored on an immutable blockchain. In the event of a quality dispute, full‑chain traceability can be completed within 1 hour, providing solid data support for the HSE management of petrochemical enterprises.
Agile Delivery Strategy Based on Critical Chain Project Management (CCPM) . In view of the tight timelines of overhaul windows, we apply CCPM to identify resource bottlenecks and set buffers. A genetic algorithm optimizes production scheduling, achieving optimal resource allocation under multi‑project parallel operation. Compared with traditional production models, we expect to shorten the lead time for emergency spare parts by 20%–30%, ensuring on‑time delivery within the overhaul window.
Value Proposition Based on Life‑Cycle Cost (LCC). Although the initial procurement cost of high‑performance spare parts may be slightly higher than ordinary products, material upgrades and process optimization extend the Mean Time Between Failures (MTBF) by more than 30%. We provide customers with LCC analysis reports, demonstrating that using our spare parts reduces unplanned shutdown risks and lowers maintenance frequency, thereby achieving a total cost reduction of over 15% over the entire plant lifecycle.
Value‑Added Technical Services. Beyond physical products, we offer failure analysis services. Using Scanning Electron Microscopy (SEM) and Energy‑Dispersive Spectroscopy (EDS), we analyze replaced worn parts to identify root causes of wear, corrosion, or fracture, and propose improvement recommendations. This helps petrochemical customers optimize process operations, transforming our role from "spare parts supplier" to "equipment health management partner".
The project for manufacturing spare parts for petrochemical unit overhauls is not merely the construction of a high‑end equipment manufacturing base, but also an innovation in industrial service models. By integrating core technologies—precision forging, special welding, CNC machining—and combining big‑data analytics with modern supply chain management, we are capable of breaking the dependence on imported high‑end petrochemical spare parts and resolving industry pain points. In the future, we will continue to deepen research and development of materials and processes, leveraging data as wings and technology as core, to safeguard the safe, efficient, and green operation of China’s petrochemical industry.
