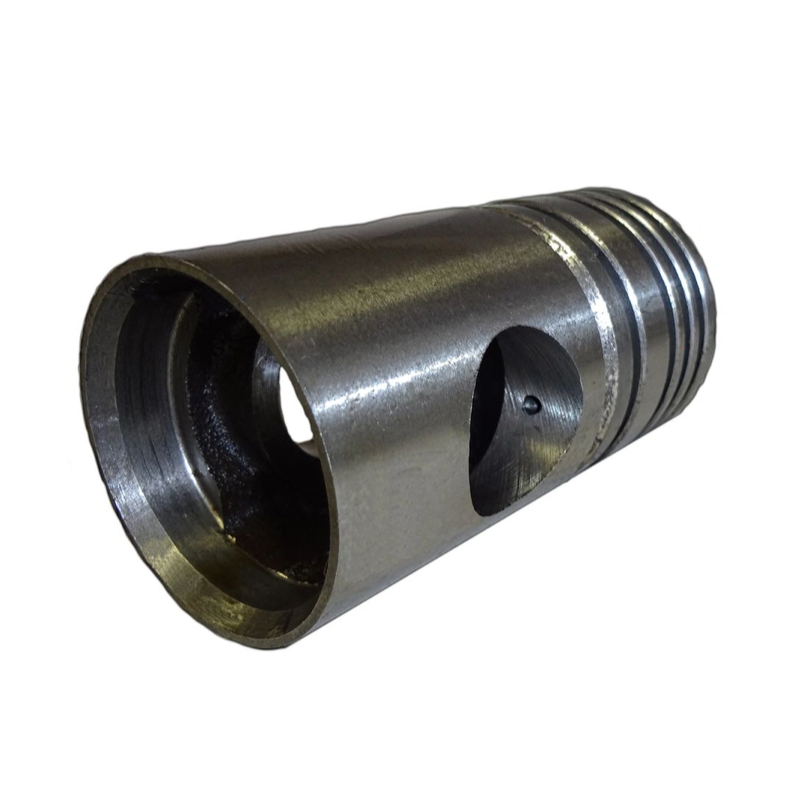

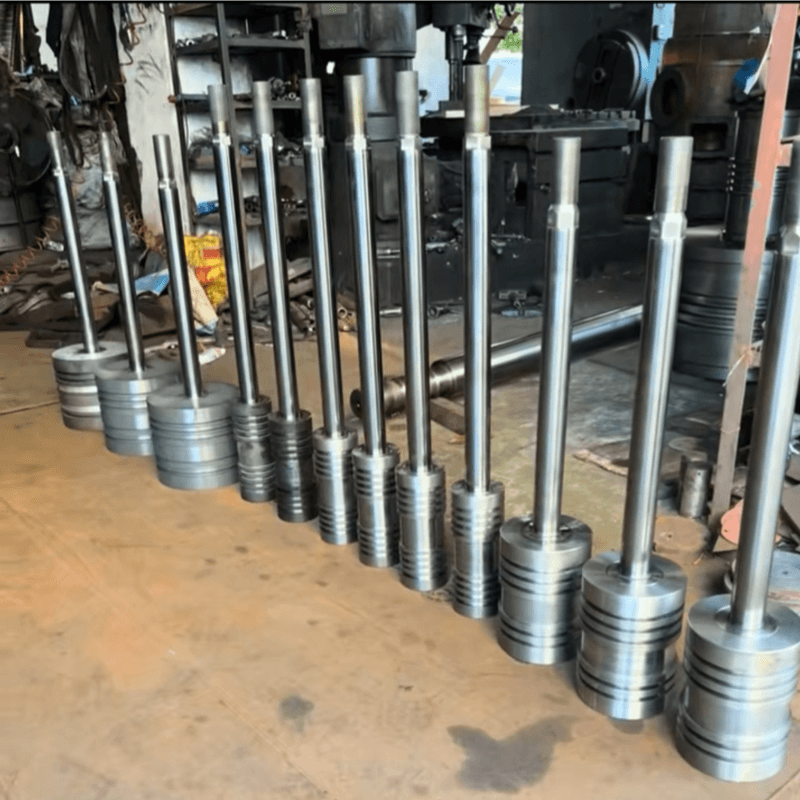

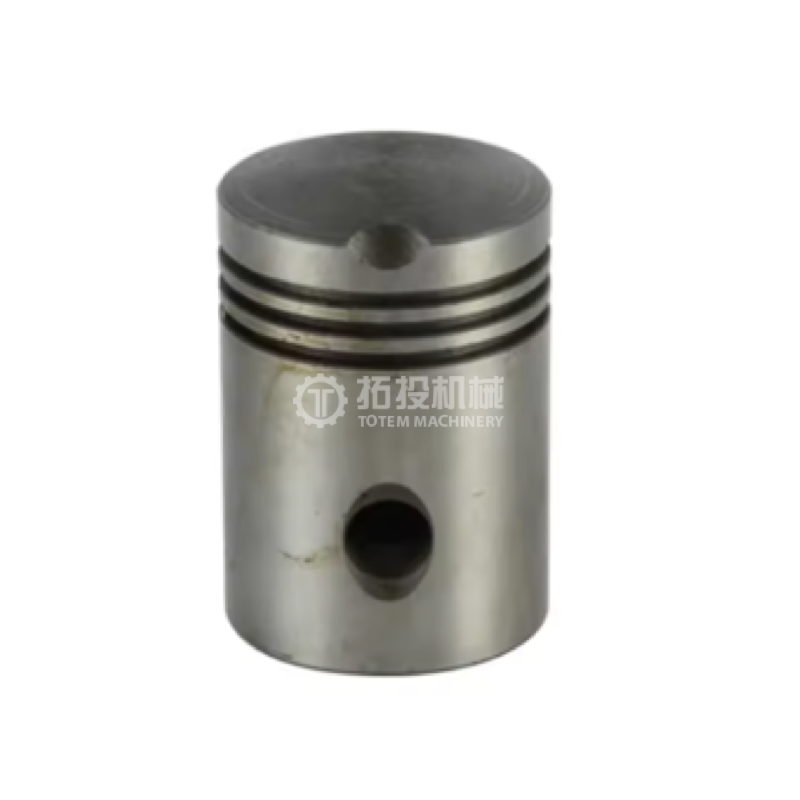

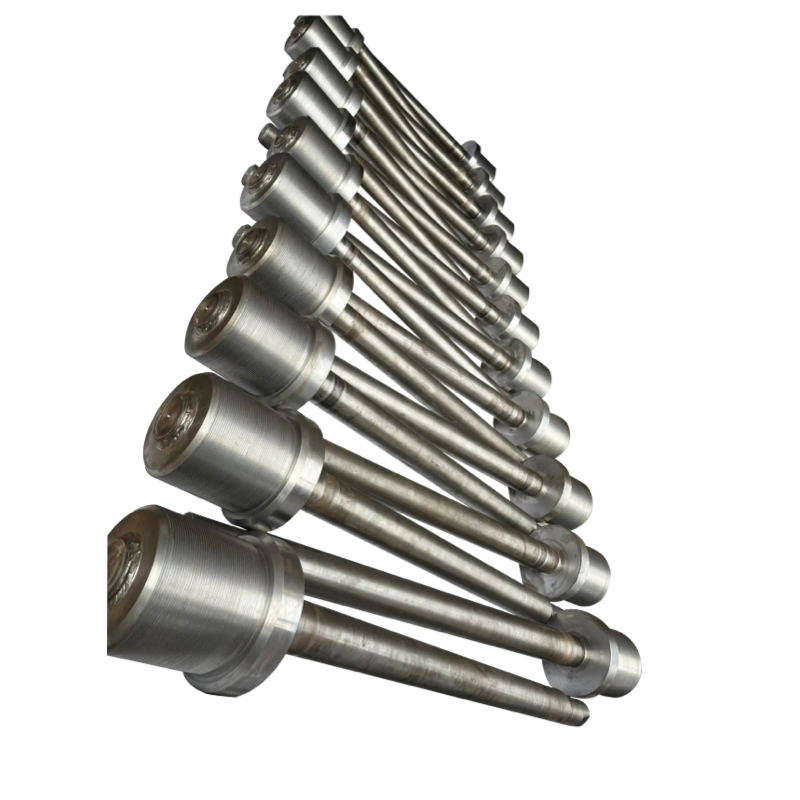

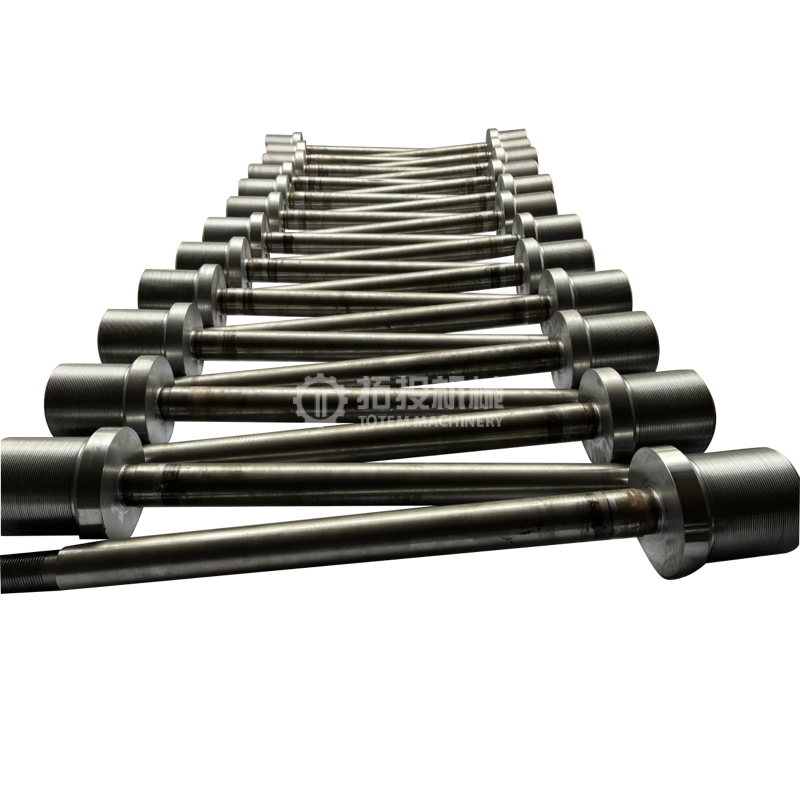

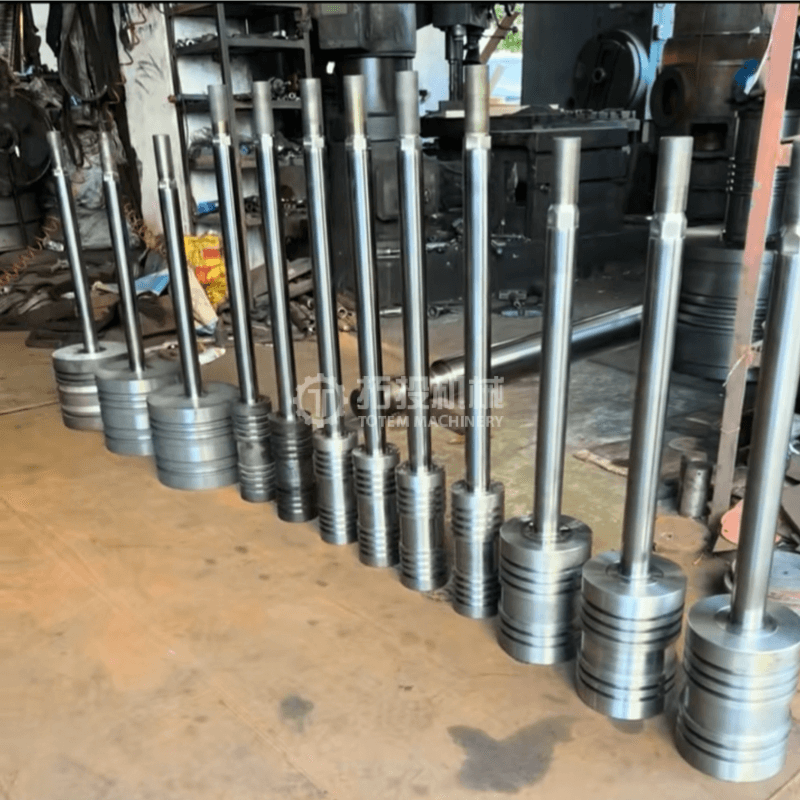

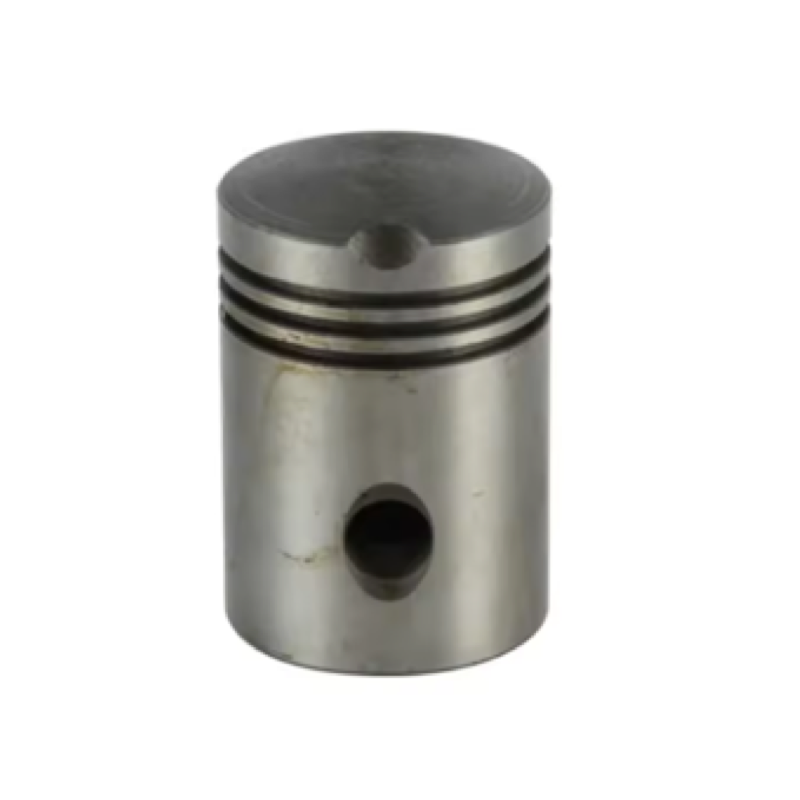

The reciprocating compressor piston head (or piston rod terminal) is a critical component engineered for demanding industrial environments. It is meticulously composed of a high-strength structural body, a precise machining ring groove system, a stable guided load-carrying design, and a highly reliable piston rod connection method. Its primary function is to execute continuous reciprocating motion inside the gas cylinder. By dynamically changing the gas cylinder's working volume, the return stroke creates optimal suction conditions. During compression, it effectively increases cylinder pressure, compressing the gas and driving the exhaust process with maximum efficiency. This robust structural composition ensures long-term operational stability and helps procurement teams minimize equipment downtime for maintenance.
The cylinder rod end is specifically designed to directly withstand the severe axial forces generated by high-pressure gas within the cylinder. It safely and efficiently transmits this force through the connecting structure to the piston rod, crosshead, and crankshaft mechanism. Simultaneously, it is built to endure the alternating loads caused by rapid reciprocating inertia forces. By precisely installing piston rings to form a tight sealing pair with the cylinder liner or cylinder wall of the piston rod body, this system significantly reduces gas leakage from the high-pressure side to the low-pressure side. This advanced sealing capability not only improves overall volumetric efficiency but also strictly controls internal leakage and prevents abnormal temperature rises, protecting the entire compressor system.
 |  |  |
 |  |  |
Effective thermal management and lubrication are essential for the longevity of compressor components. The structure of the piston rod terminal is strategically designed to distribute lubricating oil evenly throughout the assembly and rapidly dissipate frictional heat. Depending on specific operational requirements, the design can incorporate advanced cooling features, integrated oil reservoirs, or specialized oil-guiding structures. These innovations work together to reduce girdle temperature rise, effectively decreasing the risk of oil coking and abnormal wear on critical surfaces. Furthermore, the piston rod end acts as the primary medium that converts gas pressure into reliable mechanical output, while the precision-engineered rings provide essential sealing and guidance. This synergy ensures that the compression process remains efficient, smooth, and highly durable over extended operating cycles.
Our connecting rod head is purpose-built to face continuous operating challenges and high-cycle fatigue conditions. To guarantee superior performance, our design, manufacturing, and quality control processes revolve around four key objectives: achieving high coaxiality, ensuring low leakage, maintaining low wear, and extending the overall service life. The piston body utilizes a high-stiffness architecture with a highly reasonable load distribution design to withstand extreme mechanical stress.
During manufacturing, critical reference surfaces and ring grooves undergo simultaneous precision machining. We implement strict control over coaxiality, end runout, and ring groove dimensional chains to ensure stable and secure piston ring seating. Guide rings are meticulously configured to distribute loads evenly across the cylinder, significantly reducing the risk of uneven wear, surface scoring, and cylinder damage. To meet diverse industrial demands, we provide tailored material selections, specialized heat treatments, and wear-resistant surface solutions optimized for different media, operating temperatures, and lubrication methods. These customized engineering approaches greatly enhance the piston head's fatigue resistance, impact resistance, and long-term wear stability, providing a reliable, low-risk solution for critical compressor applications.
Packaging & Shipping
When procuring critical components like the High Durable Piston Rod Terminal Piston Head for Gas Compressors, ensuring that the parts arrive at your facility in pristine condition is just as important as the manufacturing process itself. We have established a rigorous packaging and shipping protocol designed to eliminate the risks of transit damage, corrosion, and precision loss, guaranteeing that every piston head is ready for immediate installation upon arrival.
Before any piston head is cleared for packaging, it undergoes comprehensive process quality control. We provide fully traceable delivery documentation to support your on-site maintenance and inventory management. Each shipment includes detailed material certificates, heat treatment records, critical dimension inspection reports, and necessary non-destructive testing (NDT) or functional verification results. This rigorous documentation ensures batch consistency, predictability, and complete transparency for your procurement team.
Gas compressor components often face long transit times and varying environmental conditions, including moisture, salt spray, and extreme temperature fluctuations. To combat these risks, we implement targeted protection for all critical machined surfaces and mating areas. Prior to packaging, every exposed metal surface undergoes meticulous cleaning, rustproofing, and sealing. We employ multiple protective measures, utilizing premium rust-preventive oil, specialized rust-proof paper, and high-barrier rust-proof film. This chemical and physical barrier effectively prevents any corrosion risks during international shipping or long-term warehouse storage.
Beyond chemical protection, safeguarding the dimensional accuracy of the piston head is our top priority. Critical sealing surfaces, ring grooves, and reference surfaces are highly susceptible to scratches and impacts during handling and transportation. To mitigate this, we utilize custom-designed isolation shields and robust cushioning materials. These physical barriers lock the component securely in place, absorbing shocks and preventing any metal-to-metal contact.
The ultimate goal of our packaging strategy is to deliver a "ready-to-use" product. By preventing transit-induced damage, we ensure that the piston head can be assembled directly into your gas compressor upon arrival, without requiring any secondary repairs, cleaning, or dimensional corrections. This significantly reduces downtime and streamlines your maintenance operations.
