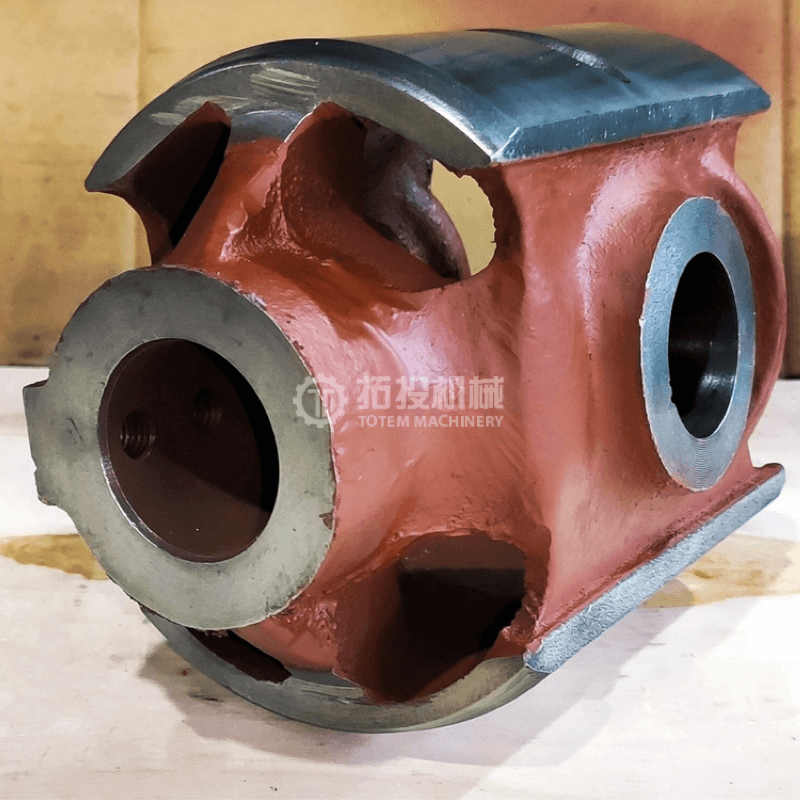

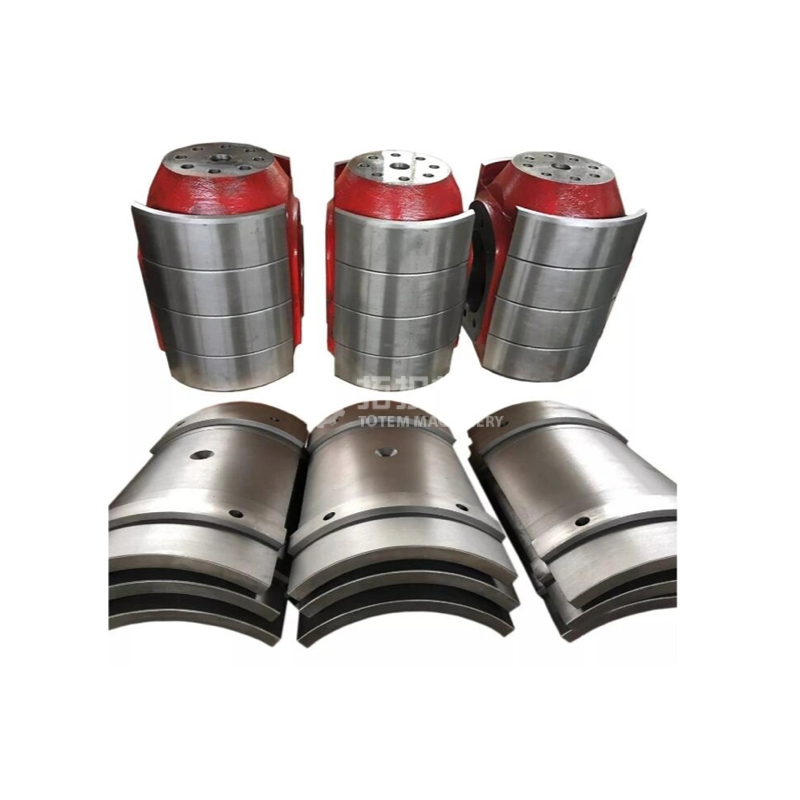

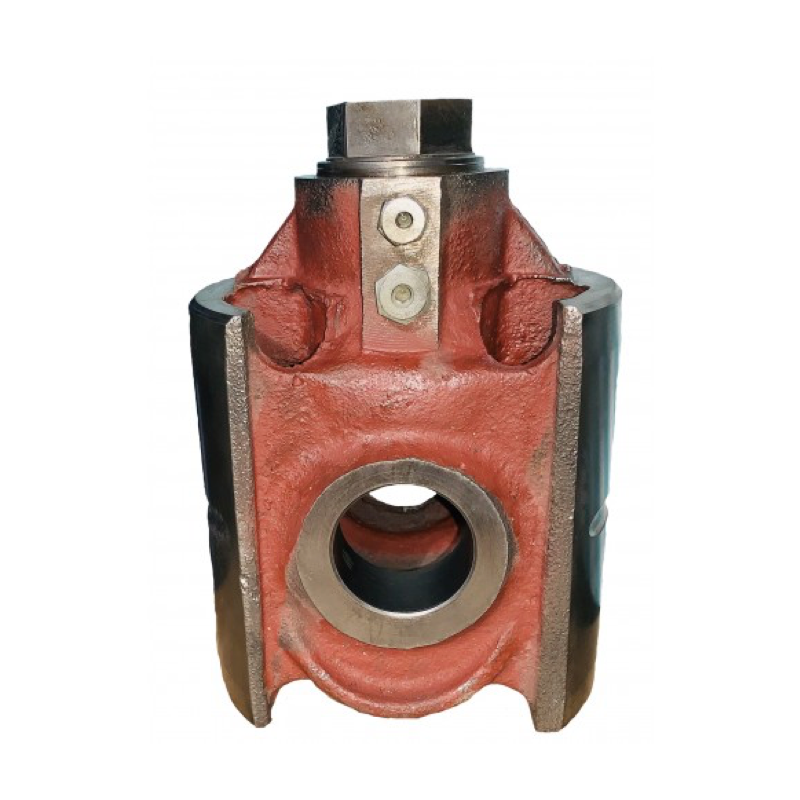

The Crosshead Guide serves as the critical load-bearing and directional component within the crank connecting rod structure of reciprocating compressors. Positioned strategically between the connecting rod and the piston rod, this assembly dictates the mechanical integrity of the entire compression cycle. Through the precision-machined crosshead pin, it consistently transfers the reciprocating inertial forces of the connecting rod and the internal gas load directly to the sliding guide rail. Simultaneously, it isolates destructive lateral forces, redirecting them into the compressor body guide system. This precise force distribution significantly reduces eccentric loading on both the piston rod and the stuffing box, thereby extending the sealing life and overall operational reliability.
To achieve this exceptional mechanical harmony, our manufacturing process utilizes advanced multi-axis CNC machining centers, strictly controlling geometric tolerances and surface roughness to micro-inch levels. The resulting tactile finish on the sliding surfaces ensures a perfect, low-friction mating with the guide rails. Furthermore, we provide a complete component integration package to streamline your installation process:
High-Strength Crosshead Pins: Engineered to withstand intense sheer forces during peak compression cycles.
Wear-Resistant Alloy Bushings: Designed to maintain internal dimensional stability and reduce friction.
Anti-Loosening Fasteners: Securing the entire assembly to prevent vibration-induced detachment, substantially decreasing the time your technical teams spend on field assembly and operational calibration.
Reciprocating compressor crossheads operate continuously under exceptionally demanding environments characterized by heavy mechanical loads, high-frequency reciprocating motion, and fluctuating boundary lubrication scenarios. The physical demands placed on these components require extraordinary material strength, exceptional fatigue resistance, and absolute dimensional stability under severe thermal stress. The kinetic energy transfer generates significant friction, demanding surface finishes that can retain lubricating films even during momentary pressure drops.
To address these severe conditions, our engineering team has meticulously optimized the internal lubrication adaptability of the crosshead block. The design features strategically routed internal oil passages and precision-milled surface oil grooves. These enhancements are fully compatible with both full-pressure lubrication setups and divider block oil injection systems. By ensuring a consistent and evenly distributed hydrodynamic film across all contact points, this design effectively mitigates boundary friction, prevents metal-to-metal contact, and protects the entire drive mechanism from premature wear, even during fluctuating operational cycles.
 |  |  |
 |  |  |

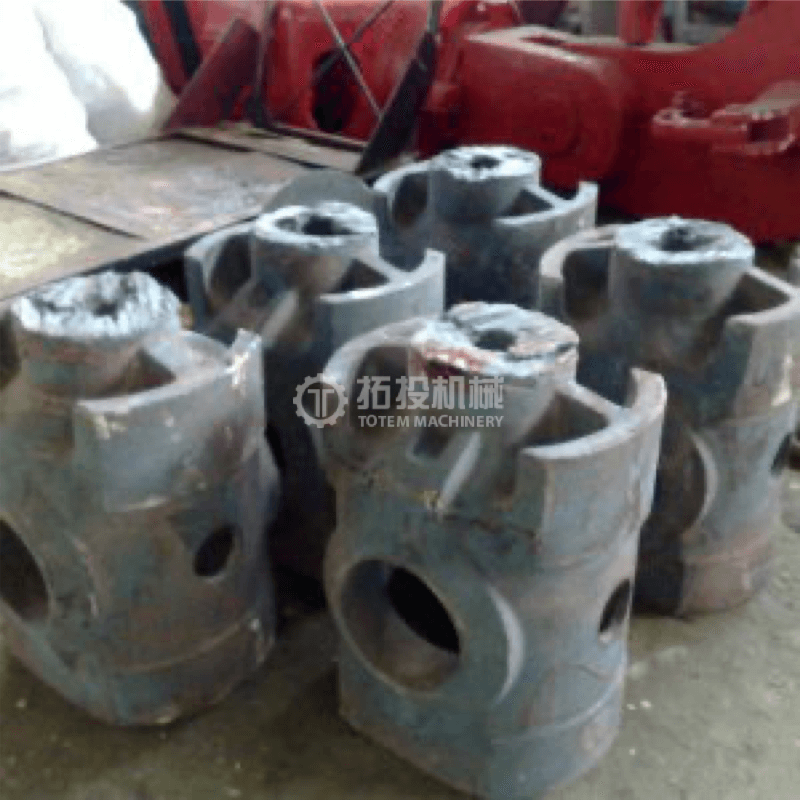

For general operating conditions characterized by standard mechanical loads, our forged Crosshead products adopt premium QT600-3 and QT700-2 high-strength nodular cast iron. This specific metallurgical composition is selected for its excellent structural integrity and dependable shock absorption capabilities. Following a rigorous tempering process, the internal matrix of the cast iron is refined, allowing the tensile strength to reliably reach out ≥700MPa. Simultaneously, the ballistic work capacity achieves Akv≥35J.
This precise balance of tensile strength and impact resistance ensures the component can withstand continuous operational stresses without structural deformation. The nodular graphite structure within the iron also provides a degree of natural dampening against mechanical vibrations. For procurement teams and facility managers, this material configuration represents an outstanding balance of performance and cost-effectiveness. It delivers long-term operational stability for standard compression tasks without the premium costs associated with specialized super-alloys, ensuring predictable maintenance schedules and dependable daily output.

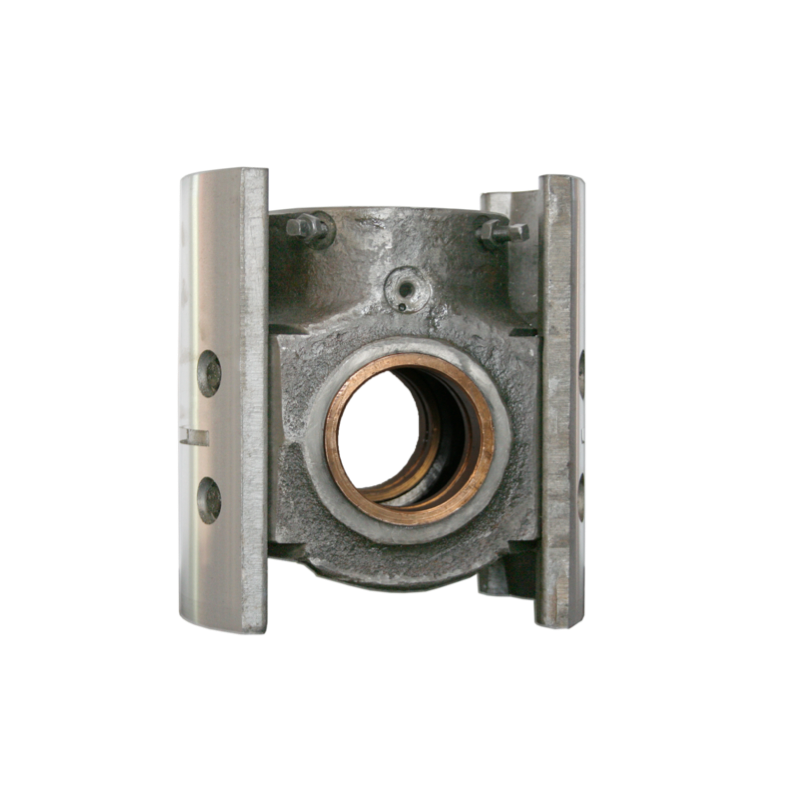

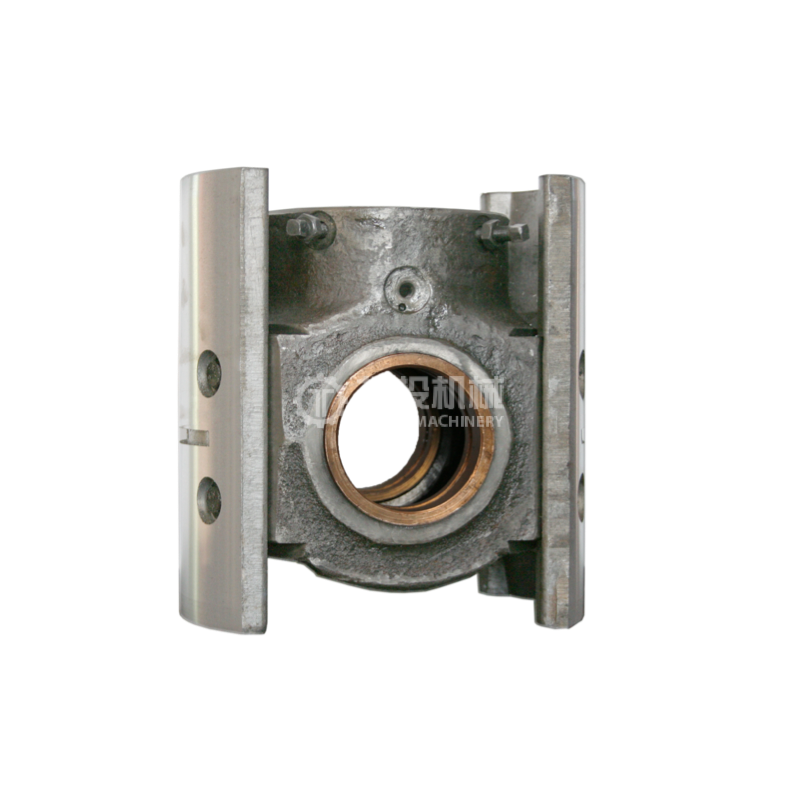

When the Crosshead Assembly is deployed in medium and heavy load conditions, or specifically within oil-free compression systems, standard cast iron is replaced with specialized copper alloys. Our material selection includes premium ZCuSn10P1 tin bronze and ZCuAl10Fe3 aluminium bronze. These alloys are processed using advanced centrifugal casting techniques, which actively refine the grain size and align the micro-structure of the metal.
This centrifugal process dramatically improves the overall material density, strictly maintaining a Porosity ≤ 0.5%. The resulting dense, uniform structure eliminates internal voids that could lead to fatigue failure under heavy loads. More importantly, these bronze alloys feature inherent friction-reducing properties. The microscopic surface structure retains solid lubricants and minimizes galling against steel mating surfaces. This makes the assembly exceptionally suited for oil-free lubrication applications, where liquid oil cannot be introduced into the compression chamber, ensuring clean gas output while maintaining mechanical longevity.

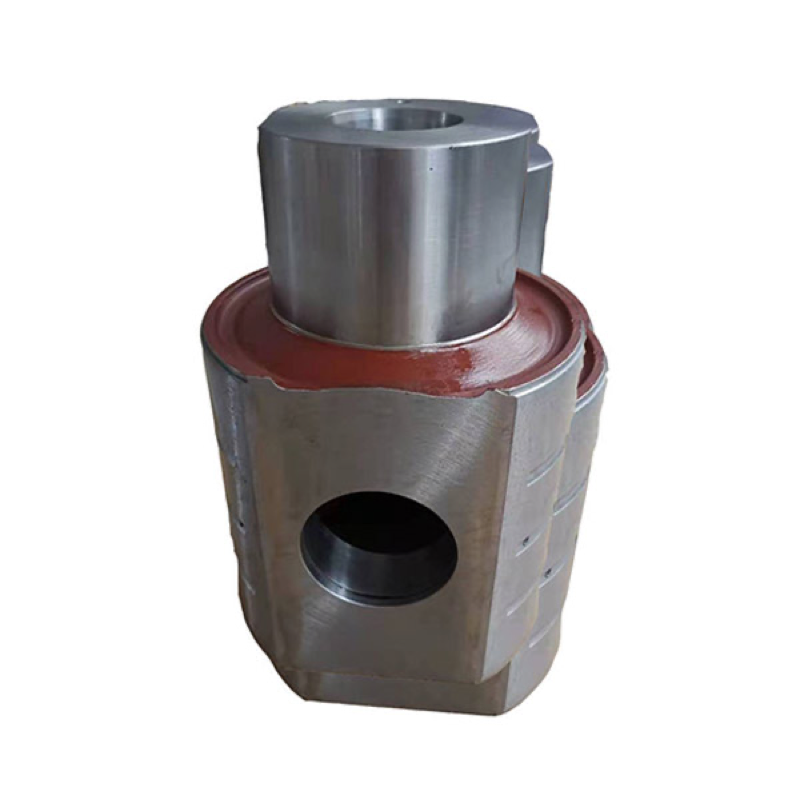

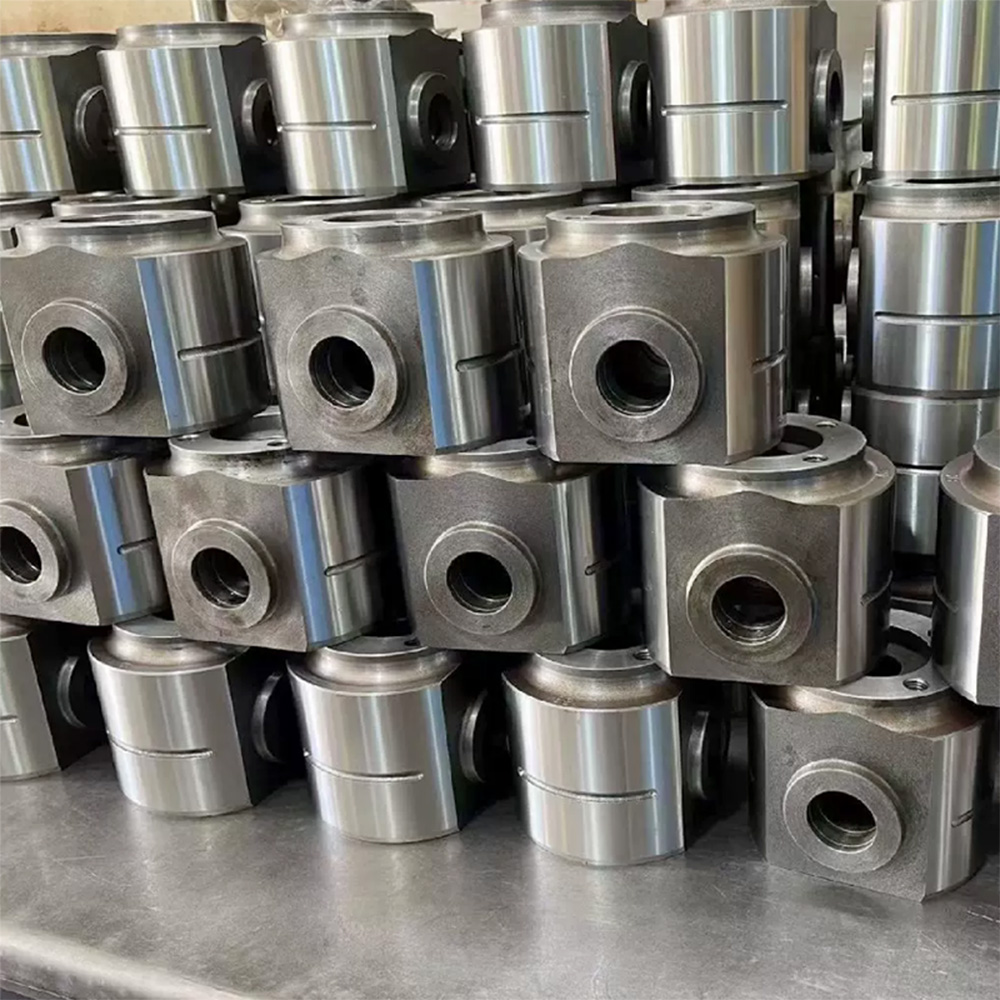

Operating within super high-pressure parameters or highly corrosive environments—such as those found in chemical processing or offshore gas extraction—requires extreme material resilience. When the Crosshead Block was used in these harsh conditions, we construct the assembly using 304/316L stainless steel or advanced duplex steel. These materials inherently resist chemical degradation, but we further enhance their surface properties through a specialized nitriding treatment.
This thermochemical process diffuses nitrogen into the surface of the steel, creating a hardened, wear-resistant outer layer while maintaining a tough, ductile core. After this surface nitriding treatment, the overall corrosion resistance of the component has been enhanced by more than 3 times compared to untreated stainless steel. The resulting surface exhibits a distinct, matte metallic finish that is highly resistant to pitting and chemical attack. This makes the engineered block perfectly suitable for harsh environments such as those containing aggressive oil, raw natural gas, and volatile chemicals, preventing premature degradation.
The steel crosshead assembly of our company surrounds three primary sell points designed specifically for technical teams and procurement decision-makers at Compressor manufacturers, Oil and Gas chemical enterprises, heavy industrial manufacturers, and refrigeration and air conditioning companies:
Customized Technical Solutions: Tailoring dimensions and material properties to fit specific operational demands, solving poor adaptability issues.
Long Life Low Maintenance: Utilizing advanced metallurgy to prevent premature wear, directly addressing high maintenance costs and high return rates.
Suitable for All Scenes: Engineered to withstand harsh working conditions, including extreme high pressure and severe corrosion.
By addressing these common industry pain points, our assemblies solve the challenges of high-standard precision assembly. To validate our designs, we conduct exhaustive fatigue strength simulation testing on every custom profile. As a result, our assemblies achieve a designing life ≥30000hrs (Exceeding the industry average by 50%), making it suitable for continuous operation and optimizing the total cost of ownership for complex industrial compression systems.
To guarantee the absolute reliability of every crosshead block assembly, we implement a rigorous, multi-tiered quality control protocol. Every unit leaving our facility is accompanied by comprehensive documentation, including Ultrasonic Testing (UT) and Magnetic Particle Testing (MT) reports, alongside Coordinate Measuring Machine (CMM) dimensional verification. This strict non-destructive testing regimen ensures zero internal casting defects and guarantees high operational reliability.
Furthermore, our engineering department relies on advanced Finite Element Analysis (FEA) and professional performance modeling software to provide end-to-end technical solutions. Whether your project requires on-site dimensional mapping, complex reverse engineering of legacy components, or entirely non-standard customization, our team delivers precise blueprints tailored to your exact mechanical requirements. We back our manufacturing excellence with extended warranty commitments that surpass standard industry practices, coupled with 24/7 technical support. This comprehensive service framework safeguards your compressor's continuous operation and dramatically reduces lifecycle maintenance expenditures.
