In marine propulsion systems, the thrust shaft is a key component that transmits power from the main engine to the propeller, directly affecting the reliability of the vessel’s navigation.
1. Successful project case: The manufacturing strength behind the image
2. Main application areas for thrust shafts
3. Classification society certification
4. Future industry trends

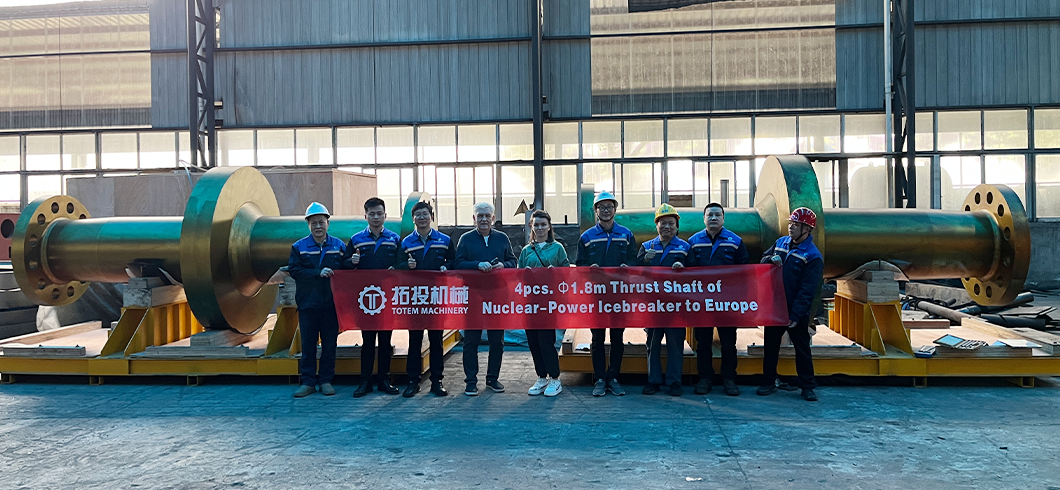

In recent years, our company has completed the manufacturing of four heavy-duty thrust shafts for a key ship project and passed the client’s strict acceptance at one time. These thrust shafts are made of 38CrNi3MoV high-strength alloy steel, which offers superior rigidity and impact resistance. These thrust shafts are specifically designed to cope with the extreme ice-breaking conditions of 4-meter-thick ice layers on Arctic shipping routes and can withstand the huge instantaneous ice load generated when the propeller collides with ice.
The total length of this batch of drive shafts reaches 4 meters, and the thrust collar in the middle is as long as 1.8 meters. These are large-scale precision driving shafts with extremely high manufacturing difficulty. During forging, the 90-degree angle area between the shaft body and the thrust collar is extremely sensitive to temperature control. If the heat treatment process is improper, shrinkage cracks are highly likely to occur in this area, and the cracks will gradually deepen, eventually leading to the scrapping of the entire thrust shaft. Relying on years of forging experience and heat treatment expertise, our technical team successfully overcame this difficulty and ensured that each thrust shaft is completely free of crack defects, laying a solid foundation for subsequent processes.
The 4-meter-long marine thrust shaft places extreme demands on the control of roundness and coaxiality. During the machining process, the greatest technical challenge lies in ensuring that the entire shaft remains on the same centerline while rotating. We adopted large precision CNC machine tools combined with a mature clamping process, ultimately achieving precision far exceeding the design standard.
The run-out test index that the customer was most concerned about was designed to be 0.02mm. Through precision machining and strict inspection, the actual run-out test of the final ship thrust shafts was controlled within 0.01–0.015mm, far exceeding customer expectations. After conducting a comprehensive inspection on site using advanced equipment such as laser alignment instruments, the customer representative highly praised the dimensional accuracy and surface quality of the thrust transmission shaft, and verified the classification society certificates and relevant inspection reports on the spot.
From raw material to final delivery, every step of this batch of thrust axis was completed under the joint witness of our quality team and classification society surveyors. Our company passed the customer's strict acceptance inspection at one go, further consolidating our professional position in the market for core components of marine power transmission.
Propulsion shafts are not only used in conventional ships, but also serve as key components to ensure reliable system operation in numerous special equipment and extreme working conditions. The thrust axles produced by our company, with their excellent product performance and classification society certification qualifications, can be widely applied in the following multiple professional fields:
· Conventional marine propulsion systems: Our company's marine thrust shafts have been applied to various types of ships such as bulk carriers, oil tankers, and container ships, and have been operating with stable reliability.
· Polar icebreakers and ice-reinforced vessels: This is the field with the highest performance requirements for marine drive shafts. When an icebreaker is operating, the propeller blades often collide with ice blocks, generating a huge instantaneous ice load. Research shows that the ice load impact significantly increases the torsional vibration of the marine propulsion shaft and affects the working efficiency of shaft components. Therefore, drive shafts used for icebreakers must have very high impact resistance and fatigue strength. Our thrust shafts have already taken into account the enhanced regulations for ice zones during the design phase, such as the Finnish-Swedish ice class rules, and have passed the relevant ice class certification of classification societies. As a result, our thrust shafts can handle the complex loads under extreme ice conditions and ensure the safe operation of ships in polar navigation areas.
· Large industrial rotating equipment: In large turbomachinery such as turbines, blowers, slurry pump drive systems for suction dredgers, and centrifugal pumps, specialized shaft sections capable of withstanding high axial loads are required. Our company possesses extensive experience in the customized manufacturing of such components and can provide certification services in accordance with industrial standards such as API and ISO.
· Large oil tankers and dynamic positioning systems: In large oil tankers, the thrust shaft is continuously under high-load and low-speed operating conditions, which requires higher load-bearing capacity and wear resistance. These types of ships navigate continuously for many months, and maintenance cannot be carried out during voyage. Therefore, extremely high requirements are placed on the reliability of the thrust shaft. Moreover, for ships that adopt electric propulsion and are equipped with dynamic positioning systems, the thrust shaft must also accommodate frequent variations in both rotational speed and thrust to ensure positioning accuracy.
Classification society certification is one of the most important quality certificates. Obtaining certification from an authoritative classification society means that the thrust shaft complies with internationally recognized standards in every step, including design, material, manufacturing, and inspection. The thrust shafts produced by us have obtained multiple internationally recognized classification society certificates, including ABS, BV, CCS, and others. This provides clients with sufficient quality assurance.

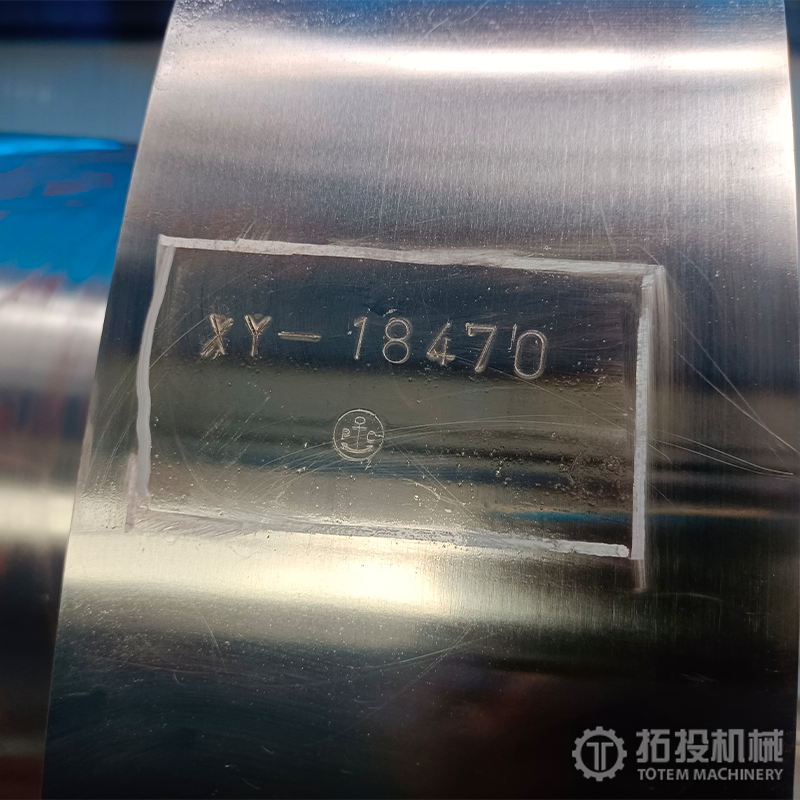

Stamp
Run-out Test
MT
In the marine industry, how to control the longitudinal vibration of the shafting system and how to prevent the thrust shaft from moving forward and backward due to external interference are both key points of technological breakthrough in the industry. We will continue to invest in research and development, combining advanced finite element analysis methods with precision processing techniques, and keep up with the latest regulations of international classification societies to provide superior, reliable thrust shafts and full life-cycle services for global customers. We believe that with excellent thrust shafts quality and professional technical services, our company will win more clients' trust in the marine thrust shaft field.
