Tilting pad bearings are widely used in critical rotating machinery where rotor stability, reliable fluid-film lubrication, and controlled shaft position are essential. Unlike a fixed-profile bearing, each pad can pivot slightly as the shaft or thrust collar moves, allowing a hydrodynamic oil wedge to develop under operating conditions. This feature makes the design particularly valuable in turbines, compressors, generators, gearboxes, pumps, and marine propulsion equipment.
Selecting the right bearing, however, involves much more than choosing a journal diameter or thrust capacity. Engineers must consider load direction, speed, clearance, pad geometry, lubrication, bearing material, rotor dynamics, installation conditions, and monitoring requirements. Understanding these factors helps explain both the advantages and the limitations of tilting pad bearings.
A tilting pad bearing is a fluid-film bearing made from several independently supported pads arranged around a journal or facing a thrust collar. Each pad pivots through a small angle in response to hydrodynamic pressure, producing a converging lubricant film between the moving surface and the bearing face. During normal operation, this oil film separates the principal sliding surfaces and carries the applied load without continuous direct metal-to-metal contact.
Many industrial designs use steel-backed pads with a white-metal working surface because white metal bearings provide useful conformability, embeddability, and anti-seizure characteristics for demanding rotating equipment. Other materials may be selected when temperature, load, lubricant, speed, or specific project requirements call for a different solution. The final material system should therefore be treated as part of the complete bearing design rather than as an isolated purchasing choice.

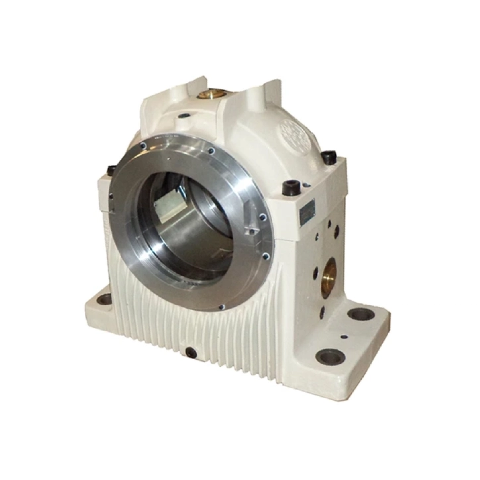

The term tilting pad bearing covers more than one bearing arrangement. A journal design supports primarily radial load, whereas a thrust design controls axial load from the rotor or shaft line. Some machines require both functions and use separate or integrated journal-and-thrust arrangements.
| Bearing Type | Main Load | Basic Arrangement | Typical Engineering Focus |
|---|---|---|---|
| Tilting pad journal bearing | Radial | Pads surround the rotating journal | Rotor stability, clearance, preload, pad orientation |
| Tilting pad thrust bearing | Axial | Pads face a rotating thrust collar | Axial load distribution, pad support, lubrication |
| Combination arrangement | Radial and axial | Journal and thrust elements work together | System geometry, available space, thermal and dynamic interaction |
Within a thrust assembly, the Babbitt thrust pad is one of the principal load-carrying components. Its geometry, backing structure, working surface, support arrangement, and oil supply all influence how the hydrodynamic film develops. A combination bearing should likewise be evaluated as part of the complete rotor-bearing system rather than simply as two independent bearing functions placed together.
The operating principle is based on hydrodynamic lubrication. As the journal or thrust collar moves relative to the bearing surface, lubricant is drawn into the narrowing gap created by the pad angle. Pressure develops inside this converging oil film and supports the applied load, while the pad finds an operating position determined by load, speed, geometry, lubricant properties, and thermal conditions.
Because each pad can respond individually, tilting pad bearings do not behave like fixed-geometry sleeve bearings. The journal also does not remain perfectly centered; instead, it operates at an equilibrium position determined by the bearing load and fluid-film forces. Changes in operating conditions can shift that position and alter bearing stiffness, damping, temperature, and minimum film thickness.
One major reason for using a tilting pad journal bearing is its favorable rotordynamic behavior. Fixed-profile hydrodynamic bearings can develop cross-coupled fluid-film forces that may contribute to subsynchronous vibration under certain operating conditions. Independently pivoting pads reduce these destabilizing cross-coupled effects, which is why the design is frequently selected for high-speed turbomachinery.
This does not mean that tilting pad bearings eliminate every possible vibration problem. Rotor unbalance, misalignment, resonance, structural flexibility, coupling problems, lubrication disturbances, and process forces can still produce unacceptable vibration. Proper bearing selection therefore needs to be supported by an assessment of the complete rotor-bearing system.
A fixed-profile bearing is mechanically simpler and may be entirely suitable where speeds, loads, and rotor-dynamic demands are moderate. Tilting designs become especially attractive when stability margins, variable operating conditions, or critical machinery reliability justify greater design complexity. The choice should be based on actual machine behavior rather than an assumption that one bearing architecture is universally superior.
Self-alignment also needs careful interpretation. Pad pivoting allows local adjustment of the lubricant wedge, but it does not automatically correct every shaft, housing, or thrust-collar alignment error. Some thrust arrangements use additional equalizing mechanisms to improve load sharing, while dynamic runout or major installation errors may still require correction elsewhere in the machine.
The performance of tilting pad bearings depends on a group of interacting geometric and operating parameters. Changing one variable can influence temperature, load distribution, stiffness, damping, power loss, or film thickness elsewhere in the system. For that reason, configuration should be evaluated against the actual shaft, lubricant, housing, and duty cycle.
| Design Parameter | Why It Matters |
|---|---|
| Pad number | Influences load distribution, pad geometry, and dynamic bearing behavior |
| Bearing clearance | Affects oil-film geometry, temperature, stiffness, damping, and operating position |
| Preload | Changes the effective pad-to-journal geometry and fluid-film characteristics |
| Pivot offset | Influences the pressure distribution and operating behavior of each pad |
| Pad arc | Helps define the available hydrodynamic working surface |
| Bearing length / L-D relationship | Influences load distribution, thermal behavior, and installation envelope |
| Load orientation | Determines how the applied load is shared by the pads |
| Pivot design | Affects pad freedom of movement, support stiffness, contact conditions, and durability |
Tilting pad journal bearings are commonly described using load-on-pad and load-between-pads orientations. In a load-on-pad arrangement, the principal static load acts approximately toward one pad; in a load-between-pads arrangement, it acts between adjacent pads. These orientations change how individual pads share load and can alter bearing stiffness and rotor-dynamic response.
Neither arrangement should be labeled automatically as the better choice. Shaft direction, machine geometry, pad count, preload, clearance, dynamic coefficients, and expected operating range all matter. Rotordynamic analysis may therefore be required for highly critical equipment or retrofit projects.
Pads may use different pivot concepts, including point, line, spherical, rocker, or flexible supports depending on the bearing architecture. The support must permit the pad movement required to establish a hydrodynamic wedge while maintaining predictable mechanical behavior under load. Contact stress, pivot wear, pad deformation, manufacturing tolerances, and assembly freedom all deserve attention during engineering review.
For a custom tilting pad Babbitt bearing, the pad and pivot should not be specified independently from the backing structure and working surface. Small geometric deviations can affect the way neighboring components interact during operation. Drawing review and dimensional inspection are therefore important parts of custom bearing manufacture.
Lubrication determines whether the required fluid film can form and whether generated heat can be removed effectively. Oil viscosity, supply temperature, flow distribution, inlet arrangement, drainage, and bearing geometry all influence operating temperature and film conditions. A bearing with appropriate mechanical geometry can still perform poorly if the surrounding lubrication system does not match its requirements.
Flooded systems keep a larger volume of oil within the bearing cavity, while directed lubrication supplies oil more specifically to the pad inlets or working regions. Directed arrangements can reduce churning losses and, when properly engineered, may reduce required oil flow while maintaining suitable pad temperatures. Actual flow requirements must nevertheless be calculated for the bearing and machine rather than inferred from the lubrication method alone.
Tin-based Babbitt is widely used on fluid-film bearing surfaces because it combines conformability, embeddability, and anti-seizure behavior with a strong backing structure. Material suitability depends on load, temperature, surface speed, lubricant, backing design, bonding quality, and transient operating conditions. A single universal temperature limit should therefore not be applied to every Babbitt bearing without considering the alloy, specification, and measurement location.
Alternative or composite bearing surfaces may be appropriate for specialized duties. Selection should begin with operating conditions and machine requirements rather than with a preferred material name. For critical projects, material certificates, bonding inspection, dimensional verification, surface-condition inspection, and any project-specified nondestructive examinations can provide useful manufacturing evidence.
The main advantage of tilting pad bearings is improved control of fluid-film behavior in demanding rotating equipment. A properly designed journal configuration can provide favorable stiffness and damping characteristics while reducing susceptibility to destabilizing oil-film forces. Individual pad movement can also accommodate changes in operating load more effectively than a single fixed bearing geometry in many applications.
Those benefits come with additional engineering requirements. More components, pivots, pad geometry, oil passages, instrumentation, and tighter control of assembly conditions can increase manufacturing and maintenance complexity. Temperature distribution, mechanical clearances, pad freedom, oil delivery, and rotor dynamics must still be checked carefully rather than relying on the bearing type alone to solve machine-level problems.
The most common industrial applications involve machinery where a bearing failure or unstable rotor response can have significant operational consequences. Centrifugal compressors and turboexpanders often use tilting pad journal bearings to support high-speed shafts, while steam and gas turbines may use both radial tilting pads and separate thrust assemblies. Generators, heavy gearboxes, pumps, hydro equipment, and other rotating systems can also use these bearings when their load and dynamic requirements justify the configuration.
Marine propulsion equipment presents another important application. Journal bearings may support shaft-line radial loads, while thrust bearings transmit propeller-generated axial force into the vessel structure. The correct arrangement depends on shaft alignment, operating load, lubrication architecture, machinery layout, and the way the propulsion train behaves under different vessel operating conditions.
Application alone is not enough to determine the correct bearing. Two compressors or turbines with similar power ratings may still require different pad geometries because their shaft diameter, rotor mass, operating speed, lubricant, bearing span, and dynamic response differ. Engineering inputs should therefore take priority over simple equipment-category selection.
Selection should begin with verified operating data. At minimum, the bearing engineer needs to understand whether the bearing carries radial or axial load, the expected magnitude and direction of that load, rotational speed and direction, shaft dimensions, lubricant properties, oil supply conditions, operating temperature range, housing geometry, and anticipated transients. For critical machines, rotor-dynamic requirements and instrumentation provisions should also be included from the beginning.
Retrofit projects require an additional layer of review because the existing machine may constrain the new bearing geometry. Housing dimensions, oil inlet and drainage arrangements, shaft or collar condition, sensor positions, available axial space, alignment, and existing support stiffness can determine whether a new design can be installed without wider modifications. Replacing a fixed-profile bearing with a tilting design should therefore be treated as a system change rather than a simple component substitution.
Supplier evaluation should extend beyond the ability to machine a drawing. Important tilting pad engineering challenges include controlling pad geometry, maintaining consistent working surfaces, verifying Babbitt bonding, managing component matching, and understanding how manufacturing deviations may affect assembly. For custom work, engineering communication between the machine owner, designer, and manufacturer can be as important as the final machining process.
Before issuing an RFQ, purchasers should provide enough information for the manufacturer to distinguish a direct replacement from a design-dependent request. Useful inputs include existing drawings, shaft or collar dimensions, bearing arrangement, pad configuration, operating speed, load data, lubricant information, material requirements, inspection requirements, and any applicable project or OEM specification. Providing this information early reduces the risk of quoting a physically similar part that is unsuitable for the actual operating condition.
Clean assembly conditions are critical because debris can damage soft bearing surfaces or interfere with pad movement. Before installation, the mating surfaces, pad freedom, pivot condition, oil passages, component orientation, critical dimensions, and specified clearances should be checked against approved drawings and procedures. Any resistance to free pad movement needs investigation before the machine is returned to service.
Once operating, temperature and vibration trends provide more value than isolated readings. A change from established baseline behavior may indicate altered load, lubrication problems, developing wear, alignment changes, instrumentation issues, or a disturbance elsewhere in the rotating train. Oil condition, supply pressure or flow where monitored, drain behavior, and bearing inspection findings should be considered together rather than using one measurement as a universal diagnostic.
Maintenance intervals depend on machine criticality, operating environment, duty cycle, lubricant condition, manufacturer guidance, and observed trends. During planned inspections, engineers should examine working surfaces for wiping, scoring, discoloration, cracking, abnormal contact patterns, embedded debris, or other evidence that can help explain operating history. Pivot condition and freedom of movement are also important because a pad that cannot respond as intended may no longer generate the expected film geometry.
Troubleshooting should start with symptoms and measured trends, then move toward probable causes rather than replacing the bearing immediately. High temperature, changing vibration, abnormal wear, and unstable oil conditions can originate inside the bearing, but they can also be consequences of alignment, rotor, lubricant, process, or instrumentation problems. A structured investigation helps separate bearing damage from the condition that produced it.
| Symptom | Possible Areas to Check | Practical Direction |
|---|---|---|
| Rising pad or drain-oil temperature | Oil supply, viscosity, flow distribution, clearance, load, surface condition | Compare with historical trends and verify lubrication and geometry |
| New or increasing vibration | Rotor balance, alignment, pad condition, clearance, support stiffness, process excitation | Review spectrum and operating condition before assigning a bearing cause |
| Uneven pad wear | Alignment, pad movement, pivot condition, housing geometry, debris | Inspect contact patterns and verify pad freedom |
| Surface wiping or distress | Lubrication interruption, excessive temperature, overload, contamination, transient contact | Identify the initiating condition before installing replacement parts |
| Repeated bearing damage | System alignment, rotor dynamics, oil system, component matching, operating transients | Conduct a system-level review rather than repeating component replacement |
Repeated failures deserve particular attention. Installing another bearing with the same geometry will not solve a problem caused by shaft misalignment, insufficient oil delivery, unstable rotor response, or an incorrect operating assumption. The failure mechanism should be understood before repair specifications are finalized.
Tilting pad bearings combine hydrodynamic lubrication with independently supported pads to provide reliable radial or axial support in demanding rotating machinery. Their performance depends on more than the bearing type: pad geometry, preload, clearance, pivot arrangement, lubrication, materials, installation, and rotor dynamics all influence operating behavior. A successful journal, thrust, or combination design begins with accurate machine data and ends with disciplined manufacturing, inspection, installation, and monitoring. For replacement or retrofit projects, evaluating the complete rotor-bearing and lubrication system is usually more valuable than selecting a bearing from nominal dimensions alone.
A journal bearing primarily supports radial shaft load, with pads arranged around the journal. A thrust bearing supports axial load through pads facing a rotating thrust collar. Some machines use both bearing functions in the same rotor train or in an integrated arrangement.
The independently moving pads reduce destabilizing cross-coupled fluid-film forces that can contribute to self-excited vibration in some fixed-profile bearings. Their actual stability still depends on rotor dynamics, geometry, clearance, speed, lubricant properties, and operating load. They should therefore be evaluated as part of the complete rotating system.
Preload changes the relationship between pad geometry and the journal, while pivot offset changes where each pad is supported relative to its working arc. Both can influence hydrodynamic pressure distribution, stiffness, damping, temperature, and load behavior. Appropriate values are design-specific rather than universal.
Flooded bearings retain more lubricant around the pads, whereas directed systems introduce oil more deliberately into selected regions. A well-engineered directed system can reduce churning losses and control temperature without necessarily requiring higher oil flow. Selection depends on bearing geometry and the complete lubrication system.
Useful information includes approved drawings, shaft or thrust-collar dimensions, bearing type, pad arrangement, operating speed, load direction and magnitude, lubricant data, material requirements, and inspection specifications. Retrofit projects may also require housing dimensions, sensor arrangements, oil-system information, and rotor-dynamic review.
