The tilting pad is a foundational design feature in high-performance white metal (Babbitt) bearings, specifically engineered to resolve the critical engineering challenge of oil whirl instability commonly encountered in modern rotating machinery. For industrial engineers and procurement specialists sourcing components for high-speed equipment, selecting the right bearing configuration is vital for ensuring long-term operational safety. Unlike traditional fixed-geometry liners, the tilting pad bearing utilizes a highly specialized segmented design. Each pad acts as an independent, pivot-supported shoe that can freely tilt, pivot, and swivel in direct response to dynamic operating conditions, shaft rotational speeds, and shifting mechanical loads.
The core engineering value of these white metal tilting pad bearings lies in their remarkable self-adaptive capability. As the rotor shaft accelerates or experiences load variations during operation, each individual pad automatically adjusts its tilt angle. This precise mechanical movement forms an optimal converging oil wedge between the Babbitt metal surface and the rapidly rotating shaft.
Consequently, this dynamic adjustment ensures the continuous generation of a stable, high-pressure hydrodynamic oil film. This hydrodynamic oil film is absolutely crucial for effective lubrication, completely separating the shaft from the bearing surface to minimize friction, dissipate operational heat, and prevent premature wear during continuous, heavy-duty industrial operations.
 |  |

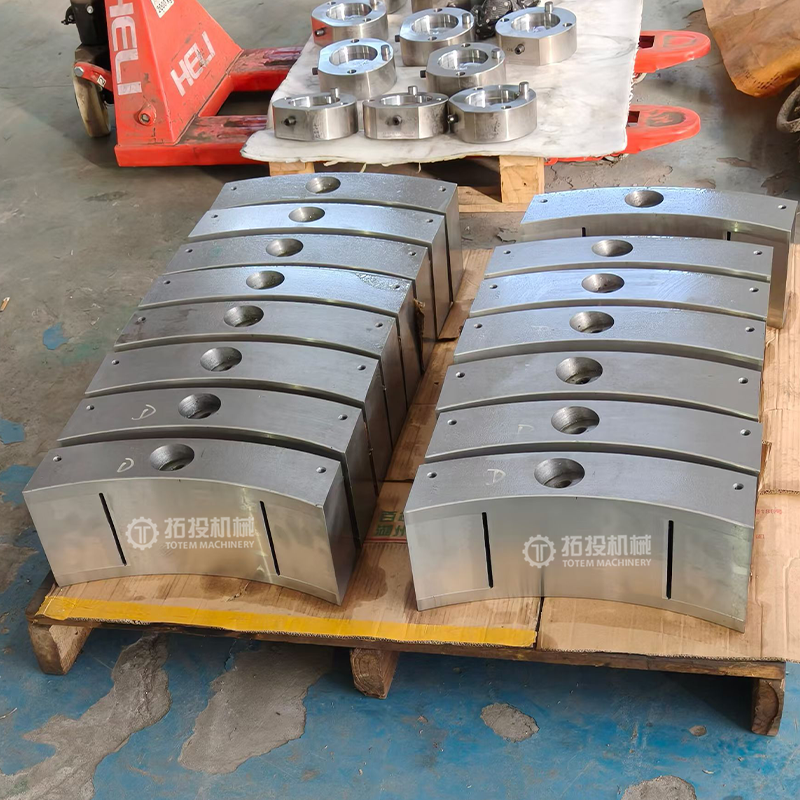

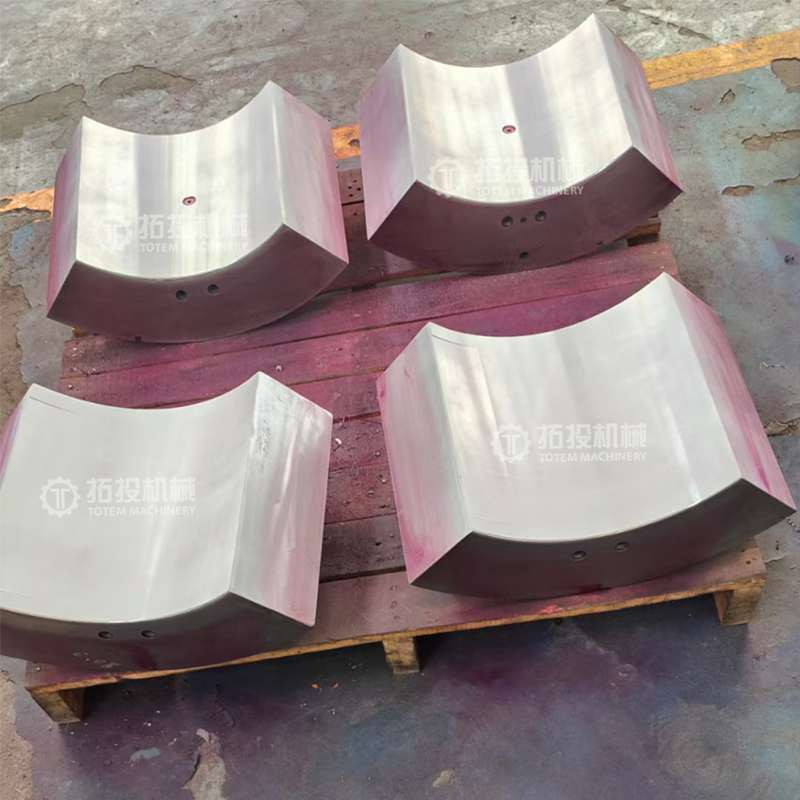

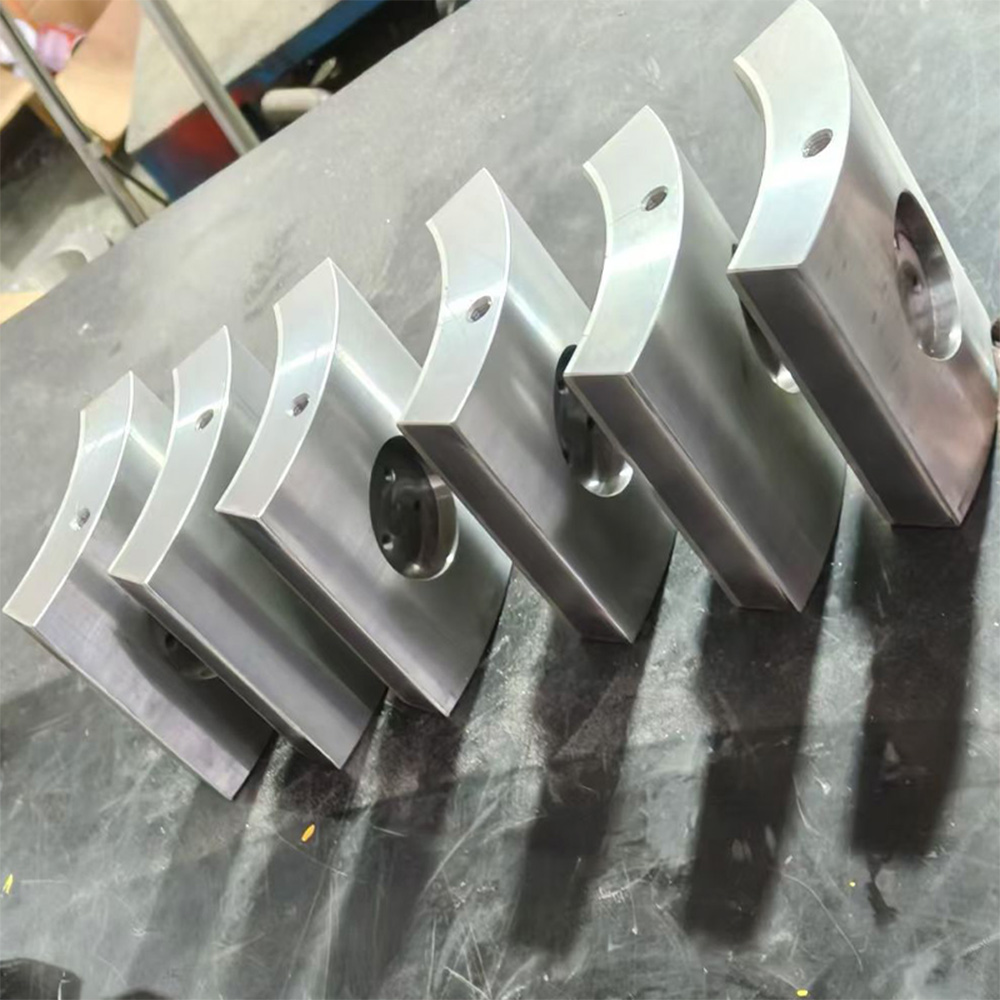

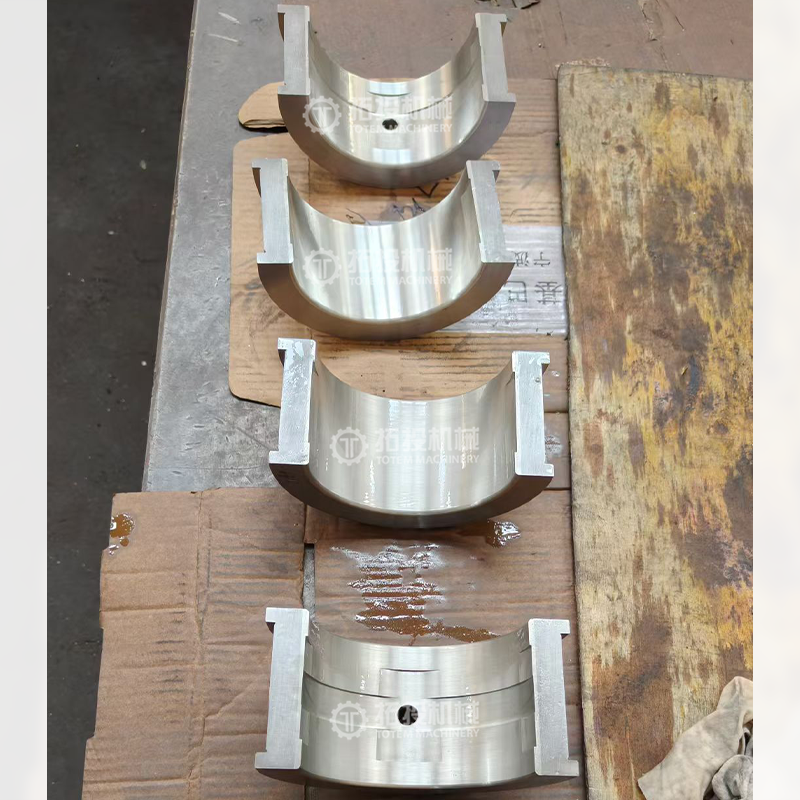

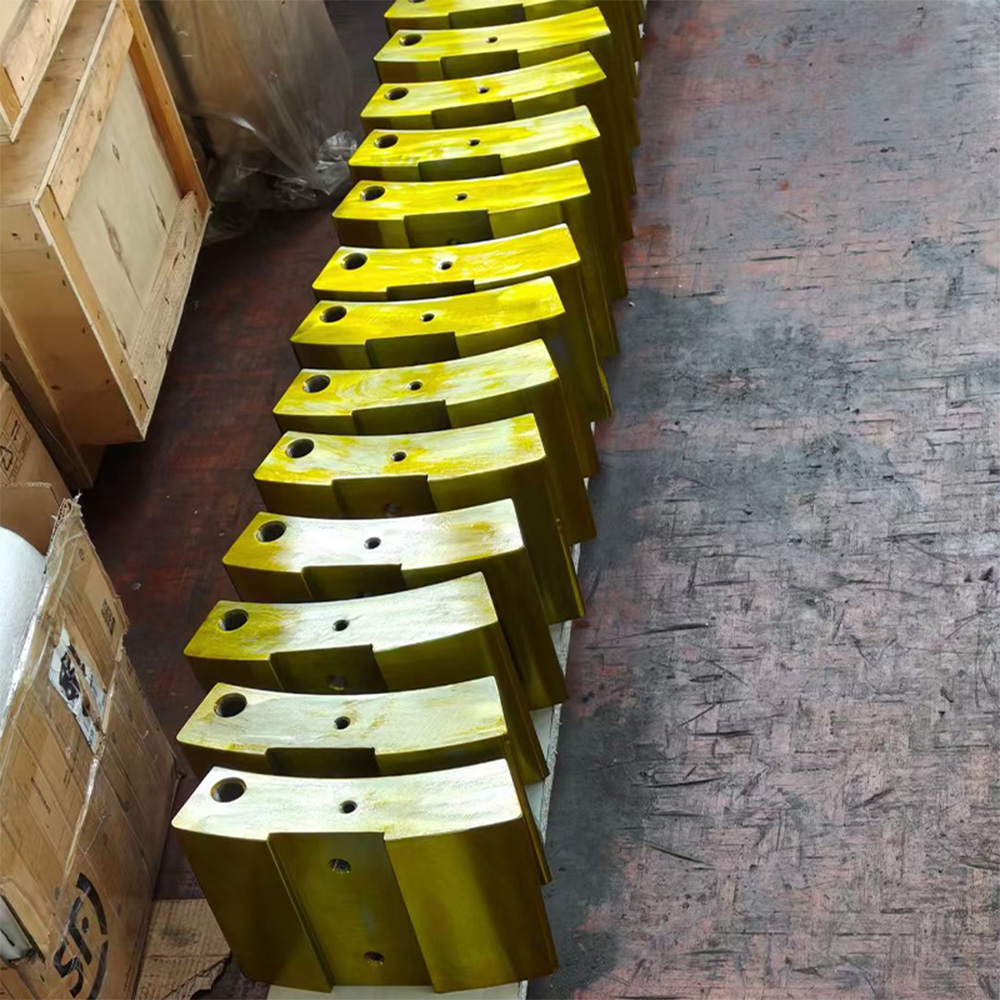

| Tilting Pad | Tilting Pad |
Beyond basic lubrication, the dynamic tilting action inherently dampens vibrations and actively suppresses the cross-coupled destabilizing forces that typically cause rotor instability. By continuously adapting to the exact position of the shaft, tilting pad bearings provide exceptional rotor stability even at extreme rotational velocities. The Babbitt material further enhances this performance by offering excellent embeddability and conformability. This means that if microscopic particulate contaminants enter the lubrication system, the white metal can safely absorb them, protecting the expensive rotor shaft from scoring and severe damage.
For industrial facilities and procurement teams, investing in this advanced bearing technology translates to significant operational value. The enhanced stability directly reduces the risk of catastrophic machinery failure, lowers vibration-related metal fatigue, extends the overall lifecycle of the equipment, and minimizes costly unplanned maintenance downtime. This ensures a lower total cost of ownership for large-scale industrial projects.
Because of their unparalleled ability to maintain precise shaft positioning under fluctuating dynamic loads, tilting pad white metal bearings are universally recognized as the preferred choice for critical, high-velocity applications. They are heavily utilized in the power generation, oil and gas, and petrochemical sectors. Specifically, these bearings are designed for demanding integration into steam turbines, gas turbines, centrifugal compressors, and high-power industrial gearboxes. In these rigorous environments, where continuous reliability and precise alignment are paramount, the tilting pad design delivers the fluid dynamics and structural integrity necessary to support safe, uninterrupted mechanical performance.
The machining process for tilting pads in white metal bearings is a highly controlled and precision-driven operation. Every step, from initial material preparation to final surface finishing, is meticulously executed to guarantee structural integrity, optimal hydrodynamic performance, and long-term reliability for rotating machinery. Our manufacturing capabilities focus on exacting tolerances and strict process control, ensuring that each pad meets rigorous industrial standards and significantly lowers operational risks for purchasing engineers and project managers.
The manufacturing journey begins with the careful forging or casting of the steel pad backing. This foundational component must possess exceptional mechanical strength to withstand heavy dynamic loads and continuous stress during operation. Once the raw steel backing is formed, it undergoes preliminary precision machining. This critical phase establishes the required outer geometry, exact pivot locations, and uniform pad thickness. Achieving tight dimensional control at this stage is essential, as the pivot location directly dictates the pad's ability to tilt freely and adapt to changing shaft dynamics, thereby ensuring stable and vibration-free rotor operation.
The most critical step in the manufacturing process is the application of the white metal—typically a premium tin-based or lead-based Babbitt alloy—onto the inner surface of the steel backing. This is achieved through a highly controlled casting process designed to create a flawless metallurgical bond. The steel backing is pre-heated to a specific temperature before being placed into a specialized mold. Molten white metal is then poured under strictly regulated thermal conditions. This controlled cooling and bonding process prevents internal stresses and ensures that the Babbitt lining adheres perfectly to the steel, effectively eliminating the risk of delamination under high-speed or high-load operating conditions.
After the casting phase, the tilting pad undergoes critical precision machining to refine the white metal surface. Advanced boring and facing operations are utilized to achieve the exact inner radius and exceptional surface finish required for the bearing. Furthermore, specialized tooling is used to machine precise oil groove patterns into the Babbitt layer. These grooves are not merely structural; they are engineered to facilitate rapid and uniform lubricating oil distribution. The accuracy of this machining directly influences the formation of a robust hydrodynamic oil film, which is vital for minimizing friction, reducing wear, and dissipating heat effectively during continuous machinery rotation.
The final stages of production elevate the tilting pad from a machined part to a high-performance bearing component. Each pad is individually balanced to ensure uniform weight distribution, which is crucial for minimizing vibration in high-speed applications. Finally, the pads undergo meticulous hand-scraping by skilled technicians. Hand-scraping is a highly specialized finishing technique that micro-adjusts the white metal surface. This process optimizes the contact area and ensures the finest performance alignment within the complete bearing assembly. The result is a perfectly matched set of tilting pads that deliver superior load-bearing capacity, extended service life, and exceptionally smooth operation for heavy-duty industrial equipment.
 |  |

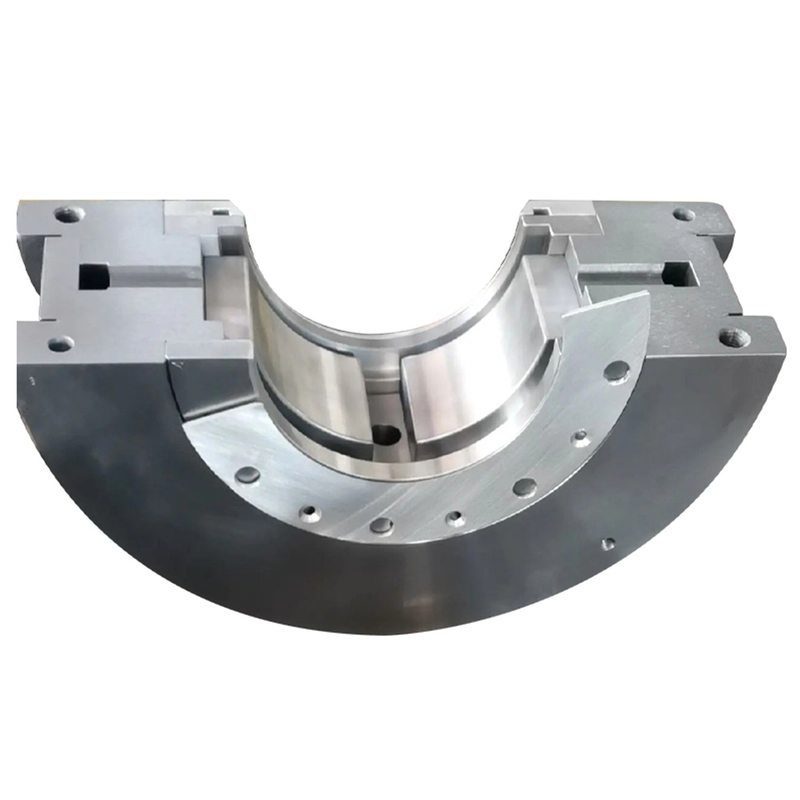

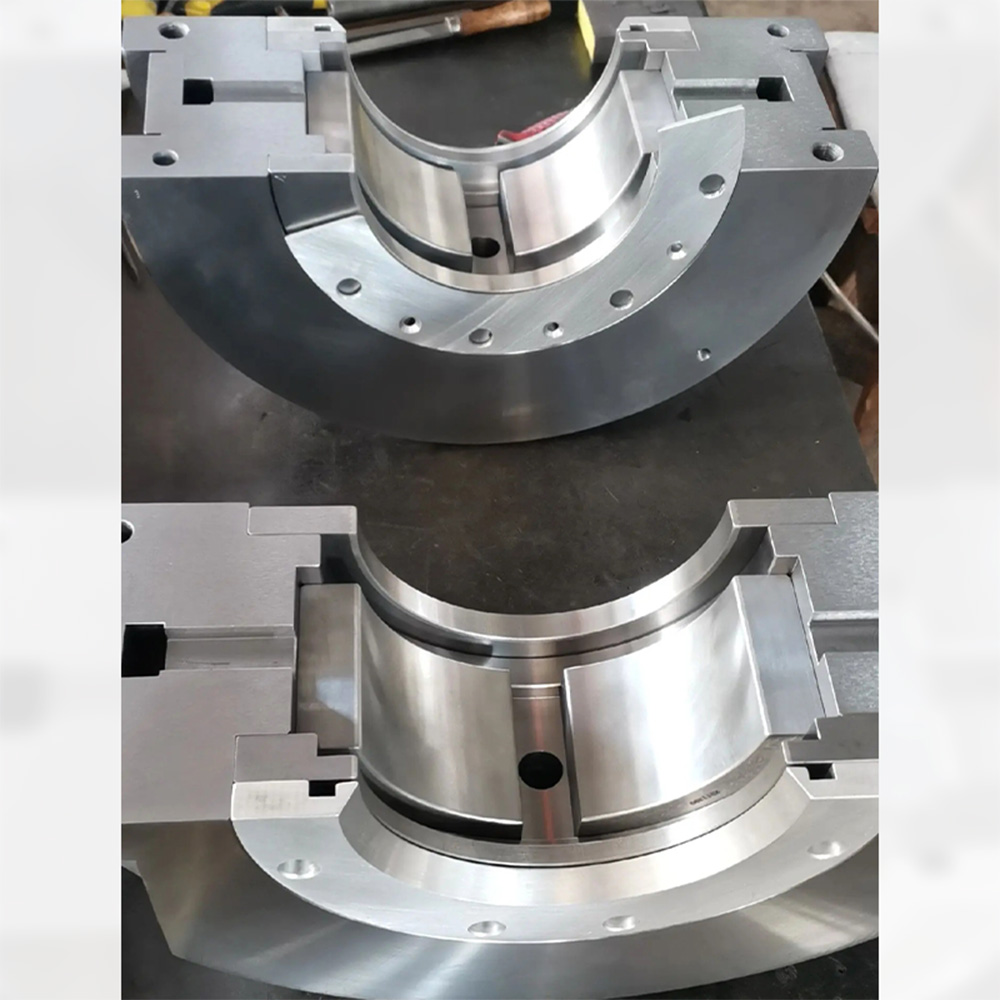

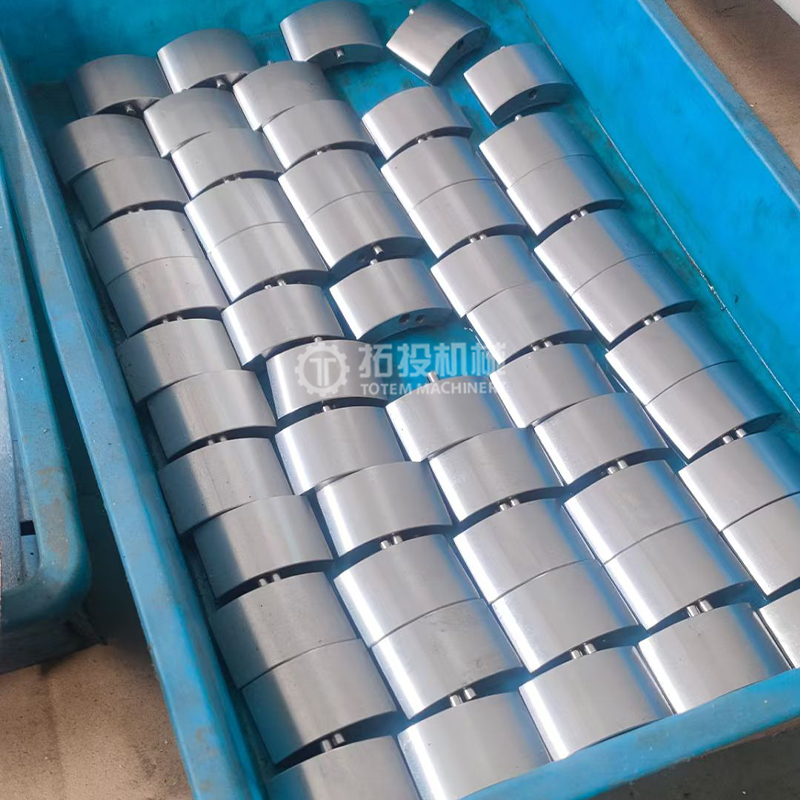

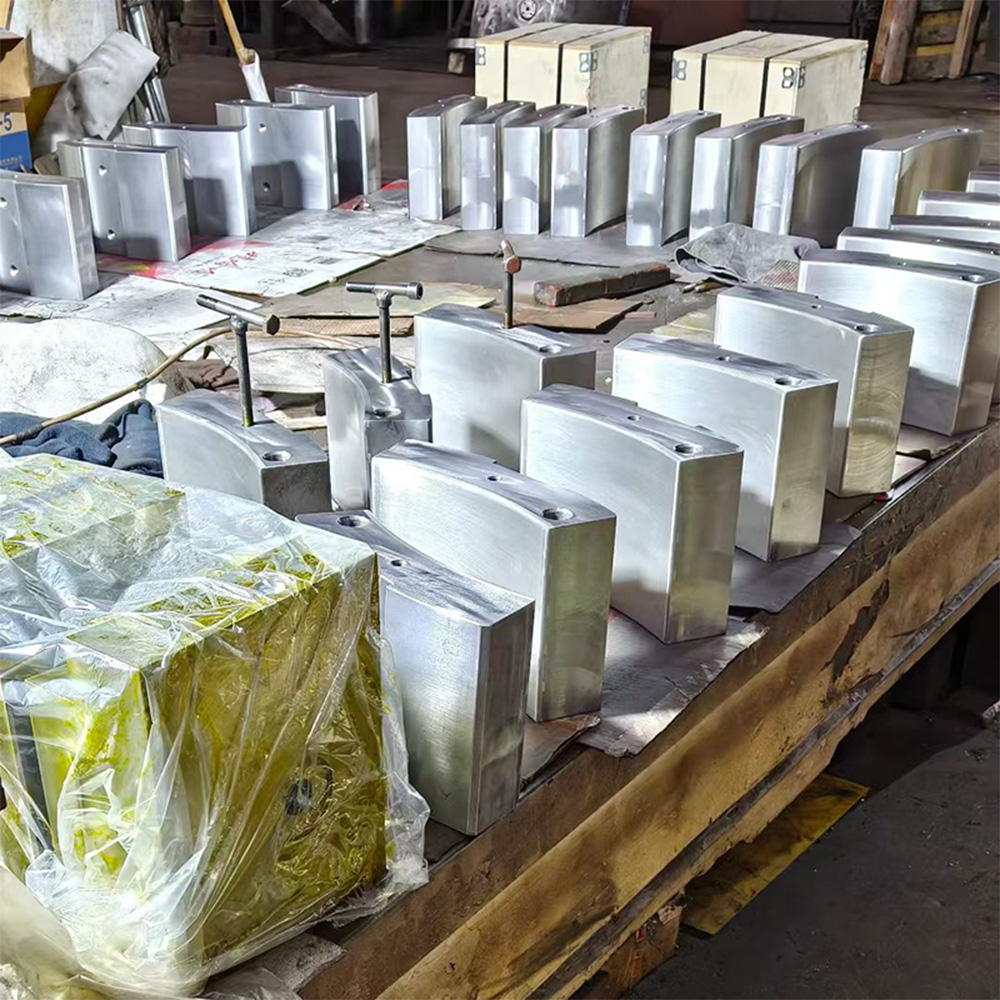

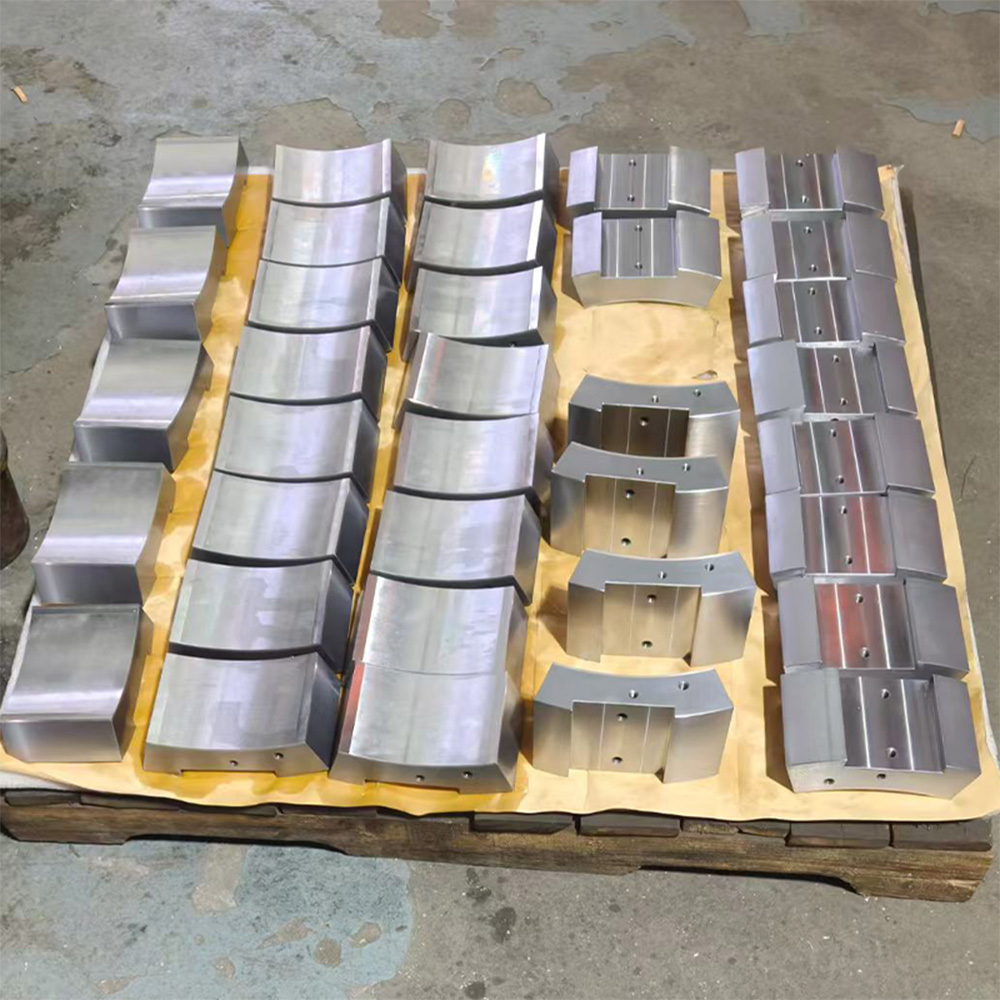

| Tilting pad | Tilting pad |
