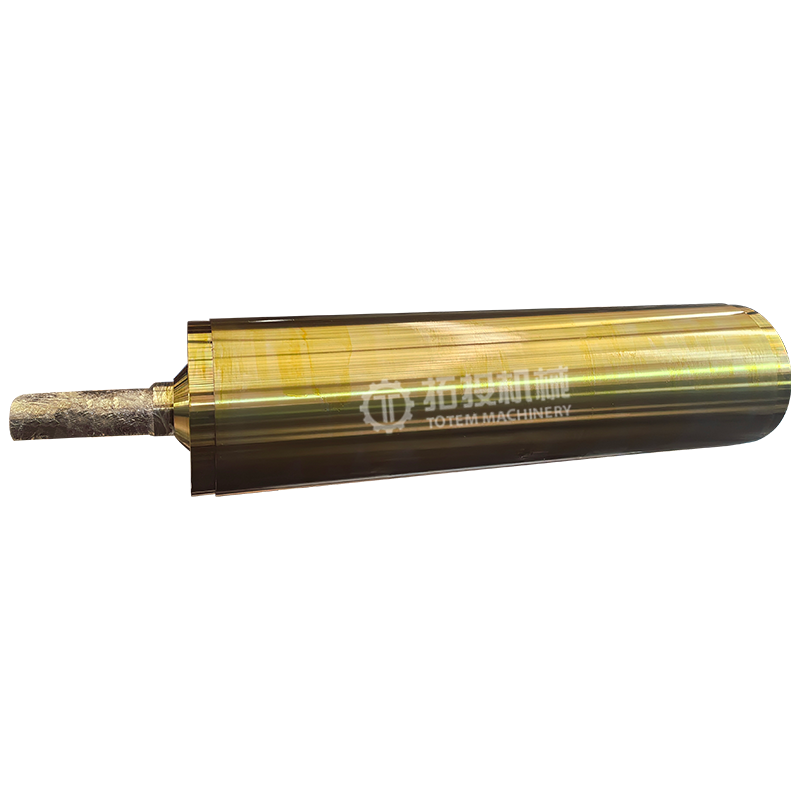

The chocolate refining roller is the core working component of a chocolate refiner. It features a smooth roller surface and performs ultra-fine grinding through precise control of the inter-roll gap. By counter-rotating at high speed against adjacent rollers, it applies intense compressive and shearing forces to the chocolate mass, progressively grinding particles such as cocoa solids and sugar crystals down to micron-level fineness.
The final mouthfeel of chocolate is essentially determined by the grinding precision of the refining roller. When particles exceed 30 µm, the tongue can clearly perceive a sandy/gritty texture; at 20 µm and below, a melt-in-the-mouth silky sensation is achieved; high-end chocolate requires grinding to below 15 µm. This demands a surface roughness of Ra 0.1–0.4 µm for the chocolate refining roller, with some premium requirements even reaching Ra ≤ 0.1 µm.
The extremely low roughness ensures consistency of the grinding gap: The smoother the roller surface, the more uniform and stable the inter-roll gap; the shear force applied to the chocolate mass as it passes through is consistent, so particles are uniformly ground fine.
A low-roughness surface does not easily retain chocolate mass, avoiding cross-contamination.
Chocolate generates static electricity during grinding; a smooth surface reduces material adhesion.
Surface smoothness also affects high-speed running stability, reducing micro-vibrations.

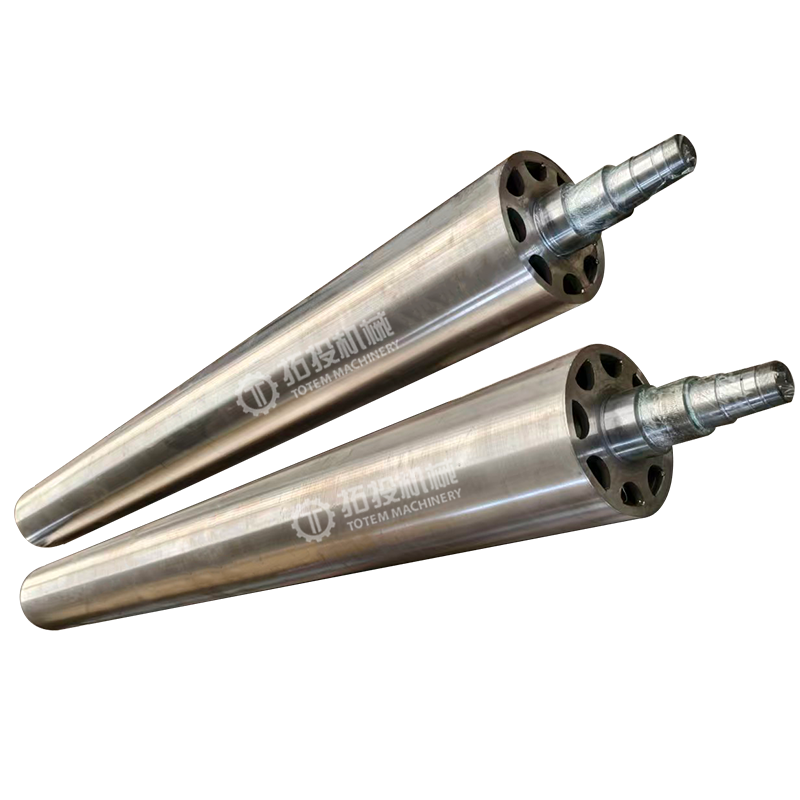

The chocolate refining roller adopts a bimetallic composite centrifugal casting structure, consisting of an outer working layer and an inner core support layer.
The outer working layer is the part of the roller surface that directly participates in grinding. It is made of indefinite chill cast iron, with a typical thickness of 8–10 mm, and a surface hardness as high as 60–65 HRC, offering excellent wear resistance and scratch resistance. After ultra-precision grinding and polishing, the roller surface achieves a mirror-like finish (Ra 0.1–0.4 µm, with premium versions reaching Ra ≤ 0.1 µm), ensuring uniformity and consistency of the grinding gap. The outer layer contains fine, uniformly distributed carbides (e.g., Cr₇C₃ type), providing strong resistance to long-term abrasive wear.
The core support layer is the main body of the roller, made of ductile iron (nodular cast iron) with a hardness of 20–35 HRC, offering good toughness and impact resistance, capable of withstanding alternating stresses from high-speed rotation and heavy loads, preventing fracture.
This “hard outside, tough inside” structural design is a typical application of centrifugal casting technology – the outer layer provides wear resistance and precision retention, while the core provides load-bearing capacity and impact resistance. This ensures both a long service life for the roller surface and overall structural reliability. In terms of structural precision, the roundness error of the roller shaft must be controlled within 0.001 mm, and geometric tolerances such as runout and coaxiality are controlled to ultra-precision standards.
The material for the chocolate refining roller is a high-performance grade within the broad category of Vanadium-titanium alloy, such as ICDP-CE and ICDP-GG. The specific material grade varies according to manufacturing standards and customer requirements.
Under the Russian standard system, the typical grade is ЛЛШХНМА-77И(Ц)МК. The outer working layer is indefinite chill chromium-nickel-molybdenum alloy cast iron, and the core is ductile iron (ВЧ).
In terms of key characteristics, the high-hardness Cr₇C₃-type carbides in the alloy provide excellent wear resistance to the roller surface. The fine graphite particles naturally present in the matrix material impart good self-lubricating properties and anti-adhesion characteristics, effectively reducing the sticking of chocolate mass to the roller during high-speed shearing – this is particularly beneficial for food processing. The outer working layer and the ductile iron core are firmly metallurgically bonded through centrifugal casting, with no risk of delamination.
The chocolate refining roller is exclusively used in chocolate refiners and is the core grinding stage in chocolate production lines, performing the final ultra-fine grinding of cocoa beans or chocolate mass that has undergone preliminary crushing.
Typical application scenarios include:
Refining of chocolate mass (dark chocolate, milk chocolate, white chocolate)
Production of chocolate mass for confectionery and coatings
High-end chocolate production lines
In addition, refining rollers based on the same grinding principle can be extended to ultra-fine grinding of other food pastes (e.g., nut butters, sesame paste).

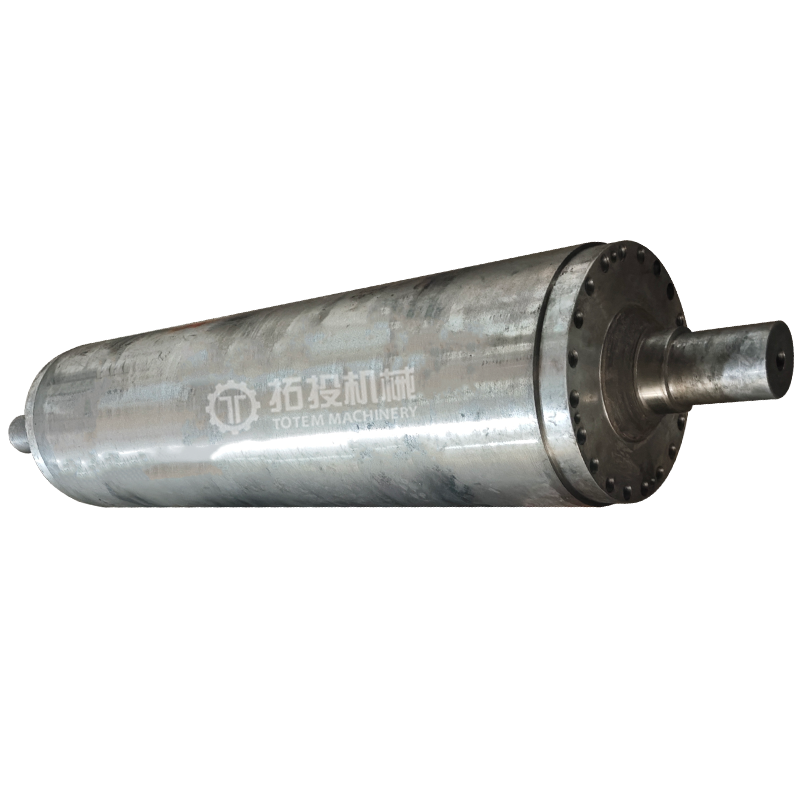

The chocolate refining roller is produced using a centrifugal casting process, in which centrifugal force generated by high-speed rotation uniformly presses the molten metal against the inner wall of the mould. Centrifugal force completely eliminates internal defects such as porosity, slag inclusions, and shrinkage cavities; the outer layer cools rapidly, resulting in a fine, dense microstructure and high hardness; the core retains toughness and impact resistance without fracture; the two materials achieve a strong metallurgical bond at the interface, with no risk of delamination.
Outer working layer pouring: The ICDP melt is poured into the high-speed rotating centrifugal mould. Centrifugal force causes the molten metal to solidify sequentially from the outside inward during solidification; the outer layer (i.e., the roller working surface) has the fastest cooling rate, the finest microstructure, and the highest hardness and wear resistance.
Core filling pouring: After the outer layer has solidified, the chill mould is assembled with the bottom box and feeder head, and the core molten iron (e.g., ductile iron) is poured. After cooling, the mould is opened and the casting is stripped.
After heat treatment, the roller blank undergoes mechanical machining.
End facing: The blank ends are faced to the specified dimensions.

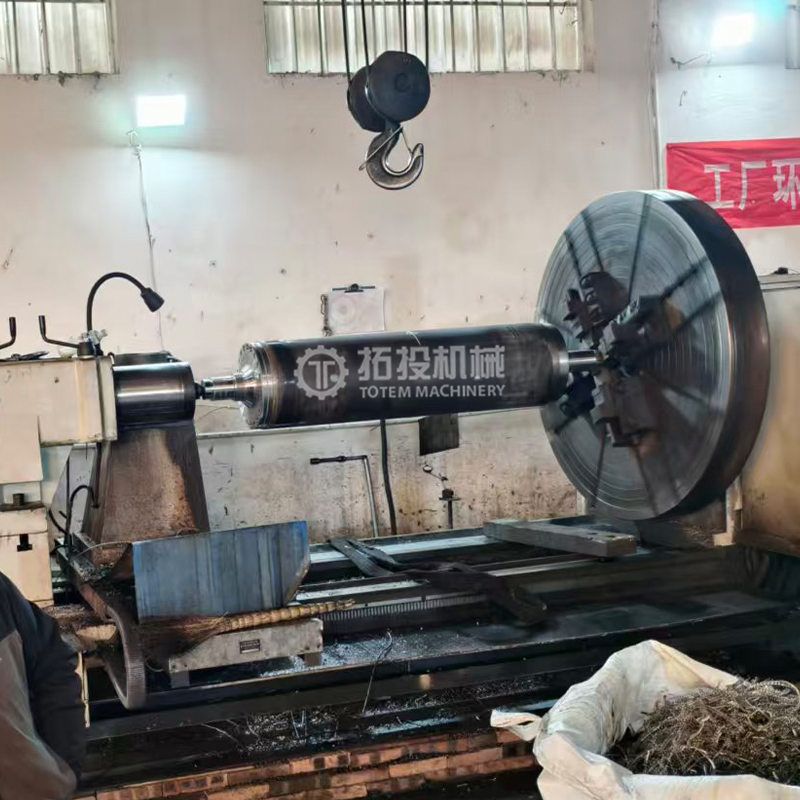

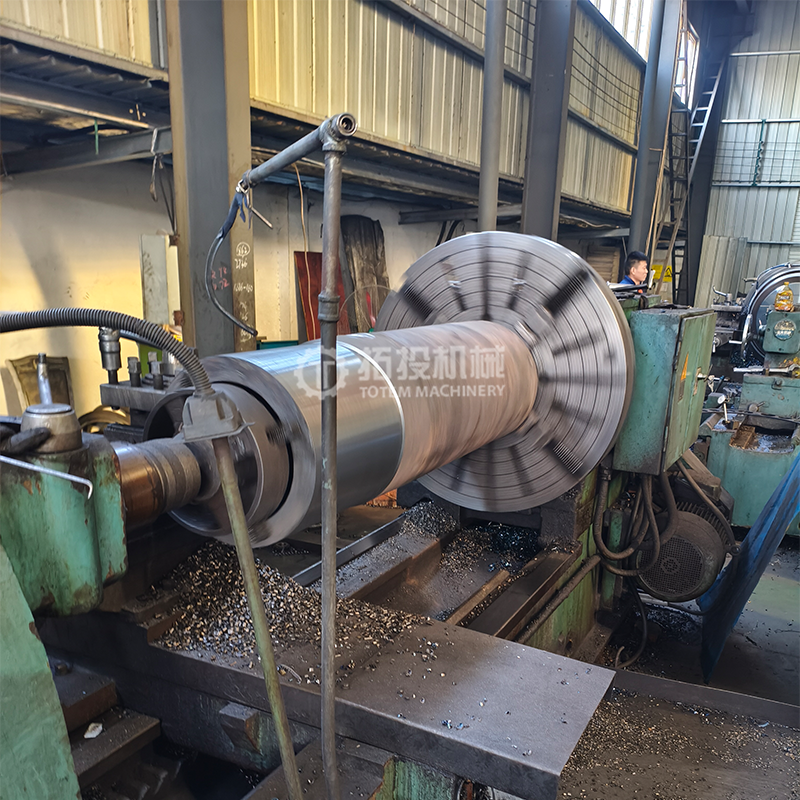

Rough turning: The outer diameter of the roller body, journals, and other main contours are rough-turned, with finishing allowance reserved (typically about 2 mm on each side).

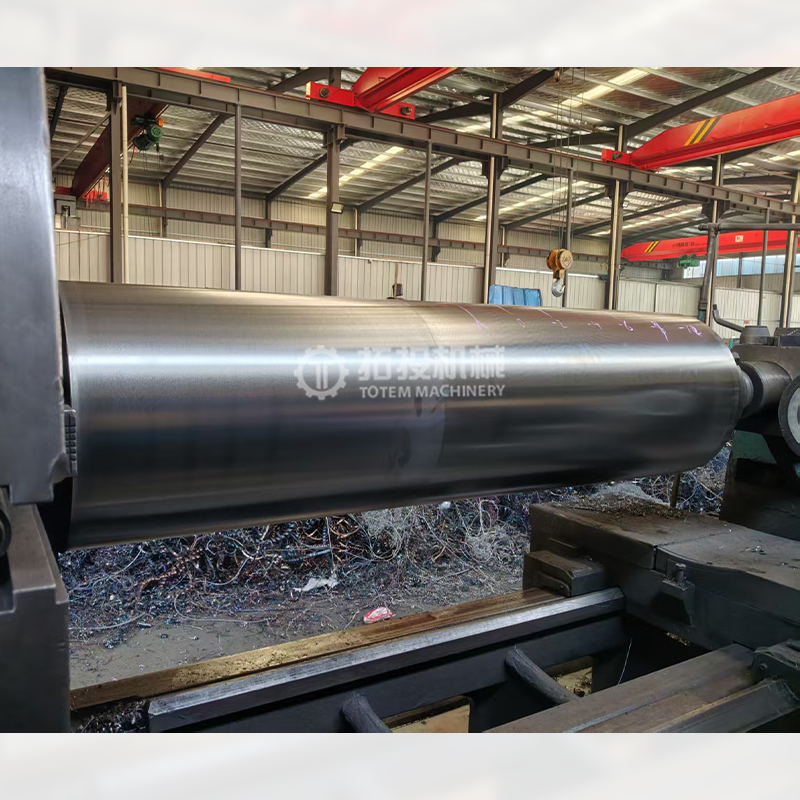

Semi-finish turning and finish turning: Semi-finish and finish turning of the roller body, journals, steps, end faces, etc., are performed on CNC lathes to ensure the fit accuracy between journals and bearings, and to meet geometric tolerances such as coaxiality and cylindricity between the two ends.
Ultra-precision grinding: The final grinding of the roller surface is carried out on high-precision CNC grinding machines, with precision grinding using grinding wheels to reduce surface roughness to Ra 0.1–0.4 µm.
Semi-Finish Turning

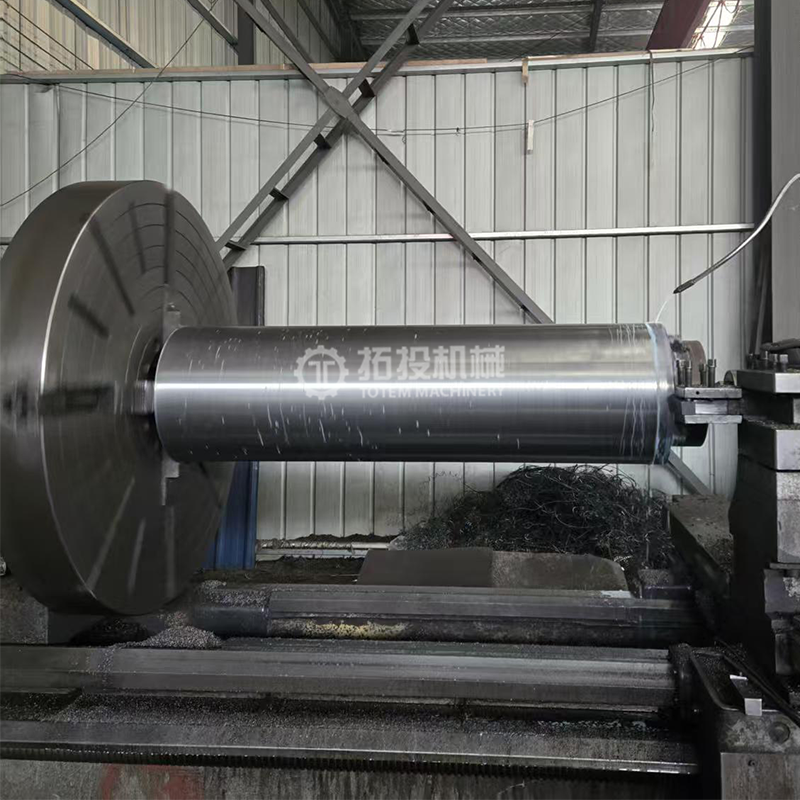

Turning Outer Surface

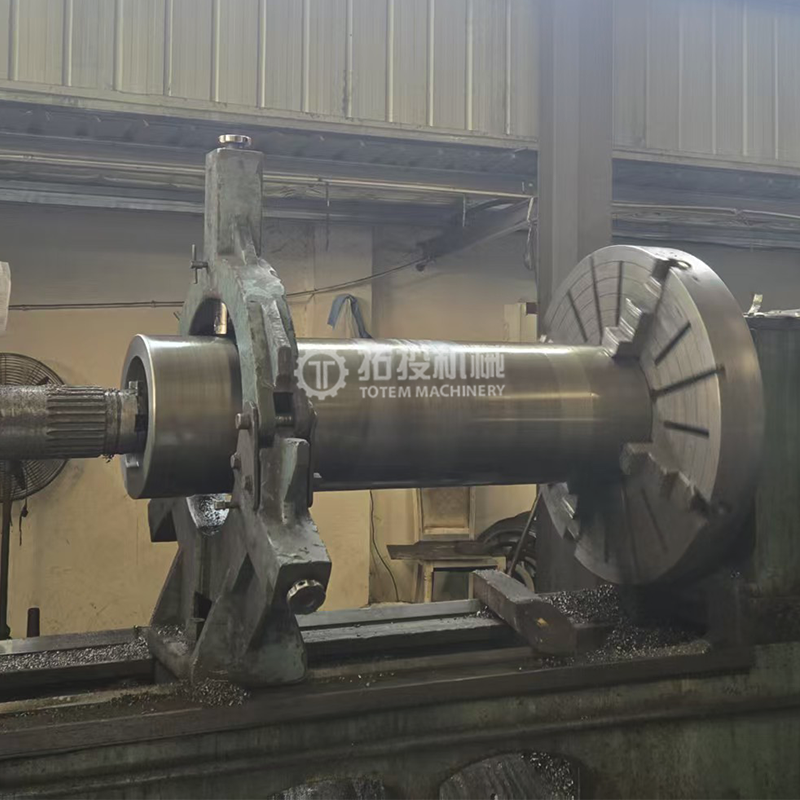

Turning Inner Surface
The roller surface is inspected visually and by tactile examination to confirm the absence of scratches, pits, rust, deformation, or other defects. Special attention is given to the roller surface – as the working surface directly involved in grinding, it must be free of any visible scratches, impact marks, pinholes, or blowholes, with a uniform mirror finish.
Measuring tools (calipers, micrometers, bore micrometers, roller diameter gauges, etc.) are used to measure key parameters: overall length, journal diameters at each section, roller surface diameter (working section outer diameter), step position dimensions between journals and roller surface, etc. These are compared item by item against the drawing tolerances to determine compliance.
Roundness testers, runout testers, coordinate measuring machines (CMM), and similar instruments are used to inspect core geometric tolerances:
Roundness: The roundness error of the roller surface cylinder is the primary indicator determining the uniformity of the grinding gap – excessive roundness error leads to inconsistent inter-roll gaps, causing some material to be insufficiently ground and producing coarse particles.
Cylindricity: The cylindricity error over the full length of the roller surface ensures that the roller surface generatrix is straight, so that when the two rollers are in contact, the gap is consistent across the full width.
Coaxiality: The coincidence of the two end journals with the central axis of the roller body, avoiding eccentricity after assembly which would cause radial runout of the roller surface during operation.
Radial runout: The radial runout of the roller surface relative to the journal axis; excessive runout produces micro-vibrations at high speed, degrading grinding accuracy.
Perpendicularity: For rollers with locating steps, the perpendicularity between the step end face and the axis is measured to ensure accurate axial positioning after installation.
A high-precision roughness tester is used to measure the roller surface at multiple points across the working section, confirming that the surface roughness meets design requirements. The measurement direction should cover both circumferential and axial directions to ensure uniform texture in both directions.

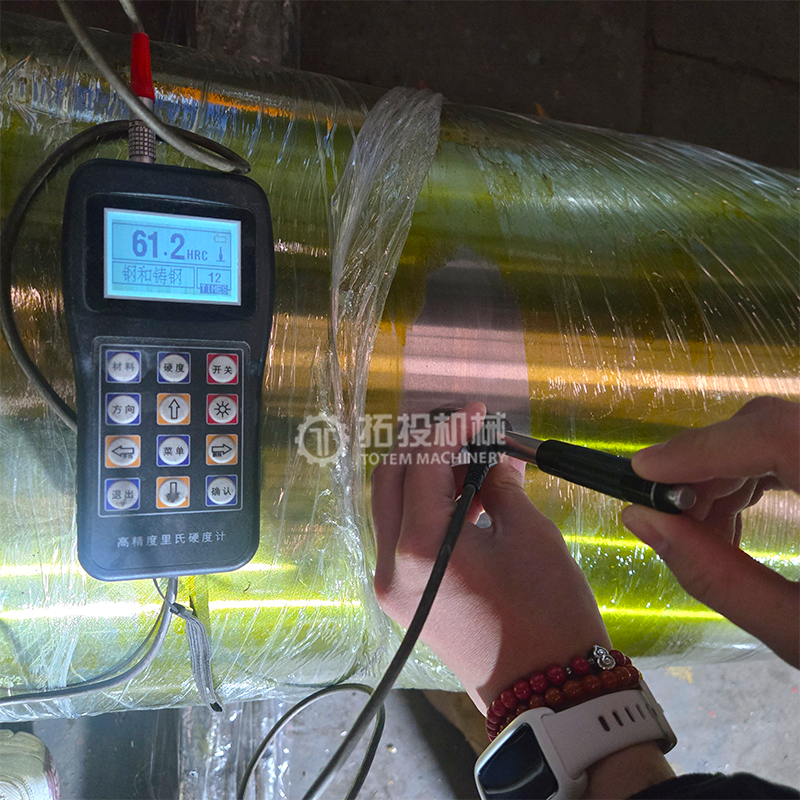

Hardness testing: A Rockwell hardness tester (HRC) is used to measure multiple points on the roller surface working section to verify that the surface hardness meets design requirements (typically 60–65 HRC).

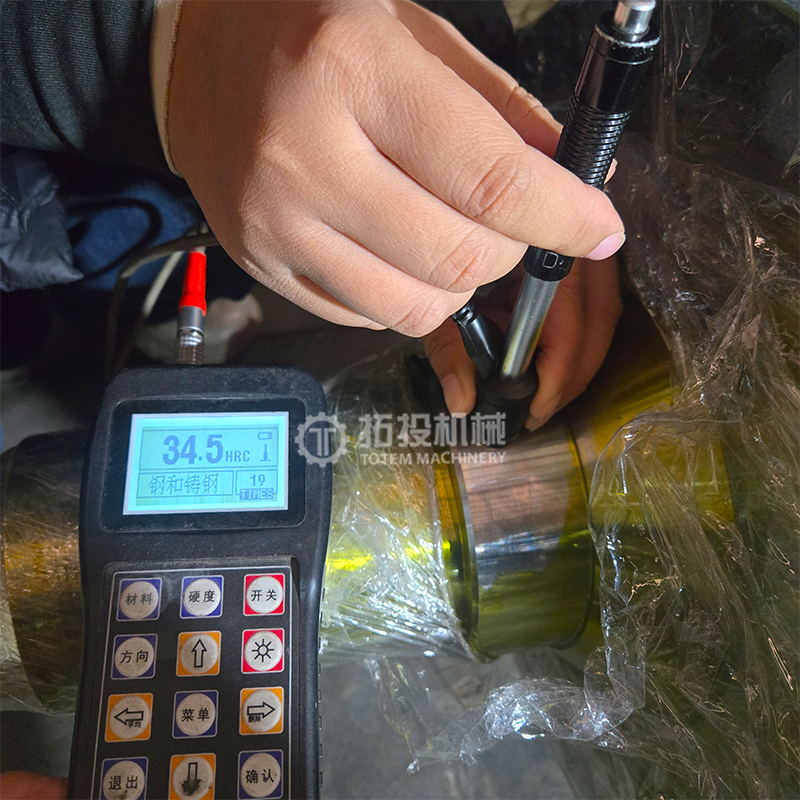

Core hardness verification: Core hardness (20–35 HRC) is checked via the roller end faces or casting test blocks, ensuring toughness meets impact resistance requirements.
Roller Body Hardness Testing
Roller Sleeve Hardness Testing

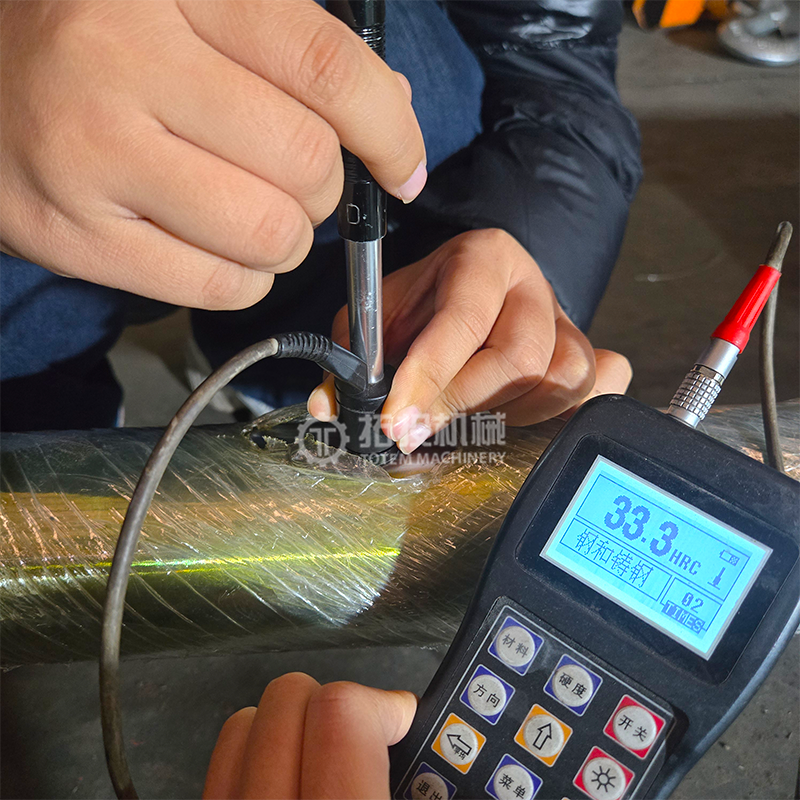

Axle Head Hardness Testing
Ultrasonic testing (UT): Ultrasonic inspection is performed on the roller body, with particular focus on the bonding quality of the composite interface between the working layer and the core, to confirm the absence of delamination, lack of fusion, or other interface defects. At the same time, it detects internal metallurgical defects such as porosity, shrinkage cavities, and slag inclusions, ensuring that the roller shaft does not fracture due to internal defects under high-speed heavy loads.
Magnetic particle testing (MT): Magnetic particle inspection is carried out on stress concentration areas such as journal steps and end faces to check for casting cracks, grinding cracks, or quenching cracks on the surface and near-surface areas, ensuring that critical zones are free from micro-crack risks.
The finished roller shaft is mounted on a dynamic balancing machine, and the unbalance is measured at a simulated operating speed. Correction is made by material removal (drilling holes on end faces or non-working surfaces) or by adding weights until the unbalance is within the permissible tolerance, ensuring low vibration and smooth operation at high speeds, reducing bearing loads and equipment noise, and preventing micro-vibrations that would degrade grinding fineness.
As a high-value ultra-precision component, the chocolate refining roller requires packaging that provides comprehensive protection for the mirror-finished roller surface, precision journals, and the bimetallic composite structure. We adopt a multi-layer export packaging solution to ensure the roller shaft is protected from impact, corrosion, or deformation during long-distance transport and multiple handling operations.

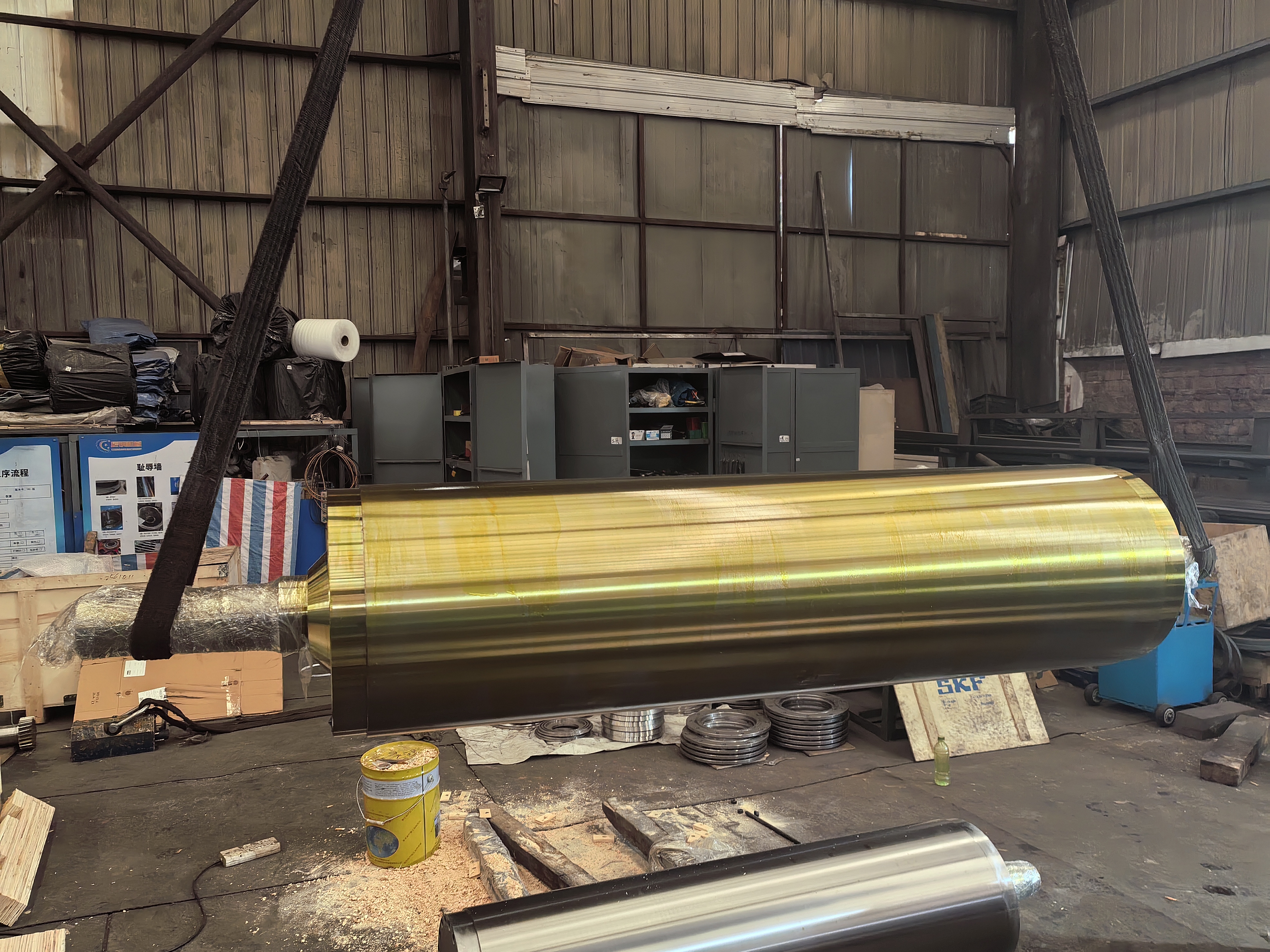

After final inspection and acceptance, the roller surface is coated with an NSF-H1-certified food-contact rust preventive agent. This agent uses food-grade white oil as the base carrier and contains no sulfur, chlorine, or heavy metal additives, meeting hygiene standards for incidental food contact. After application, anti-rust paper is placed over the coated surface to provide effective isolation for the ultra-precision roller surface.

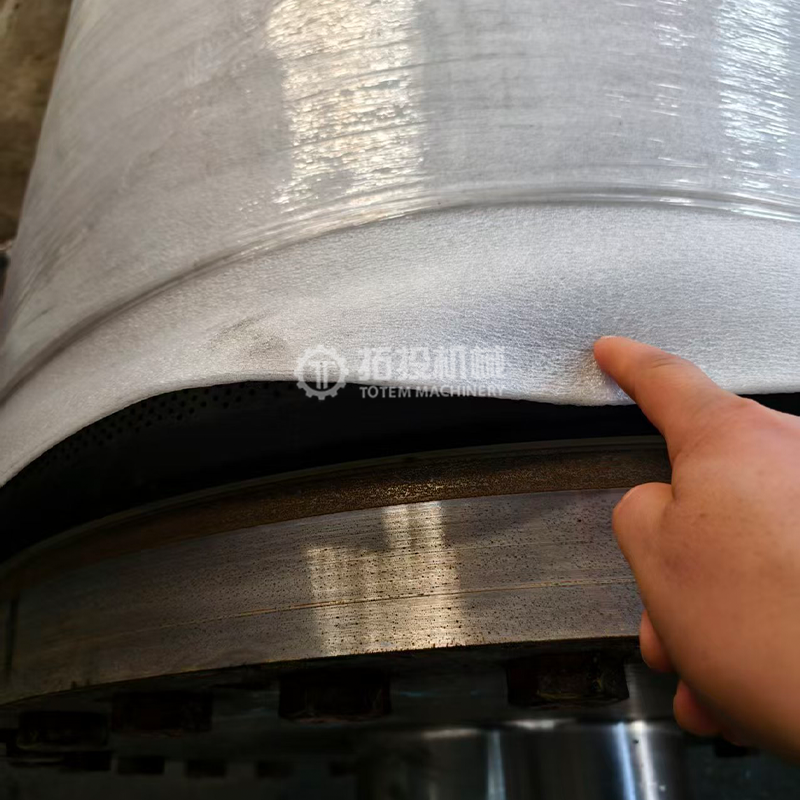

Differentiated, meticulous protection is applied to various parts of the roller body. The roller surface, as the core working face, is tightly wrapped with multiple layers of white bubble wrap, forming a cylindrical inner cushioning layer that effectively absorbs shocks and vibrations during transport, ensuring that the roller surface receives no contact damage. Precision mating areas such as journals and end faces are covered with transparent plastic film for dust-proof and moisture-proof sealing.
Inner Packaging
Inner Packaging

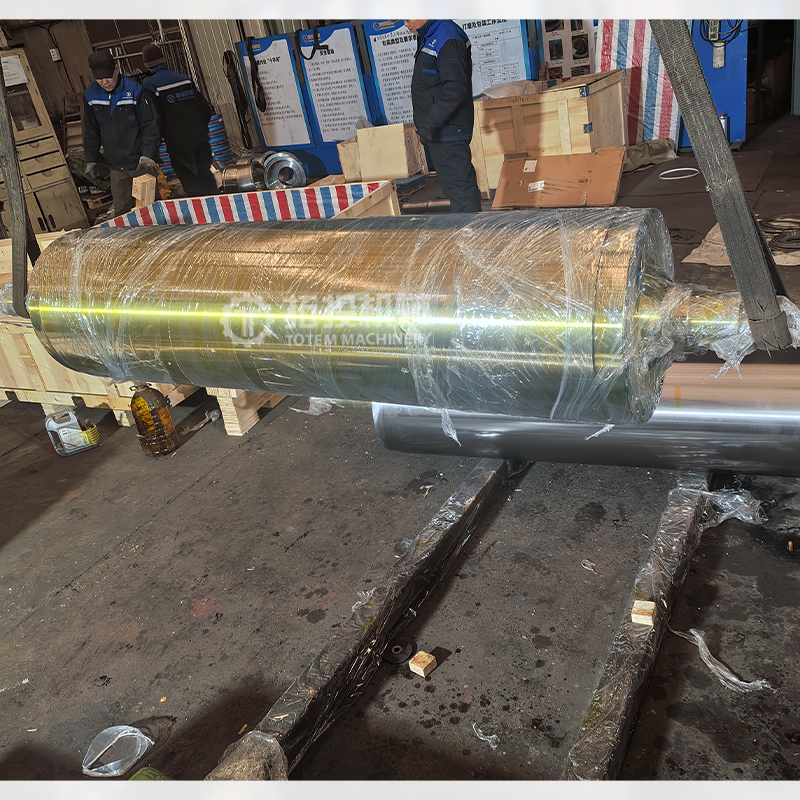

An enhanced impact-resistant structure is constructed. The left side of the roller body is wrapped with water-proof and shock-absorbing materials and secured with ropes to guard against moisture and vibration under extreme transport conditions. The right side is reinforced with woven straps combined with wooden or metal splints to form a robust protective frame, preventing roller deformation. The entire roller shaft is externally wrapped and tied with black protective material to isolate it from external scratches. Two transverse wooden boards are added at the middle of the roller body to distribute weight evenly, preventing bending of the roller due to uneven stress during long-distance transport.
This packaging system balances protection precision, impact resistance, and environmental adaptability, ensuring that the chocolate refining roller arrives at the customer's site in perfect condition and can be installed and used immediately upon receipt.
