A thrust bearing controls axial movement by carrying force that acts along a shaft and transferring that force into a stationary housing or supporting structure. The exact mechanism depends on the design: rolling-element bearings use balls or rollers between raceways, while fluid-film bearings support the rotating thrust collar on a pressurized lubricant film. Understanding how does a thrust bearing work therefore starts with load direction, then moves to bearing type, internal geometry, lubrication, and operating conditions.
This distinction matters in turbines, compressors, pumps, hydro units, and marine drivetrains, where axial force may be continuous and substantial. A small thrust ball bearing and a large tilting-pad assembly serve the same broad purpose, yet they carry load in very different ways. The sections below explain both the common principle and the differences that affect selection, operation, and failure diagnosis.

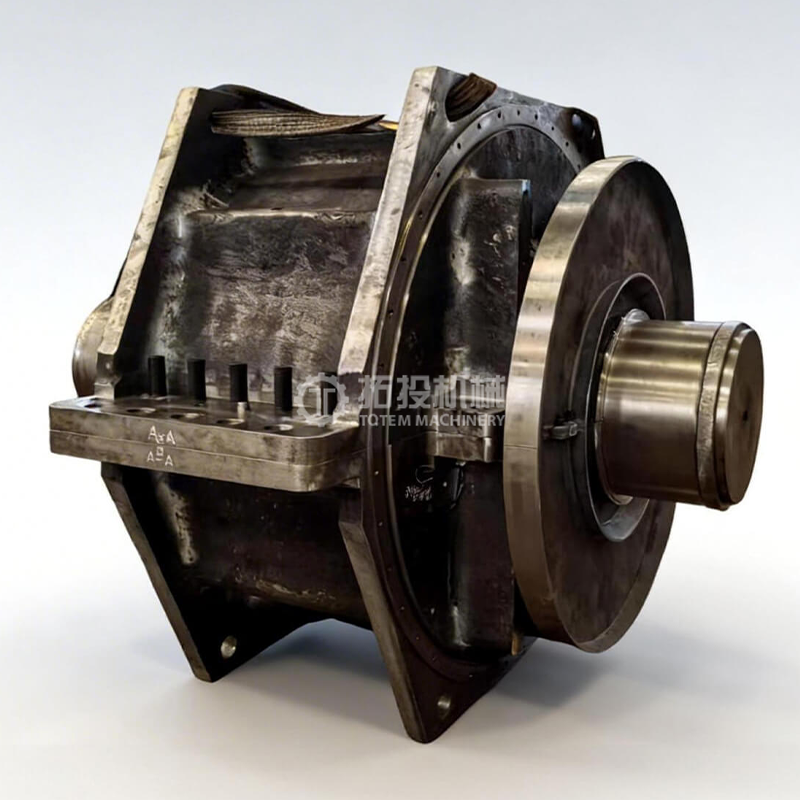

Thrust Bearing

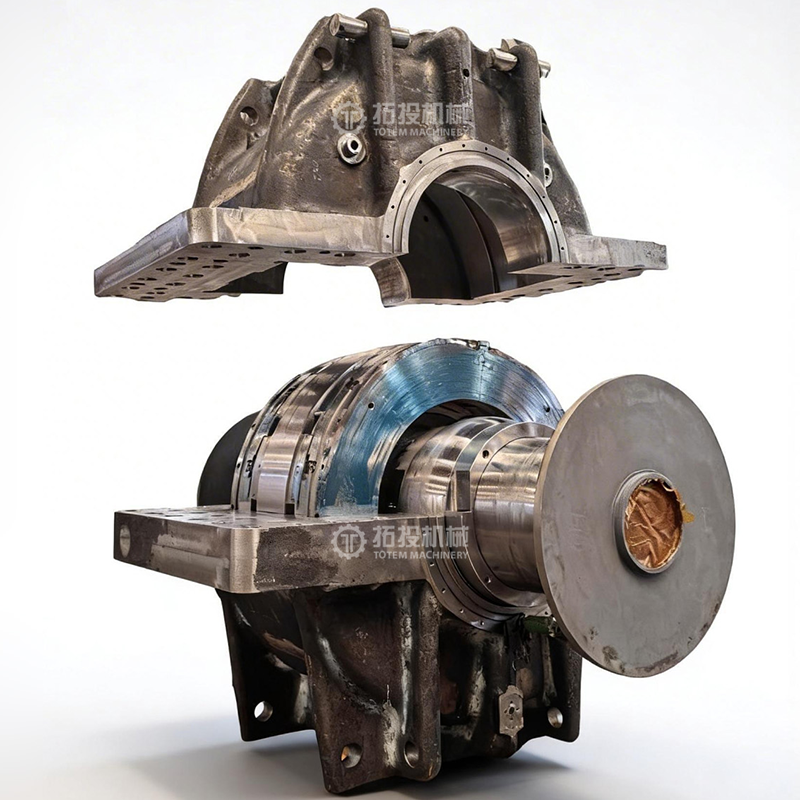

Thrust Bearing
Thrust Bearing
A thrust bearing is designed primarily to support axial, or thrust, load. Axial load acts parallel to the shaft centerline, whereas radial load acts perpendicular to it; NSK uses this same distinction when describing bearing loads. By restraining lengthwise shaft movement while permitting rotation, the bearing helps maintain the intended axial position of a rotor or shaft.
The term covers several constructions rather than one standard mechanism. Thrust ball bearings, roller thrust bearings, fixed-profile fluid-film bearings, and tilting-pad thrust bearings all manage axial force, but their contact geometry and lubrication requirements differ. That is why bearing type must be identified before its working principle can be evaluated.
Force direction is the simplest distinction. A radial bearing mainly reacts force directed across the shaft, while a thrust bearing mainly reacts force directed along it. Dedicated thrust ball bearings are intended for axial load and should not be treated as radial bearings, although some other bearing designs can accommodate combined loads.
At system level, axial force enters through the shaft or thrust collar, passes through the load-carrying elements, and reaches the bearing housing and machine structure. Rotation remains possible because uncontrolled sliding contact is replaced by rolling contact or by a controlled lubricated interface. The bearing therefore restrains axial displacement while limiting friction between moving and stationary components.
In a rolling-element thrust bearing, balls or rollers move between shaped raceways and transfer load from the shaft-side washer to the housing-side washer. Single-direction thrust ball bearings carry axial load in one direction, while double-direction versions can locate a shaft in both axial directions. Fluid-film designs work differently: relative motion draws lubricant into a converging gap, pressure builds in the film, and that hydrodynamic pressure supports the thrust collar.
Different thrust bearing types should not be grouped under a single mechanism. Rolling designs rely on controlled rolling contact, while hydrodynamic designs rely on lubricant-film pressure. Actual load and speed capability still depends on bearing size, geometry, material, lubrication, and manufacturer data.
| Type | How Load Is Carried | Typical Selection Consideration |
|---|---|---|
| Thrust ball bearing | Balls roll between thrust washers | Axial load only in standard designs; single- or double-direction arrangement |
| Cylindrical roller thrust bearing | Cylindrical rollers carry axial force | High axial rigidity; speed limitations must be checked |
| Tapered roller thrust bearing | Tapered rollers distribute thrust through angled contact | High axial load and rigidity; arrangement must match radial guidance needs |
| Spherical roller thrust bearing | Self-aligning rollers carry thrust | Better tolerance of misalignment; some radial capacity with axial load |
| Fixed-profile fluid-film bearing | A shaped surface develops a hydrodynamic film | Requires a suitable oil supply and defined operating conditions |
| Tilting-pad thrust bearing | Individual pads tilt to form oil wedges | Used in demanding rotating equipment where oil-film and thermal behavior are critical |
NSK and SKF describe the main rolling thrust-bearing families, while Kingsbury documents fixed-profile and tilting-pad hydrodynamic designs.
Rolling-element thrust bearings commonly contain a shaft washer, housing washer, rolling elements, and a cage. In a fluid-film assembly, the component set may instead include a thrust collar or runner, thrust pads, a supporting or base ring, a housing, and an oil-supply arrangement. TOTEM groups thrust and tilting-pad designs within its white metal bearings range, where the Babbitt working surface is supported by a stronger backing structure.
The components must function as one load path rather than as isolated wear parts. Pad support, collar condition, housing geometry, oil distribution, and mating accuracy can all influence how evenly thrust is carried. For custom heavy rotating equipment, thrust Babbitt bearings should therefore be assessed together with the shaft system and specified operating conditions.
Hydrodynamic lubrication is the defining mechanism in many heavy-duty thrust bearings. As the collar moves relative to the stationary surface, oil is drawn into a converging gap; pressure develops in this wedge and supports axial load while separating the surfaces during stable operation. Kingsbury describes both fixed-profile and tilting-pad bearings as designs that use bearing geometry to generate a load-carrying hydrodynamic film.
For Babbitt-lined thrust pads, the working surface, backing, pad geometry, support, and lubricant supply all contribute to film formation. The Babbitt layer acts as the bearing surface rather than the entire structural support, so its condition must be considered together with the underlying pad and ring. TOTEM’s thrust-pad design is intended to operate with a supporting structure and lubricating film that transfers axial thrust into the bearing assembly.
Oil is therefore more than a friction reducer in a fluid-film bearing. Its viscosity, temperature, supply condition, and cleanliness affect film behavior and heat removal, while changes in load or speed alter the operating state as well. Technical work published by Kingsbury treats oil-film thickness, temperature, power loss, load, and lubricant properties as interdependent variables.
A tilting-pad thrust bearing divides the stationary face into pads that can pivot slightly. Relative motion and pad angle form a converging oil wedge on each loaded pad, allowing hydrodynamic pressure to develop between the pad and rotating collar. This controlled pad motion is why tilting pad bearings are widely used in demanding turbines, compressors, pumps, motors, blowers, and marine equipment.
Tilting does not mean the bearing can compensate for every alignment or lubrication problem. Pad geometry, support, oil delivery, thermal condition, and the rotating collar must still remain within the intended design envelope. Directed-lubrication arrangements, for example, can introduce cooler oil close to the point of film formation to improve thermal control.
Thrust bearings are used wherever machinery generates significant force along the shaft axis. Typical applications include turbines, pumps, compressors, machine tools, hydroelectric equipment, gear systems, and marine drivetrains. The correct bearing family depends on how that axial force is produced and how the machine operates.
Turbine rotors can develop axial thrust from pressure distribution and the overall rotor arrangement. The thrust bearing establishes axial position and passes that load into the casing or foundation. TOTEM’s steam-turbine range likewise identifies the thrust bearing as a component used to control rotor axial position and balance thrust.
Pressure differences across impellers, pistons, or other internal components can create axial force that the bearing arrangement must react. Depending on machine architecture, the solution may use rolling elements, a fluid-film thrust bearing, or a combined radial-and-thrust arrangement. Selection should consider how load magnitude and direction change across startup, normal duty, and off-design conditions.
A ship propeller generates thrust that travels through the shaft line and ultimately into the vessel structure. In marine propulsion systems, the bearing arrangement forms part of this load path, while shafts, pads, housings, lubrication parts, and foundations must remain compatible. TOTEM lists thrust shafts, thrust pads, base rings, bearing housings, and oil-supply parts within this propulsion-system category.
Selection should start with the actual operating case rather than a generic bearing name. Engineers normally need to establish axial-load magnitude and direction, any radial or combined load, shaft speed, duty cycle, alignment behavior, required stiffness, lubrication method, temperature, contamination risk, mounting space, and maintenance access. SKF and NSK similarly distinguish bearing choices by load direction and the operating characteristics of each bearing family.
A thrust ball bearing can suit applications dominated by axial load when its ratings and mounting arrangement are appropriate. Roller designs may be preferred where greater axial rigidity or load capability is required, while fluid-film and tilting-pad systems become relevant in large continuous-duty equipment where oil-film behavior and thermal control are part of the design. For custom machinery, drawings, shaft or collar geometry, rotation direction, oil data, temperature, load cases, and inspection requirements should be confirmed before manufacturing.
The useful comparison is based on mechanism and operating context, not on claiming that one family is universally better. Rolling-element bearings transmit force through discrete contacts; fluid-film bearings rely on hydrodynamic pressure generated between the rotating collar and stationary bearing surface. Their different mechanisms change what engineers need to monitor and specify.
| Decision Factor | Rolling-Element Bearing | Fluid-Film / Tilting-Pad Bearing |
|---|---|---|
| Primary interface | Balls or rollers on raceways | Oil film between collar and bearing surface |
| Lubrication role | Protects rolling contacts and reduces friction | Also forms the primary load-carrying film |
| Main selection focus | Rating, speed, load direction, mounting | Load, speed, oil system, pad geometry, temperature, alignment |
| Common industrial fit | Broad machinery applications | Large turbines, compressors, pumps, hydro and marine equipment |
| Typical concern | Contact stress, wear, overheating, misalignment | Film loss, heat, surface distress, uneven pad loading |
This difference explains why a generic answer to how does a thrust bearing work can be incomplete. Both bearing families restrain axial motion, yet the physical mechanism carrying the force is fundamentally different. Identifying the bearing family first makes later selection and troubleshooting much more reliable.
Lubrication problems are particularly serious in fluid-film designs because oil participates directly in load support. Inadequate supply, unsuitable viscosity, excessive temperature, aeration, or contamination can change film behavior and increase the risk of surface interaction. A temperature increase can also reflect load redistribution, alignment change, or cooling problems, so diagnosis should not rely on one symptom alone.
Misalignment, poor support, or mating-surface errors can change the intended load distribution across pads or rolling elements. Localized wear may then develop even when the bearing material itself is not the original cause. A useful diagnostic sequence is symptom → operating condition → load path → likely mechanism → inspection evidence, using speed, load, oil condition, alignment history, and recent maintenance to narrow the cause.
A custom heavy-duty bearing must match the existing shaft line, collar, housing, oil system, and foundation. Before a new or replacement unit is approved, the engineering review should cover the conditions that determine how the bearing will operate rather than relying on a generic catalog description.
Axial-load direction and operating load cases
Shaft speed, duty cycle, startup and shutdown conditions
Thrust collar or runner dimensions and surface condition
Pad geometry, support arrangement, and base-ring fit
Lubricant type, supply method, temperature, and cleanliness
Alignment, housing support, and expected thermal movement
Inspection requirements for dimensions, surface quality, Babbitt bonding, and mating interfaces
Universal numerical limits should not be copied into a specification without reference to the actual design. Manufacturer calculations, machine drawings, operating records, and project requirements should govern acceptance criteria. Where an existing unit is being reproduced, first-hand dimensional and inspection data can provide more useful evidence than generic assumptions.
So, how does a thrust bearing work? It controls axial shaft movement by transferring thrust into a stationary structure while preserving rotation, but the load-carrying mechanism changes with bearing type. Rolling-element designs use balls or rollers, whereas fluid-film and tilting-pad systems depend on hydrodynamic pressure, pad geometry, lubrication, and accurate support. Reliable operation therefore comes from matching the bearing to the real load case, speed, alignment, oil system, mating geometry, and inspection requirements rather than selecting by bearing name alone.
A thrust bearing transfers force acting along a shaft into a stationary support while allowing the shaft to rotate. Rolling designs use balls or rollers, while fluid-film designs support the rotating surface on hydrodynamic lubricant pressure.
It depends on the bearing type. Standard thrust ball bearings are intended for axial load, while some spherical roller thrust bearings can accommodate a radial component when axial load is also present.
The main difference is load direction. Thrust bearings primarily carry force parallel to the shaft axis, while radial bearings primarily carry force perpendicular to it; some bearing families are designed for combined loads.
Tilting pads form individual hydrodynamic oil wedges and are suited to demanding rotating equipment where axial load, speed, temperature, and fluid-film behavior must be managed together. Final design still requires application-specific calculations for load, lubrication, thermal conditions, geometry, and rotor arrangement.
Possible causes include lubrication problems, excessive or redistributed load, alignment changes, contamination, cooling limitations, or surface distress. Because several mechanisms can produce similar symptoms, temperature should be evaluated together with load, speed, oil condition, alignment, and inspection evidence.
