Tilting pad bearings are widely used in turbines, compressors, generators, marine propulsion systems, gearboxes, and other rotating equipment where rotor stability and reliable fluid-film support are critical. Unlike a fixed-profile bearing, each pad can pivot around its support and establish a hydrodynamic oil wedge that responds to changes in shaft position, speed, and load. This makes tilting pad bearing design more than a matter of choosing a bearing diameter or matching an existing drawing.
A dependable design requires several engineering disciplines to work together. Pad geometry, bearing clearance, preload, pivot position, lubricant behavior, thermal deformation, manufacturing accuracy, and rotor dynamics can all influence the final operating condition. Treating any of these factors in isolation may produce a bearing that appears acceptable dimensionally but performs poorly once installed in the complete shaft system.
The gap between domestic and international white metal bearings comes down to five technical challenges. Addressing these is essential for localization. Here’s how we tackle them:
International industry leaders have complete fluid lubrication and TEHD simulation systems, enabling them to calculate pressure fields, temperature fields, pad deformation, and oil film thickness. However, many domestic enterprises still remain at the stage of “drawing and imitating,” lacking closed-loop validation through simulation and experimental data.
· Solution: Establish a complete fluid lubrication and thermoelastohydrodynamic (TEHD) simulation system. Use test bench data to calibrate models and break the dilemma of “imitation without accuracy.” Collaborate with third-party simulation and testing institutions to improve simulation accuracy.
High load capacity, heat resistance, and anti-seizure properties are the core requirements for white metal bearings. The formulation and process are critical to the manufacturer—they directly determine the service life and reliability of the bearings.
· Solution: Optimize the tin-based babbitt alloy formulation by incorporating reinforcing elements and nanomaterials. Refine processes such as centrifugal casting and arc spraying to develop proprietary core technologies.

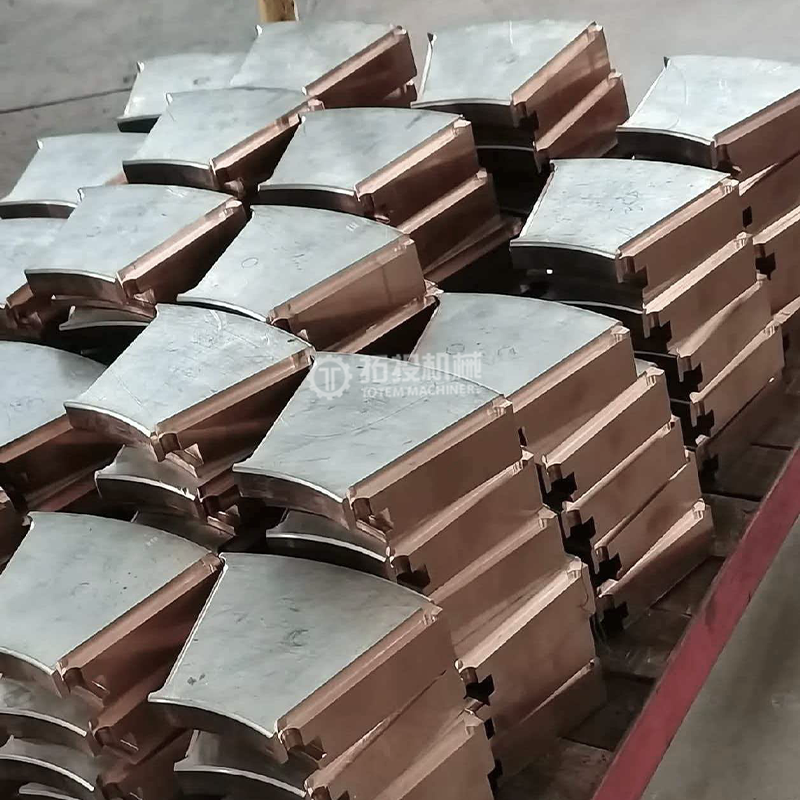

Babbitt Thrust Pad

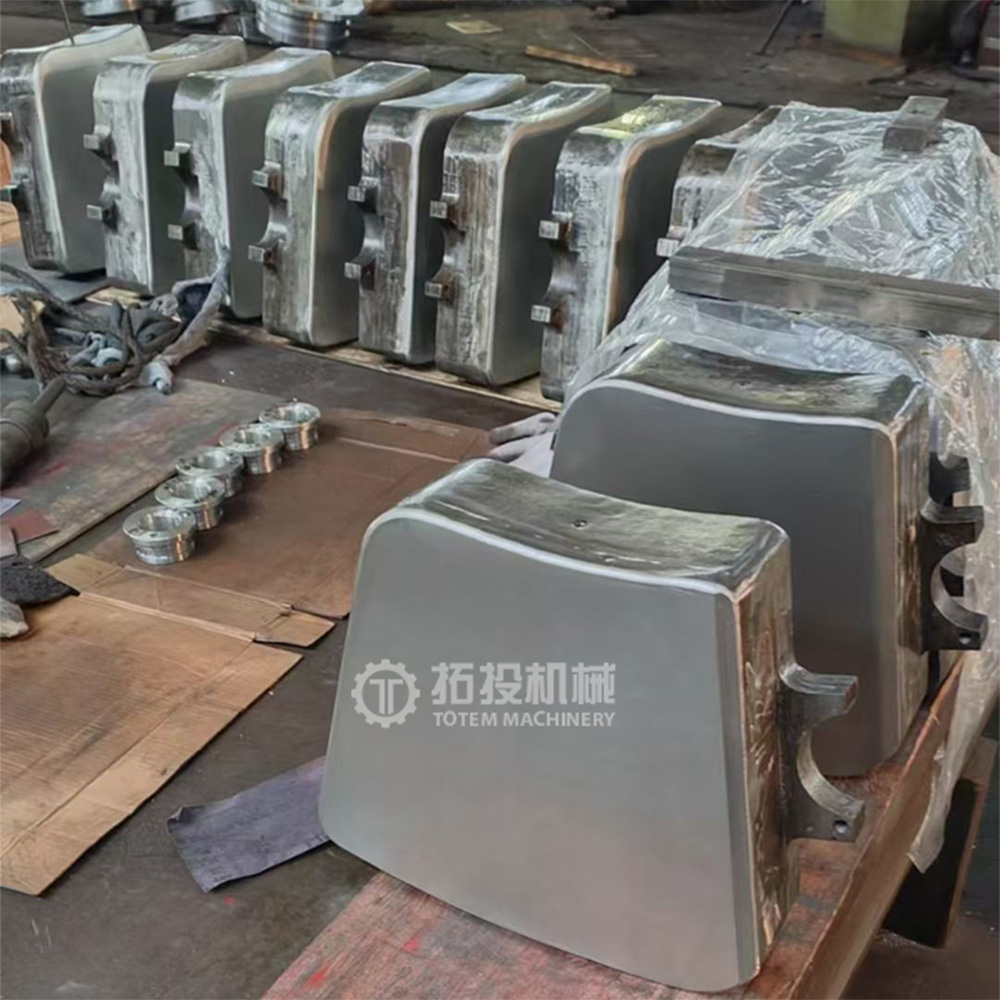

Babbitt Thrust Pad
Babbitt Thrust Pad
High-end equipment alone is not enough. The key lies in establishing a complete process and quality control system—covering precision machining equipment such as CNC boring and grinding, online inspection capabilities, and a pad thickness grouping and matching mechanism. Without systematic process control, even advanced equipment can fail to deliver compliant products.
· Solution: Introduce high-end CNC equipment and establish a full-process monitoring system from raw materials to finished products. Achieve standardized processing and matching of pad components to prevent the problem of “machinery without process.”
Bearings are not isolated components; they must be dynamically matched with the entire system—including the rotor, coupling, and gearbox. International industry leaders provide complete shaft system calculations and system-level solutions. However, many domestic enterprises still focus on component-level supply, lacking the capability for end-to-end system integration.
· Solution: Move beyond the component-only model. Integrate with other components such as the main engine rotor and coupling to provide a comprehensive dynamic calculation for the complete shaft system. Draw from integrated designs like the “monolithic extruded oil film damper + tilting pad bearing” combination to enhance overall equipment stability.
International leaders like Kingsbury and Waukesha have over a century of real-world operating data behind them. Their designs—what structure to use under which load, what clearance to set, what oil temperature to hold—are backed by data.
Domestically, we lack both real operating data and a failure analysis database. So design still leans on experience, with little room for continuous iteration.
· Solution: Build a long-term database of real operating data and failure cases. Learn from international best practices. Then gradually define the right structure, clearance, and oil temperature for each operating condition—pushing toward long-life reliability.

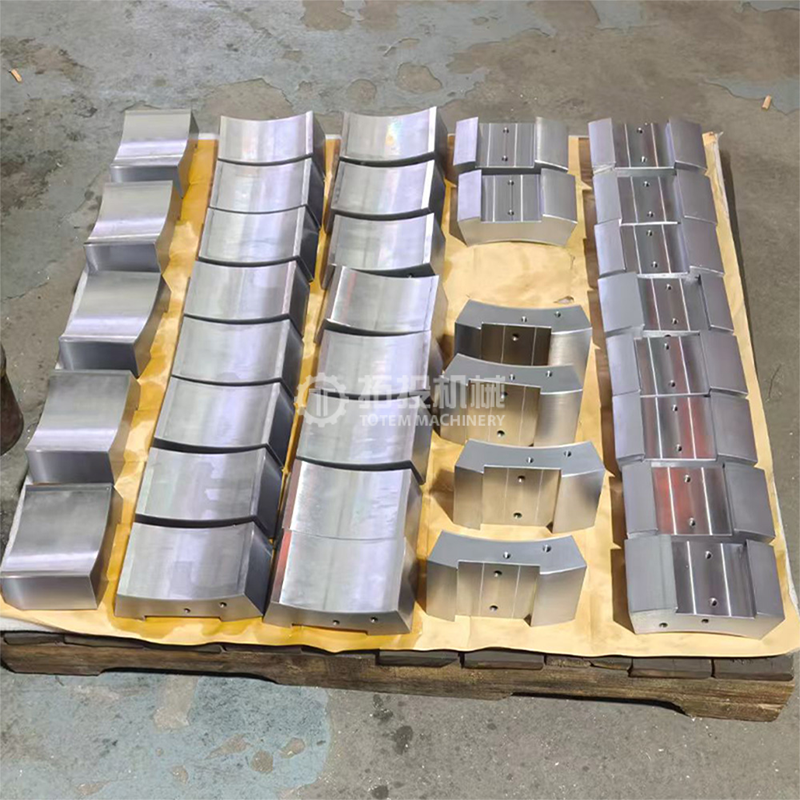

Radial Tilting Pad

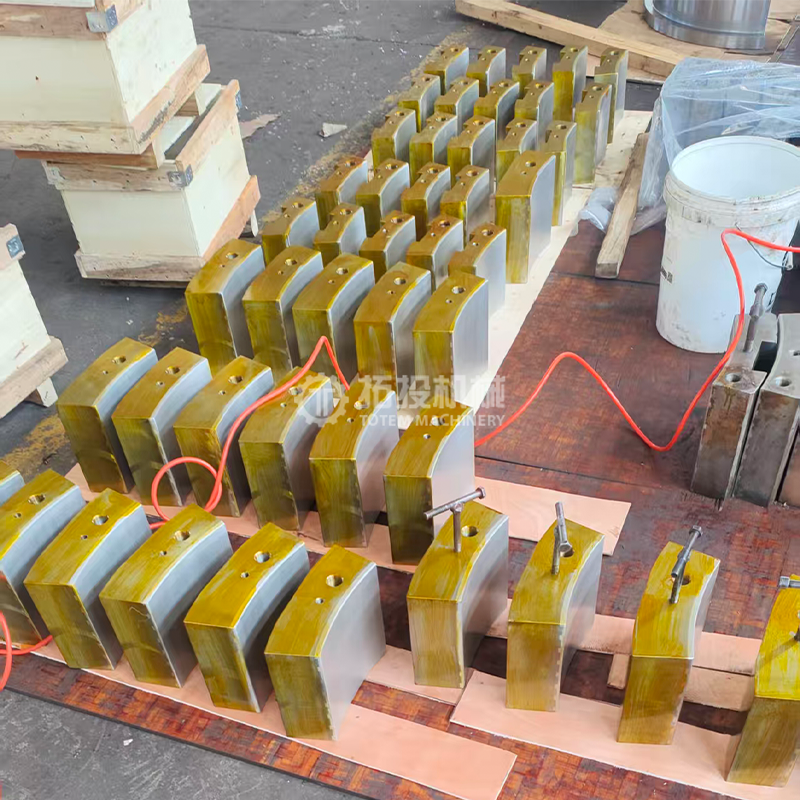

Radial Tilting Pad
Radial Tilting Pad
Abnormal temperature should not automatically be blamed on the Babbitt material. Possible contributors include lubricant supply conditions, incorrect clearance, excessive or uneven loading, misalignment, surface damage, restricted pad movement, or changes elsewhere in the shaft system. Investigation should begin with measured operating data and physical inspection rather than with assumptions.
Unexpected vibration requires a similarly systematic approach. Engineers should review shaft vibration, bearing temperatures, alignment, lubrication conditions, pad condition, clearances, and relevant rotor-dynamic information. If a replacement bearing was recently installed, differences in internal geometry or assembly conditions may also deserve attention.
Visible wiping, scoring, fatigue damage, or bond deterioration can provide useful evidence, but the damaged surface is often the result rather than the original cause. Effective troubleshooting connects the observed failure mode with operating history, lubrication, geometry, alignment, thermal behavior, and shaft dynamics before corrective action is selected.
The strongest tilting pad bearing design process forms a closed loop between calculation, manufacturing, testing, and operating feedback. Analytical tools can predict pressure, temperature, deformation, oil-film behavior, and dynamic coefficients, while inspection confirms whether the manufactured geometry matches the intended model.
Where test facilities or commissioning data are available, measured temperatures, vibration behavior, oil conditions, or other relevant operating results can be compared with engineering predictions. Differences should be investigated rather than hidden, because they can reveal inaccurate assumptions or manufacturing and installation effects that were not represented adequately in the model.
Over time, verified field information can improve future design decisions. A reliability database is most valuable when it records the operating condition, bearing configuration, inspection evidence, observed failure mode, and corrective action in a form that engineers can use rather than simply storing a history of completed projects.
Reliable tilting pad bearing design depends on the interaction of hydrodynamic lubrication, pad geometry, clearance, preload, pivot configuration, thermal behavior, material integrity, manufacturing accuracy, and rotor dynamics. Calculations define the intended operating condition, while precision manufacturing and inspection determine whether that design can be reproduced in the physical bearing. For critical machinery, the strongest engineering approach connects analysis with assembly checks, test evidence, and field feedback. This system-level process provides a more useful basis for selecting, manufacturing, and validating thrust and journal tilting pad bearings than relying on a single parameter or standard configuration.
There is no single universal factor. Load, speed, clearance, preload, pad geometry, pivot position, lubricant conditions, temperature, and rotor dynamics interact with one another. A reliable design evaluates these variables as a system and checks the resulting oil-film, thermal, and dynamic performance.
Preload changes the geometric relationship between the journal and the individual pads. As a result, it can influence oil-film formation, shaft position, bearing stiffness, damping, temperature, and other performance characteristics. The appropriate preload should therefore be established through application-specific analysis rather than a generic preferred value.
The pivot determines how a pad responds to the hydrodynamic pressure field. Moving it away from the geometric center can change load distribution, operating temperature, and other bearing characteristics, while some offset arrangements also depend on a defined direction of rotation. Pivot selection should be coordinated with pad geometry and machine operating requirements.
TEHD analysis becomes particularly valuable when thermal effects and structural deformation are significant enough to alter the lubricant film. It allows pressure, temperature, viscosity, deformation, and film geometry to be considered together. Critical applications may also require comparison between calculated behavior and test or field measurements.
Useful inputs include shaft or collar dimensions, loads, rotational speed range, direction of rotation, bearing envelope, lubricant information, supply conditions, material requirements, and relevant drawings or specifications. For replacements, operating history, vibration data, temperature trends, alignment information, and inspection records can provide additional engineering context.
Dimensional replication may be possible for some replacement components, but it does not automatically verify the original tilting pad bearing design. Internal geometry, preload, pivot arrangement, material, lubricant supply, and rotor-dynamic requirements may not be evident from basic external measurements. Critical replacements benefit from reviewing available drawings, service conditions, inspection findings, and shaft-system requirements before manufacturing begins.
