Reciprocating compressors serve as core power equipment in the petroleum, chemical, natural gas transmission, air separation, and refrigeration industries. The cylinder block is the critical pressure-bearing component that directly sustains gas pressure and encloses the compression volume. Whether a compressor can operate stably over the long term is often determined by the casting quality and assembly precision of its cylinder block.
The cylinder block features a complex structure, widely varying wall thicknesses, and interlaced internal cavities. It must not only withstand alternating gas loads but also ensure reliable cooling, lubrication, and sealing functions. It is therefore widely recognized as a highly challenging component in both casting and assembly. This article addresses the core technical difficulties in cylinder block manufacturing and the corresponding countermeasures, revealing the process expertise behind a high-quality cylinder block.

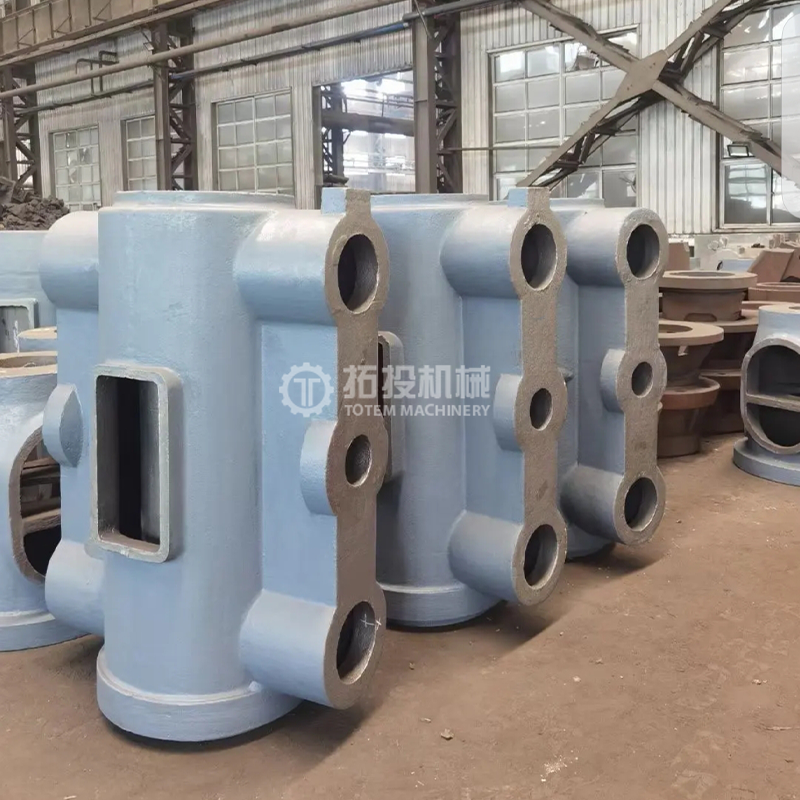

The cylinder block is far more than a simple shell. Internally, multiple functional cavities—including the working chamber, suction and discharge valve pockets and gas passages, cooling water jacket, lubricating oil passages, and packing cavities—are intertwined. Multi-stage units often adopt a differential structure with multiple cylinders in series. International standards such as API 618 Reciprocating Compressors for Petroleum, Chemical, and Gas Industry Services impose stringent requirements on the material, pressure resistance, and inspection of pressure-containing parts like cylinders.
This "multi-cavity-in-one" structural feature dictates that cylinder block manufacturing must simultaneously satisfy three demanding requirements:
Reliable pressure containment: Cylinder walls and gas passages shall not crack or leak under high-pressure alternating loads.
Gas-tight integrity: The casting body shall be free from through-wall defects, and all joint faces shall be sealed reliably.
Wear-resistant precision: The cylinder bore, which directly rubs against piston rings, demands high dimensional accuracy and surface quality.
The water jacket, gas passages, and other internal cavities of the cylinder block are entirely formed by cores. The cores are numerous and irregularly shaped; some water-jacket cores have very thin walls—a typical structure has a wall thickness of only about 1.8 mm, making them prone to fracture and deformation during core making and setting. During mold closing, even slight deviations in core positioning can lead to uneven wall thickness on the low side or core break-through and scrap on the severe side.
Abrupt wall thickness changes at junctions between cylinder walls and valve pockets, as well as at flange roots, create isolated hot spots. Once the feeding channels are cut off by prematurely solidified thin sections, the solidification shrinkage of the molten metal cannot be compensated, resulting in shrinkage cavities and porosity. These pore-type defects not only weaken the casting strength but also serve as "leakage sources" in pressure-tightness tests.
Resin-bonded sand molding offers high dimensional accuracy and good surface quality, making it the mainstream process for complex cylinder blocks. However, it is extremely sensitive to process discipline. Excessive addition of resin and hardener, pouring before the mold (core) is fully cured, poor venting, and excessive fines content or loss-on-ignition in reclaimed sand can all induce gas porosity and sand inclusions. Sand inclusions—small cavities formed by gas or impurities inside or on the surface of the casting—once appearing on pressure-bearing walls, often mean scrapping of the entire cylinder block.
The water jacket has few sand outlet holes, and the passages are tortuous, making residual sand difficult to remove after pouring. High-quality cylinder blocks impose strict limits on residual sand inside the cavities; for some products, the requirement is as low as no more than 2.5 g. Customized automated shot-blasting processes and process capability control are necessary to consistently meet this standard.
To address the above difficulties, mature cylinder block casting production has established a systematic process route:
Digital process design: Solidification and filling simulation software is used to predict hot spots and gas entrapment risks in advance, optimizing gating systems, risers, and chills, thereby eliminating defects at the process design stage.
Meticulous control of resin-bonded sand: Preferred resin and hardener are selected with the minimum addition rates, ensuring that molds (cores) are fully cured before pouring. Reclaimed sand parameters are strictly controlled, and coatings are thoroughly baked before mold closing.
Standardized venting and pouring procedures: Venting channels are properly arranged, and pouring temperature and speed specifications are enforced to reduce gas entrainment and mold erosion.
Specialized cleaning and post-processing: For enclosed cavities such as water jackets and oil passages, a combination of shot blasting, vibration cleaning, and other methods is used, with quantitative measurement of residual sand.
Table 1 Common casting defects and control measures for cylinder blocks
Defect Type | Main Causes | Key Control Measures |
Shrinkage cavities/porosity | Isolated hot spots, insufficient feeding | Simulation-optimized risers and chills, directional solidification design |
Gas porosity | Excessive resin addition, poor venting, uncured cores | Strict control of resin/hardener dosage, full curing, enhanced venting |
Sand inclusions/surface sand | Broken cores, poor coating, mold erosion | Improve core strength, bake coatings, smooth pouring |
Excessive residual sand in cavities | Few sand outlets, tortuous passages | Customized shot-blast cleaning, quantitative residual sand measurement |
The dimensional accuracy, roundness, and surface roughness of the cylinder bore directly affect the sealing effectiveness and service life of piston rings. If, after wear, the difference between the maximum and minimum diameters reaches 0.5 mm or more, or if scratches deeper than 0.5 mm exist, the cylinder must be rebored for repair. The reboring allowance generally should not exceed 2 mm on diameter; when 10–25 mm must be removed, a cylinder liner shall be fitted, and strength verification shall be performed. Newly manufactured cylinder blocks follow the same precision logic: finishing boring and honing operations are interlinked to ensure the bore surface forms a plateau-honing structure conducive to oil retention.
In lined structures, the choice of interference is the core assembly challenge: excessive interference induces stress concentration and even cracking of the liner and block; insufficient interference leads to poor seating and degraded heat transfer. Comparative theoretical calculations and finite element simulations indicate that an interference of about 0.05 mm is reasonable; a segmented liner design also helps alleviate stress concentration. In practice, depending on the interference magnitude, methods such as room-temperature press fitting, hot-fitting by heating the block, or cold-fitting by freezing the liner can be selected to ensure one-time, damage-free assembly of the mating surfaces.
The assembly quality of piston rings directly affects the sealing of the compression volume. Before ring installation, each ring shall be placed in the cylinder for a light-leakage inspection: generally no more than two leakage locations are permitted, and no leakage is allowed within 30° of the ring gap; each leakage arc shall not exceed 25°. After installation in the groove, the ring shall slide freely, and its radial thickness shall be 0.25–0.5 mm less than the groove depth. When assembling the piston rod and piston, the joint faces shall be checked with the bluing method and, if necessary, scraped and adjusted. After assembly, the coaxiality and perpendicularity between the piston and piston rod shall be inspected; rework is required if out of tolerance.
The sealing faces of the valve seat and the lift limiter, the packing rings in the stuffing box, and the plugs and seals of water and oil passages are all potential leakage points. Before assembly, all components and passages shall be thoroughly cleaned, and tightening shall be performed to specified torque and sequence to prevent foreign matter ingress, incorrect parts, or misassembly.
Completed cylinder blocks must pass a series of tests before dispatch:
Hydrostatic test: This is mandatory, covering gas passages, water jackets, packing cavities, piping, and other pressure-containing parts. The test pressure is 1.5 times the maximum allowable working pressure of the component (with a minimum of 1.5 bar gauge for cylinder gas passages). No leakage is permitted during the holding period.
Leak-tightness test: Performed after successful hydrostatic testing, using dry, clean air or nitrogen. The pressure is gradually raised to the specified value and held for no less than 30 minutes, then reduced to the design pressure. All welds and joints are inspected with soap solution; no leakage is acceptable.
Non-destructive testing: Ultrasonic, magnetic-particle, or penetrant inspection is applied to critical machined surfaces and suspicious areas to eliminate cracks, inclusions, and other defects from progressing to subsequent operations.
From a Grain of Sand to a Cylinder Block – the process involves dozens of sequential steps: process design, core making and molding, melting and pouring, cleaning and machining, precision assembly, and rigorous testing. Overcoming each challenge reinforces the commitment to "reliability." The quality of the cylinder block is the first promise delivered to the customer with each compressor – casting every pressure-bearing wall with craftsmanship, and ensuring every stable operation through precision assembly.
