Marine propeller shaft: precision tolerance and corrosion control

A propeller shaft operates in one of the most hostile mechanical environments possible. It constantly balances extreme torsional stress while enduring aggressive electrolytes like seawater. Compromises in dimensional accuracy or material integrity create severe consequences. They lead to premature bearing wear, violent vibration, or catastrophic fatigue failure. Ultimately, these mechanical breakdowns result in costly vessel downtime. Procurement teams and marine engineers must source reliable marine propulsion system parts to ensure operational readiness. Evaluating straightness tolerances and defensive corrosion mechanisms remains the definitive step. This rigorous assessment mitigates long-term operational risks effectively. You will learn how precision metrics and metallurgical choices dictate performance in marine environments. We will explore alloy standards, protective coatings, and strict vendor validation practices. You can apply these principles immediately to your procurement strategy. Better materials ensure safer voyages and fewer emergency maintenance interventions.

Key Takeaways

• Tolerance dictates lifespan: Precision straightness (often strict to within thousands of an inch per foot) is mandatory to prevent cyclical fatigue and protect alignment.

• PREN is the baseline metric: Pitting Resistance Equivalent Number (PREN) objectively measures a material's ability to withstand localized marine corrosion, heavily influenced by Molybdenum and Nitrogen content.

• Dual-threat protection: Reliable screw propeller shaft longevity requires pairing inherent material resistance with external controls, such as cathodic protection and specialized polymer coatings.

• Supplier validation: Decision-makers must require traceable Non-Destructive Testing (NDT) and documented material certifications before approving a precision marine shaft vendor.

The Financial Impact of Propeller Shaft Failure

Downtime and drydock expenses present massive challenges for maritime operators. A mechanical failure never happens as an isolated event. It routinely damages surrounding structures like struts, cutlass bearings, and transmission seals. Operators face spiraling repair costs when these interconnected components fail simultaneously. Scheduling an emergency drydock disrupts entire operational calendars. You lose valuable days securing crane services, sourcing parts, and executing heavy repairs.

Field data reveals two primary root causes of system failure:

• Mechanical: Poor alignment induces bending fatigue. It also creates intense torsional shear under load. These stresses inevitably fracture steel over time.

• Environmental: Stagnant water triggers crevice corrosion under bearings. It encourages aggressive pitting and rapid galvanic degradation across exposed surfaces.

You must evaluate up-front investments carefully. Purchasing a precision-machined, corrosion resistant shaft yields significant operational advantages. Standard commercial alternatives often lack rigorous metallurgical testing. They degrade quickly in harsh saltwater environments. High-quality components reduce unplanned drydock visits dramatically. They protect alignment integrity over thousands of operational hours. A cheap part often masks hidden vulnerabilities. These vulnerabilities inevitably compound into massive emergency repair bills. Superior engineering reduces lifecycle disruptions effectively.

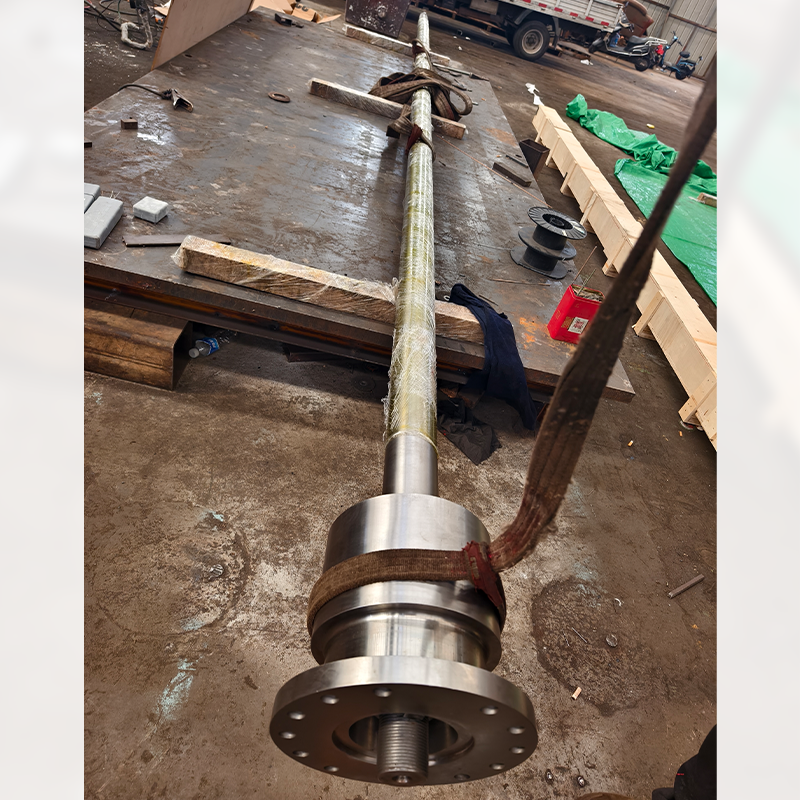

Precision Tolerance Standards for Marine Propulsion System Parts

Strict straightness requirements govern the manufacturing of any reliable driveline. Manufacturers must adhere to precise diametrical and straightness tolerances. Industry standards often dictate maximum runout specifications at fractions of a millimeter. Technicians measure these deviations using highly sensitive dial indicators. Even micro-deviations amplify destructive vibration at the propeller tip. This radial movement compromises hull integrity over time. It loosens structural fasteners and degrades engine mounts prematurely.

Surface roughness parameters demand equal attention during production. The surface finish (Ra) directly impacts longevity. A smooth finish becomes critical where the metal interfaces directly against seals and bearings. Rough surfaces cause premature friction wear rapidly. They generate localized heat build-up which quickly destroys elastomer seals. You need polished, exact surfaces to maintain hydrodynamic efficiency. Clean contact areas prevent premature water intrusion into the bilges.

The propeller-to-shaft fit requires flawless taper and keyway accuracy. An imperfect taper fit allows tiny micromovements during rotation. These movements accelerate dangerous crevice corrosion quickly. They also introduce fretting fatigue along the mating surfaces. Marine engineers often perform a Prussian blue contact test. This test verifies precise metal-to-metal seating. A perfectly lapped fit ensures continuous contact. It distributes torsional loads evenly across the entire connection. This distribution prevents sudden keyway shearing during hard acceleration.

Material Selection: Balancing Yield Strength and Corrosion Resistance

Engineers use the Pitting Resistance Equivalent Number (PREN) as an objective framework. PREN evaluates the chemical composition of different metal alloys systematically. It quantifies resistance against localized marine corrosion. You calculate it using Chromium, Molybdenum, and Nitrogen content percentages. Higher numbers indicate stronger defensive capabilities against aggressive chloride environments. Molybdenum specifically plays a critical role in repelling saltwater attacks.

Consider this evidence-oriented comparison of common alloys:

We must maintain absolute assumption transparency regarding metallurgy. No single material remains entirely immune to all failure modes. You cannot ignore proper system-level design. Even premium alloys fail if the vessel lacks adequate cathodic safeguards. A reliable marine propeller shaft performs best when paired with holistic environmental controls. Proper material selection sets the foundation for maritime durability. It acts as the first line of defense against structural fatigue.

Advanced Corrosion Control: Coatings and Cathodic Defenses

You must distinguish between galvanic and stray current corrosion clearly. Galvanic degradation presents a slow, dissimilar metal issue. It occurs naturally when two distinct metals interact underwater. Electrons flow from the active metal to the noble one. Stray current acts entirely differently and much more violently. It represents a dangerous electrical fault issue. Technicians often flag stray current (electrolytic corrosion) during complex vessel troubleshooting. It destroys metal rapidly through uncontrolled shore power leaks.

Cathodic protection serves a non-negotiable role in vessel safety. You must install sacrificial zinc or aluminum anodes strategically. These anodes degrade intentionally to protect the primary structural metals. Proper mechanical grounding remains equally essential for success. Installers use high-quality slip rings or specific phosphor-bronze brushes. These devices maintain continuous electrical continuity between rotating parts and the hull ground. They ensure anodes function correctly while underway. Proper grounding guards every screw propeller shaft effectively.

Barrier solutions provide an additional layer of robust defense. Hardened epoxies isolate metal surfaces from surrounding electrolytes completely. Proprietary polymer coating systems offer excellent protection in uninspectable areas. They seal the steel inside a resilient, impact-resistant barrier. These advanced coatings prevent dangerous oxygen depletion zones. They practically eliminate the risk of hidden crevice corrosion under standard operating conditions. Regular diver inspections should verify the integrity of these protective barriers.

Vendor Evaluation: Shortlisting a Precision Marine Shaft Manufacturer

Evaluating a manufacturer requires deep technical scrutiny and validation. You must assess their specific machining capabilities first. Do they possess specialized extra-long lathes? Do they utilize heavy-duty steady rests? These tools are required to machine long-axis components accurately. Inadequate equipment induces permanent stress or subtle bowing during the turning process. Precision manufacturing demands strict environmental temperature controls on the shop floor.

Quality assurance demands rigorous Non-Destructive Testing (NDT) protocols.

1. Ultrasonic Testing (UT): Inspectors use UT to detect dangerous subsurface inclusions. Sound waves reveal hidden voids inside the steel billet.

2. Dye Penetrant Testing (PT): Technicians apply PT to expose microscopic surface cracks before final shipping. This guarantees a flawless exterior finish.

3. Dimensional Inspections: Laser alignment tools verify straightness metrics across the entire length. They confirm exact compliance with engineering blueprints.

Traceability and compliance separate premium vendors from mediocre ones. The manufacturer must provide comprehensive mill test reports (MTRs). They should deliver straightness inspection logs alongside the finished product. Ensure full compliance with major classification societies globally. Organizations like ABS, DNV, and Lloyd’s Register dictate strict maritime safety standards. Their certification stamps validate the entire manufacturing lifecycle.

You should initiate procurement methodically and collaboratively. Recommend submitting your technical drawings for a thorough tolerance feasibility review. Request a specialized material consultation based on your vessel's unique operating profile. A trusted precision marine shaft partner adds value through proactive engineering support. They help you optimize alloy choices before committing to heavy manufacturing.

Conclusion

Sourcing reliable marine propulsion components demands careful technical balance. You must weigh strict dimensional fidelity against aggressive anti-corrosion metallurgy. Precise tolerances prevent destructive vibrations effectively. Optimal alloys resist harsh seawater electrolytes continuously. A reliable propulsion system is fundamentally a predictable one. True predictability relies entirely on data-backed material choices. It also demands verifiable, highly documented manufacturing precision from your chosen supplier. You cannot compromise on these foundational engineering principles. They dictate the lifespan of your critical maritime assets. Contact our specialized engineering team today. We offer comprehensive technical reviews of your upcoming driveline blueprints. Let us evaluate your material specifications and immediate replacement needs. We ensure maximum operational lifespan for every machined component. Secure your vessel's future performance with expertly engineered solutions.

FAQ

Q: What is the acceptable straightness tolerance for a marine propeller shaft?

A: Industry standard baselines typically require straightness within 0.002 to 0.005 inches per foot of length. High-RPM vessels and precision commercial applications demand even tighter specifications. Strict diametrical tolerances ensure smooth rotation, minimize destructive vibrations, and dramatically extend the operational life of interconnected cutlass bearings and transmission seals.

Q: Why is my stainless steel shaft rusting under the cutlass bearing?

A: This phenomenon is known as crevice corrosion. It occurs because stagnant seawater gets trapped underneath the bearing. Standard austenitic stainless steels rely on a microscopic oxide layer for protection. This protective layer requires continuous oxygen exposure to survive. When oxygen depletes in stagnant water, the metal actively rusts and degrades.

Q: What is the difference between stray current and galvanic corrosion on a screw propeller shaft?

A: Galvanic corrosion is a slow, natural electrochemical reaction occurring between two dissimilar metals sharing the same electrolyte. Stray current corrosion is rapid, unnatural degradation caused by external electrical faults. It happens when malfunctioning battery grounds or faulty shore power connections leak active current directly into the vessel’s underwater metals.

Q: Is a Duplex stainless steel shaft worth the upgrade over 316L?

A: Yes, it is highly recommended for commercial or high-load vessels. Duplex stainless steel offers nearly double the yield strength of standard 316L. It also features a significantly higher Pitting Resistance Equivalent Number (PREN). This premium metallurgical structure provides exceptional resistance against chloride stress cracking and heavy mechanical loads.
