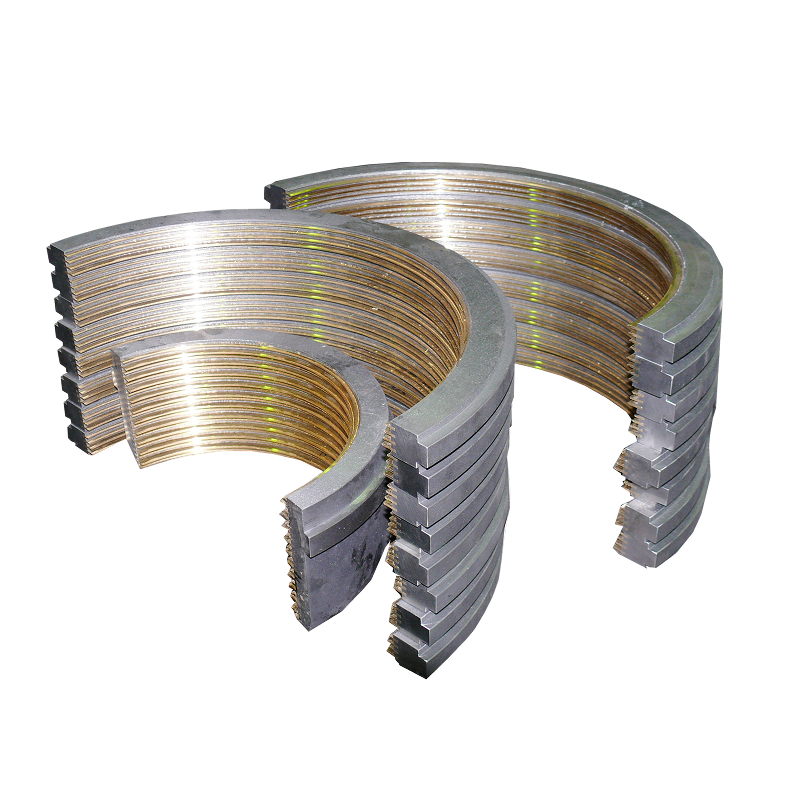

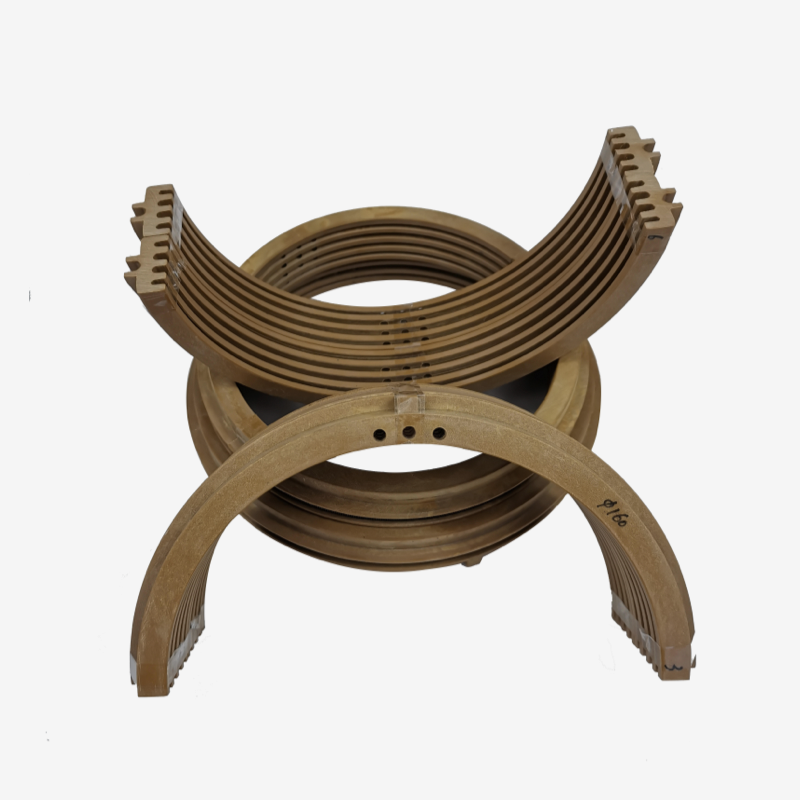

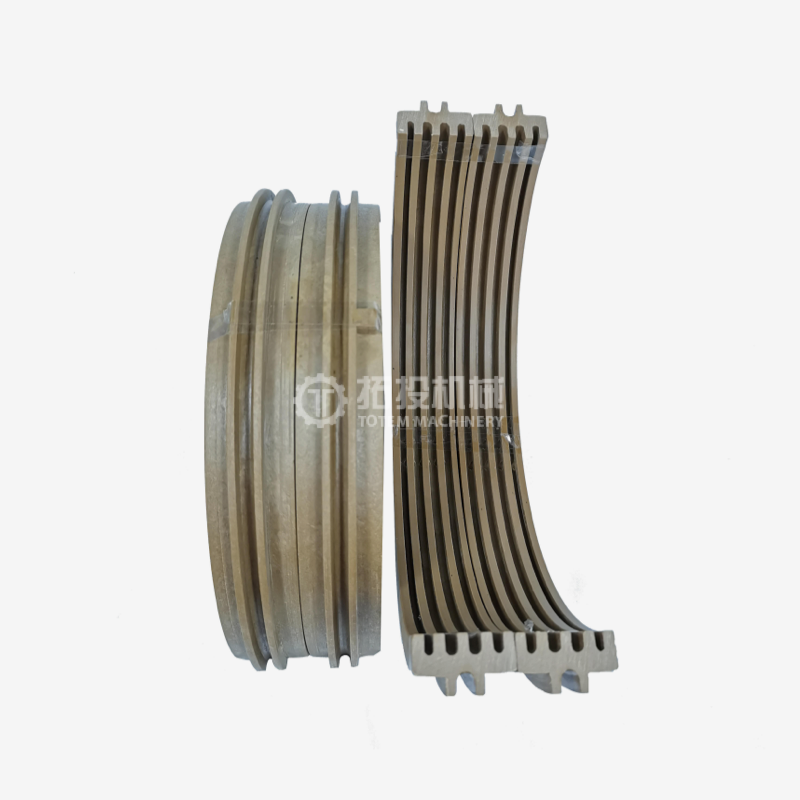

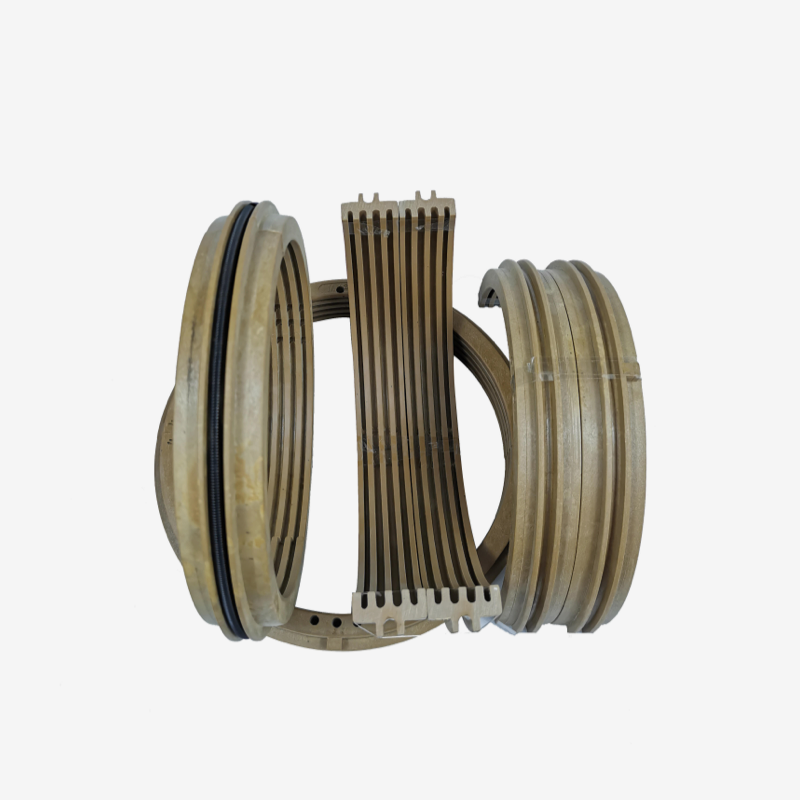

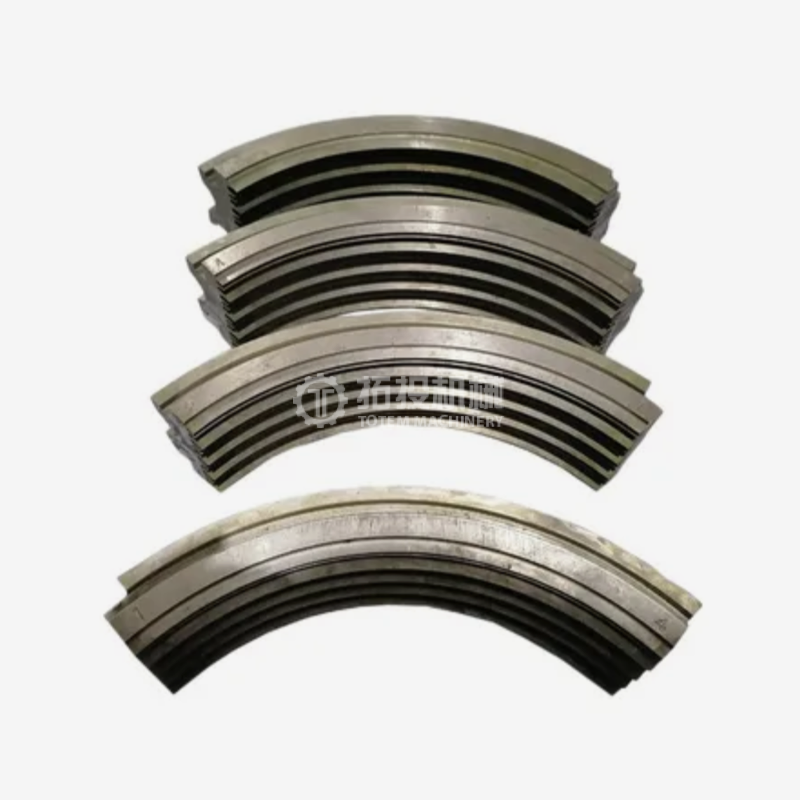

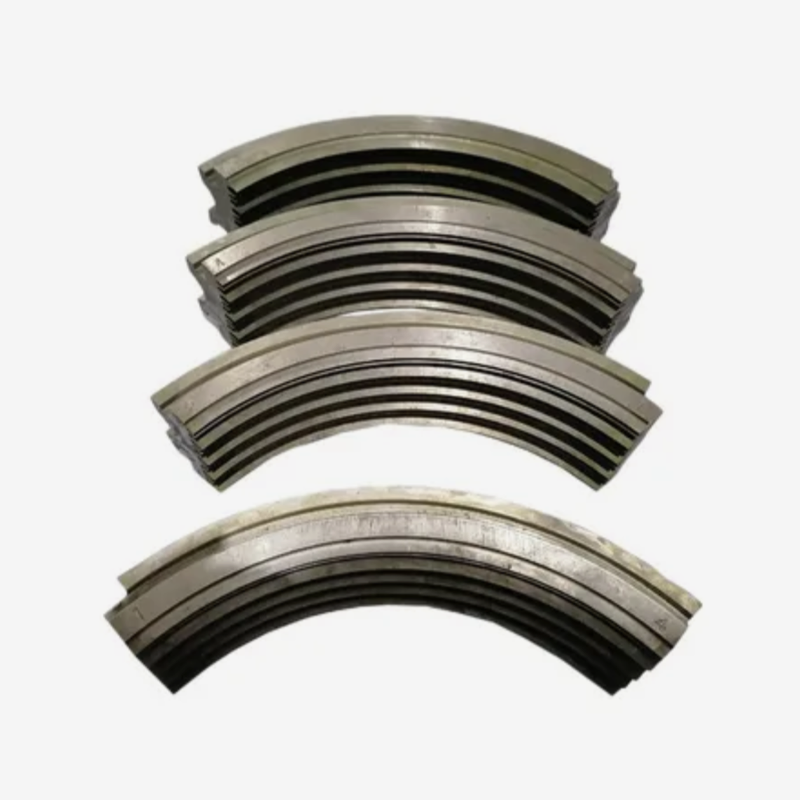

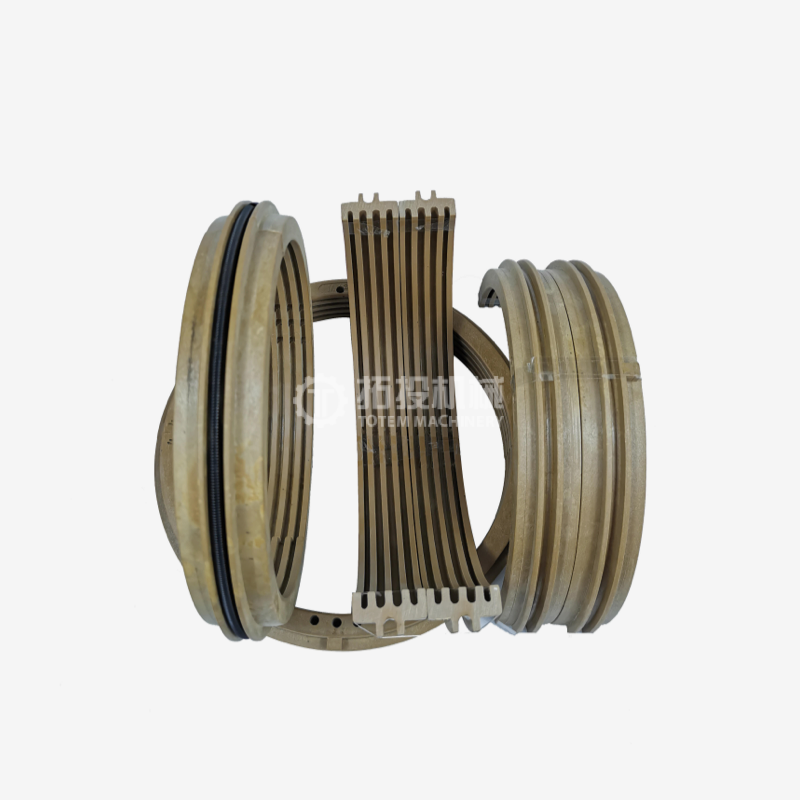

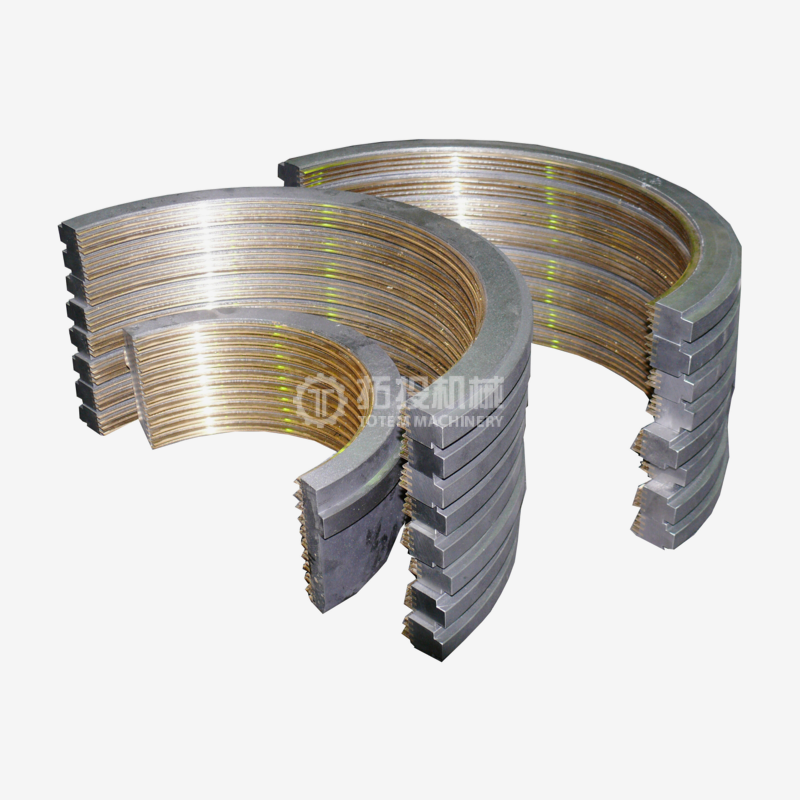

The steam turbine gland packing serves as the fundamental sealing component within the lubrication system of intermediate-pressure cylinders. Engineered with a sophisticated composite structure, this packing integrates the proven mechanics of traditional skeleton-type seals with advanced lip seal technology. At its core, the sealing element utilizes premium oil-resistant nitrile rubber (NBR) or fluororubber (FKM), providing a resilient yet firm tactile response upon installation. This elastomer is permanently bonded to a rigid 45# steel reinforcement skeleton, complemented by wear-resistant alloy steel contact surfaces. This specific material synergy achieves an optimal balance between structural rigidity and dynamic elasticity. The design highlights a highly flexible sealing lip crafted from either fluororubber (FKM) or perfluororubber (FFKM). A precisely machined micro spiral oil groove is integrated into the lip structure. Oriented in a direction opposite to the shaft's rotation, this groove actively harnesses centrifugal force to continuously guide lubricating oil back into the main reservoir, ensuring a dry external environment.
Building upon classic structural designs and refined manufacturing techniques, our turbine-specific oil seals are engineered to establish an impenetrable protective barrier for rotor shafting systems. They are meticulously tailored for thermal power generation facilities, marine propulsion systems, and heavy industrial machinery, precisely preventing lubricant leakage and the ingress of external dust and moisture.
Rotor Protection & Safety: During transient conditions such as turbine start-up, shutdown, turning gear operation, or extreme frictional events, the low-friction alloy contact surfaces and flexible lip design prevent any scoring or galling on the rotor journal. This provides ultimate protection for the core shafting system.
Environmental Compliance & Hazard Reduction: By establishing a positive, continuous seal, this gland packing completely blocks oil and gas leakage. This capability assists power plants and heavy industrial facilities in meeting strict environmental emission standards while significantly reducing fire hazards associated with escaped lubricants on the facility floor.
Contaminant Exclusion: Beyond retaining lubrication, the outer profile actively repels external particulate matter, airborne dust, and moisture, ensuring the internal lubrication system remains pristine and free from abrasive degradation.
 |  |  |
 |  |  |
The manufacturing process of this gland packing strictly adheres to the GB/T 28723-2023 national standard alongside international DIN sealing specifications. The sealing lip undergoes a rigorous precision grinding process, resulting in a perfectly smooth, highly effective sealing band that makes flawless contact with the journal surface. To guarantee zero-defect delivery for high-temperature and high-speed environments, every core metal skeleton and elastomer element is subjected to stringent non-destructive testing, including ultrasonic testing (UT), and high-precision dimensional verification. The production workflow incorporates advanced mold pressing and high-temperature vulcanization, ensuring absolute dimensional accuracy and structural integrity.
| Shaft Diameter Compatibility | 80 to 355 mm |
| Operating Temperature Range | -20°C to 120°C |
| Reinforcement Material | 45# Steel Skeleton |
| Elastomer Options | NBR, FKM, FFKM |
| Manufacturing Standards | GB/T 28723-2023, DIN Standards |
Engineered for the demanding conditions of intermediate-pressure cylinders, the product exhibits outstanding wear resistance. The specialized alloy steel and fluororubber matrix maintain their physical properties even under continuous thermal and mechanical stress, capably handling diverse operational phases including turbine start-up, shutdown, and steady-state generation.
By establishing a continuous, reliable positive seal, this gland packing minimizes lubricating oil consumption to an absolute minimum. This precise leakage control, kept well within superior industry standards, directly enhances the overall mechanical efficiency of the steam turbine unit. Over time, this translates to a significant reduction in long-term operational and maintenance costs for a single unit.
When operating under normal conditions, the structural resilience of this seal allows for a service life exceeding 18,000 hours. This exceptional longevity effectively reduces the frequency of mandatory downtime for maintenance, keeping power generation and industrial processes running continuously and profitably.
Installation of this sealing system employs either traditional split-type or solid structural designs, allowing it to precisely adapt to various axial mounting spaces across different steam turbine architectures. The physical disassembly and routine maintenance processes are highly convenient, requiring no complex specialized tools, which greatly accelerates workflow on the plant floor.
Customization & Adaptability: We fully support OEM and ODM non-standard customizations. Depending on specific turbine models and inherent rotor shaft runout deviations (such as out-of-roundness), we provide precise dimensional compensation and tailored installation adaptations to ensure a perfect fit for every unique setup.
Comprehensive Technical Support: Beyond the physical product, we deliver full-lifecycle technical support ranging from outage maintenance planning and on-site custom installation guidance to operational condition monitoring. This service effectively shortens equipment overhaul times and mitigates the risk of unexpected downtime.

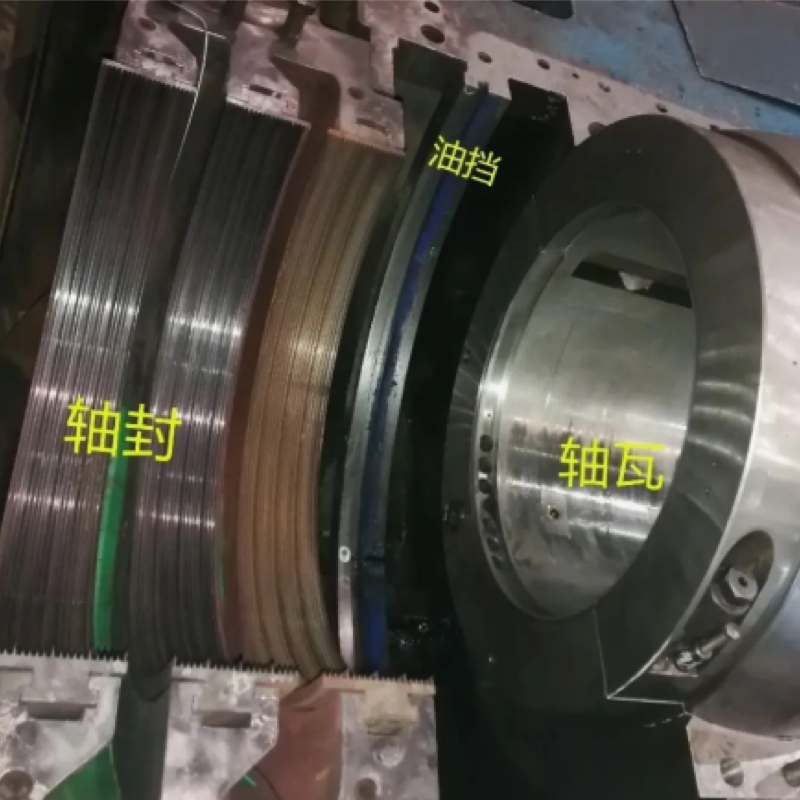

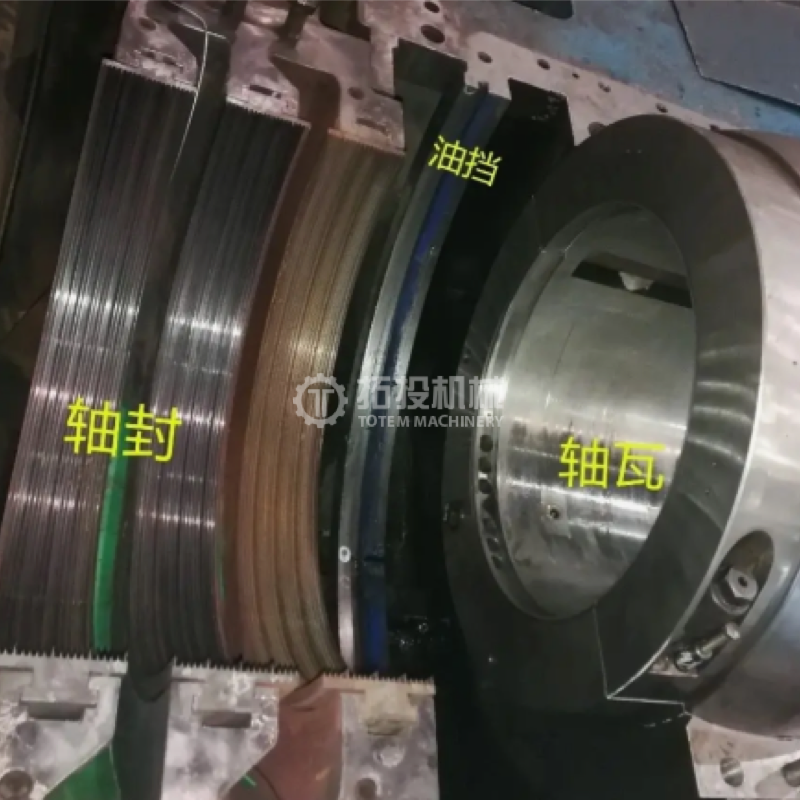

Widely utilized in critical sealing zones—including the high/intermediate-pressure cylinder, low-pressure cylinder, and generator end—this product has earned profound market trust. Its traditional strengths of reliable sealing, durable materials, and easy installation make it the preferred choice for numerous power plants and heavy industrial enterprises globally.
