Core Function

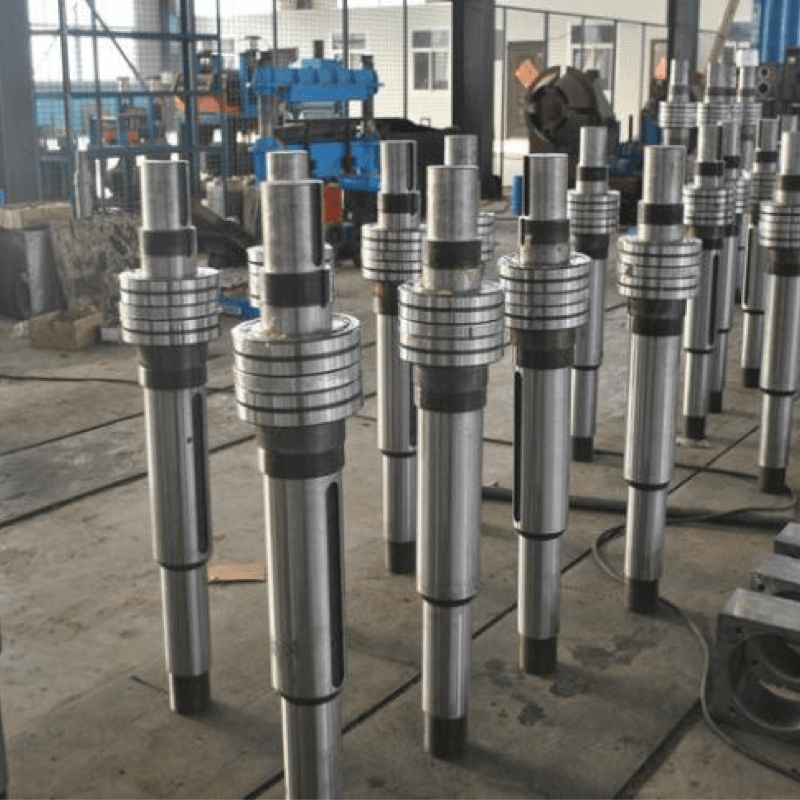

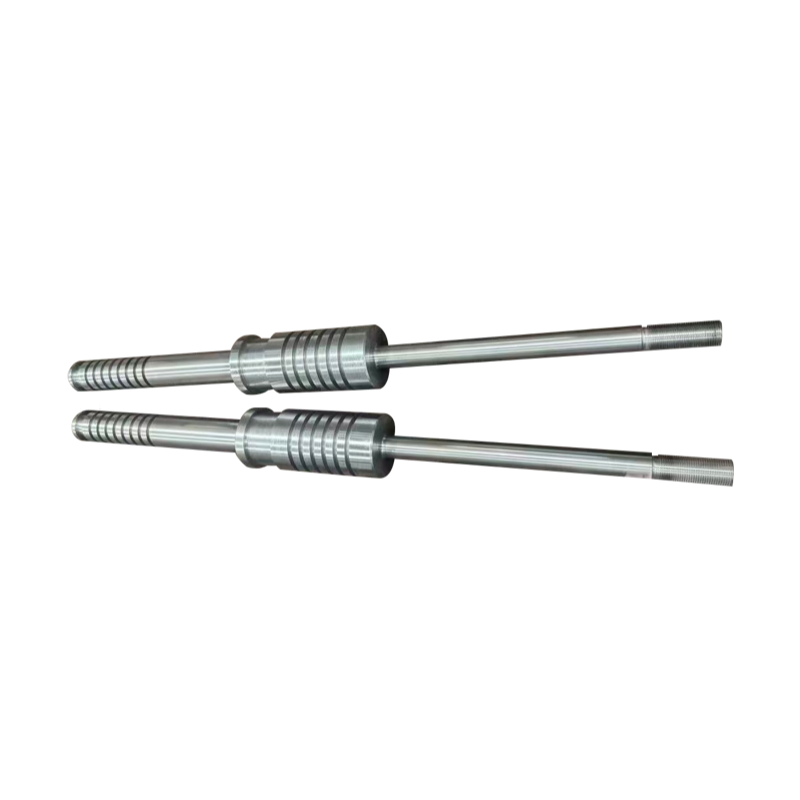

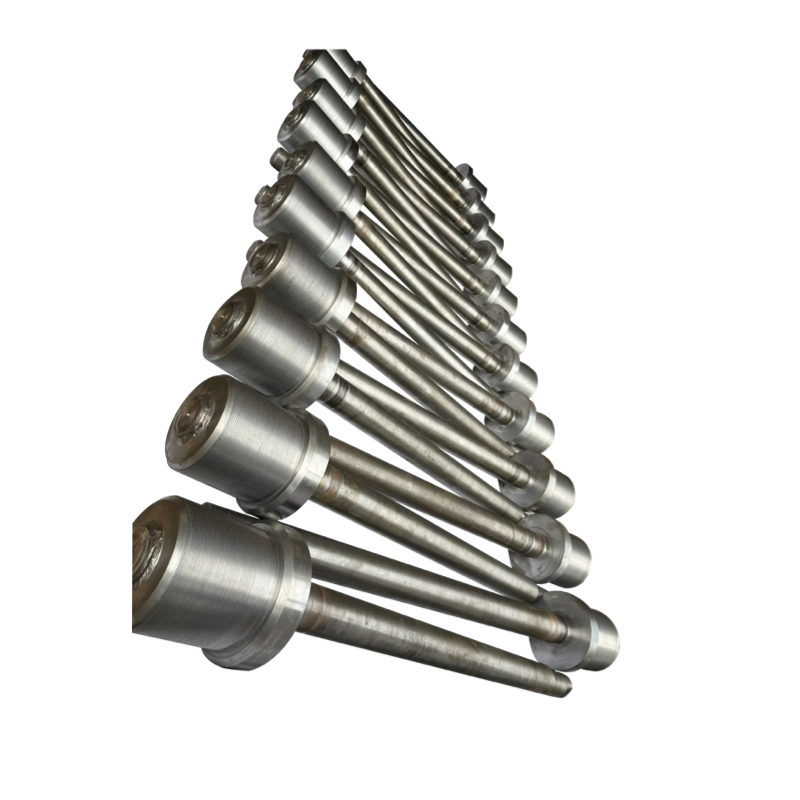

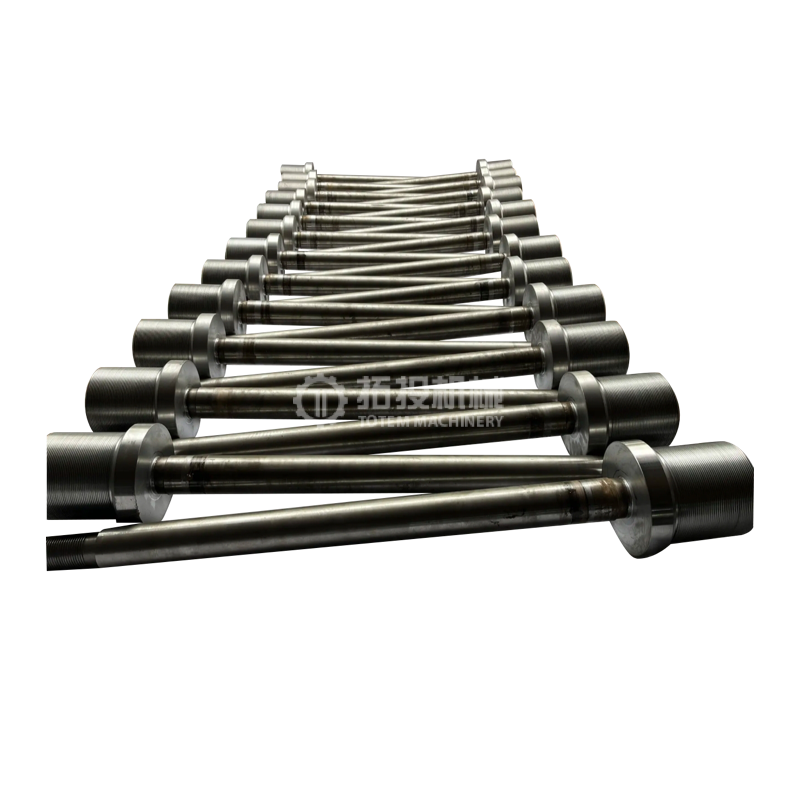

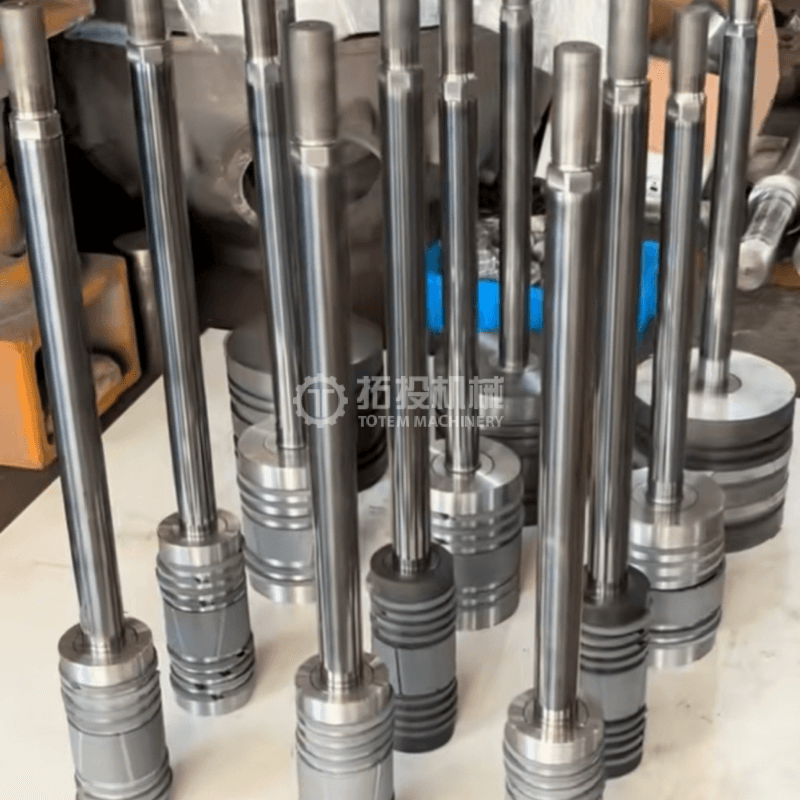

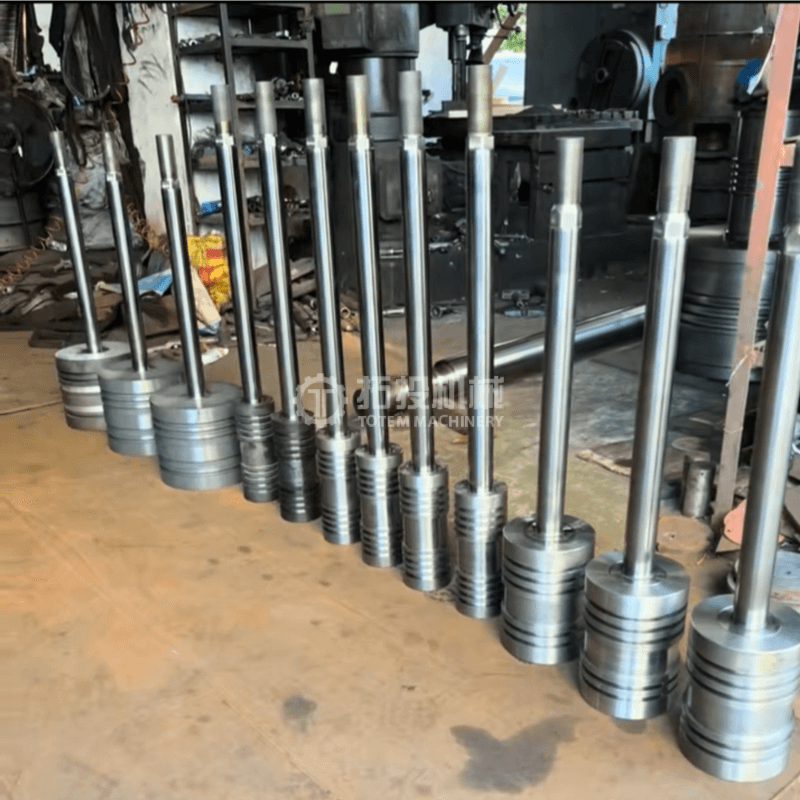

The Compressor piston rod is critical transmission component connecting piston assembly and crosshead structure in reciprocating compressor.During compressor operation,it can transfer the reciprocating motion and mechanical force generated by the crankshaft mechanism are reliably transmitted to the piston head, enabling the intake, compression, and discharge of gas.
Design Challenges & Structural Requirements
Compressor piston rod endures high-frequency alternating tensile and compressive loads, bending stresses, and gas pressure over extended periods. Its strength, stiffness, surface quality, and fatigue performance directly determine the compressor's operational stability, safety, and service life. As a core component in reciprocating compressors with extremely high manufacturing quality requirements, the piston rod typically adopts an integral high-strength round shaft structure. One end is securely connected to the piston head, while the other end links to the crosshead or connecting rod mechanism. It traverses the stuffing box area and is subject to stringent requirements in terms of integral machining and precision control.
 |  |  |
 |  |  |
Manufacturing & Material Selection
Piston rod assembly is manufactured through integral forging or machining from high-quality bar stock. Critical reference surfaces are established in a single setup, combining multi-process precision machining with straightening.Strict control is maintained over straightness, roundness, and coaxiality.To ensure the piston rod maintains stable axial precision during high-speed reciprocating motion, significantly reducing the risk of off-center loading and abnormal packing wear.The packing system forms a sealing fit, primarily serving to transmit axial loads, ensure motion accuracy, and complement the sealing system.
Performance Assurance
We not only meet the dimensional requirements of the drawings but also enhance the overall performance of the alloy steel piston rod based on actual operating conditions. This effectively reduces leakage, vibration, and the risk of unplanned downtime, providing reliable assurance for the safe, efficient, and long-term operation of reciprocating compressors.
