Heavy-Duty Forged Split HP/IP/LP Inner Casing Cylinder for Steam Turbine Generation

Manufacturing heavy-duty forged HP/IP/LP casing cylinders for steam turbines requires an uncompromising approach to material selection and precision machining. Because these critical components operate under extreme thermal and mechanical stresses, our manufacturing protocol is strictly designed to ensure long-term stability, structural integrity, and exceptional steam sealing performance for heavy industry applications.

Strict Raw Material Selection Standard

The foundation of a reliable steam turbine lies in its metallurgical quality. HP/IP/LP casings are continuously subjected to intense high-temperature and high-pressure steam environments, requiring materials that can withstand rigorous operational demands without failure. We utilize premium-grade high-quality alloy steel and high-strength carbon steel materials, specifically chosen based on project requirements:

• Low-alloy high-strength steel: Selected for optimal structural rigidity and load-bearing capacity.

• High-temperature resistant alloy steel: Engineered to endure extreme thermal environments without degrading.

• Thick-plate welded structural steel: Ideal for robust, heavy-duty segmented assemblies.

These carefully selected materials provide essential characteristics that directly impact the operational lifespan and safety of the turbine casing:

• Good high-temperature strength performance: They maintain stable mechanical properties and structural integrity even when continuously exposed to high-temperature steam environments, preventing operational failures.

• Excellent creep resistance: The specific alloy compositions ensure that plastic deformation is highly unlikely to occur under long-term, high-temperature operational conditions, reducing the risk of casing distortion over decades of use.

• Good welding performance: These materials are highly adaptable to multi-layer and multi-pass welding techniques, which is crucial for fabricating large, thick-walled structural components without compromising joint strength.

• Higher fatigue resistance: They are engineered to withstand periodic thermal stress and mechanical stress fluctuations during turbine startup, continuous operation, and shutdown cycles.

Before entering the production line, all raw materials are subject to strict incoming inspection in accordance with relevant heavy industry standards. This guarantees that their chemical composition and mechanical properties strictly meet the design requirements of heavy-duty steam turbines.

Precision Machining Process

The reheat casing of a steam turbine is a massive, thick-walled welded structural component. Its manufacturing process involves complex engineering and exceptionally high machining accuracy requirements to ensure perfect alignment and sealing. The main process flow utilizes advanced heavy-duty machining equipment and is executed as follows:

• Material blanking and pretreatment: According to precise drawing requirements, heavy steel plates or forgings are accurately cut. Initial dimensional checks are carried out, and preheating treatment is performed when necessary to prepare the metal for heavy-duty welding and minimize thermal shock.

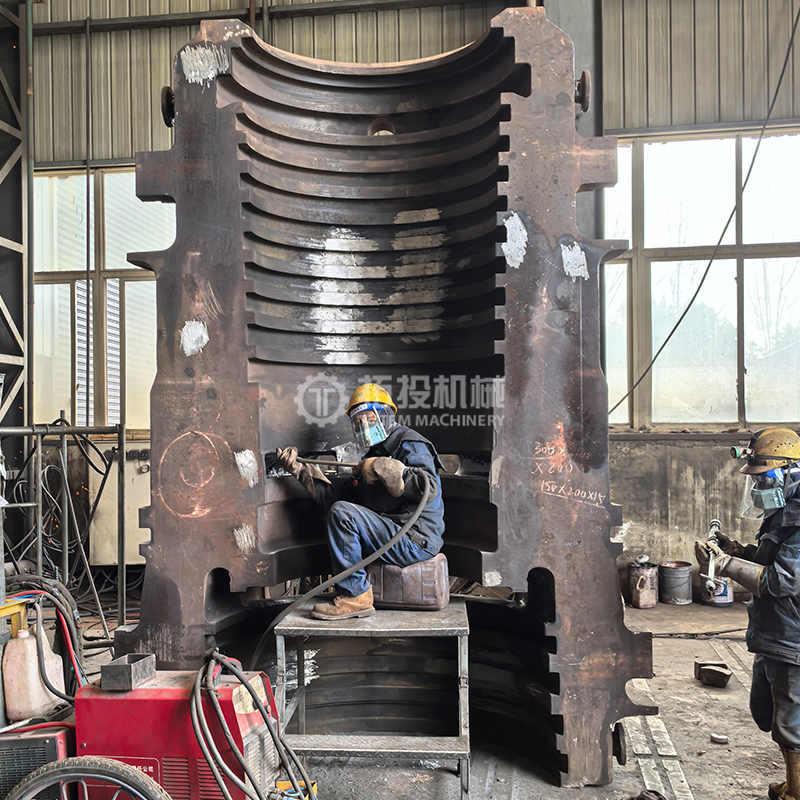

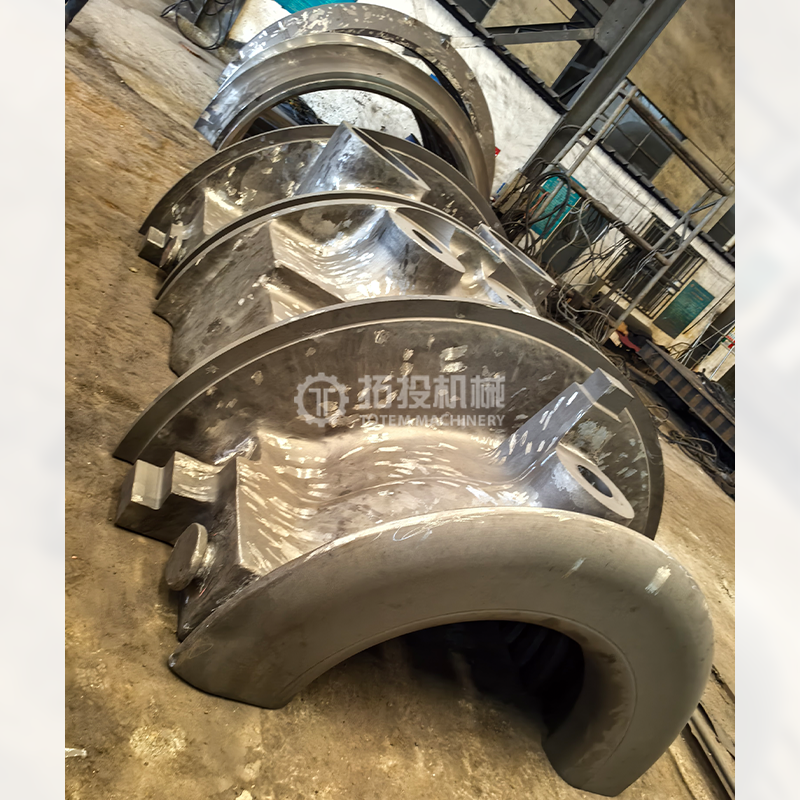

• Advanced Welding: The HP/IP/LP turbine shell adopts a highly engineered segmented assembly and welding structure. Multi-layer and multi-pass welding technology is used during this critical phase to control the interlayer temperature and significantly reduce welding deformation. After welding, necessary heat treatment will be carried out as required to eliminate residual stress, ensuring dimensional stability. This process is the core quality control stage, which directly affects the overall structural strength and pressure-retaining sealing performance of the outer casing.

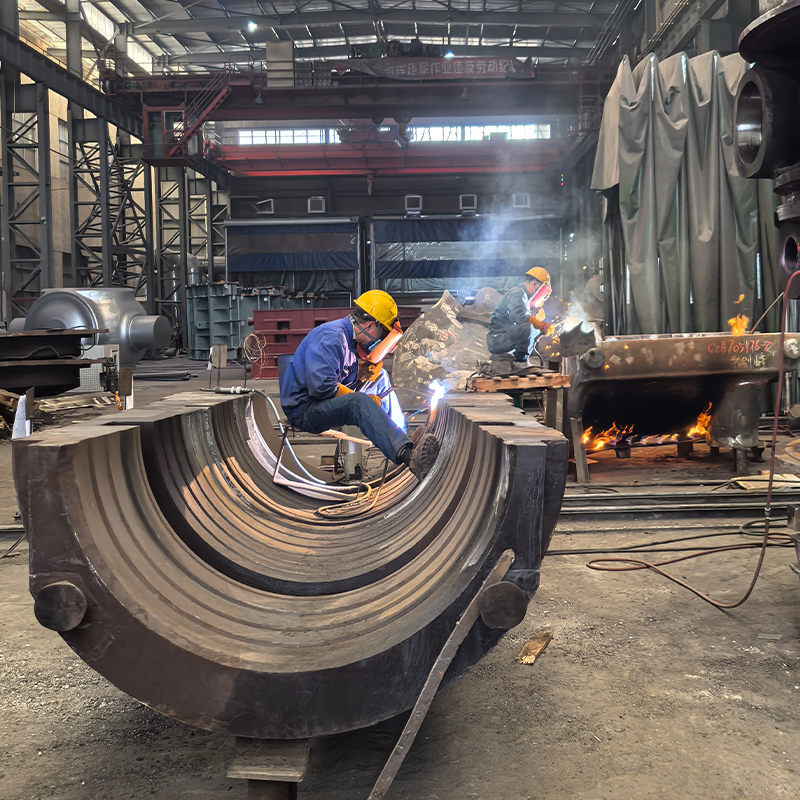

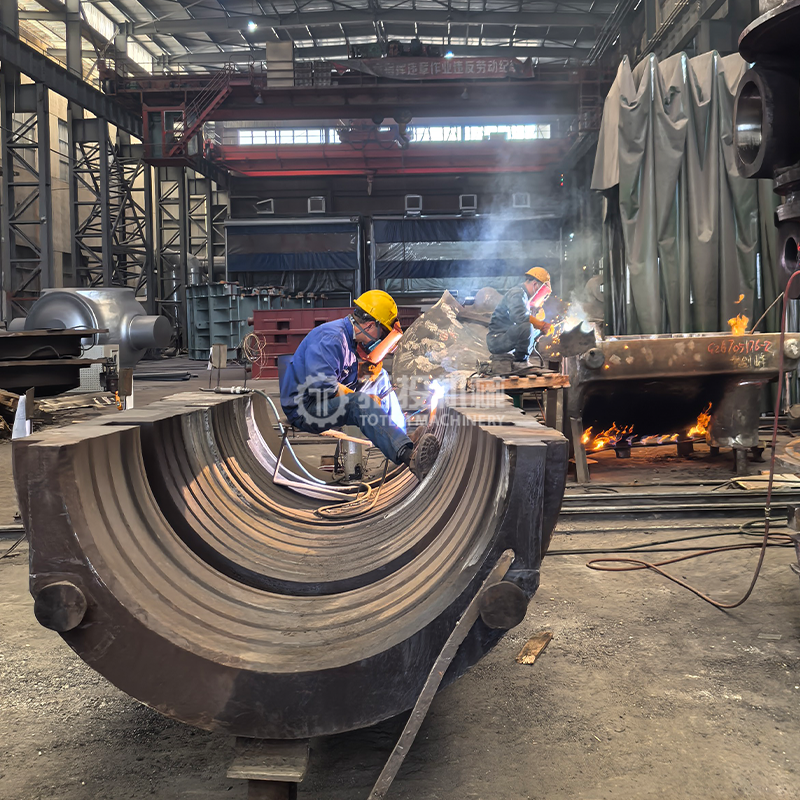

Welding

Welding

• Rough turning: The initial machining phase involves the rough turning of the outer circle, end face, and main mating surfaces. This step efficiently removes excess material while carefully managing the release of internal stresses within the heavy forging.

• Semi-finish turning: We then process the internal flow channel profile, flange surface, and critical locating surfaces. This step brings the casing closer to its final dimensions, preparing the complex geometry for high-precision finishing.

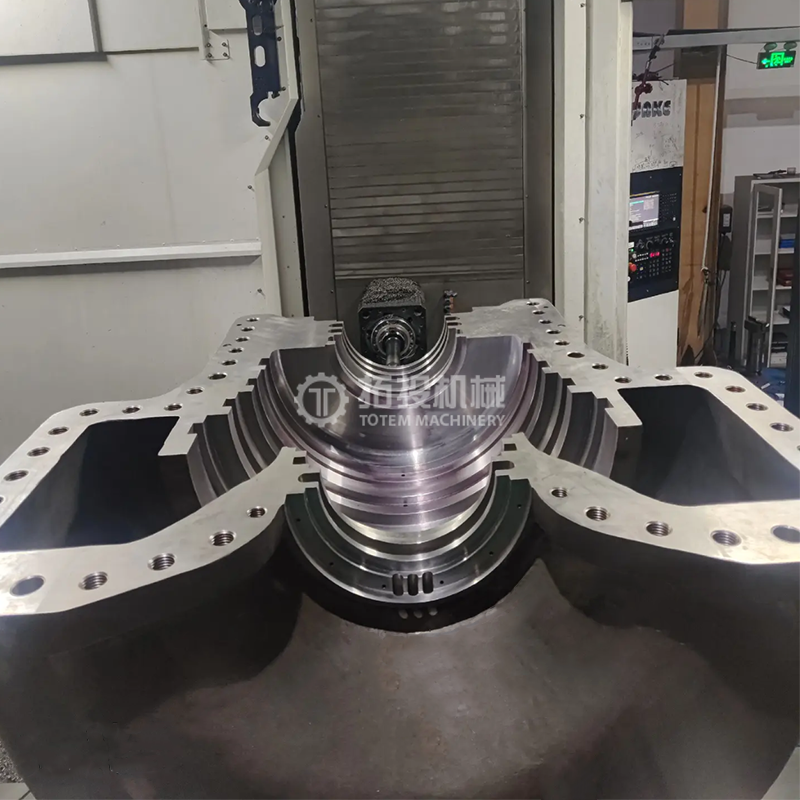

• Finish turning & Fine boring: The final machining stage requires extreme precision. We precisely machine the mating surfaces of the upper and lower cylinders to ensure absolute flatness, which is critical for preventing steam leaks during high-pressure operation. Furthermore, finish boring of the inner hole is carried out with strict tolerances to control coaxiality, ensuring perfect alignment with the turbine rotor.

• Precision Milling: Complex features, joint faces, and structural mounting points are precisely milled to meet the exact assembly specifications of the heavy-duty casing, ensuring seamless integration into the final turbine unit.

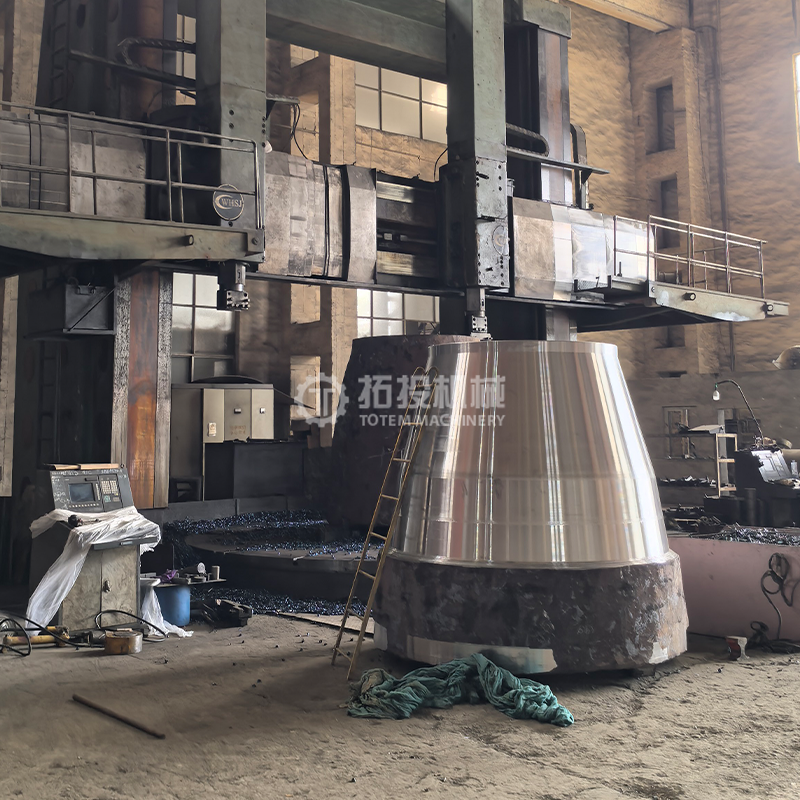

Turning

Milling

To ensure the long-term stable operation and exceptional reliability of the Heavy-Duty Forged HP/IP/LP Casing Cylinder for Steam Turbines, our entire manufacturing process is governed by a strict, full-process quality control system. Every stage, from raw material selection to final verification, is meticulously monitored to meet stringent industry standards for power generation equipment and minimize procurement risks.

1. Raw Material Inspection

The foundation of a reliable steam turbine casing lies in its material integrity. We conduct comprehensive assessments on all incoming heavy-duty forgings:

• Chemical Composition Analysis:Verifying the exact alloy elements to guarantee high-temperature resistance and structural durability required for HP/IP/LP environments.

• Mechanical Performance Testing:Evaluating tensile strength, yield strength, and impact toughness to ensure the material can withstand extreme operational stresses.

• Material Flaw Detection and Testing:Identifying any internal or surface anomalies in the raw forgings before processing begins, preventing foundational defects.

2. Welding Quality Inspection

For critical joints and pressure-retaining areas, flawless welding is essential. We utilize advanced Non-Destructive Testing (NDT) methods to verify structural integrity:

• Ultrasonic Testing (UT):Deep penetration scanning to detect internal voids, cracks, or lack of fusion within the weld seams.

• Magnetic Particle Testing (MT):Highly sensitive surface inspection to identify fine linear defects or surface-breaking discontinuities.

• Radiographic Testing (RT):X-ray imaging providing a clear, documented cross-sectional view of the internal weld quality to ensure compliance with safety standards.

3. Dimensional and Positional Tolerance Inspection

Precision is vital for the seamless assembly and vibration-free operation of the casing cylinders. Our metrology department conducts rigorous dimensional checks:

• Flatness Inspection:Ensuring the mating surfaces of the upper and lower half casings are perfectly flat to guarantee a steam-tight seal during final assembly.

• Coaxiality Inspection:Verifying the exact alignment of bearing centers and internal bores to maintain precise rotor clearance and prevent operational friction.

4. Pressure Testing

To validate the structural safety under simulated working conditions, final pressure verification is mandatory for all turbine cylinders:

• Hydrostatic Test or Airtightness Test:Applying specified test pressures exceeding normal operating levels to verify the absolute strength of the heavy-duty casing.

• Sealing Performance Verification:Thoroughly checking all pressure-bearing areas, joints, and critical sections to ensure zero leakage under extreme pressure.

All quality control tests and inspections are fully documented with complete traceability records. To further ensure procurement confidence and meet specific project requirements, we can provide certified third-party inspection reports upon client request.

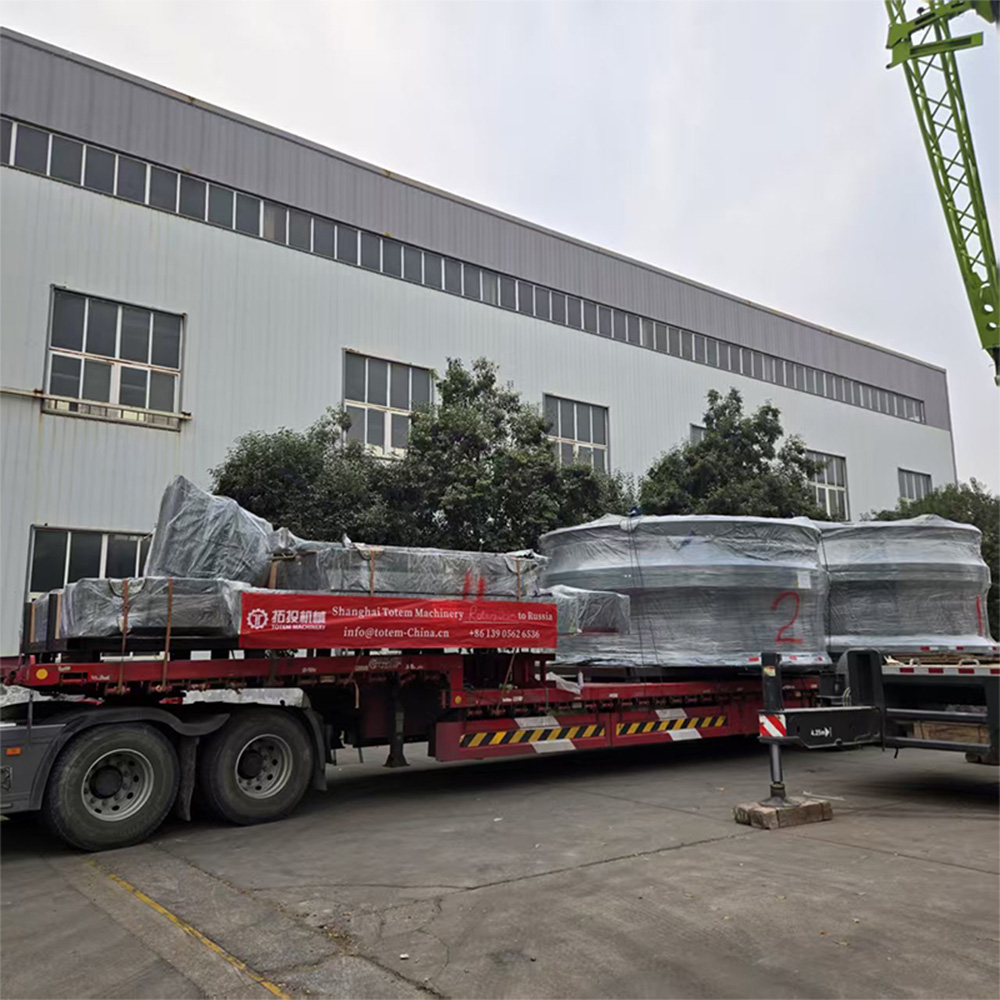

Multi-Layer Protective Packaging for Heavy-Duty Equipment

Transporting heavy-duty forged casing cylinders for steam turbines requires meticulous planning and robust physical protection. Due to their massive weight, critical dimensions, and highly precise machined surfaces, we implement a stringent, multi-layered packaging protocol. This hierarchical approach guarantees that your critical turbine components remain entirely safe from mechanical impact, moisture, and environmental degradation during extended international transit.

• Inner Protection & Corrosion Prevention: The most vulnerable areas, particularly the precision-machined mating flanges, internal bores, and sealing surfaces, receive rigorous anti-corrosion treatment. We apply industrial-grade anti-rust oil and wrap these key surfaces with VCI (Volatile Corrosion Inhibitor) anti-rust paper and heavy-duty moisture-proof barrier materials. Vacuum sealing and desiccant packs are frequently utilized to create a completely dry micro-environment, preventing oxidation during long ocean voyages and fluctuating humidity levels.

• Cushioning & Structural Fixation: To prevent any risk of physical deformation or collision, the cylinder is securely anchored using custom-engineered wooden saddles or specialized heavy-duty steel support structures. High-density shock-absorbing materials and vibration-dampening pads are strategically placed at critical contact points. Heavy-duty lashing straps and bolting systems ensure the payload remains absolutely stationary within its casing, even under severe dynamic loads during crane lifting or rough sea conditions.

• Outer Packaging & Weatherproofing: The outermost layer is designed to withstand the harshest logistical environments. Depending on the specific cylinder size and weight, we pack the equipment in customized, ISPM-15 certified fumigated wooden cases or reinforced structural steel frames. These heavy-duty outer enclosures are engineered with specific lifting points and center-of-gravity markings for safe crane and forklift handling. Weather-resistant tarpaulins and shrink-wrapping are added to provide an extra shield against rain, saltwater spray, and dust.

Customized Global Shipping & Logistics Solutions

We understand that every power generation project has unique logistical requirements. Therefore, we provide completely customizable packaging and shipping options tailored to your specific project demands and destination climate. Every aspect of the packaging design—including the level of environmental protection, cushioning techniques, fixation methods, and the structural integrity of the outer case—can be adjusted to ensure total suitability for various transport conditions.

Whether the heavy-duty casing cylinder requires standard containerization, flat rack loading, breakbulk shipping, or specialized heavy-haul land transport, our logistics team ensures seamless execution. We design the packaging not just for protection, but also for operational efficiency, ensuring that your site teams can safely and easily unload and unpack the equipment upon arrival.

By mitigating the risks associated with long-distance ocean freight and complex inland transportation, our comprehensive logistics solutions provide purchasing managers and project engineers with complete peace of mind. We coordinate closely to ensure all dimensional and weight compliance standards are met for international ports, facilitating smooth handling, minimizing handling risks, and ensuring your critical components arrive on schedule and in pristine condition.
