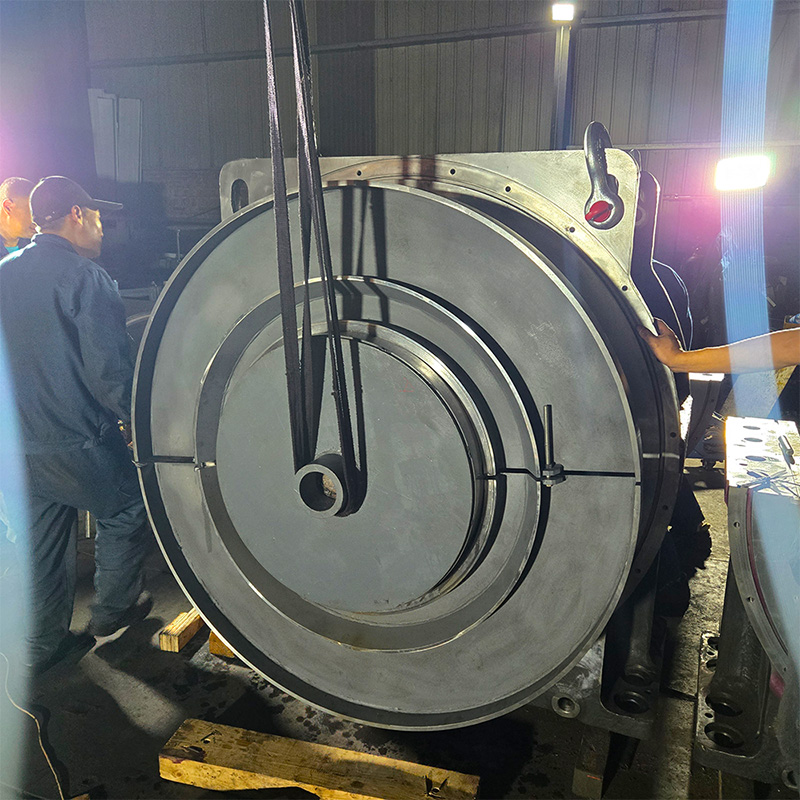

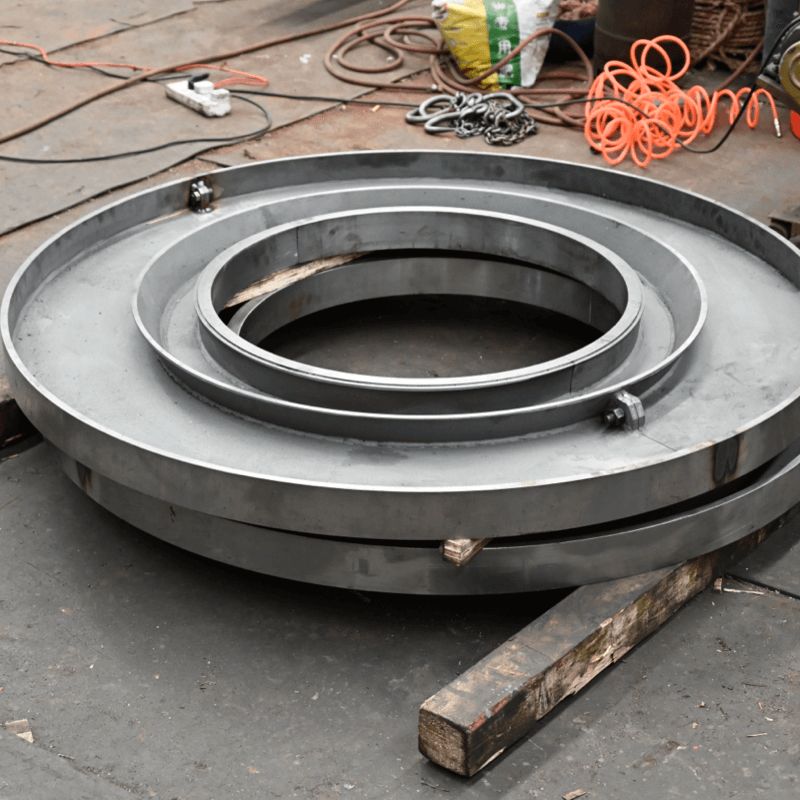

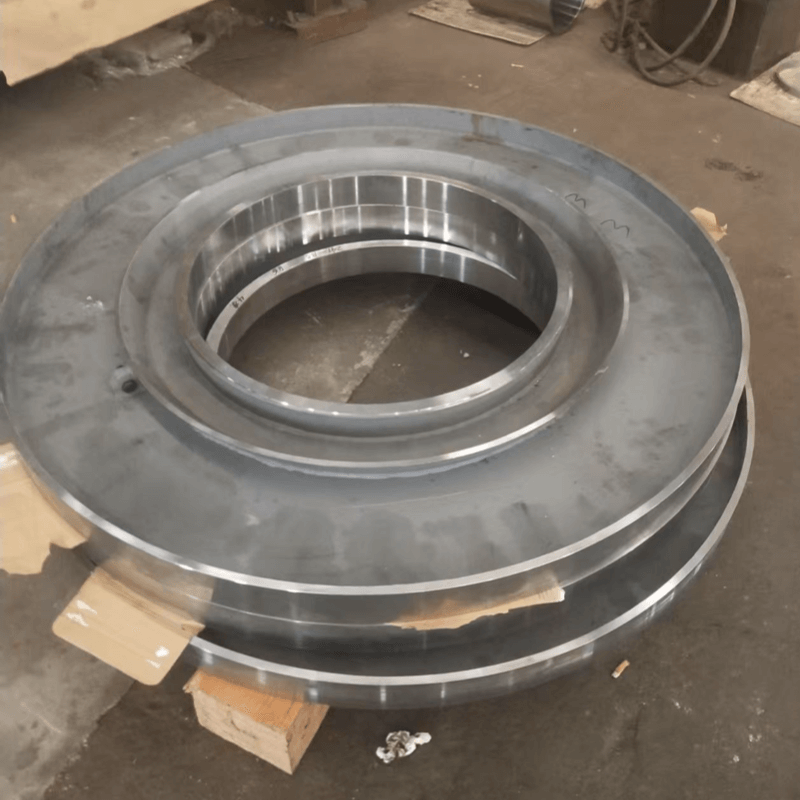

The Q235 Welded Split Oil Supply Semi-Ring is a critical auxiliary component engineered for the lubrication systems of sliding bearings and thrust bearings. Specifically developed for white metal bearing assemblies that demand frequent maintenance and on-site installation, this component addresses common operational bottlenecks in heavy industry. Featuring a 2-piece welded split semi-circular structure, it allows for direct installation and replacement without the need to dismantle the entire shafting system. This design significantly minimizes equipment downtime and reduces the complexity of routine maintenance. Its primary function is to guide, distribute, and stabilize the flow of lubricating oil. By ensuring that the oil continuously and evenly reaches the bearing's working area, it facilitates the formation of a reliable oil film. The structural integrity and installation precision of this carbon steel semi-ring directly influence the lubrication efficiency and long-term operational reliability of heavy-duty bearing systems, making it an essential choice for procurement focused on equipment longevity.
Traditional bearing maintenance often requires complete shaft disassembly, leading to prolonged operational halts. The unique split structure of this Split Oil Ring for White Metal Bearings eliminates that requirement. Maintenance teams can perform installations, replacements, and inspections directly on-site. This significantly shortens equipment shutdown periods, lowers maintenance labor costs, and perfectly adapts to the stringent maintenance schedules of large-scale industrial rotating equipment.
Manufactured using an ISO 3834 compliant precision welding process, the connection between the semi-ring body and the support rod is highly secure. This construction provides exceptional structural strength and dimensional stability. It is engineered to withstand continuous dynamic loads of up to 25MPa without experiencing welding fractures or deformation, ensuring dependable performance over extended operational cycles in demanding industrial environments.
An optimized oil circuit design enables this product to maintain a consistent oil supply across fluctuating working conditions. By delivering a steady flow, it effectively reduces friction between the rotating shaft and the bearing surface. This controlled lubrication helps regulate bearing temperature, minimizes the risk of abnormal wear, and ultimately extends the service lifecycle of both the bearing assembly and the connected rotating machinery.
The following technical specifications outline the manufacturing standards and operational capacities of the split oil supply semi-ring. These parameters are provided to help engineers and procurement specialists verify compatibility with existing bearing housings and assess the component's suitability for specific load requirements.
Parameter | Standard Value |
Split Structure | 2-Piece Welded Semi-Circular Design |
Base Material | Q235 High-Quality Carbon Structural Steel |
Welding Standard | ISO 3834 Compliant Precision Welding |
Maximum Applicable Dynamic Load | 25MPa |
Surface Roughness | Ra ≤0.8μm |
Installation Fit | Customized for Bearing Housing Matching |
Non-Destructive Testing | 100% Weld Seam Inspection & Dimensional Verification |

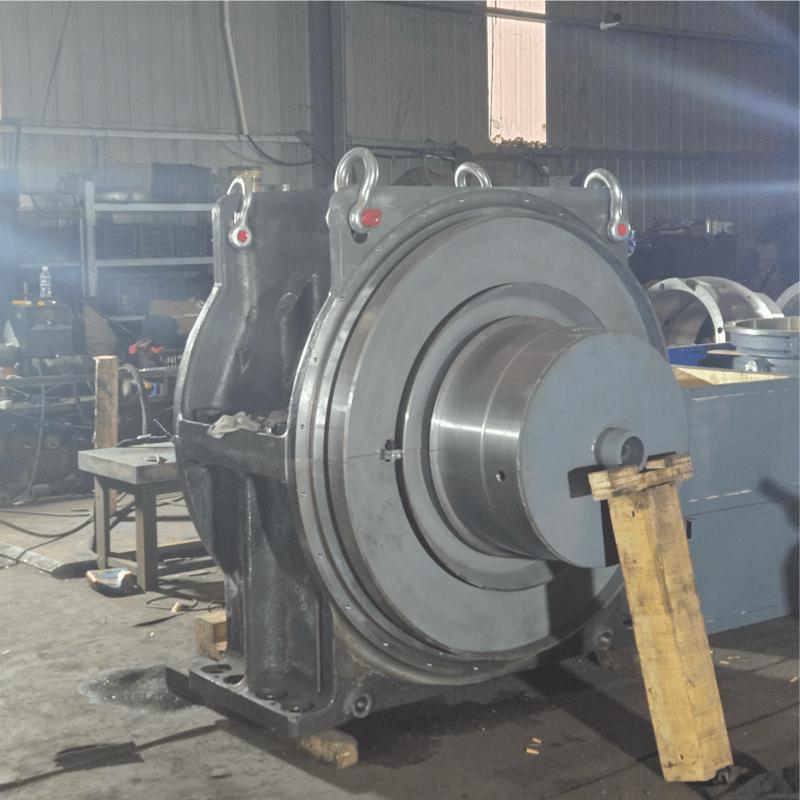

This Welded Oil Supply Semi-Ring for Industrial Rotating Equipment is specifically optimized for machinery that operates under heavy loads and requires high availability. It is widely integrated into white metal thrust bearing systems, marine propulsion mechanisms, steam turbines, hydro turbines, and large-scale power station units. Additionally, it serves as a vital component in petrochemical pump and valve equipment. The robust Q235 steel construction and split design make it particularly suitable for facilities that enforce strict regular maintenance and overhaul schedules. Whether deployed in continuous industrial production lines, offshore marine engineering, or demanding petrochemical plants, this component supports stable operation and helps facility managers mitigate the risks associated with unexpected equipment failure.
|
|
|
The manufacturing of the Q235 Welded Split Oil Supply Semi-Ring begins with strict material selection. We utilize Q235 carbon structural steel as the primary base material. This specific steel grade provides an optimal balance of structural strength, reliable welding performance, and efficient machinability, making it highly suitable for the demanding operational environments of heavy industrial equipment. By selecting appropriate base materials, we ensure the final component can withstand continuous mechanical stress while maintaining long-term dimensional stability.
Our precision machining process is systematically controlled to ensure exact dimensional accuracy. The initial phase involves the precise forming of the semi-ring body. During this stage, we strictly monitor the arc dimensions and internal fitting tolerances to guarantee they meet exact design specifications. This precision is critical for ensuring proper alignment when integrated with industrial bearings. Following the forming of the main body, the support rod undergoes careful positioning and assembly using specialized fixtures to prevent any deviation before the welding stage.
For the connection between the semi-ring body and the support rod, we implement standardized precision welding procedures in strict accordance with the ISO 3834 welding standard. Controlling welding deformation is a primary focus during this phase. By utilizing controlled heat input and rigid clamping, we maintain the alignment accuracy of the internal oil circuit and the exact fitting tolerances required for the split structure. To guarantee structural integrity and operational safety, every completed unit undergoes a rigorous 100% weld seam inspection and comprehensive dimensional verification. Finally, depending on the specific working environment the component will face, we apply specialized anti-rust coatings or surface protection treatments to extend the service life and prevent corrosion during operation.
Recognizing that different industrial setups require specific configurations, we offer comprehensive custom machining services for the Split Oil Supply Semi-Ring. Our engineering team can manufacture these components strictly according to provided customer drawings, ensuring exact compliance with your technical requirements. Furthermore, we provide tailored design and production adjustments to accommodate various bearing structures, distinct lubrication methods, and specific installation space constraints. This customized approach ensures a precise match with existing bearing housings, thrust pads, and other critical lubrication components within your machinery, thereby reducing installation time and compatibility risks during assembly.
Beyond individual component manufacturing, we deliver full system supporting solutions designed to simplify procurement and guarantee component compatibility. We have the capability to supply a complete set of related white metal bearing system components. This includes thrust shafts, thrust pads, thrust pad base rings, balance blocks, and bearing housings. By providing these components as an integrated package, we ensure the overall coordination of the bearing system in terms of efficient fluid lubrication, reliable load-bearing capacity, and structural stability. This holistic manufacturing approach provides comprehensive supporting solutions for complex bearing and lubrication systems, significantly improving long-term equipment reliability and reducing maintenance concerns.

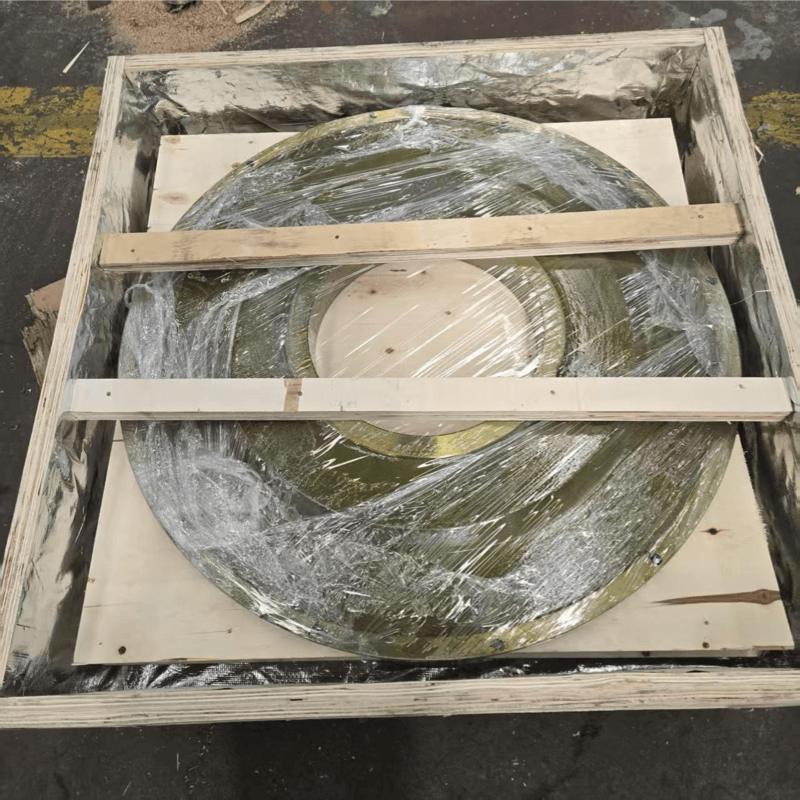

When delivering critical industrial components like the Q235 Welded Split Oil Supply Semi-Ring, ensuring the integrity of the product during transit is our top priority. We implement a rigorous, multi-layered packaging protocol designed specifically for precision heavy-duty parts. First, all critical surfaces of the semi-ring are meticulously coated with a specialized anti-rust protective agent. The components are then tightly wrapped with premium VCI (Volatile Corrosion Inhibitor) anti-corrosion paper. This combination creates a highly effective barrier that isolates the metal from air, salinity, and moisture, preventing oxidation during extended cross-border sea freight or long-term warehouse storage.
Because split components rely on exact mating surfaces for proper installation and function, the paired split semi-rings are always packaged in a strictly matched configuration. We install custom-designed positioning blocks inside the packaging to firmly secure the rings. This prevents any shifting, friction, or misalignment that could damage the critical mating faces during handling and transit. Furthermore, the entire assembly is surrounded by high-elasticity cushioning materials that absorb heavy vibrations and unexpected impacts. Finally, the outer packaging utilizes heavy-duty, reinforced export wooden cases that comply with international shipping regulations. Our packaging schemes remain highly adaptable and can be customized according to your specific destination ports, regional climate conditions, and direct project site requirements, ensuring the components arrive in ready-to-install condition and saving you valuable project time.
As a dedicated and professional manufacturer of industrial bearing components and lubrication system parts, TOTEM MACHINERY stands as a reliable partner for your procurement needs. We possess comprehensive manufacturing facilities and advanced in-house testing capabilities, allowing us to maintain strict, full-process quality control from raw material inspection to final outbound delivery. By adhering to unified machining standards, we ensure that every split oil supply semi-ring meets exact dimensional and functional criteria, significantly reducing your sourcing risks and ensuring consistency across large-volume orders.
Over the years, we have built long-term partnerships with global heavy equipment manufacturers, industrial engineering contractors, and industrial end-users. Our expertise goes beyond providing high-precision split component machining; we deliver complete system supporting solutions tailored for complex split-type bearing and lubrication systems. Backed by a professional R&D team and a highly flexible production system, we can quickly respond to specialized customized needs and urgent project timelines. Whether you require standard configurations or highly specific modifications, TOTEM MACHINERY is committed to providing reliable components that help your industrial equipment achieve safe, stable, and long-term operation even under the most demanding and complex working conditions.
