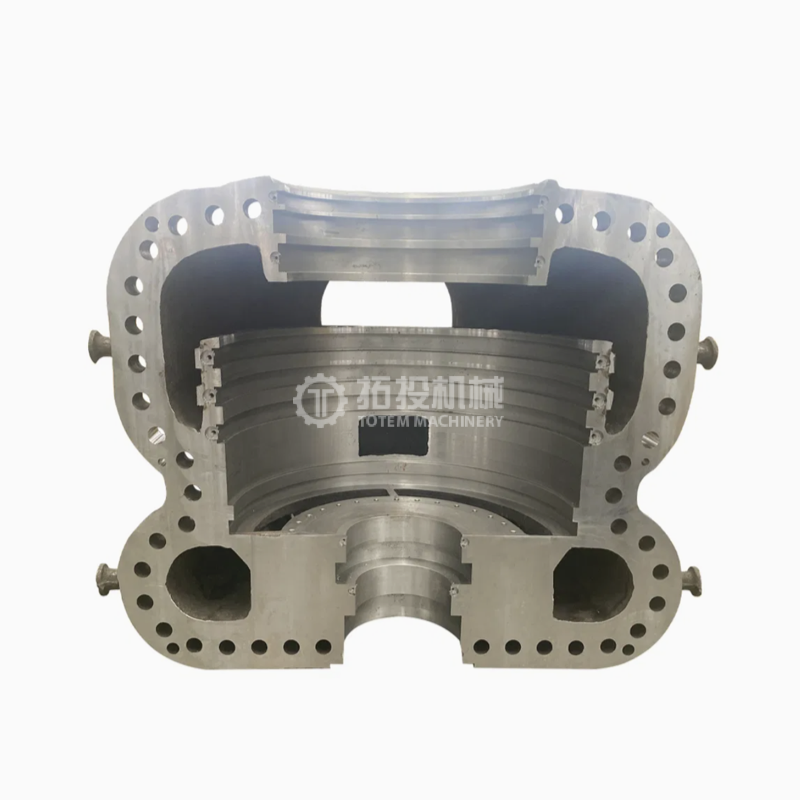

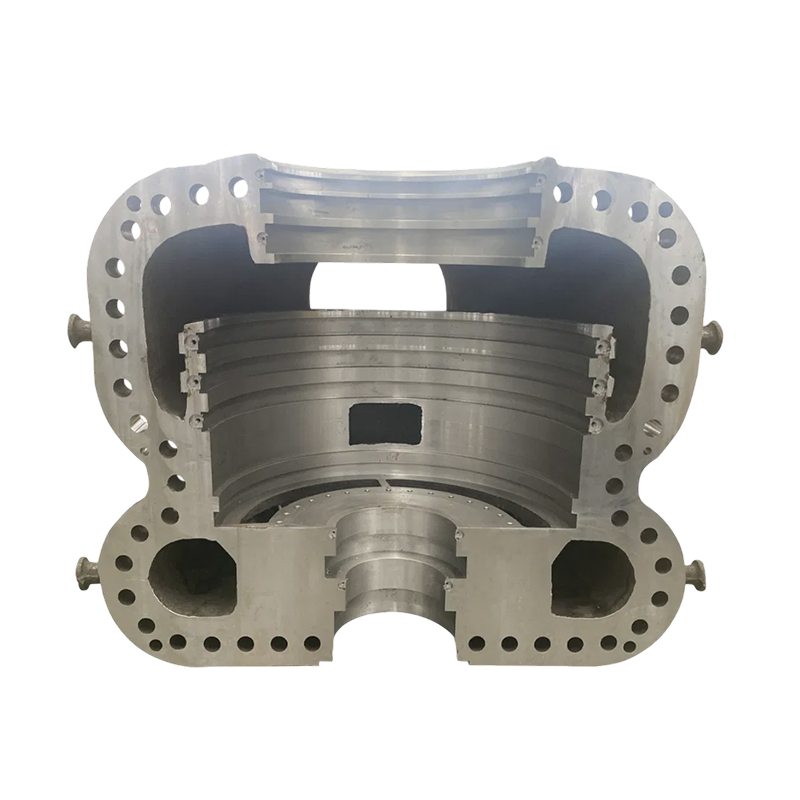

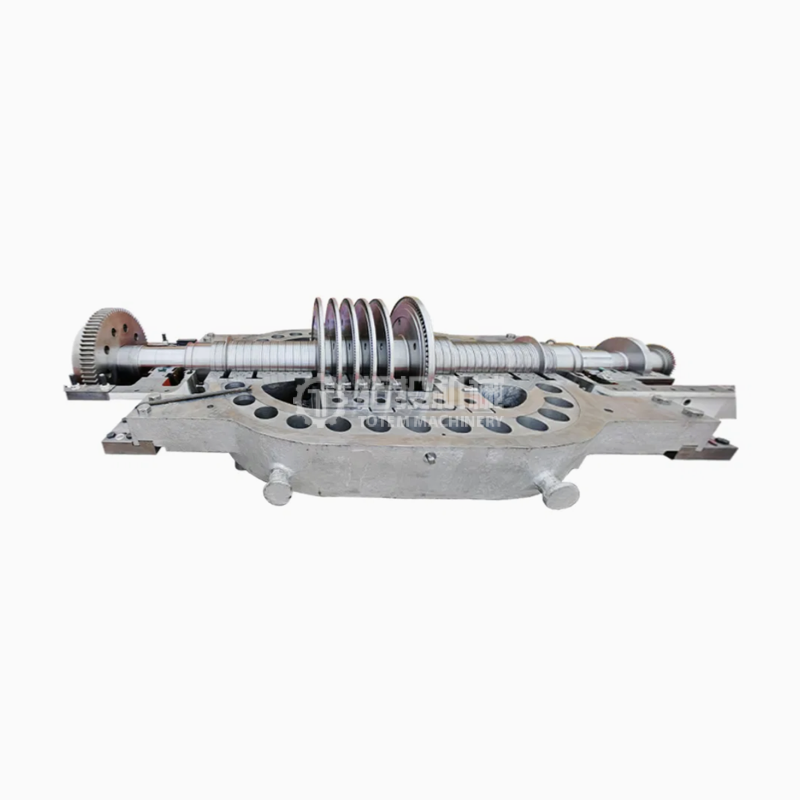

The high-pressure, medium-pressure, and low-pressure cylinders are the foundational pressure-bearing and flow-guiding components of a steam turbine system. Designed to house the rotor and stator components, these cylinders perform critical operational functions. They form the precise steam passage, support the turbine rotor, facilitate the installation of diaphragms and complex sealing structures, and safely bear significant thermal stresses during continuous operation.
Their primary role is to accurately guide steam flow along the engineered path, enabling the staged and efficient conversion of steam thermal energy into rotational mechanical energy. To maximize energy utilization, these three cylinders operate in a highly coordinated series based on the thermodynamic expansion sequence of steam. This creates a staged working process defined as "high-temperature and high-pressure → medium-temperature and medium-pressure → low-temperature and low-pressure." This sequential expansion ensures that the maximum possible energy is extracted from the steam at every stage. For power plants and industrial facilities, the structural integrity and precise internal geometry of these cylinders directly determine the overall energy efficiency, operational safety, and service lifespan of the entire turbine unit, minimizing downtime and optimizing long-term power generation output.
 |  |  |
 |  |  |
Selecting the appropriate materials for different turbine cylinders is crucial for maintaining structural stability under extreme operational conditions. Our structural design strictly aligns with the specific temperature and pressure requirements of each expansion stage, providing a reliable foundation for heavy-duty industrial applications.
For high-pressure and medium-pressure cylinders, which are exposed to the most severe operational environments, we utilize high-temperature-resistant alloy cast steel or advanced alloy steel forged-and-welded structures. These materials are specifically chosen for their exceptional high-temperature strength, superior creep resistance, and ability to withstand continuous thermal cycling. This ensures long-term operational stability and minimizes the risk of deformation over decades of continuous use.
Conversely, low-pressure cylinders operate under less extreme thermal conditions but require significant volume to accommodate expanded steam. These are engineered using low-alloy steel or carbon steel welded structures. This targeted material selection is based on capacity requirements and exhaust conditions, effectively balancing mechanical strength, structural stiffness, and manufacturing economy. By matching the exact material properties to the specific operational demands of each cylinder, we help procurement teams and engineers achieve an optimal balance between initial investment costs and long-term equipment reliability.

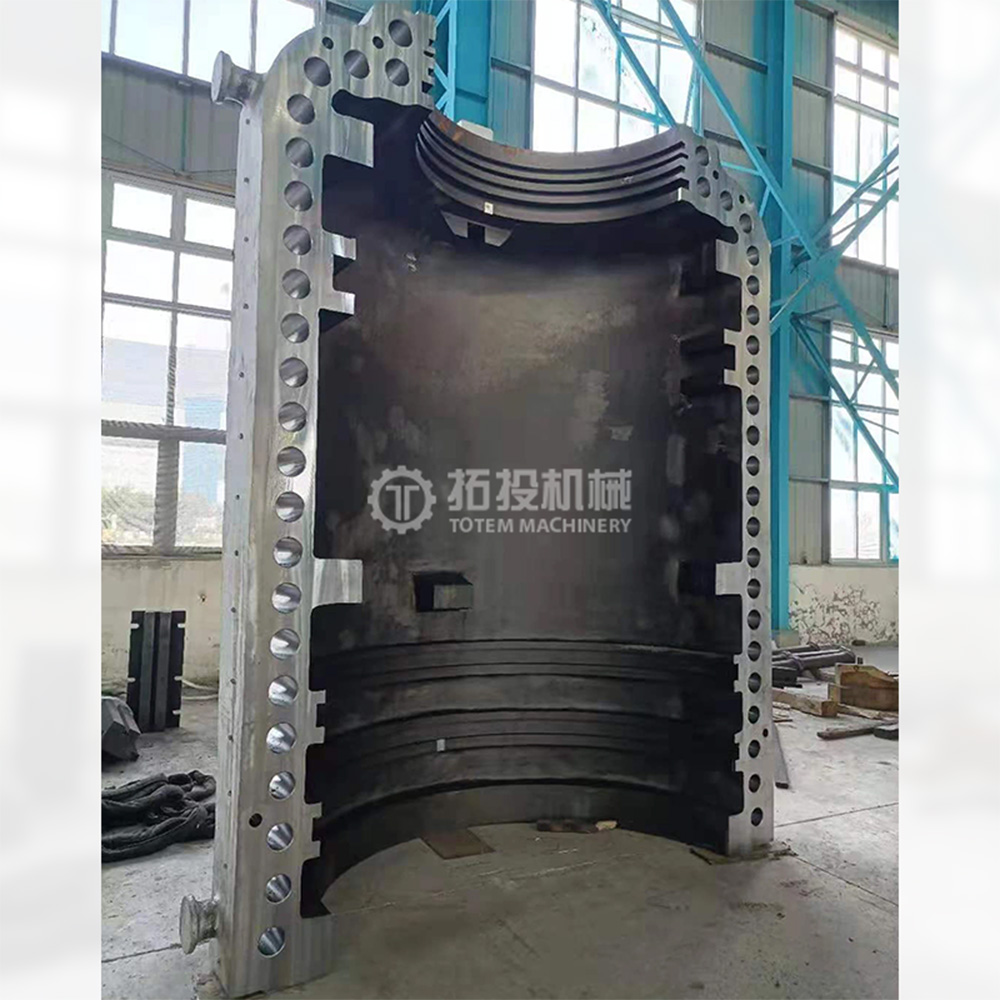

Beyond fundamental material selection, the internal geometry and structural detailing of the cylinder play a decisive role in turbine efficiency. Our engineering team possesses extensive design expertise in optimizing internal flow paths, precision-machined diaphragm mounting grooves, advanced sealing structures, and thermal expansion compensation systems.

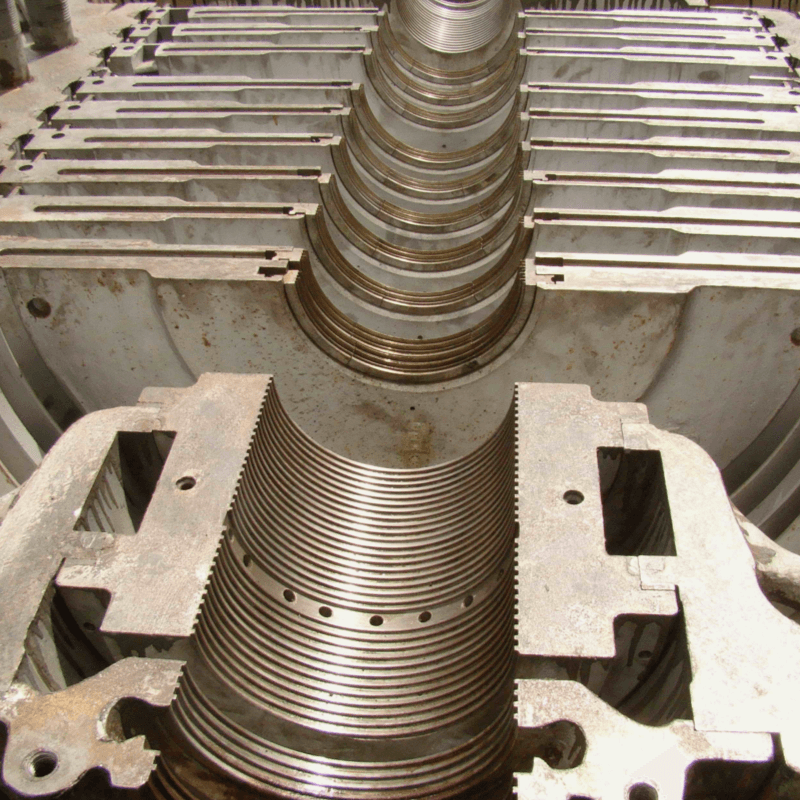

Optimized Flow Paths & Sealing Structures: The internal steam passages are designed to minimize flow resistance and turbulence. Combined with precise sealing structures, this prevents steam leakage between stages, ensuring that thermal energy is effectively directed toward the rotor blades rather than being lost, thereby improving the overall thermal efficiency of the unit.
Thermal Expansion Compensation: Steam turbines experience significant temperature gradients during startup, operation, and shutdown. Our cylinders incorporate engineered thermal expansion compensation mechanisms that allow for controlled dimensional changes. This design effectively reduces thermal stress concentration at critical joints and mounting points, preventing structural fatigue and cracking.
Enhanced Reliability & Maintenance: By addressing thermal stress and steam leakage at the design stage, our welded cylinders provide a highly reliable operational environment for internal components. This directly translates to reduced maintenance frequency, easier inspection processes, and an extended operational lifespan for the entire power generation unit.
These design advantages ensure that our welded cylinders meet the rigorous demands of modern power generation projects, providing a secure, efficient, and durable solution for continuous industrial operations.
Our manufacturing facility implements a highly controlled machining process designed specifically for high-pressure welded cylinders used in steam turbines. To meet the stringent demands of power generation and industrial applications, our production strictly adheres to established steam turbine industry standards, including GB, DIN, ISO, and related technical specifications. By maintaining rigorous oversight at every stage of production, we ensure that every cylinder delivers reliable performance, dimensional stability, and long-term service safety under extreme operational conditions.

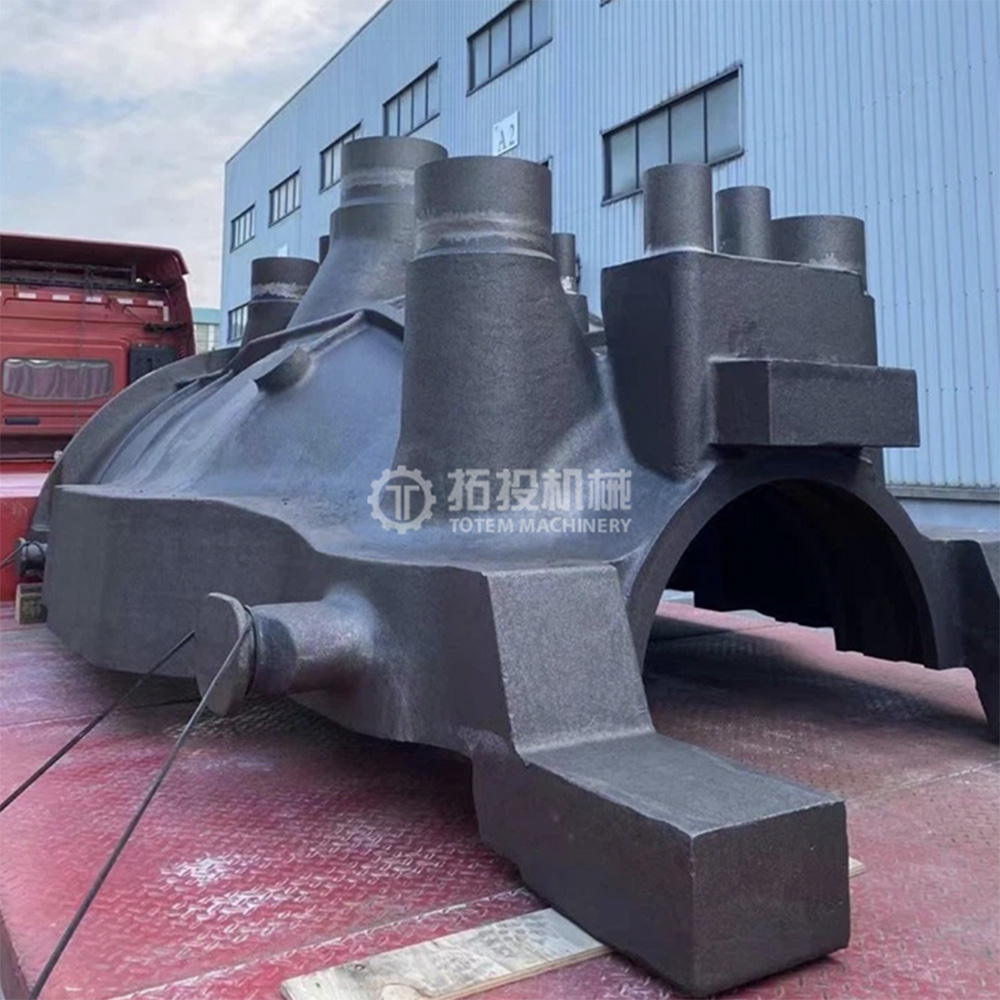

The foundation of our manufacturing process begins with the strict quality control of raw castings and forgings. Before any preliminary machining starts, we verify the material composition and mechanical properties to ensure they align exactly with project requirements. Given the critical nature of welded cylinders, we conduct thorough welding procedure qualification prior to fabrication. This essential step confirms that our welding parameters, filler materials, and techniques will produce joints capable of withstanding high-pressure steam environments without compromising structural integrity.

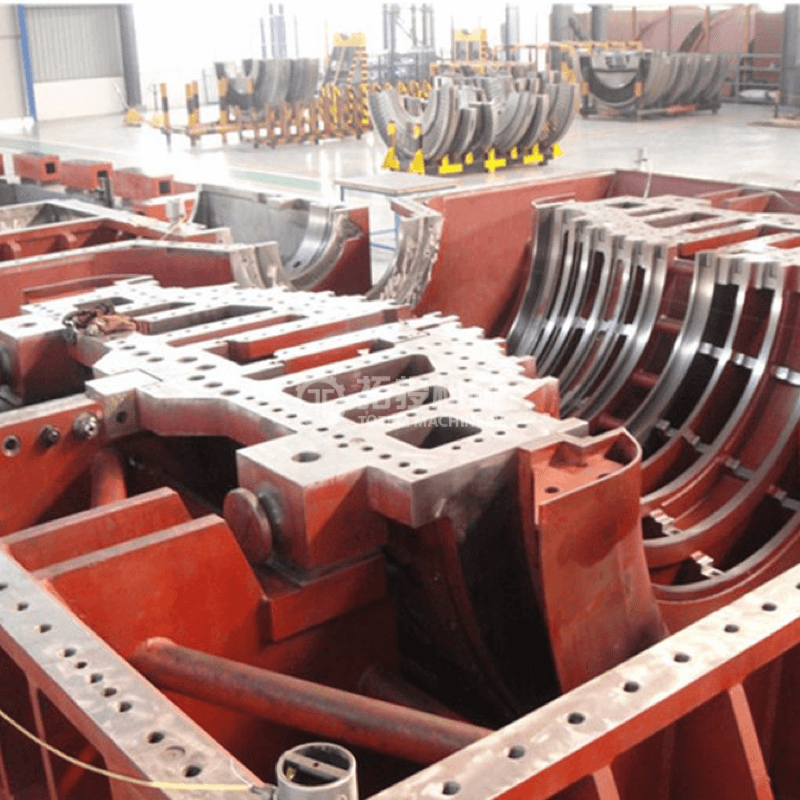

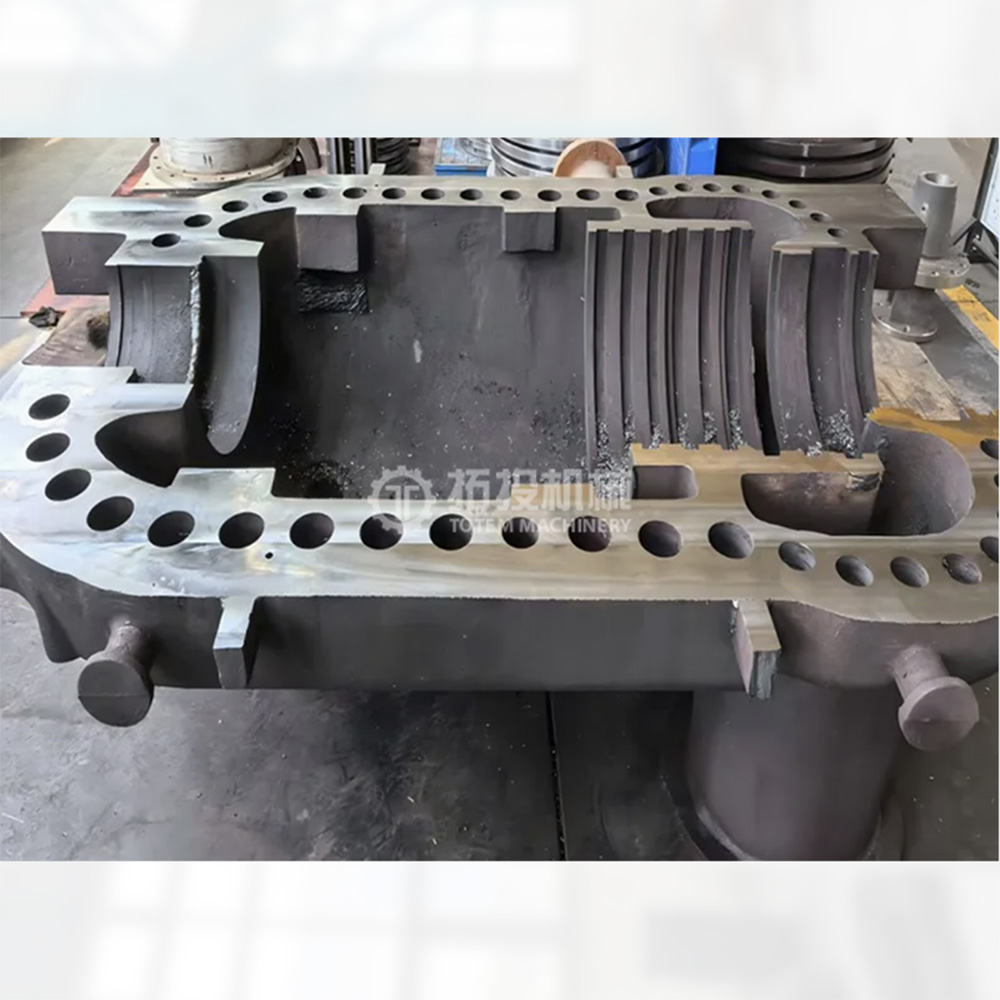

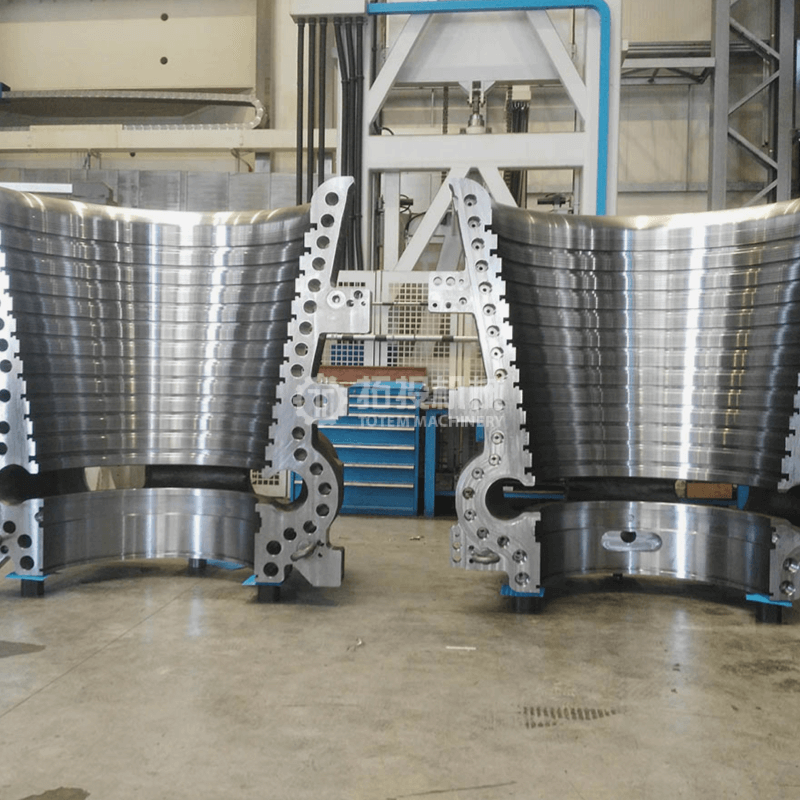

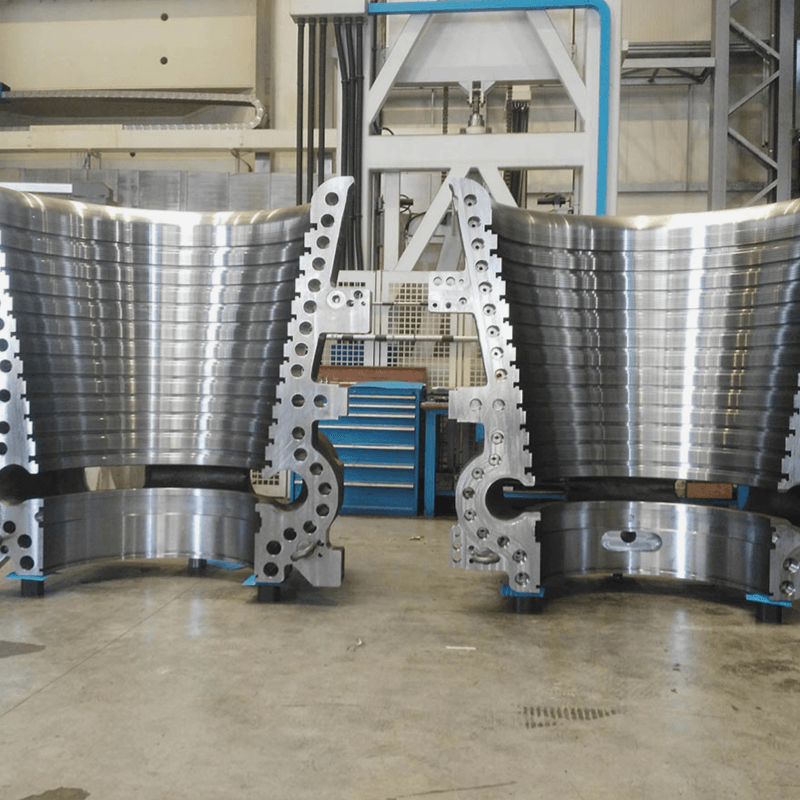

The dimensional accuracy of a steam turbine cylinder directly impacts the overall efficiency and sealing performance of the rotating equipment. To achieve exact tolerances during both rough and precision machining phases, the inner cavities, flange surfaces, and mating surfaces of the cylinders are processed using large-scale CNC gantry milling machines, floor-type boring and milling machines, and advanced five-axis machining equipment.
These specialized machines allow us to manage complex geometries and heavy workpieces with exceptional precision. We closely monitor geometric accuracy, coaxiality, and surface roughness throughout the entire machining cycle. This level of precision ensures that the cylinder components will align correctly during assembly, minimizing vibration and preventing steam leakage during operation.
For welded cylinders, managing internal residual stress is a critical manufacturing requirement. We strictly implement post-weld heat treatment procedures to relieve stresses generated during the welding process, thereby preventing future deformation or cracking. Following heat treatment, the cylinders undergo comprehensive non-destructive testing (NDT).
Our certified inspectors utilize Ultrasonic Testing (UT) to detect internal flaws, Magnetic Particle Testing (MT) for surface and near-surface discontinuities, and Radiographic Testing (RT) to verify weld seam integrity. This multi-layered inspection protocol guarantees the structural integrity of the cylinder, providing procurement teams with confidence in the equipment's long-term operational safety.

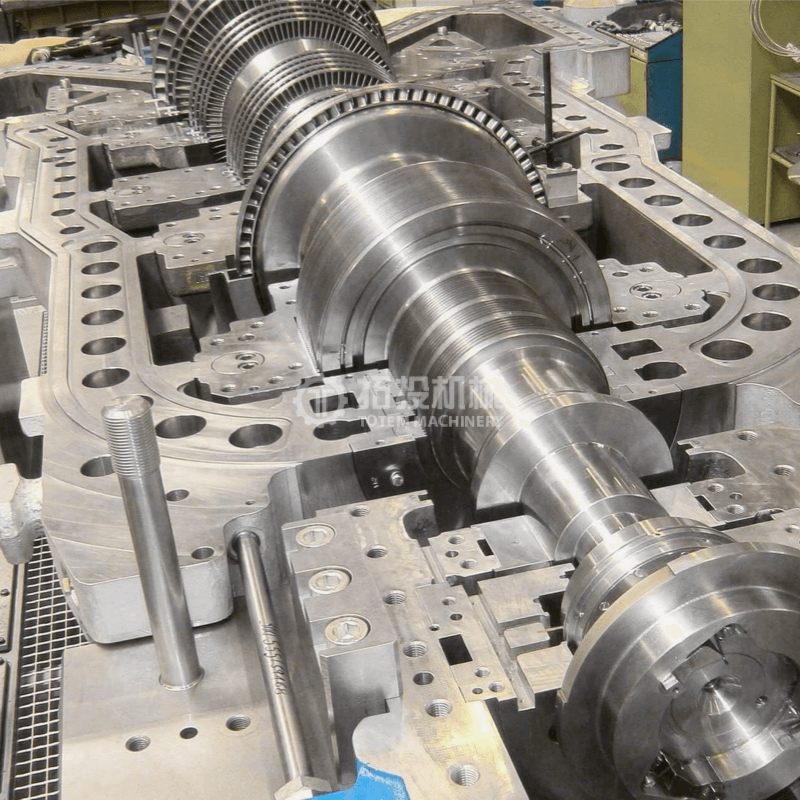

The final stage of our machining process involves rigorous assembly verification. We conduct trial assemblies of the machined cylinder halves to check the exact fit of the mating surfaces and the precise alignment of the sealing structures. This verification step ensures that all components function together as designed, facilitating smoother installation at the project site and significantly reducing the risk of costly downtime.
For procurement professionals and engineering teams, our transparent and standardized machining process significantly reduces sourcing risks. By maintaining complete control over every manufacturing phase—from initial forging inspection to final assembly verification—we deliver high-pressure welded cylinders that meet exact project specifications and support the stable operation of steam turbine systems.
