The propulsion Shaft is the core transmission component of a Marine Propulsion System. Acting as a "power bridge" between the main engine and the propeller, it undertakes the key role of mechanical energy transmission and thrust conversion.

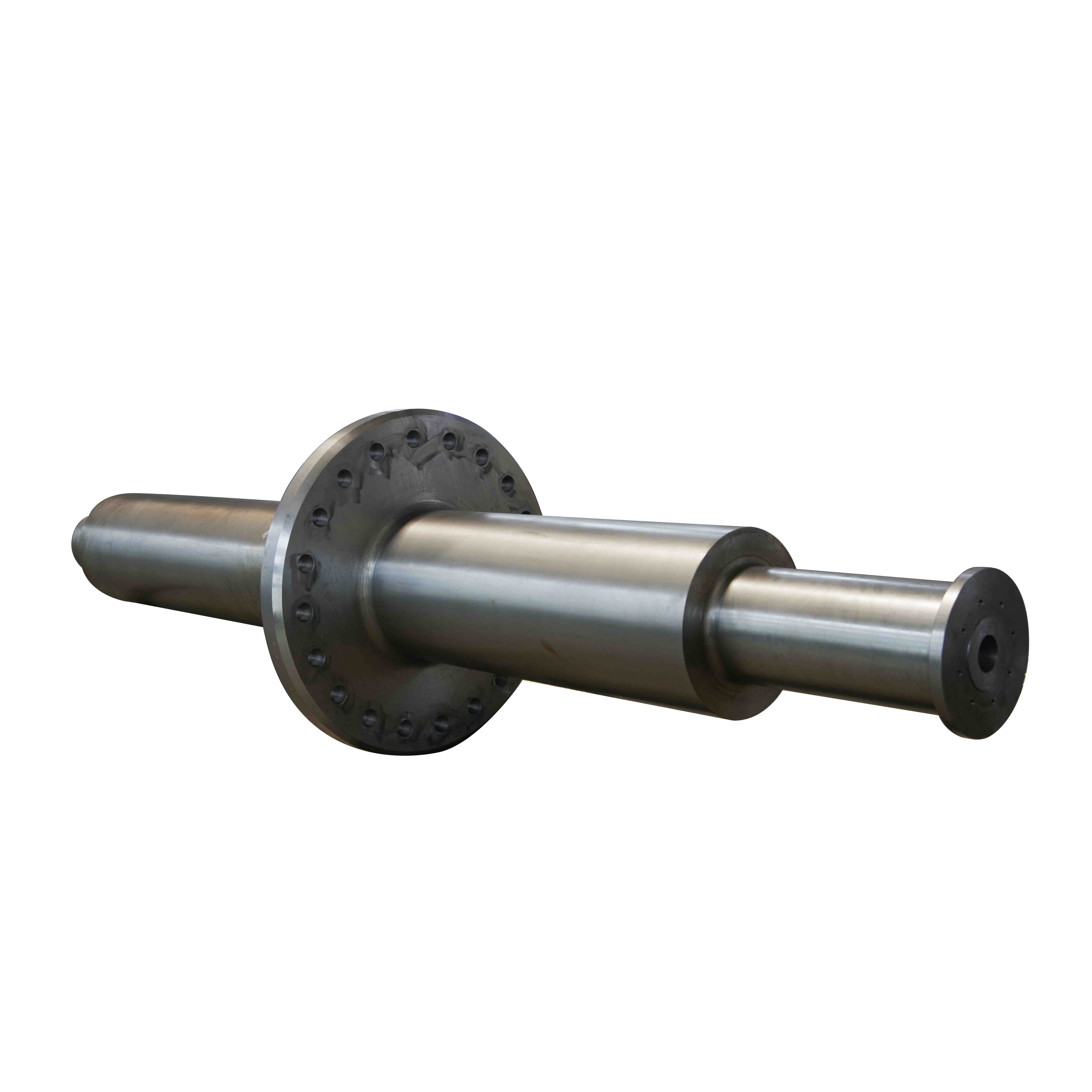

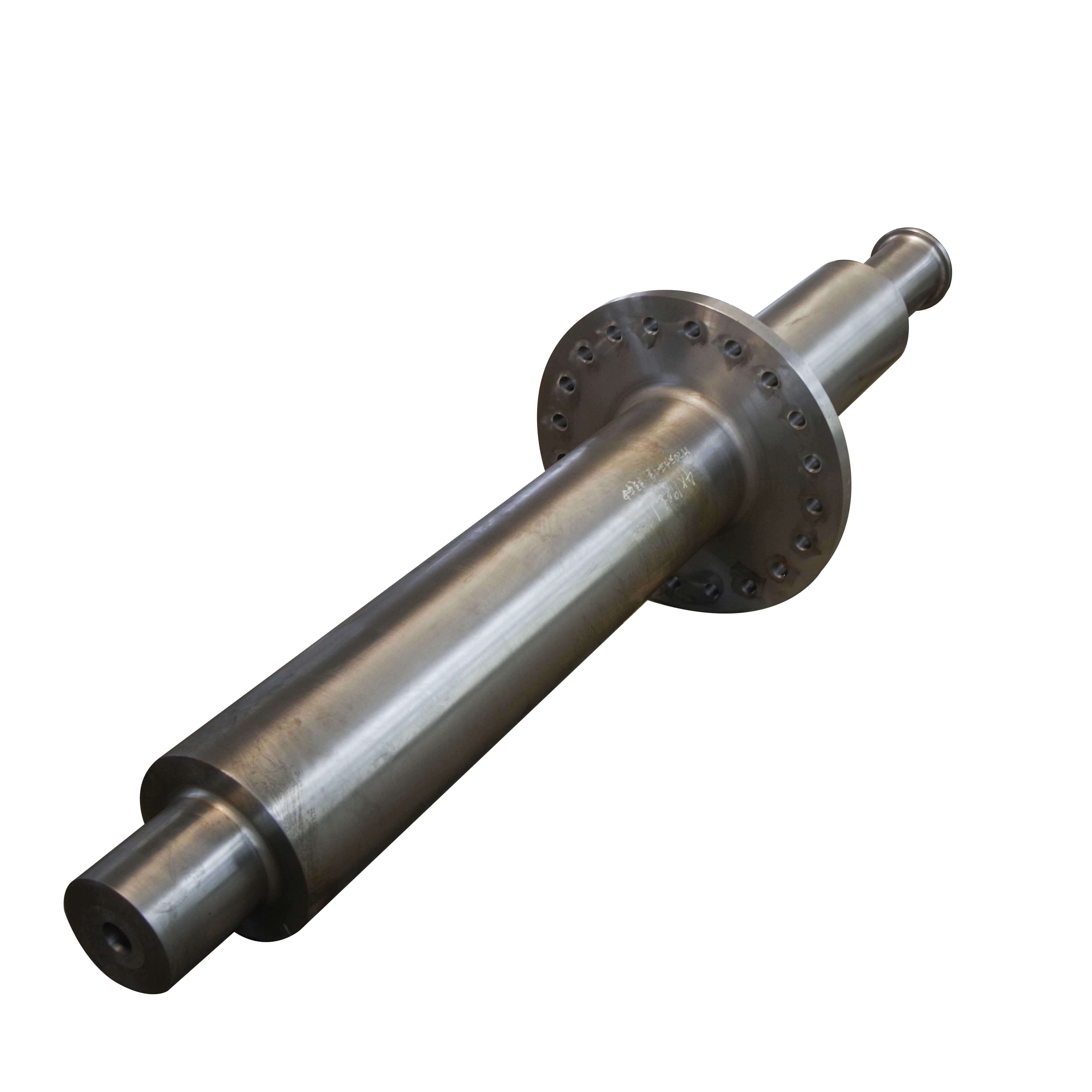

Propulsion Shaft
Propulsion Shaft
I. Structure and Composition
1. Structural Features
The propulsion shaft features a typical design of "flange connection end + stepped shaft body":
Flange Connection End: Connected rigidly to the main engine output end, stern tube, or other shaft system components via high-strength bolts to achieve seamless power transmission.
Stepped Shaft Body: Different diameter steps on the shaft provide mounting references for intermediate bearings, thrust bearings, and other supporting components. This ensures radial/axial positioning accuracy of the shaft system while distributing loads to reduce local stress concentration.
2. Material: Performance Advantages of 30CrMoV9 Alloy Structural Steel
30CrMoV9 belongs to medium-carbon alloy quenched and tempered steel. Tailored to the service conditions of ship propulsion shafts (high load, strong corrosion, long-term fatigue), its core performance advantages are as follows:
Balance of High Strength and High Toughness: After quenching and tempering (quenching + high-temperature tempering), tensile strength and yield strength are significantly enhanced while retaining excellent impact toughness, resisting plastic deformation and brittle fracture risks under alternating shaft loads.
Excellent Hardenability: Alloy elements such as Cr, Mo, and V greatly improve the steel’s hardenability. Even for large-sized shaft sections during quenching, the core can still form a uniform martensitic structure, ensuring consistent mechanical properties distribution along the cross-section and avoiding the "hard outside, soft inside" failure hazard.
Enhanced Fatigue Resistance and Corrosion Resistance: The V element refines grains through precipitation strengthening; Cr improves corrosion resistance (resisting electrochemical corrosion from seawater); Mo inhibits temper embrittlement. Multiple mechanisms work synergistically to extend the shaft system’s fatigue life and corrosion resistance period in marine environments.
Machinability: After quenching and tempering, the material exhibits better machining performance and weldability (for local repair scenarios), meeting the complex machining and maintenance needs of the shipbuilding industry.

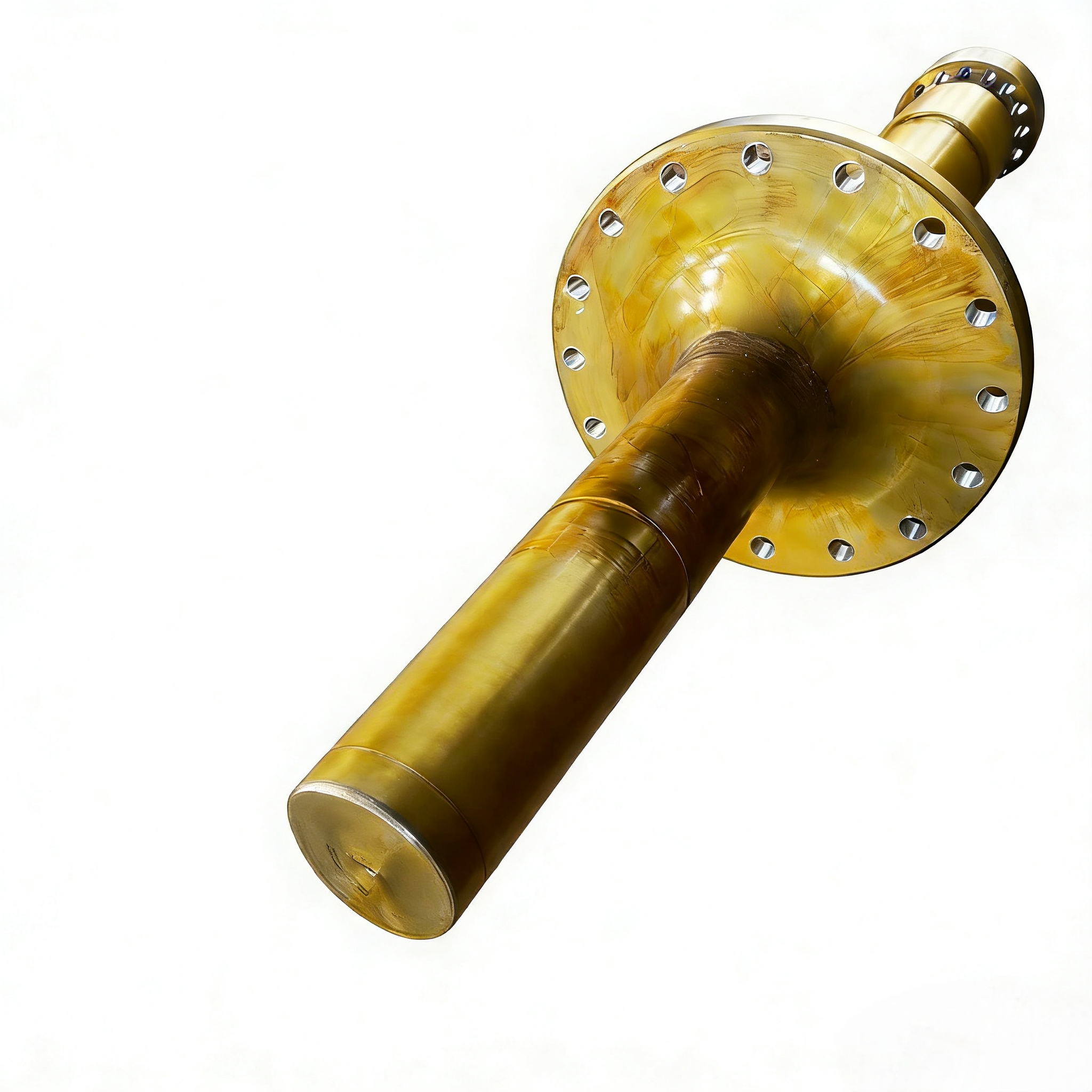

Propulsion Shaft
Propulsion Shaft
II. Functions and Mechanical Properties
Power Transmission: Efficiently transmits torque from the main engine to the propeller to drive the ship, serving as the core carrier for energy transfer.
Load Bearing: Simultaneously withstands torsional load (main engine torque fluctuation), axial thrust (hydrodynamic force of the propeller), and alternating bending stress (caused by shaft misalignment and hull deformation). Design must avoid critical speeds (by optimizing shaft length-to-diameter ratio through modal analysis) to prevent fatigue failure due to resonance.
III. Applications
The performance of the propulsion shaft directly determines a ship’s propulsion efficiency, reliability, and safety. With its comprehensive characteristics of "high strength + fatigue resistance + seawater corrosion resistance," 30CrMoV9 has become the mainstream material selection for propulsion shafts of high-power vessels. It requires coordinated processes like precision forging, CNC machining, and surface anti-corrosion treatment to further ensure long-term stable operation under extreme working conditions.
1. Raw Material Preparation and Pre-treatment
The Marine propulsion shaft select 30CrMoV9 alloy structural steel bars compliant with marine standards. First, inspect their chemical composition and mechanical properties (e.g., strength, toughness). Then, cut them to the designed length and perform normalizing treatment to refine grains and improve machinability, laying the foundation for subsequent processes.
2. Forging
If further optimization of the microstructure is needed, forge the bars (via plastic deformation to crush coarse grains nd homogenize the microstructure). Immediately anneal after forging to eliminate forging stress and avoid subsequent deformation.
Forging blank
Forging blank
3. Rough Machining
Use processes like turning and milling to remove most of the machining allowance, reserving allowance for finish machining (controlling dimensional deviation and surface roughness). During machining, use auxiliary devices such as follower rests and center supports to prevent deformation of the long shaft and ensure geometric tolerances (e.g., cylindricity, straightness).
4. Quenching and Tempering Heat Treatment (Core Guarantee of Strength-Toughness)
Execute the quenching + high-temperature tempering process:
Quenching: Heat to above the critical temperature for austenitization, then rapidly cool to form martensite.
High-temperature Tempering: Decompose martensite and precipitate fine carbides to obtain a tempered sorbite structure with high strength, high toughness, and good fatigue resistance.
After quenching and tempering, test hardness and metallographic structure to ensure performance meets standards.
5. Finish Machining
Turning/Grinding: For key parts like bearing fitting sections and coupling connection sections, gradually improve precision through semi-finishing turning → finishing turning → grinding (dimensional tolerance up to IT6–IT7 grade, surface roughness Ra 0.8–1.6μm).
Connecting Structure Processing: Mill keyways, tap threads, etc., to ensure dimensional and geometric tolerances of connecting parts.
Use precision tooling (e.g., CNC lathes, high-precision grinders) throughout to guarantee core indicators like coaxiality and roundness.

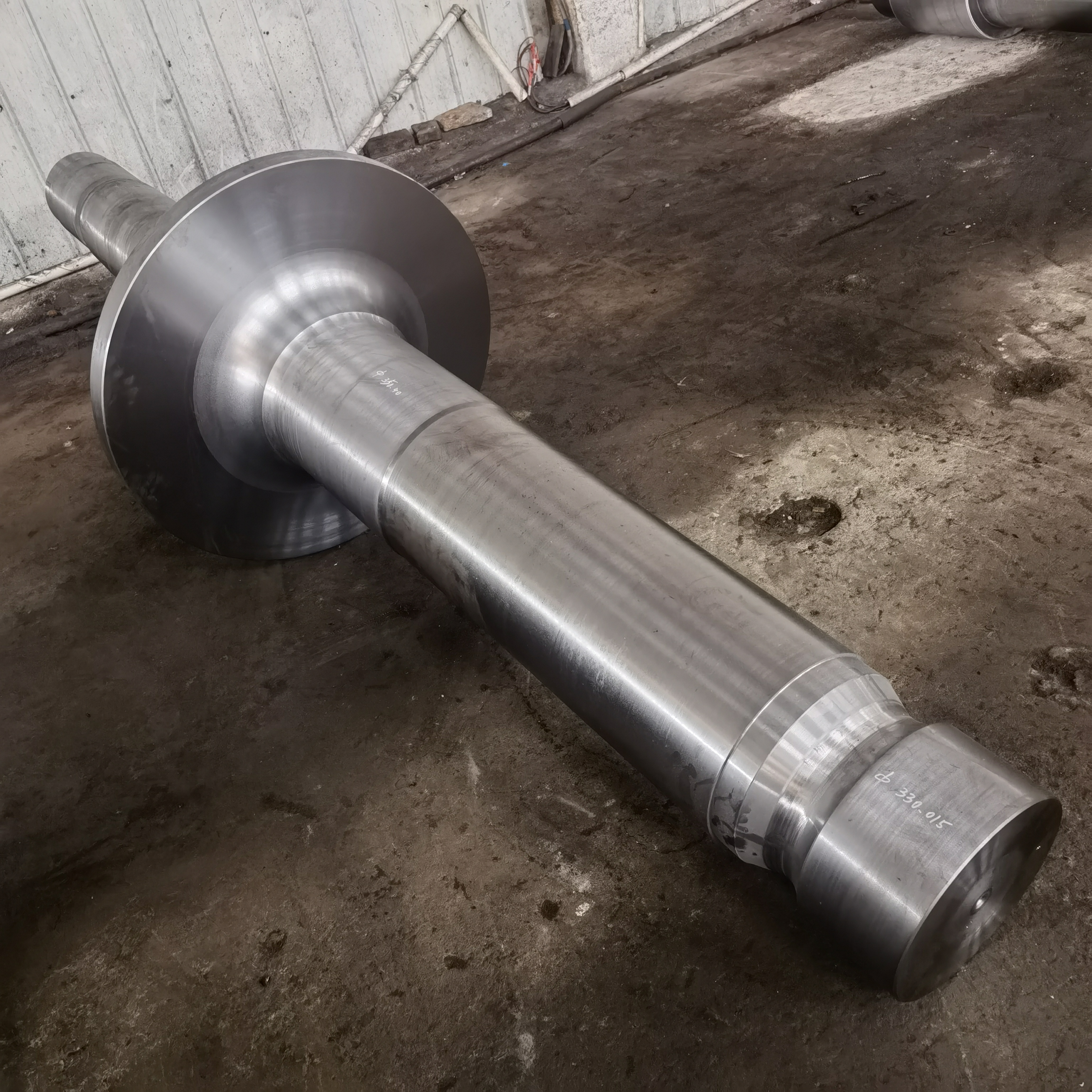

Finish Machining
Finish Machining
To ensure product quality, each marine propulsion shaft undergoes multiple strict inspections, forming a systematic quality control system to ensure that every product meets design specifications and customer requirements:
1. Dimensional Accuracy Inspection
Using measuring tools such as vernier calipers and micrometers, key dimensions like journal necks, flange inside/outside diameters, and axial lengths are measured. It checks whether they meet design tolerances (e.g., allowable deviation ranges for diameters and lengths) to avoid assembly failures caused by dimensional non - conformity.
External Diameter Measurement:
2. Tolerance Inspection (Shape and Position)
With instruments like percentile gauges, shape tolerances (e.g., roundness, cylindricity of shafts; flange flatness) and position tolerances (e.g., concentricity, bolt hole position tolerance) are inspected. This ensures that the part’s geometric accuracy meets the requirements for assembly and functionality (such as fitting accuracy between shafts and couplings).
Run-out Test:
3. Surface Quality Inspection
Surface roughness (whether the Ra value complies with standards) is checked via visual inspection or surface roughness testers, and defects like scratches, impacts, and corrosion are identified. If coatings (for anti - corrosion or wear resistance) exist, indicators such as thickness and adhesion are verified to ensure protective effects and performance.
4. Material and Performance Testing
Hardness Testing: Hardness values after heat treatment are verified against process requirements using Rockwell or Brinell hardness testers.
Non - Destructive Testing (NDT): Magnetic particle inspection or ultrasonic testing detects internal defects (e.g., cracks, porosity) in forged or welded areas.
Composition Analysis: A spectrometer is used for spot - checking chemical compositions to ensure the material matches the design (e.g., element ratios of alloy steels).
Magnetic Particle Testing (MT):
5. Functional and Appearance Inspection
Functionality: Dynamic balancing tests are conducted for transmission parts to eliminate vibration risks during high - speed operation. Simulated assembly and test runs verify smooth power transmission, torque transfer, and abnormal noise issues.
Appearance: Deformations, paint uniformity, and clarity of markings (model numbers, batch numbers) are inspected to ensure the delivered product’s appearance meets standards.
These inspections comprehensively cover geometric accuracy, physical properties, and functional verification, building a solid “defense line” for product quality.

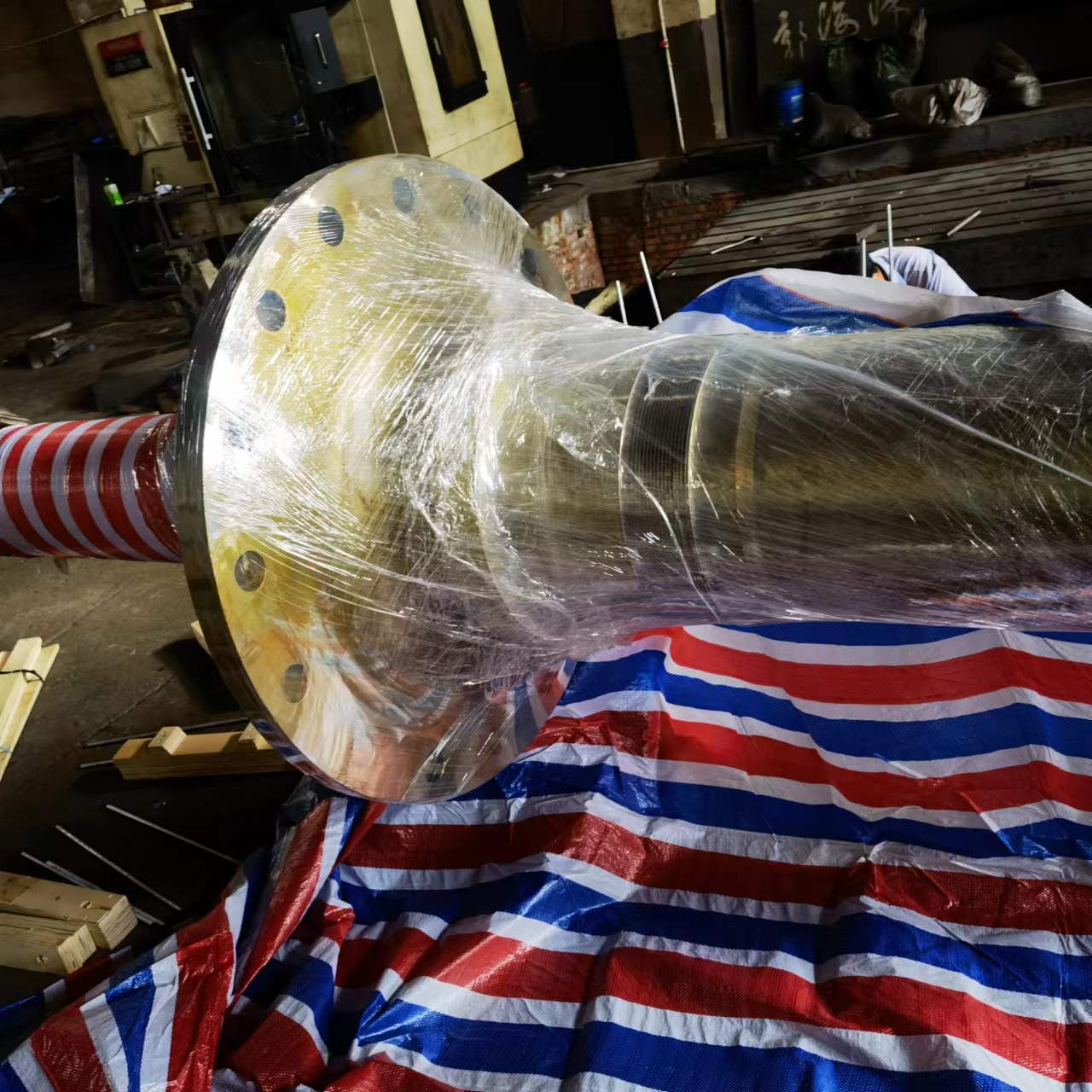

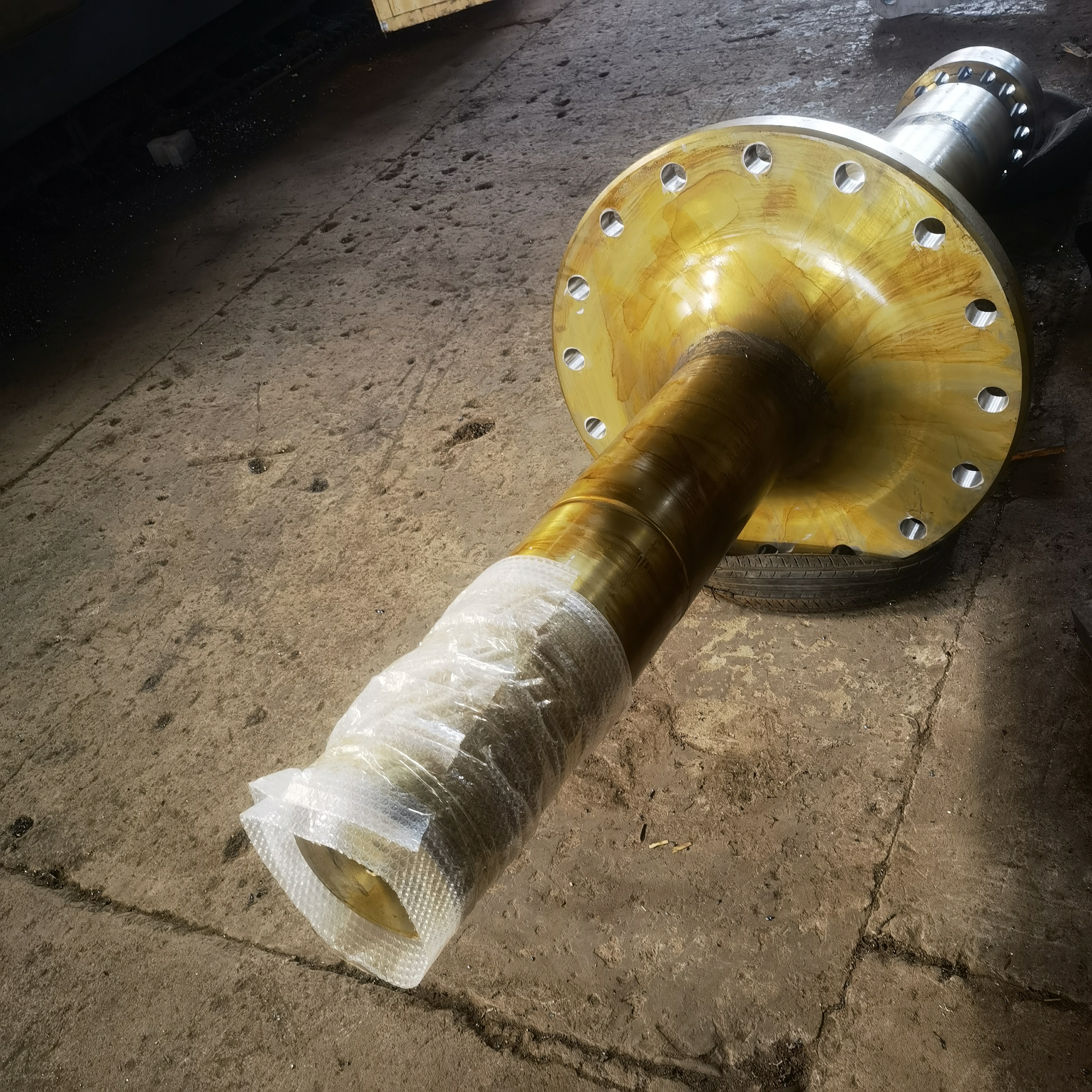

Packaging
