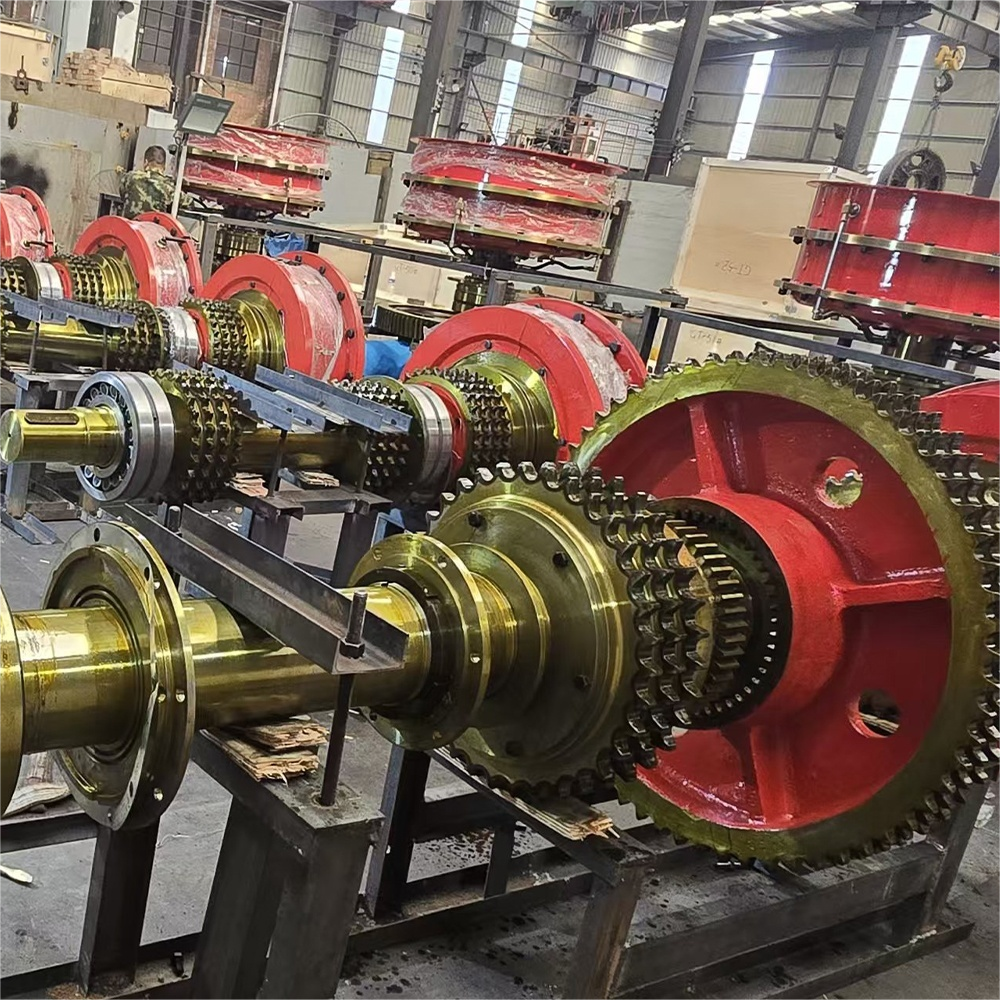

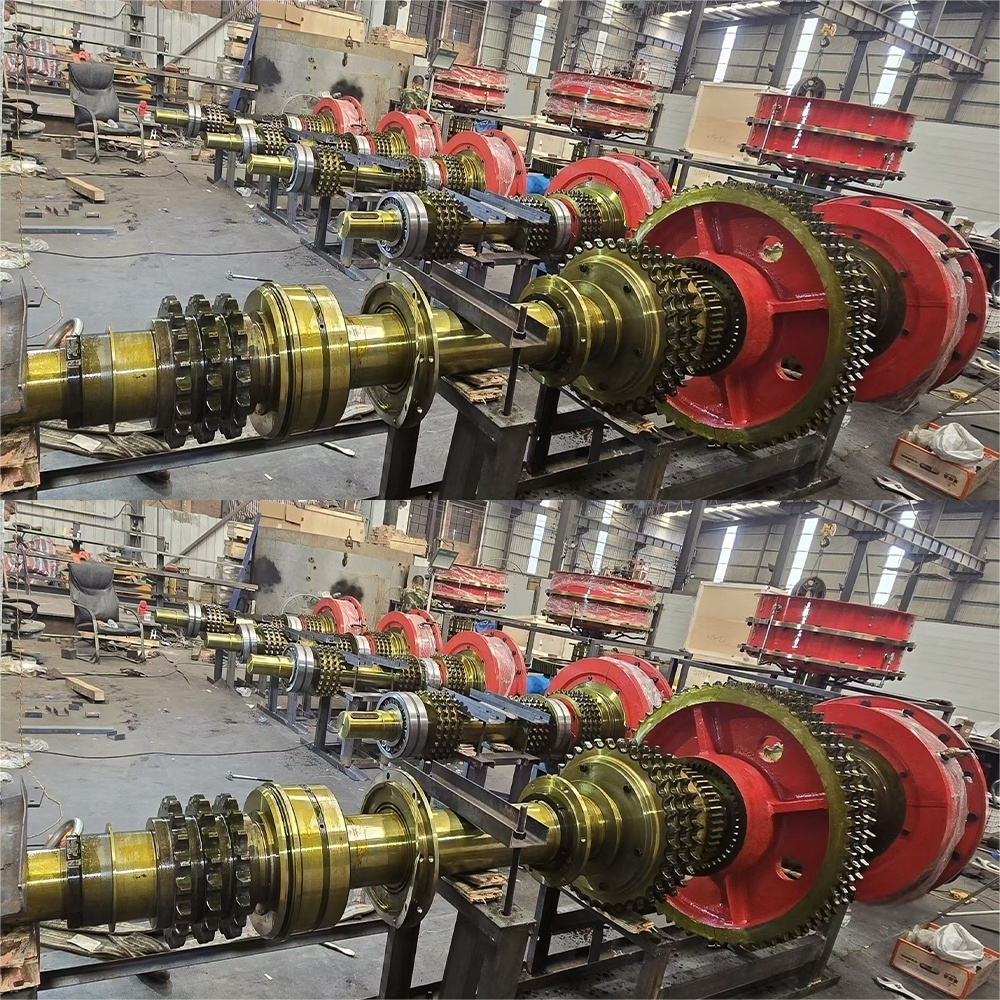

TOTEM OEM / ODM High Precision Chain Wheel / Sprocket Rotary Drum Assembly for Oil Drilling Application

The Sprocket Drum Assembly is a heavy-duty industrial power transmission solution specifically engineered for demanding applications such as oil & gas drilling, mining hoisting, and material handling systems. This integrated unit combines a high-tensile drum body with a precision-machined sprocket and robust shaft into a seamless, monolithic structure. Utilizing advanced techniques like multi-directional die forging and induction hardening, the assembly delivers exceptional fatigue resistance, structural integrity, and wear durability under extreme loads.

Available in various configurations including single and double drum designs with integral or bolted sprockets, each unit undergoes rigorous quality assurance and API/ISO-compliant testing. The Drum-Type Sprocket Assembly ensures reliable, maintenance-free operation and extended service life in the world's most challenging industrial environments.

Quantity:
Availability:





Inquire Add to Basket

OEM Sprocket Rotary Drum Assembly Large Sprocket Rotary Drum Assembly Chain Wheel Rotary Drum Assembly Custom Chain Wheel Rotary Drum Sprocket Wheel Rotary Drum for Oil Drilling Rotary Drum and Sprocket Transmission Assembly Custom Rotary Type Chain Wheel Assembly Petroleum Drilling Components Oil Drilling Spare Parts Oil Drilling Equipment Sprocket Roller Assembly

Product Description

Machining Process

Product Inspection

Package & Delivery

Drum-Type Sprocket Assembly: The Core Power Unit of Oil Drilling Hoisting Systems

I. Structural Overview

The Rotary Drum Sprocket Assembly is the central transmission module of the hoisting system in modern oil drilling rigs and workover equipment. It is a highly integrated and precision-engineered unit combining transmission, winding, and braking functions. Its core structure consists of the following key components:

Sprocket: The key gear for power input, typically forged from high-strength alloy steel and finished with carburizing, quenching, and precision gear grinding. Its specially designed tooth profile engages precisely with high-strength lifting chains, converting the prime mover's rotary power into linear pulling force.

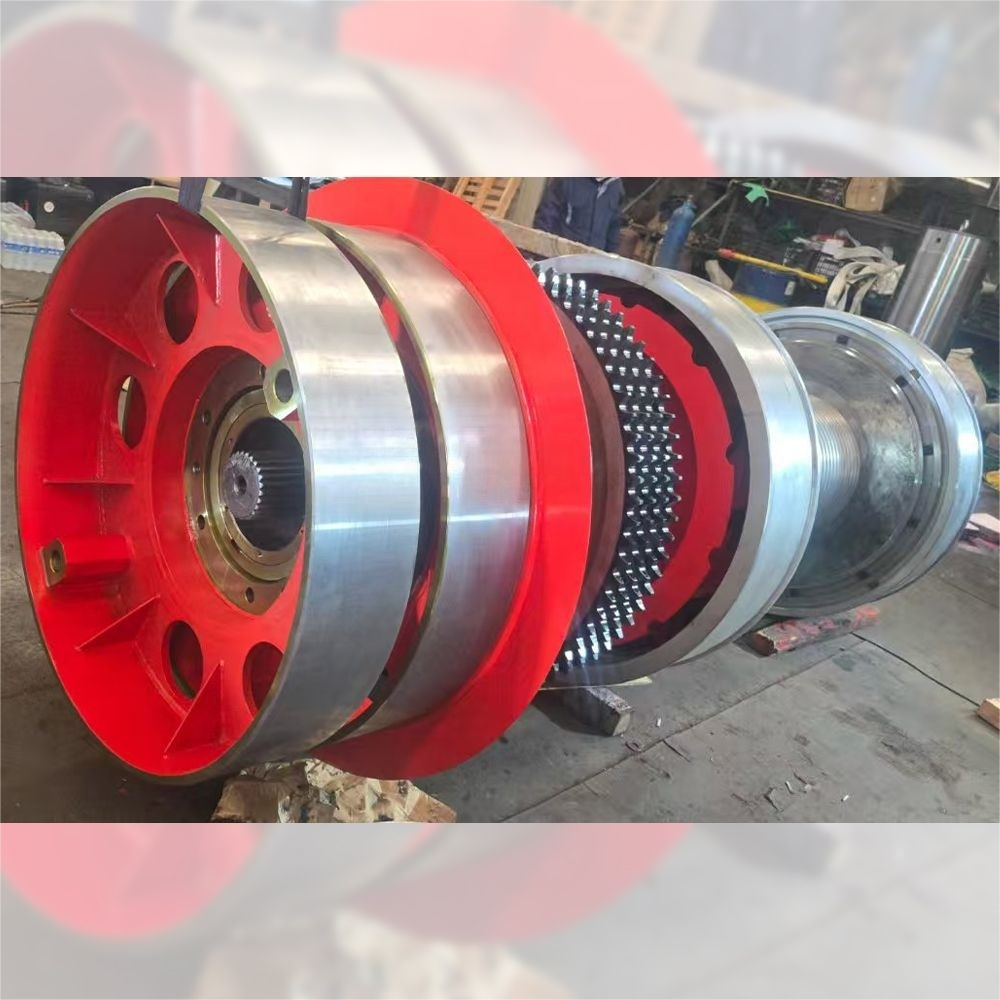

Rotary Drum: The carrier for wire rope or cable, usually a large welded or cast steel structure with machined grooves for orderly rope spooling. The drum core often integrates a hydraulic disc-type or caliper-type safety brake system, serving as the critical safety barrier during emergencies.
Transmission Shaft & Bearing System: A high-strength alloy steel shaft connects the sprocket and drum via interference fit or keyed joints. It is supported by high-performance spherical roller bearings housed in self-aligning seats to compensate for mounting errors and load-induced deflection, ensuring smooth operation.

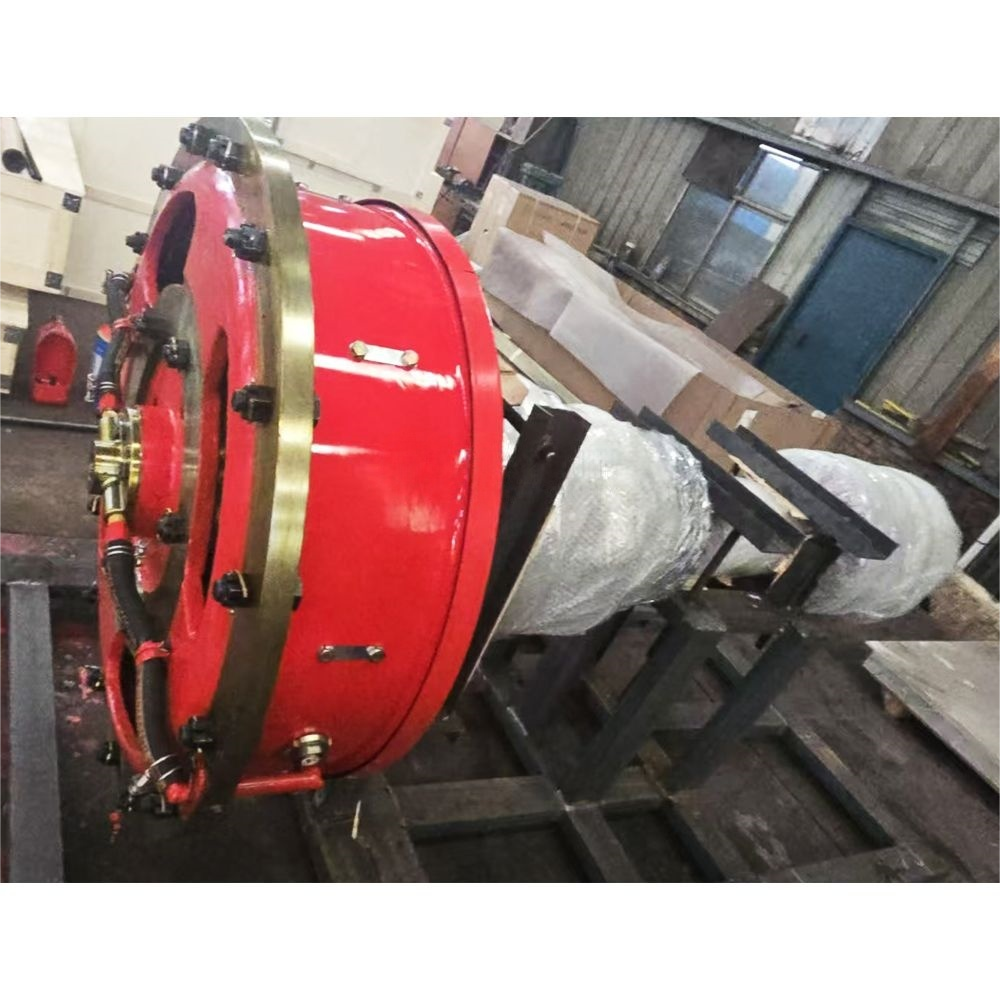

Coupling/Clutch: Located at the power input side, it connects the gearbox output shaft to the assembly's main shaft. Gear couplings or highly flexible couplings are commonly used to transmit immense torque while accommodating minor misalignments. Some designs incorporate pneumatic or hydraulic clutches for quick power engagement/disengagement.
Frame & Braking System: A robust welded frame supports all rotating components. The braking system includes service and safety brakes, capable of rapid response and reliable holding at any position.

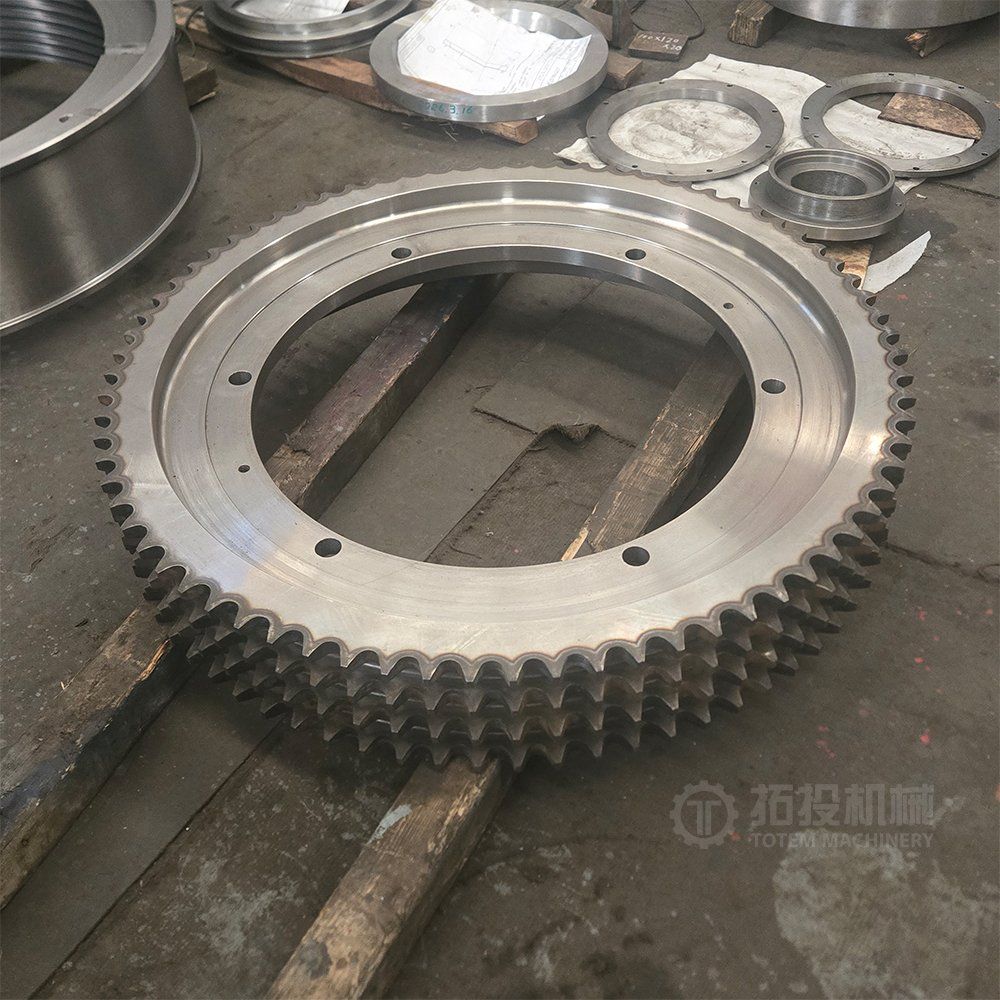

Sprocket

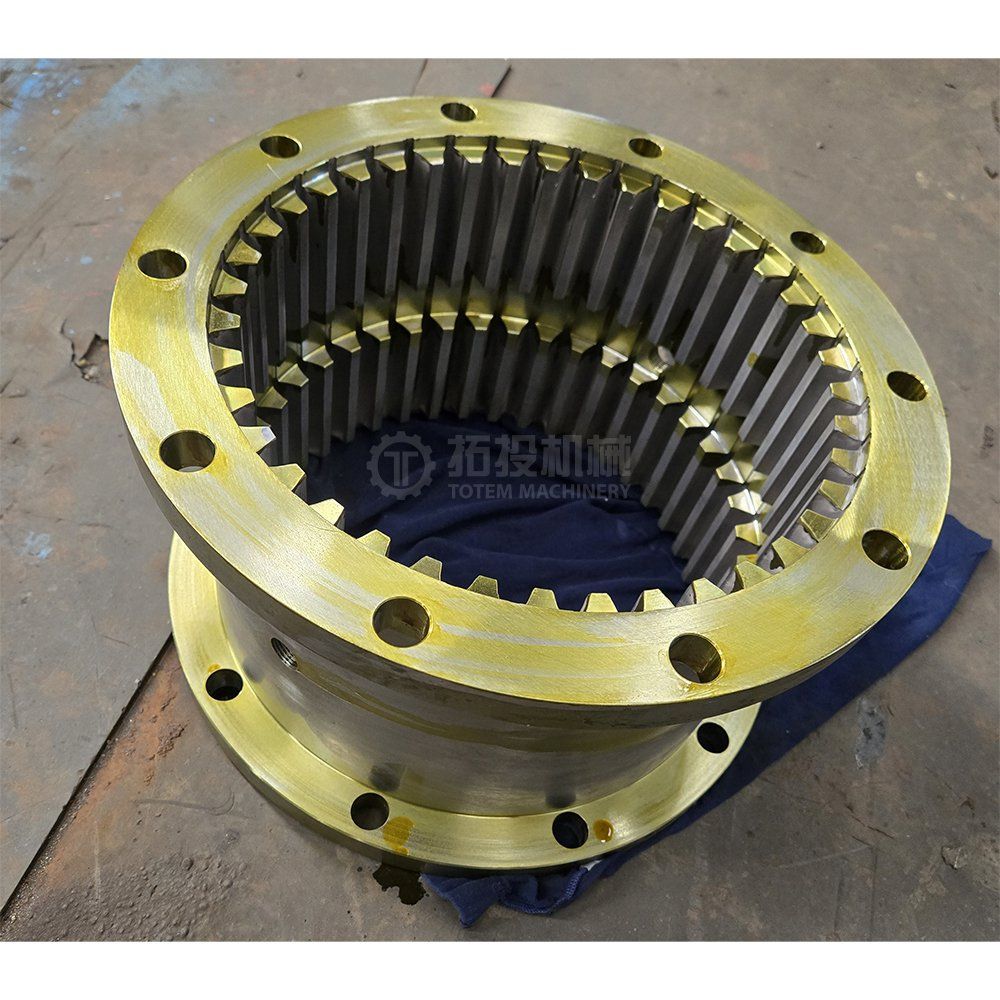

Coupling

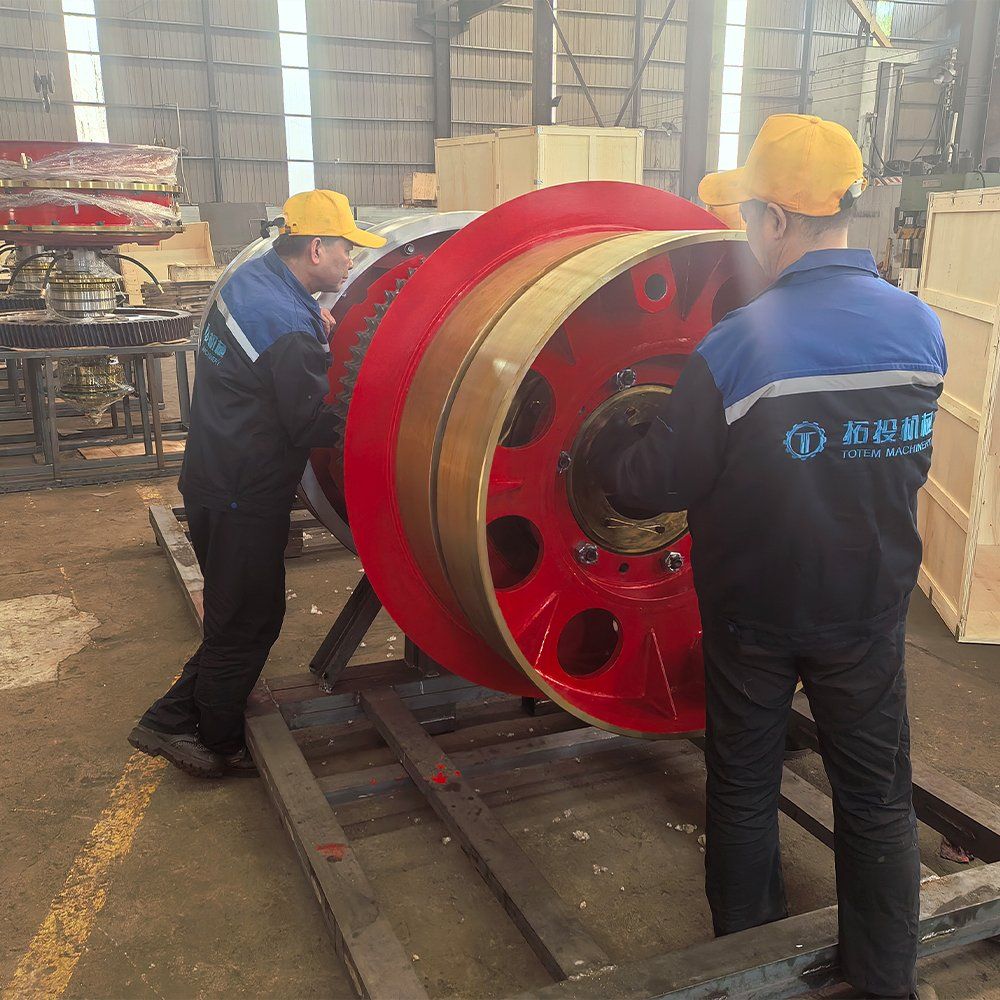

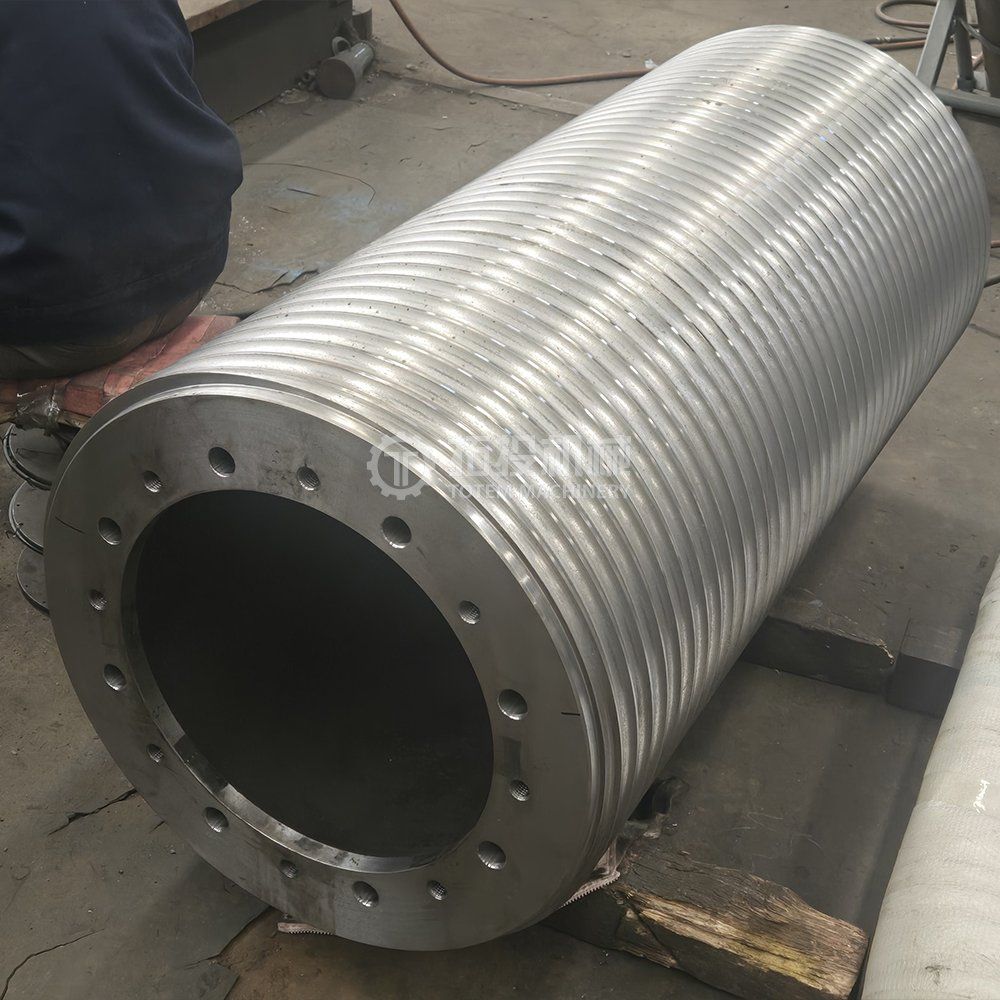

Rotary Drum

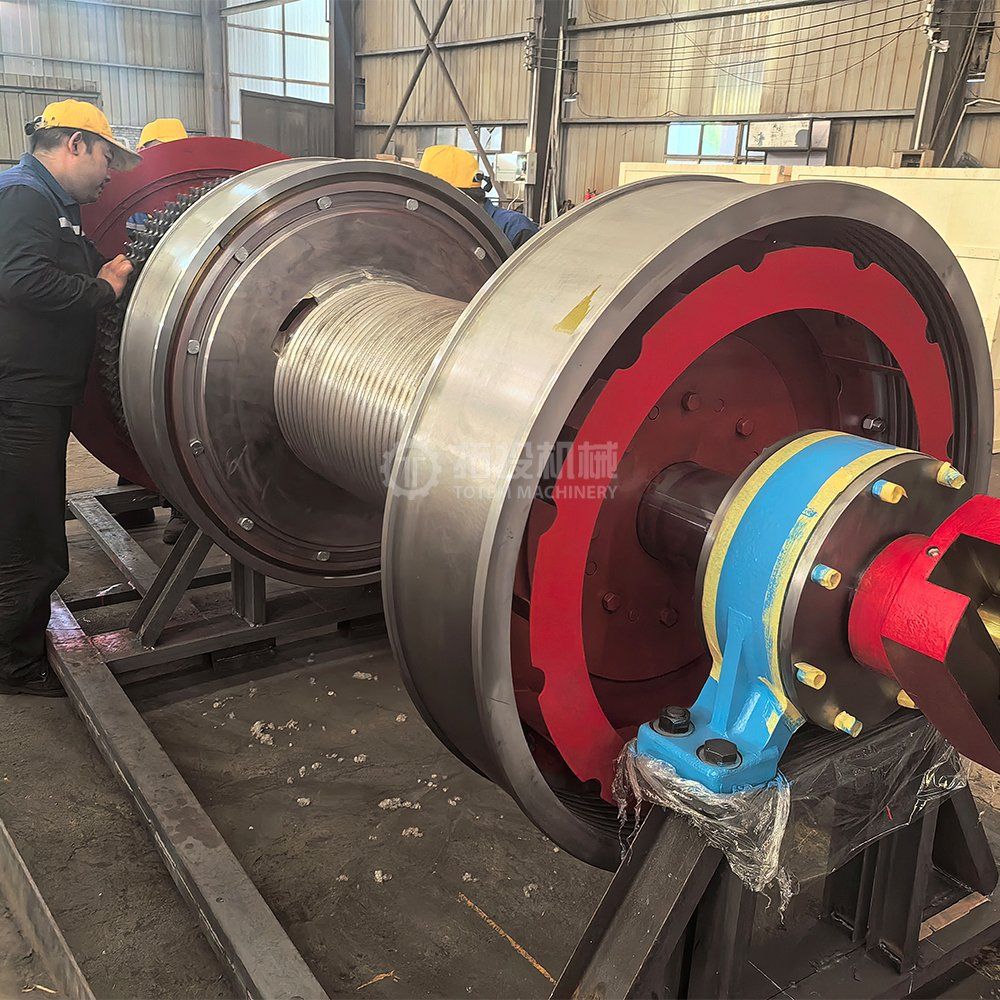

Assembly

II. Core Functions

The primary function of this assembly is heavy-duty, precise, and safe vertical hoisting and lowering. Specifically, it:

Transmits Power: Efficiently and reliably converts torque from electric motors or hydraulic drives into linear pull for the traveling block via the sprocket-chain pair.
Sustains Loads: Directly bears and handles the entire weight of downhole drill strings (drill pipes, casings, bits, etc.), typically ranging from 50 to over 500 tons.
Enables Precise Control: Works in synergy with electro-hydraulic control systems to achieve millimeter-level control of tripping speed and position, serving as the key actuator in automated drilling.
Ensures Safety Braking: In events of power loss, system failure, or emergencies, its integral fail-safe brakes automatically lock the drum almost instantly (response time often <0.5 seconds), preventing tool free-fall and catastrophic "pipe dropping" incidents.

III. Key Product Features

Ultimate Reliability & Safety: Designed to the most stringent industry standards (e.g., API 8C/ISO 13500) following a fail-safe philosophy. Redundant braking systems and precisely controlled preloads on critical connections ensure flawless performance in extreme environments like corrosive offshore platforms or dusty, vibrating onshore fields.

2. Exceptional Load Capacity & Long Life: Critical components use premium materials and heat treatment for high contact fatigue strength. Precision assembly techniques (e.g., induction heating for bearings, thermal shrink-fitting for gear rings) ensure optimal alignment (concentricity often better than 0.05mm), minimizing internal stress and extending service life by up to 40% compared to conventional units.

3. Smooth & Efficient Operation: The optimized sprocket tooth profile engages with the chain at high precision (up to IT7 grade), ensuring smooth, quiet, low-vibration transmission without skipping or "riding," significantly improving drive efficiency and wire rope life.

4. Maintenance-Friendly Design: Features a modular design with sensor interfaces at key monitoring points (e.g., bearing temperature, brake lining wear) for condition monitoring and predictive maintenance. Superior sealing systems prevent lubricant leakage and contaminant ingress.

IV. Primary Applications

The Drum and Sprocket Transmission Assembly is a dedicated critical component in the upstream oil and gas industry, primarily used in:

Oil Drilling Rigs: As the core component of the drawworks, performing essential tripping and casing running operations.
Workover Rigs and Well Testing Equipment: For pipe handling during well maintenance, overhaul, and testing.
Offshore Drillships: Subject to harsher marine motion conditions, demanding even higher corrosion resistance and structural reliability.

In summary, the Sprocket Drum Hoist Assembly is not only a symbol of power but also a crystallization of safety, precision, and dependability. It steadfastly supports every step of global oil and gas exploration, serving as the indispensable "power core" in modern heavy-duty petroleum machinery.

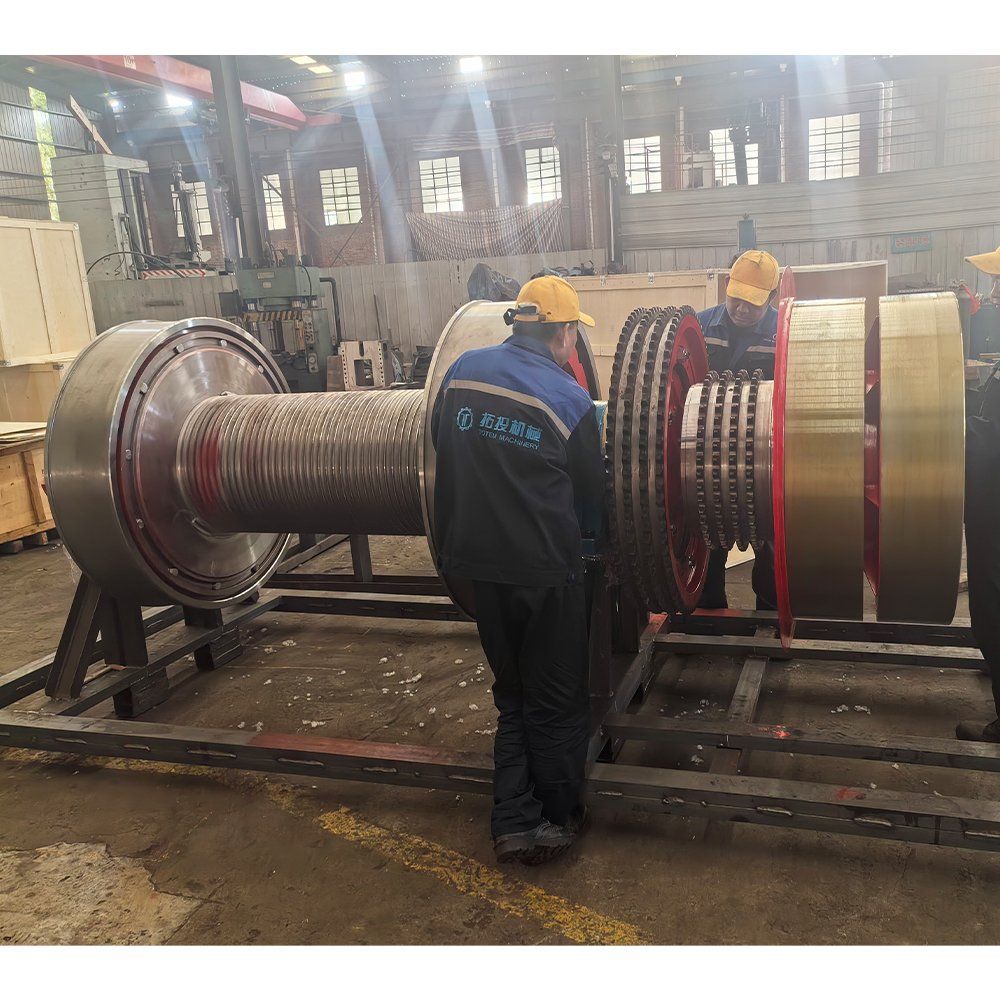

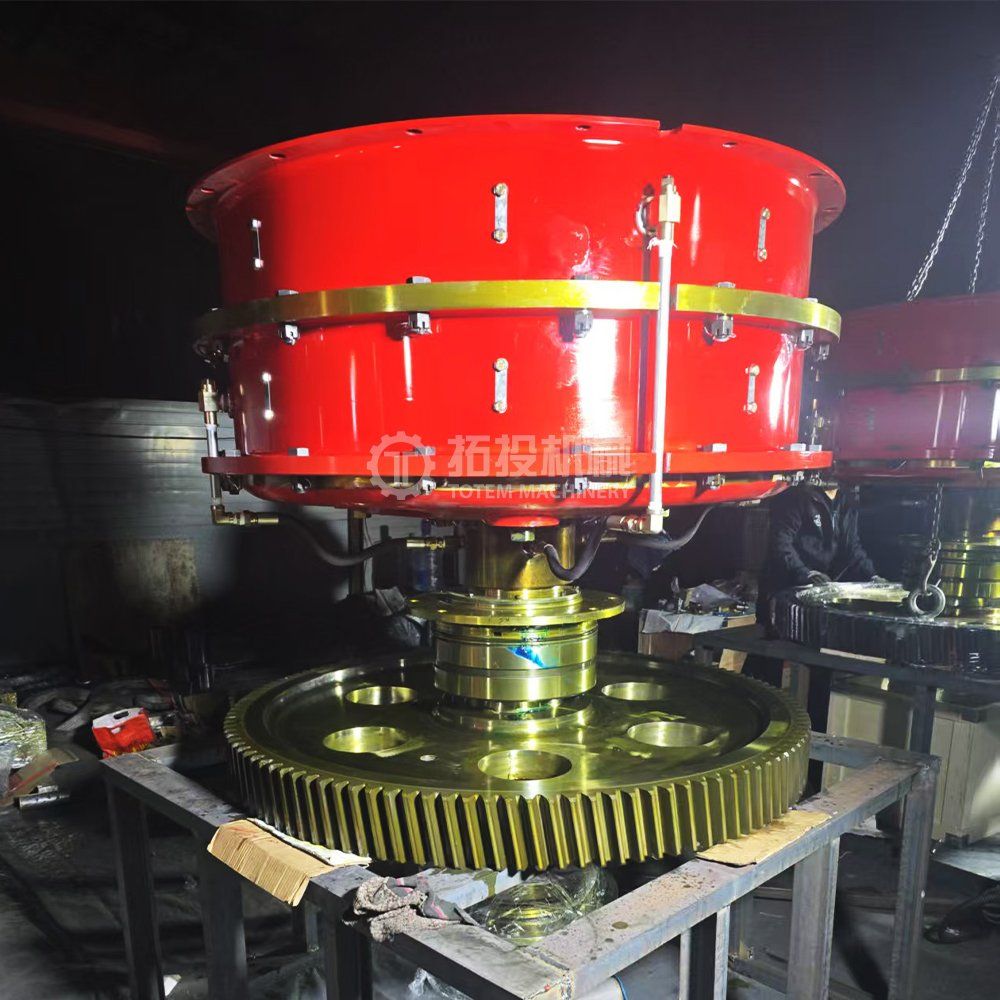

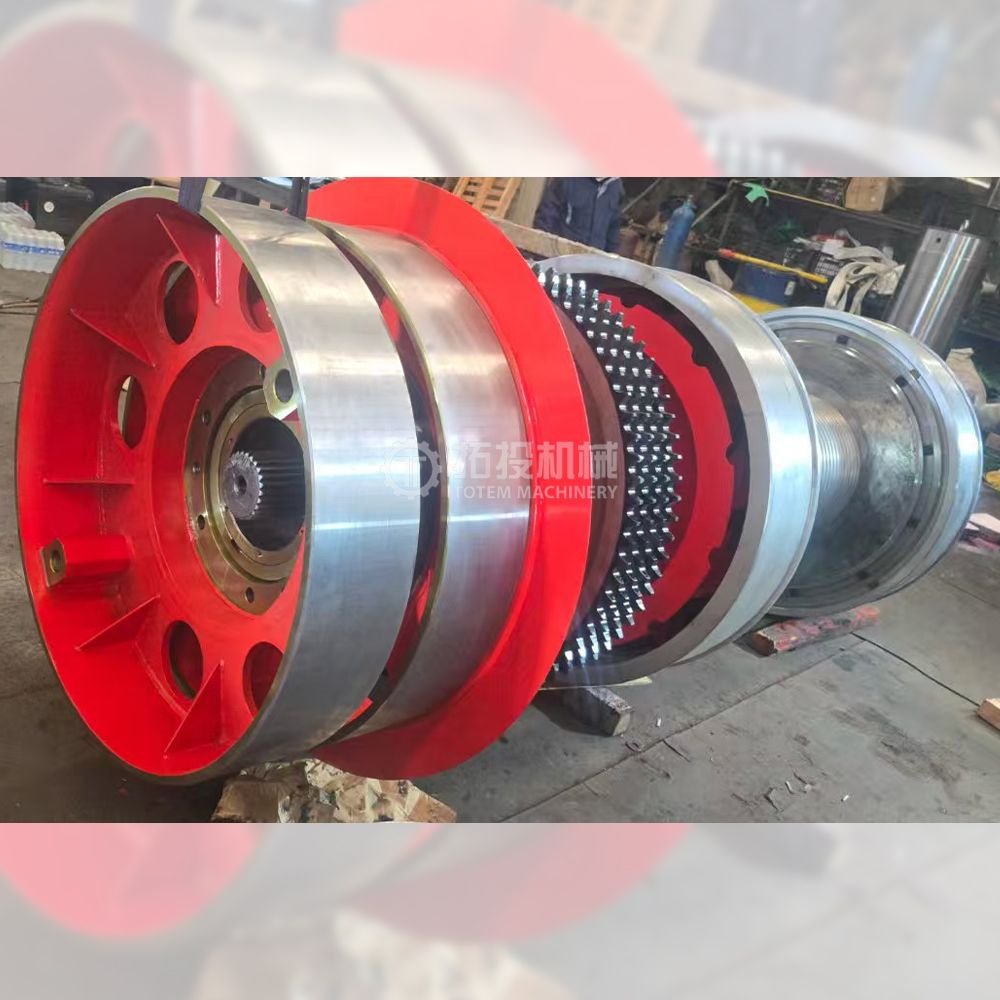

Sprocket Rotary Drum Assembly

The Precision Manufacturing and Assembly Process of the Drum-Type Sprocket Assembly

Stage 1: Core Component Forging & Precision Machining

1, Material & Forging:

Key load-bearing components such as the sprocket gear ring, drum body, and transmission shaft are forged from high-strength alloy structural steels like 42CrMo or 35CrMo. Prior to processing, all raw materials undergo ultrasonic testing and spectral analysis to ensure material purity and the absence of internal flaws. The blanks are then shaped using multi-directional die forging on 10,000-ton hydraulic presses, which aligns the metal grain flow continuously along the part contours, significantly enhancing fatigue strength and impact toughness.

2, Heat Treatment Strengthening:

Following forging, components undergo preliminary heat treatment to relieve internal stresses. The core strengthening process is quenching and tempering, which imparts an optimal combination of high strength and toughness. Critical wear areas, such as the sprocket teeth and drum contact surfaces, undergo medium/high-frequency induction hardening or carburizing/nitriding to form a deep hardened case with surface hardness reaching HRC 58-62, while the core retains excellent toughness, achieving a "hard exterior, tough interior" structure.

3, High-Precision Machining:

Machining is conducted in a temperature-controlled workshop using 5-axis CNC machining centers, large vertical CNC lathes, and precision CNC grinders. The final finishing of the sprocket tooth profile is performed on a high-precision gear form grinding machine, ensuring tooth profile accuracy and pitch deviation meet or exceed ISO 1328-1:2013 Grade 6, which is fundamental for achieving shock-free and low-noise meshing. Critical features like the drum rope grooves and bearing journals are machined to tight dimensional tolerances (IT6-IT7) and geometrical tolerances (roundness, cylindricity, coaxiality) of ≤0.02mm.

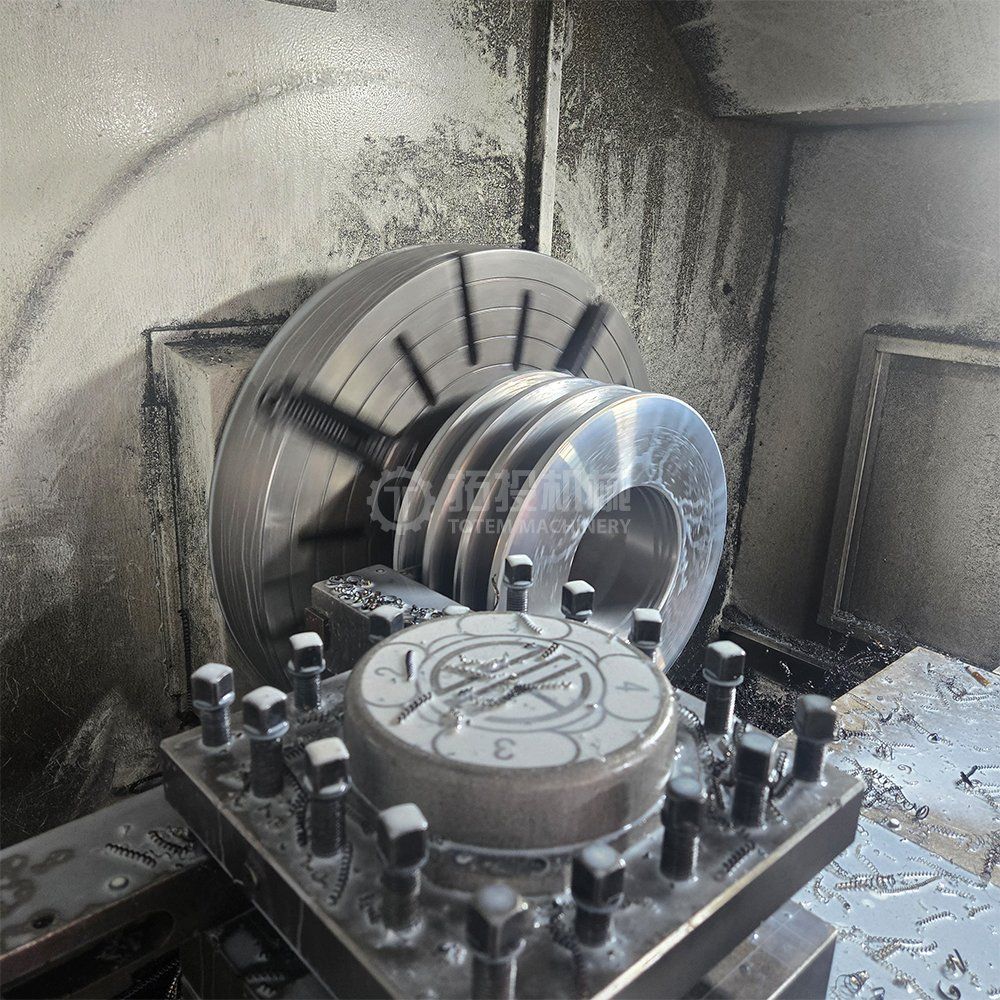

Precision Machining

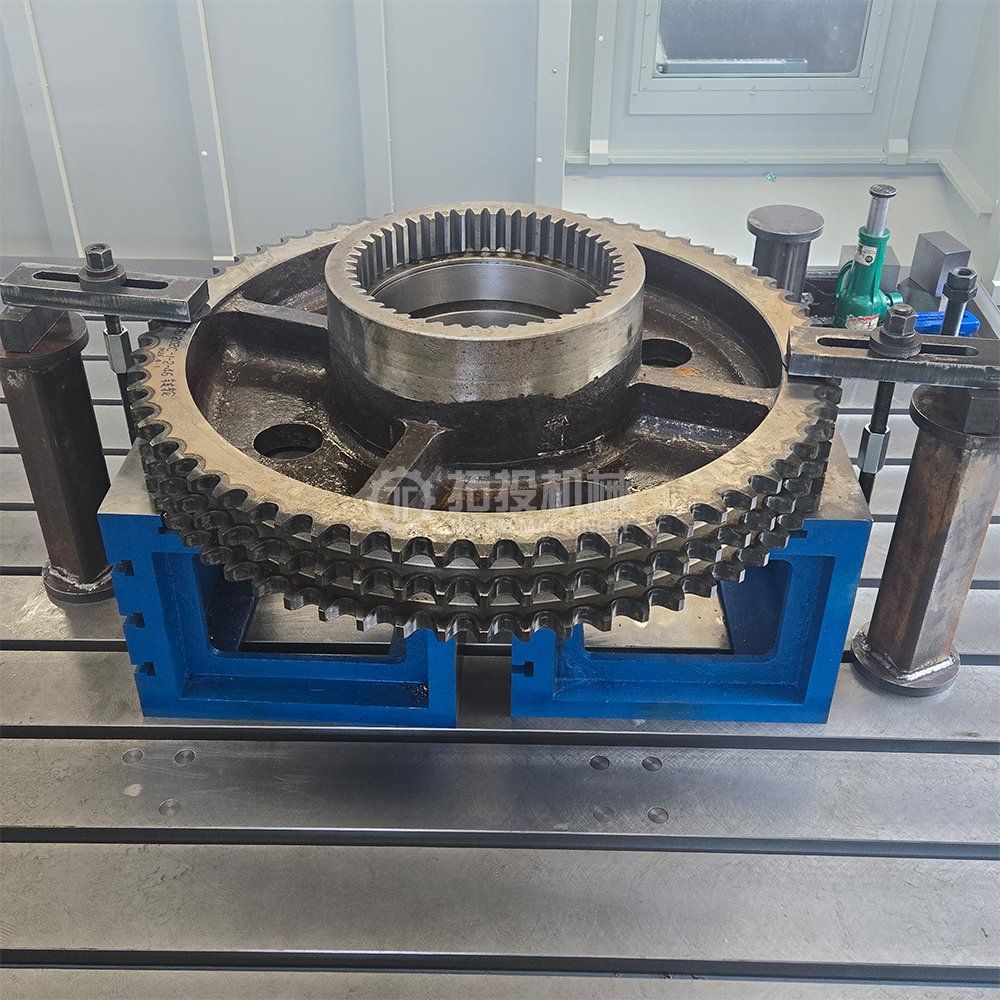

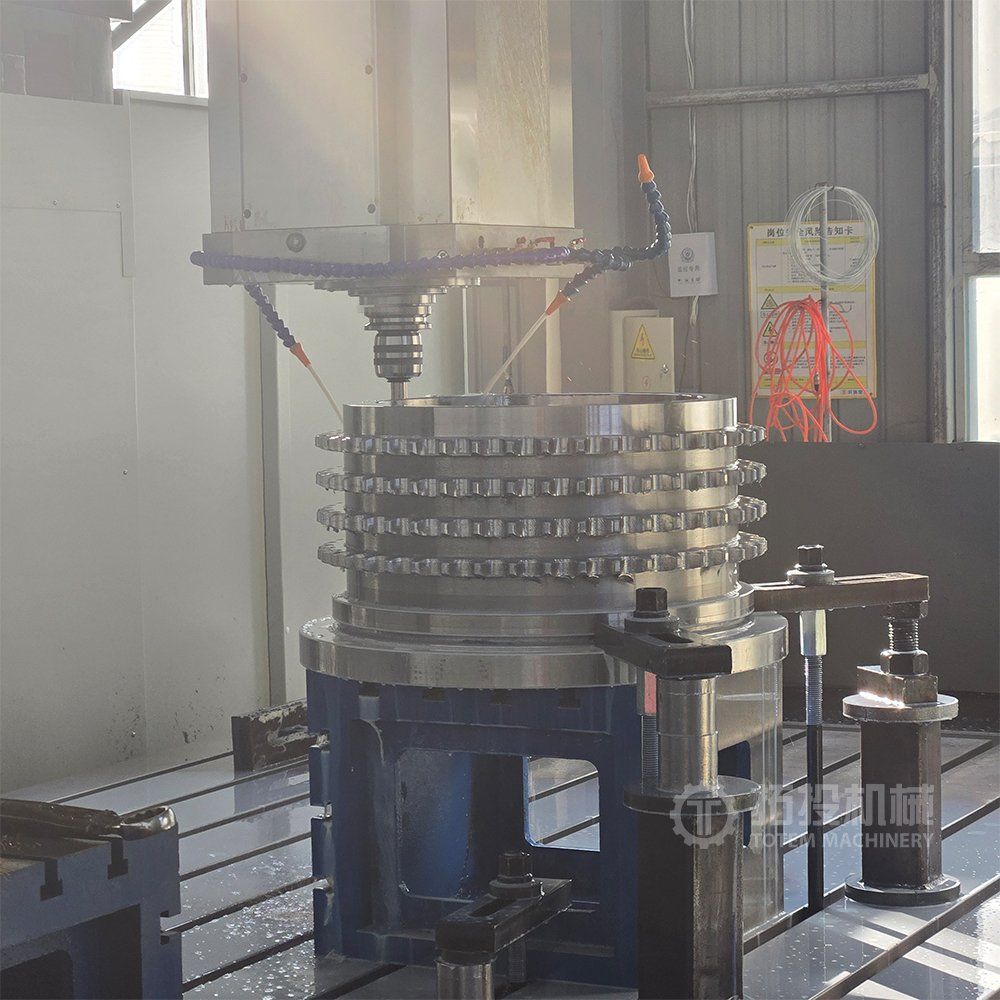

Sprocket Machining

Stage 2: Precision Assembly & System Integration

1, Zero-Clearance Fit Assembly:

Core component connections utilize thermal shrinking and hydraulic press-fitting. For instance, the uniformly heated and expanded sprocket gear ring is precisely pressed onto the hub by a hydraulic servo press to achieve an interference fit, forming a high-strength monolithic structure upon cooling. Prior to bearing installation, the bearing inner ring is uniformly heated using an induction heater for a damage-free, high-precision hot mounting process, ensuring optimal preload.

2, Scientific Torque Fastening:

All connections using high-strength alloy steel bolts are fastened using the torque-angle method or hydraulic tensioning method. Certified technicians use digital torque wrenches and bolt tensioners to ensure preload force consistency exceeds 99%, generating a traceable fastening data report to eliminate the risk of loosening at its root.

3, Brake & Sealing System Integration:

The hydraulic disc brake is the safety core. During caliper installation, laser alignment tools and high-precision feeler gauges are used to ensure parallelism between the brake disc and pads is within ≤0.05mm, achieving full-contact, even wear. All rotary seals employ a composite design combining multiple-lip seals with labyrinth seals, subjected to 100% airtightness testing to guarantee zero leakage throughout the product's service life.

The Comprehensive Inspection Process of the Heavy-Duty Drum Sprocket Assembly

From Raw Material to Certified Reliability: Our Zero-Defect Commitment

Every Sprocket and Drum Power Assembly that leaves our facility is the product of an uncompromising, multi-stage inspection protocol. This rigorous process, designed to meet and exceed the most demanding API and ISO standards, is the foundation of our promise for zero-field-failure performance in the world's most challenging oil drilling environments.

Phase 1: Incoming Material & Dimensional Metrology

The journey to reliability begins long before assembly. We start with a forensic examination of our raw materials. Every batch of high-strength alloy steel, such as 42CrMo forgings for the sprocket or drum, is subjected to Ultrasonic Testing (UT) and Spectroscopic Analysis. UT probes for subsurface flaws, while spectrometry confirms the exact chemical composition, ensuring it matches the specified grade for optimal strength and toughness.

Once machined, components enter our climate-controlled metrology lab. Here, we deploy a suite of advanced equipment:

3D Coordinate Measuring Machines (CMMs): These digitally map the entire geometry of the sprocket drum assembly's core parts. We verify critical dimensions like bearing journal diameters, drum flange runout, and the pitch diameter of the sprocket to tolerances within ±0.01mm.
Gear Inspection Systems: The sprocket's tooth profile is analyzed on a precision gear checker. We measure profile deviation, lead error, and cumulative pitch error to ensure compliance with ISO 1328-1 Class 6 or better, guaranteeing smooth, shock-free meshing with the drive chain.
Surface Roughness & Contour Analyzers: The finish of the drum rope grooves is critical for wire rope life. We measure groove contour, pitch, and surface roughness (often to Ra 0.8 µm or finer) to prevent premature rope wear and ensure precise spoiling.

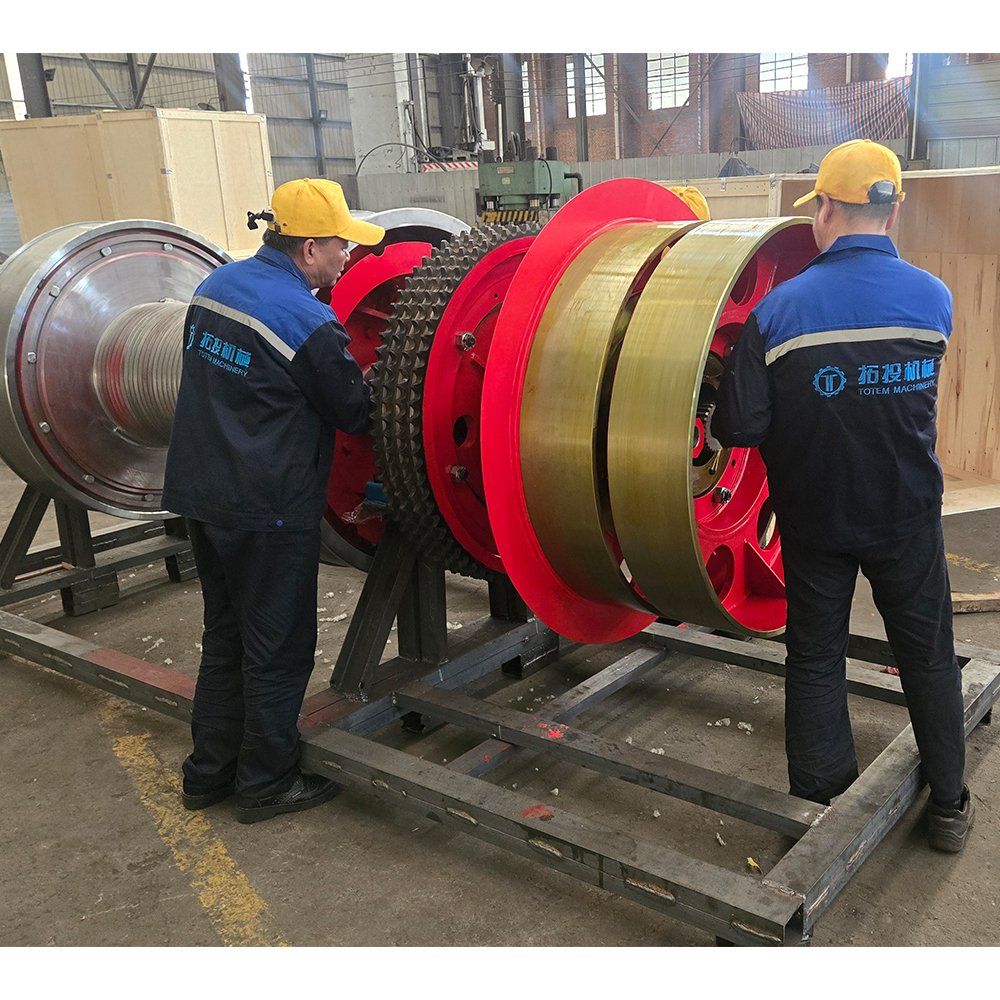

Inspection

Phase 2: Non-Destructive Testing (NDT) for Structural Integrity

After heat treatment and critical machining, components undergo a battery of NDT scans to detect any potential stress-induced defects invisible to the naked eye.

Magnetic Particle Inspection (MPI): Applied to ferromagnetic parts like the sprocket teeth and shaft fillets, MPI reveals surface and near-surface cracks that could become initiation points for failure under cyclic loading.
Liquid Penetrant Inspection (LPI): Used on non-ferrous or finely finished surfaces, LPI detects surface-breaking discontinuities in components like brake discs or seal housings.
Hardness Verification: Using portable and bench-top Rockwell/Brinell testers, we map the hardness of critical areas, confirming that the sprocket teeth surface hardness reaches HRC 58-62 and the core maintains the required toughness, validating the "hard exterior, tough interior" specification.

Phase 3: In-Process & Final Assembly Verification

Precision assembly is monitored in real-time. During the thermal shrink-fitting of the sprocket ring, we monitor and record the temperature gradient and press-fit force. For bearing installation, we use laser alignment tools to confirm a radial runout of less than 0.05mm for the entire shaft assembly.

Every bolted connection is a data point. Using digital torque-angle wrenches and hydraulic tensioners, we record the precise preload force applied to each high-strength bolt. This data is logged, ensuring the 99% preload consistency we specify and creating a traceable record for every joint.

Sprocket

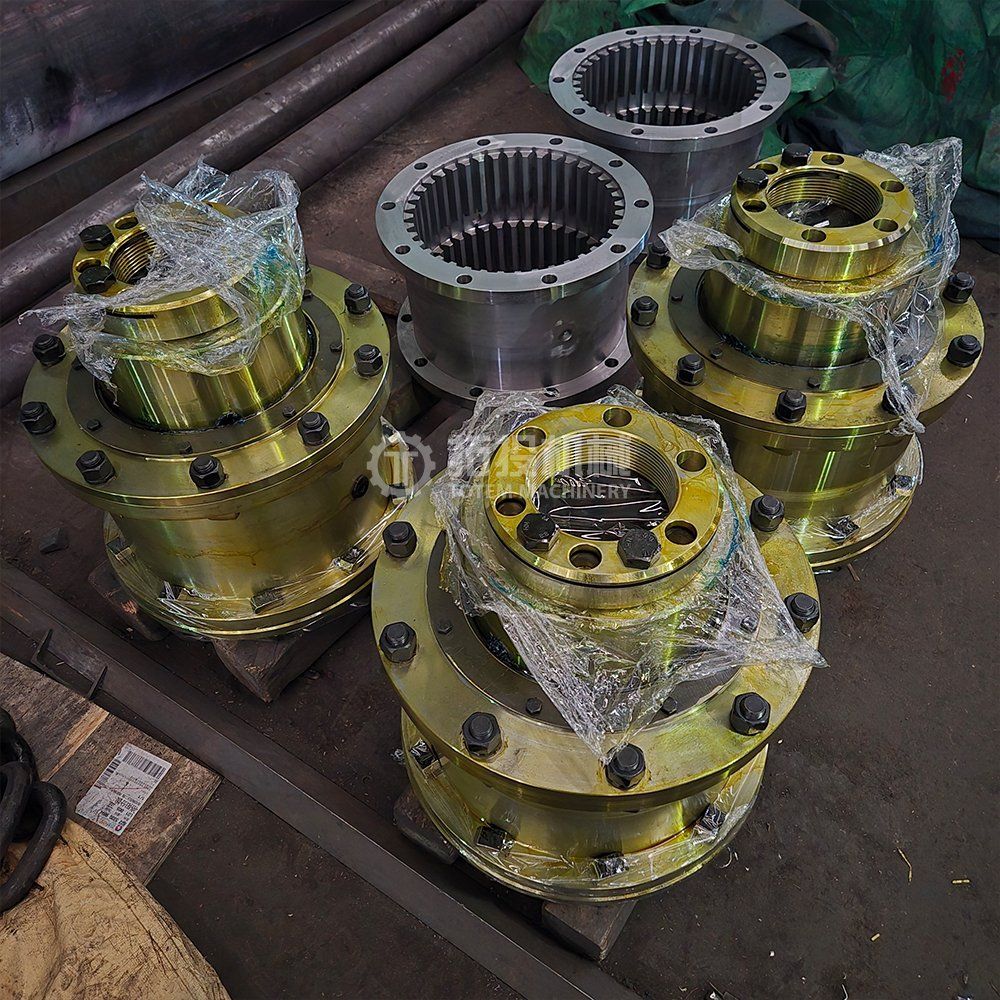

Coupling

Rotary Drum

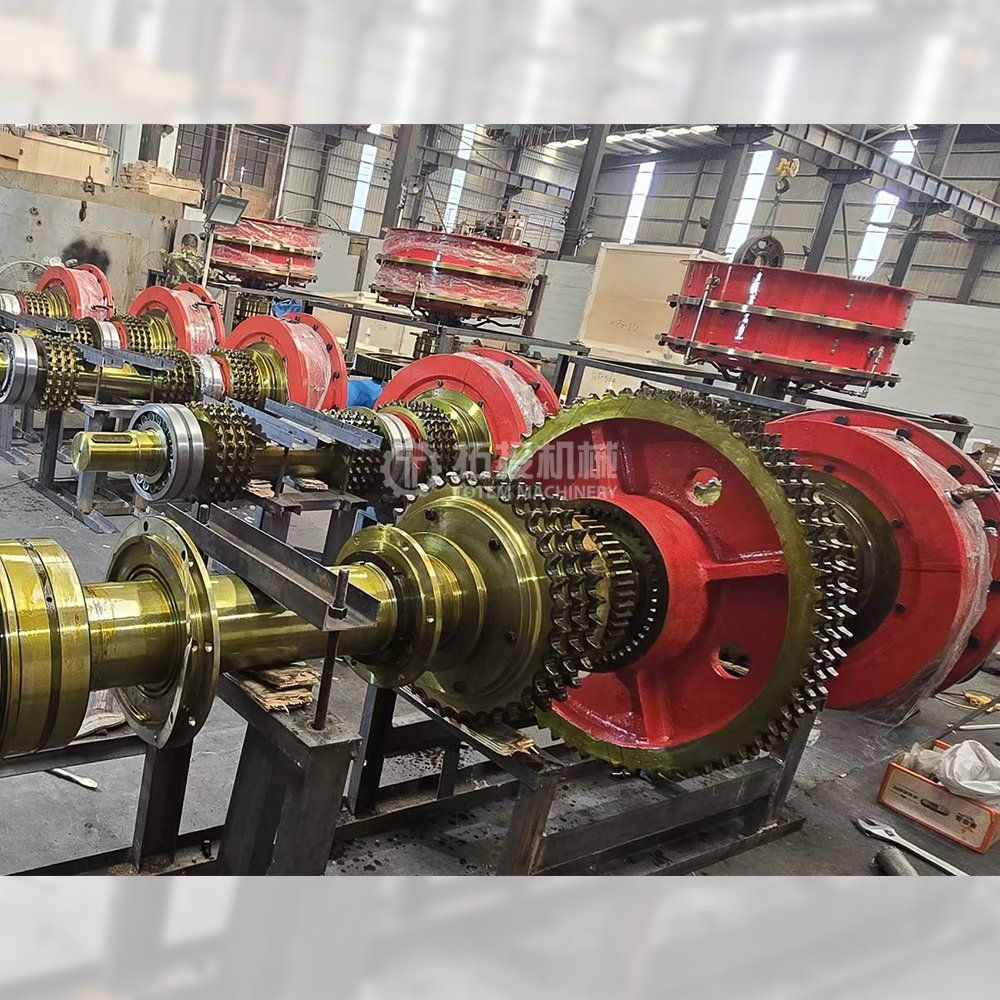

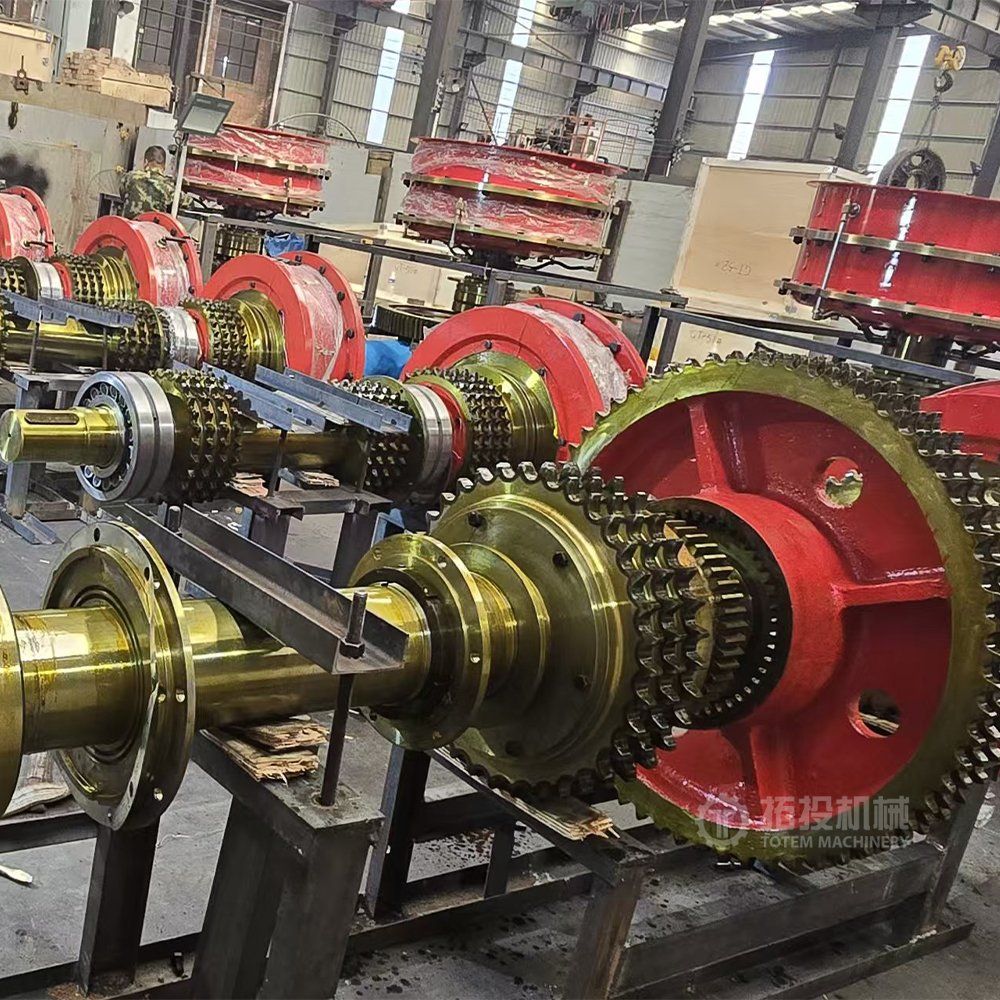

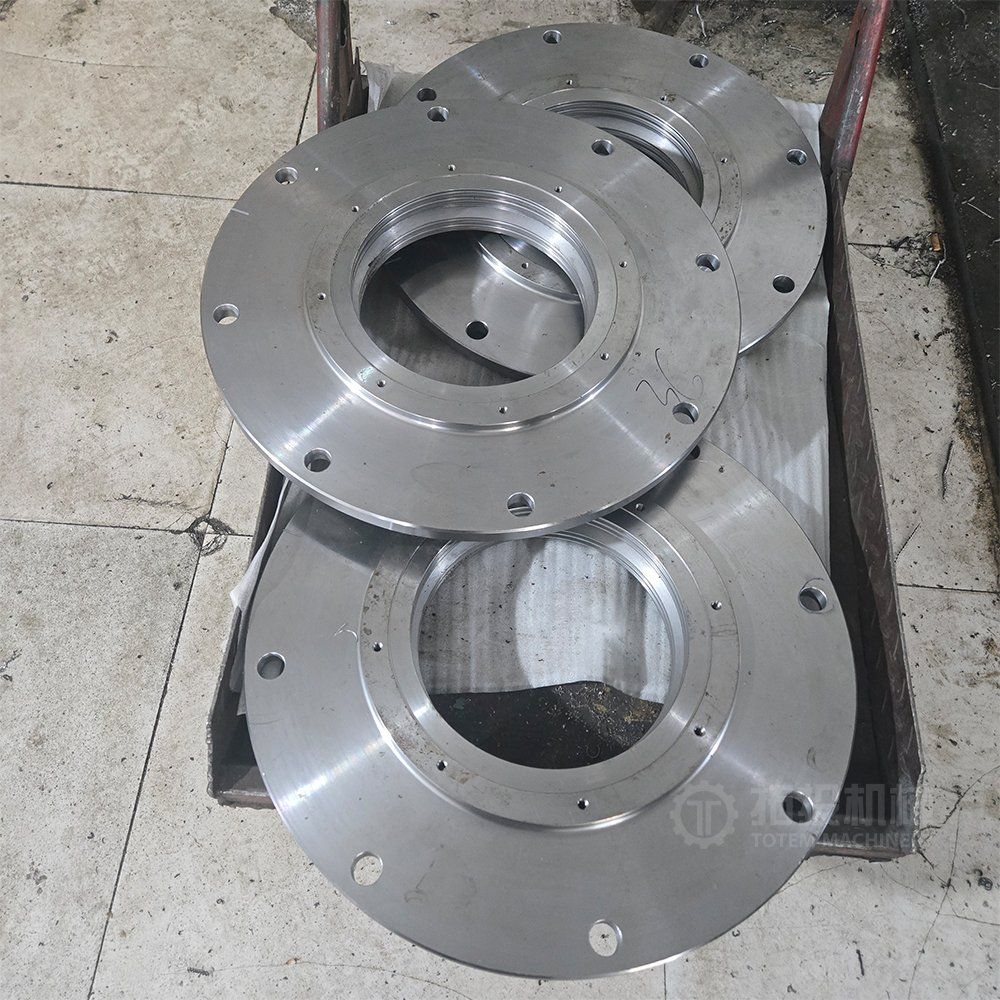

Sprocket Rotary Drum Assembly parts

Phase 4: Dynamic Performance & Functional Testing

The fully assembled Heavy-Duty Hoist Drum Sprocket is then subjected to simulated real-world conditions on our dedicated test rigs.

Run-In & Vibration Analysis: The unit undergoes a minimum 8-hour no-load run-in. Advanced vibration analyzers and acoustic sensors monitor for any unusual frequencies that might indicate misalignment or imbalance, ensuring whisper-quiet operation.
Step-Load Endurance Test: Connected to a load simulator, the assembly is progressively loaded to 25%, 50%, 75%, 100%, and finally 110% of its rated capacity. We monitor temperature rise on bearings, gear meshing patterns, and structural integrity under load.
Brake Performance Certification: This is a critical safety test. At full rated load and speed, we simulate a catastrophic power loss. High-speed data acquisition systems measure the safety brake's engagement time (consistently under 0.3 seconds) and stopping distance. The braking torque curve is analyzed to ensure it meets the stringent requirements of API Spec 8C/ISO 13500.
Sealing Integrity & Leak Test: The entire lubrication system and any hydraulic brake interfaces are pressurized. The assembly is then subjected to a 24-hour pressure decay test and a thorough visual inspection to guarantee zero leakage under pressure and thermal cycling.

Phase 5: Certification & Traceability

Passing all tests is not the end. Each unit receives a final comprehensive audit. A unique serial number is permanently marked. This number unlocks the unit's digital and physical "Product Passport"—a comprehensive dossier that includes all material certificates, heat-treatment charts, CMM reports, NDT records, assembly torque logs, and full performance test data.

This exhaustive inspection journey transforms raw materials into a certified Drum-Type Sprocket Assembly. It is not merely a product we ship; it is a performance guarantee, backed by data, that ensures your drilling operations proceed with absolute confidence, safety, and efficiency.

Secure & Smart: The Packaging Protocol for Your Heavy-Duty Sprocket Assembly

At the culmination of its meticulous manufacturing journey, every Drum-Type Sprocket Assembly is prepared for its voyage to your site with the same degree of precision and care. Our comprehensive packaging process is engineered for one purpose: to guarantee that the precision-engineered unit arrives in perfect, ready-to-install condition, regardless of global destination or logistical challenges. Our protocol is a three-stage shield: Internal Protection, Structural Security, and Customizable Solutions.

Phase 1: Internal Protection & Preservation

Before any external packaging begins, the unit itself undergoes a meticulous preservation process to defend against corrosion during transit and storage.

1, Cleaning & Degreasing:

The entire Sprocket Drum Unit is thoroughly cleaned to remove all processing oils, chips, and contaminants.

2, Application of VCI (Vapor Corrosion Inhibitor):

All ferrous surfaces are treated with a high-grade VCI fluid or emulsion. This coating creates an invisible protective layer that actively inhibits rust formation in enclosed spaces.

3, Critical Component Protection:

Precision Machined Surfaces: Bearing journals, sprocket teeth, shaft ends, and sealing surfaces are coated with a thick, soft Tectyl®-type grease or an anti-corrosive petroleum jelly. These areas are then wrapped with grease-proof wax paper or VCI-impregnated paper and securely taped.

Hydraulic & Threaded Ports: All openings, including hydraulic connections, breathers, and lubrication points, are sealed with custom-machined polymer or metal caps and plugs, preventing the ingress of moisture and dirt.

Ancillary Components: Bolts, tools, and documentation are placed in sealed, labeled polyethylene bags with desiccant.

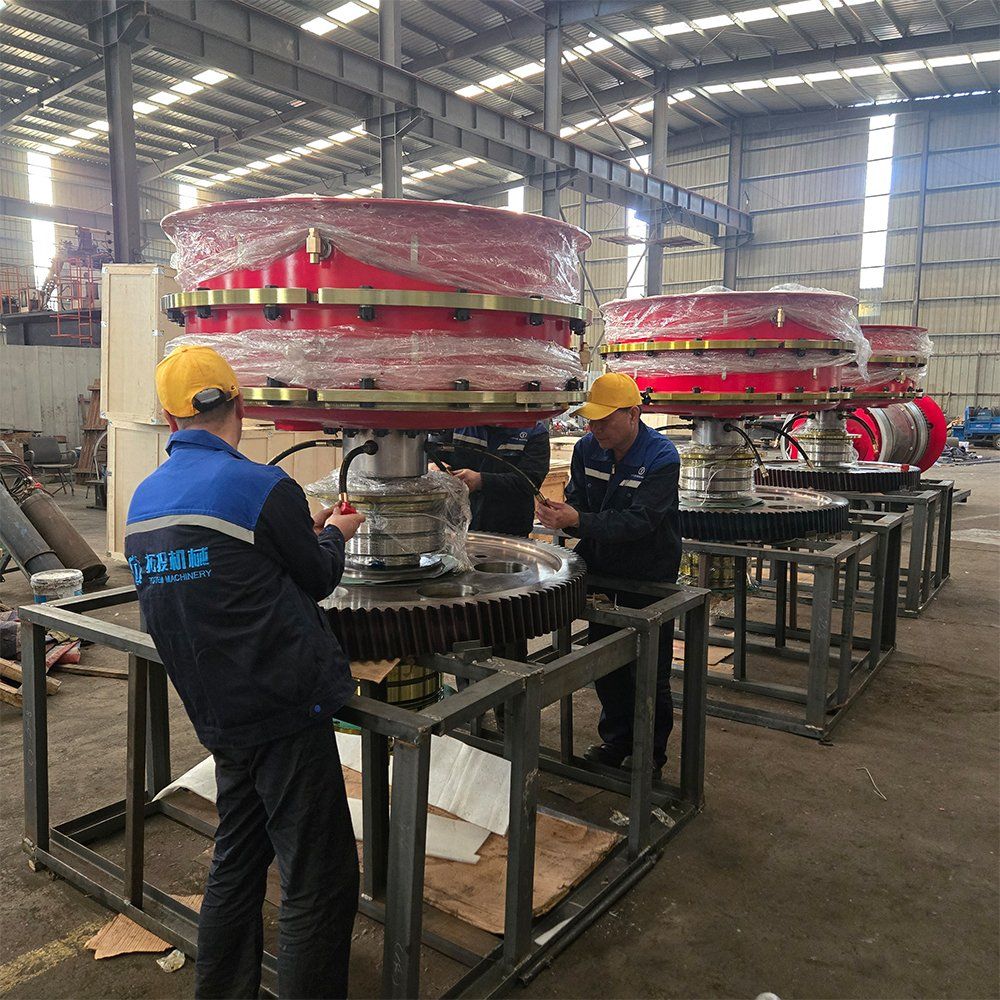

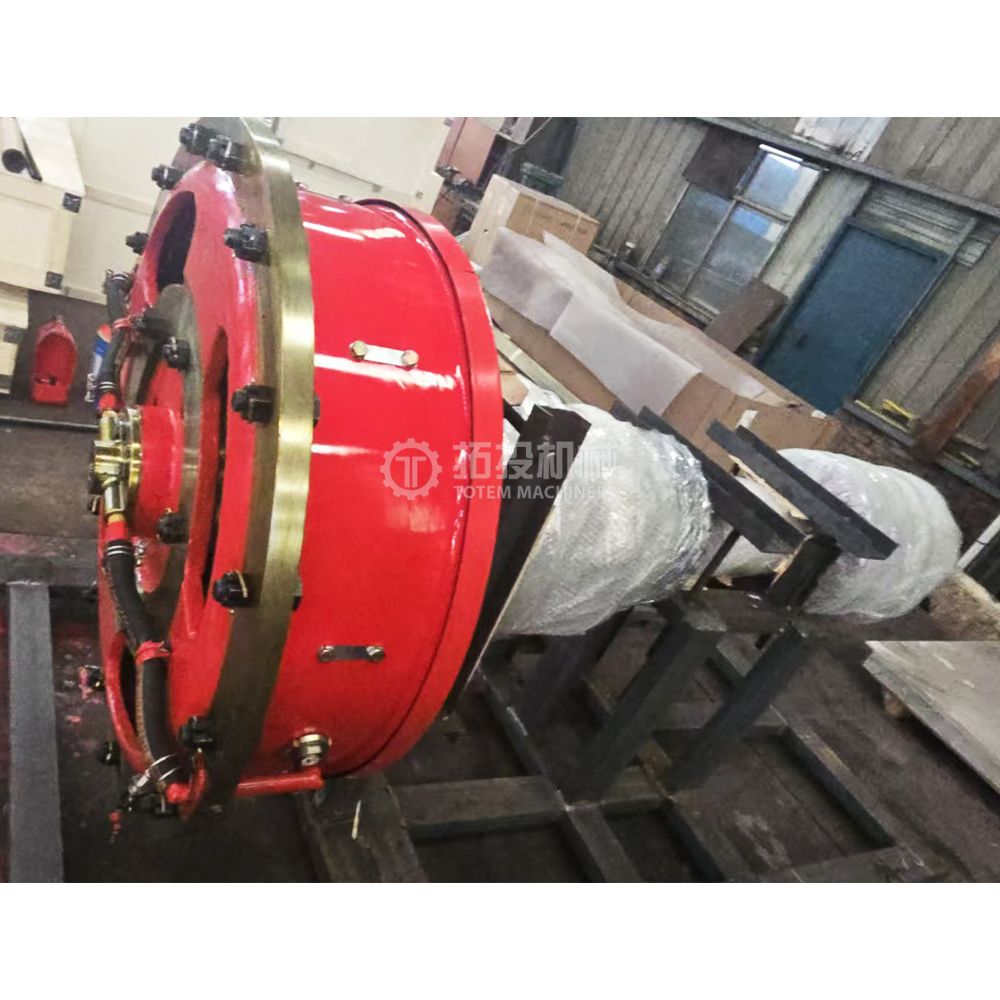

Packaging

Phase 2: Structural External Packaging & Framing

The protected assembly is then secured within a robust, engineered framework designed for mechanical protection and safe handling.

1, Custom-Built Steel-Wood Hybrid Frame:

The Heavy-Duty Hoist Drum Sprocket is mounted onto a base frame constructed from heavy-duty timber beams and reinforced with structural steel members. The unit is bolted to the frame using its own lifting lugs or dedicated base fittings, eliminating movement in transit. The frame is designed to bear the entire load and facilitate forklift and crane handling from all four sides.

2, Shock & Vibration Isolation:

High-density, closed-cell polyethylene foam blocks or custom-cut cushioning are strategically placed between the unit and the frame at all load-bearing and potential contact points. This isolates the product from road and sea vibrations.

3, Weatherproof Enclosure – The First Layer:

The entire framed assembly is wrapped in a heavy-duty, waterproof plastic laminated craft paper or a robust polyethylene film (150+ micron). This layer is heat-sealed and taped to create an impermeable moisture barrier.

4, The Final Armor – The Export Crate:

The wrapped frame is then fully enclosed within a custom-built plywood or OSB (Oriented Strand Board) crate. The crate is constructed with reinforced corners and edges.

Handling Icons: "Top," "Lift Here," "Fragile," "Keep Dry."

Identifying Data: Item description, Part Number, Serial Number, PO Number, and Gross/Net Weight.

Consignment Details: Destination, consignee, and package number (e.g., "Box 1 of 2").

For Standard Containers: The crate dimensions are optimized for efficient loading into standard 20ft or 40ft high-cube shipping containers, maximizing space utilization.

Markings & Labels: The exterior is clearly marked with:

a. Handling Icons: "Top," "Lift Here," "Fragile," "Keep Dry."

b. Identifying Data: Item description, Part Number, Serial Number, PO Number, and Gross/Net Weight.

c. Consignment Details: Destination, consignee, and package number (e.g., "Box 1 of 2").

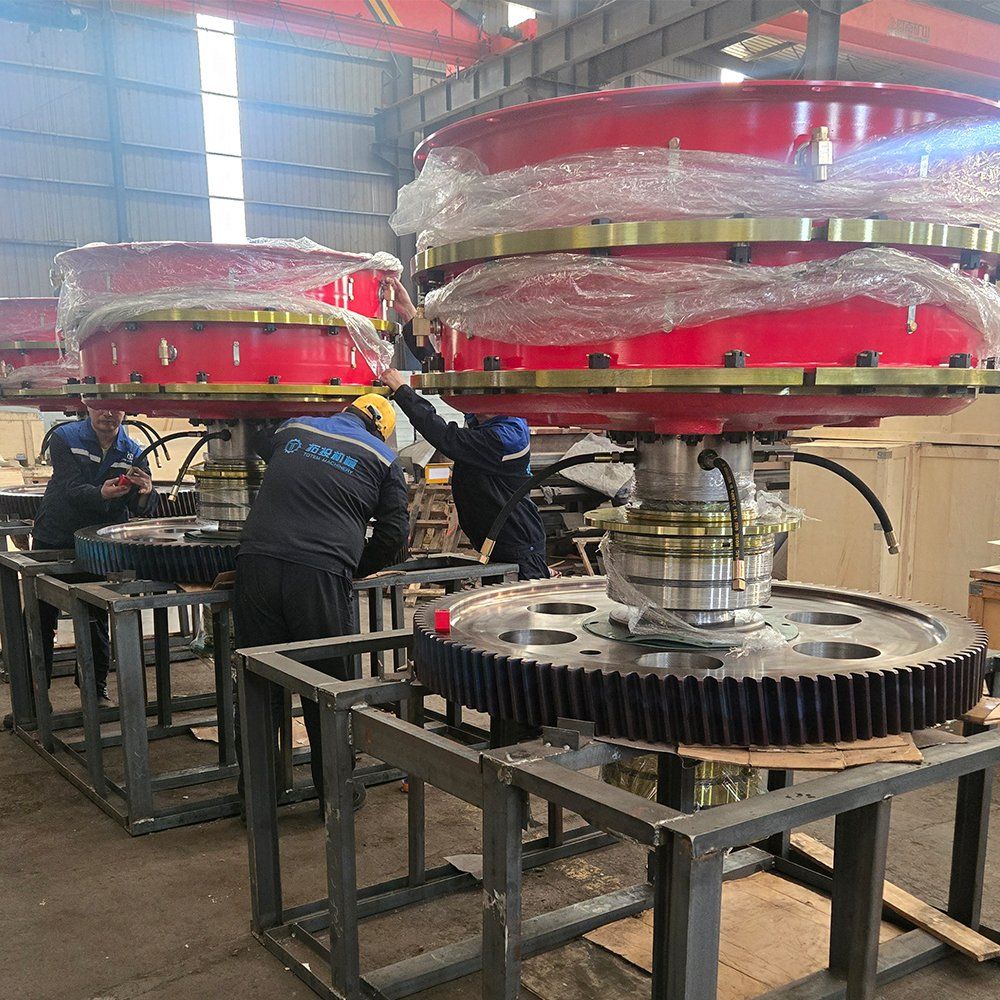

Packaging

Phase 3: Customizable & Value-Added Packaging Solutions

We understand that a "one-size-fits-all" approach does not work for global logistics. We offer tailored packaging solutions to meet specific project and environmental demands.

For Extreme Climates (Desert/Arctic/Humid Tropics): We implement a Desiccant & Humidity Indicator Card system within the sealed inner enclosure. For arctic shipments, we can use low-temperature-rated materials and specify handling instructions to prevent condensation ("cargo sweat") upon arrival in warmer ports.

For Long-Duration Sea Voyages or Outdoor Storage: We upgrade to a "Cocoon" or "CAPE" (Contractor's Anti-Corrosion Packaged Equipment) system. This involves placing the VCI-protected and wrapped unit into a thick, multilayered polymer barrier film, which is then sealed and desiccated to create a long-term, climate-controlled micro-environment effective for 12-24 months.

For Critical or Expedited Air Freight: We design a minimalist, ultra-lightweight yet high-strength tubular steel frame that meets aircraft pallet dimensions, minimizing volumetric weight and cost while ensuring safety.

On-Site Readiness Kits: We can package all necessary installation tools, first-fill lubrication oils, and a detailed visual installation guide in a separate, clearly marked box mounted to the main crate for immediate access.

Real-Time Monitoring (Premium Option): For ultimate peace of mind, we can install a GPS/GSM tracker and a data logger inside the package. This allows you to monitor the shipment's real-time location, ambient temperature, and shock/impact events (G-forces) throughout its journey via a secure web portal.

Our packaging is the final, critical step in our quality promise. It ensures that the reliability engineered and tested into every Sprocket Drum Assembly is perfectly preserved until it reaches your facility, ready for immediate deployment. Contact our logistics team to design a secure packaging and delivery plan tailored to your project's specific route and requirements.
