Product Introduction
The Rotary Railcar Dumper (widely recognized as a Wagon Tippler) is a large-scale, heavy-duty mechanical assembly engineered for the rapid and highly efficient unloading of bulk materials. Designed to handle coal, mineral ore, coke, and other loose aggregates, this equipment is the cornerstone of modern high-capacity bulk material handling systems. By utilizing precise mechanical rotation, the dumper inverts the entire railway wagon, allowing the cargo to discharge smoothly into the underground hopper via gravity. This automated process minimizes turnaround times, significantly reduces manual labor, and ensures minimal wear or damage to the rolling stock. For industrial facilities requiring continuous, high-volume material intake, investing in a reliable railcar dumper translates directly to enhanced operational throughput and long-term cost savings.

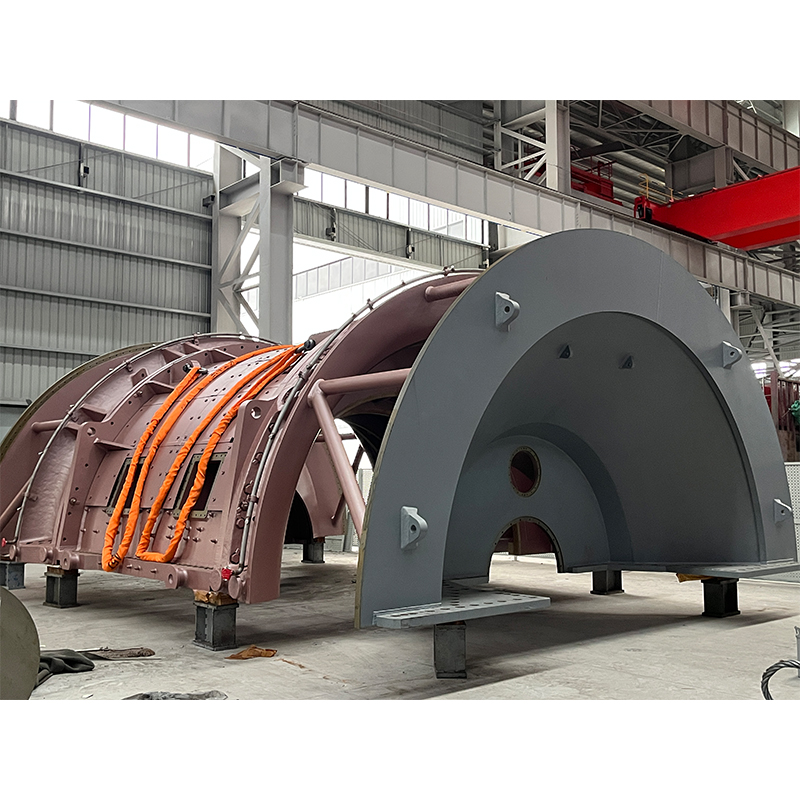

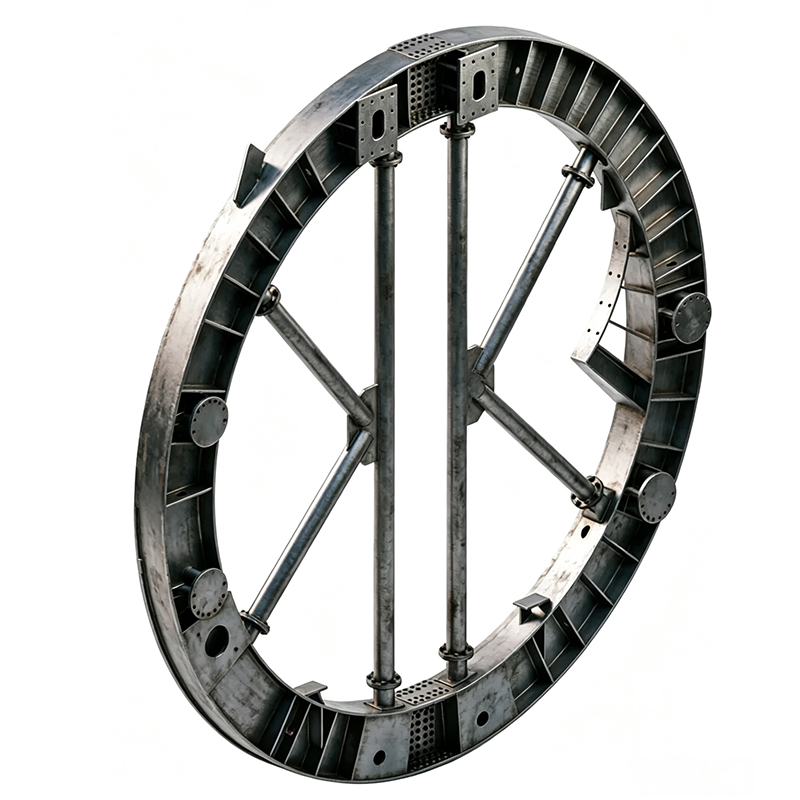

Rotor Body

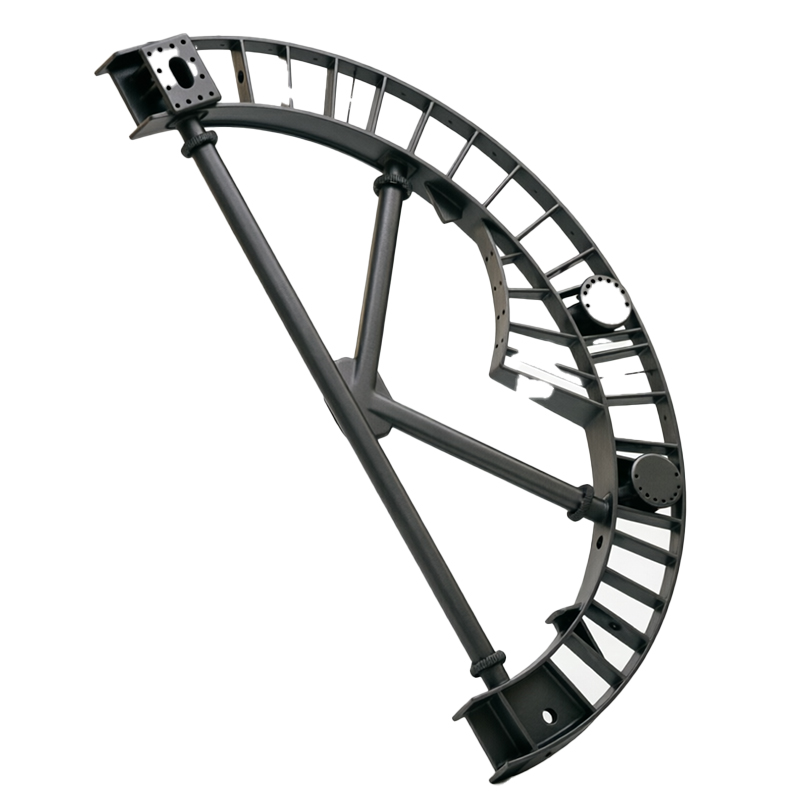

Clamping Device

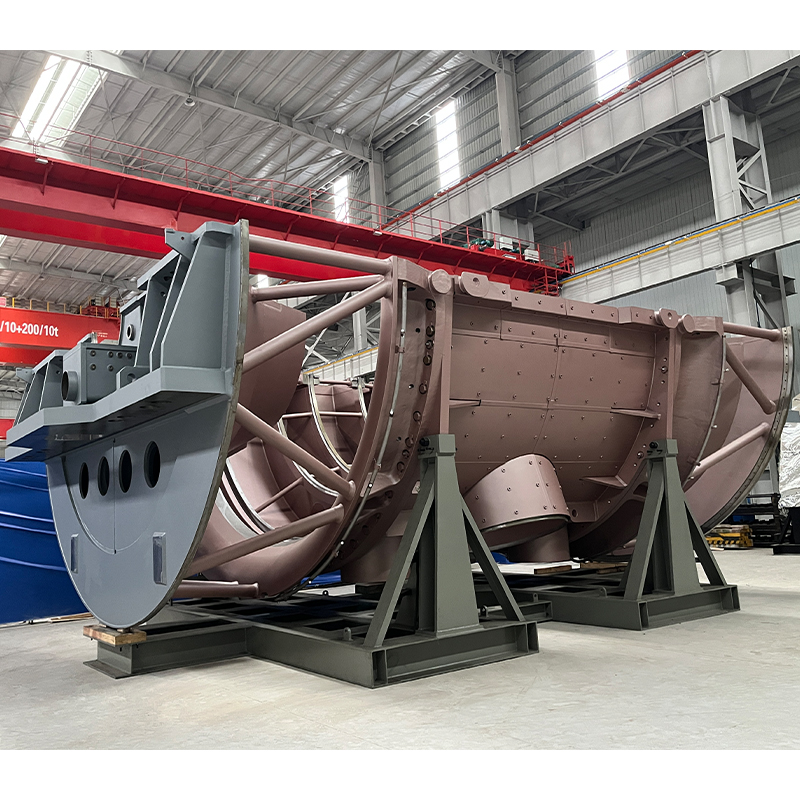

Wagon Tippler
Clamping Device

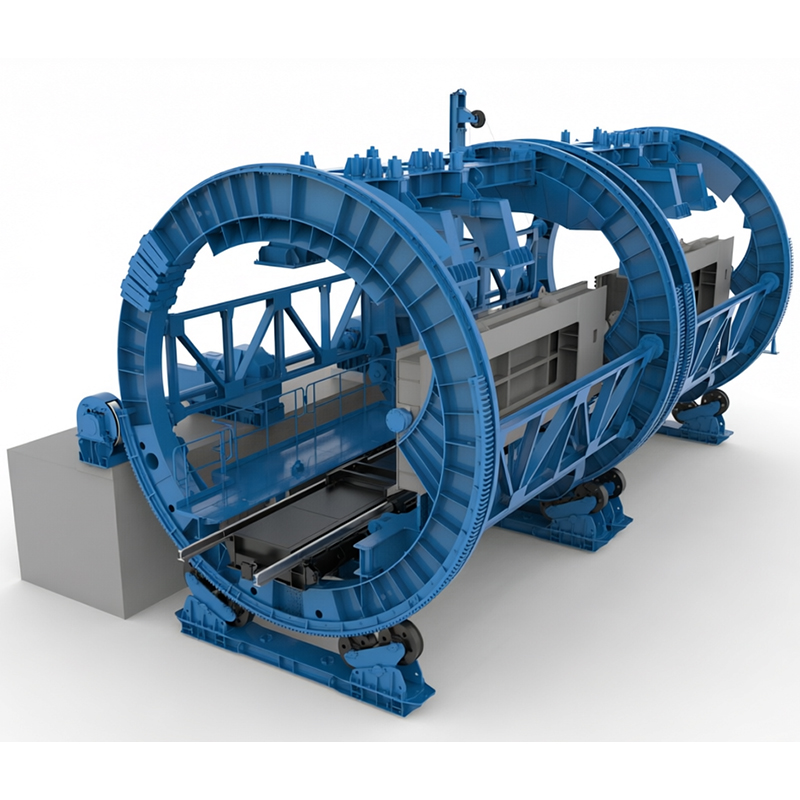

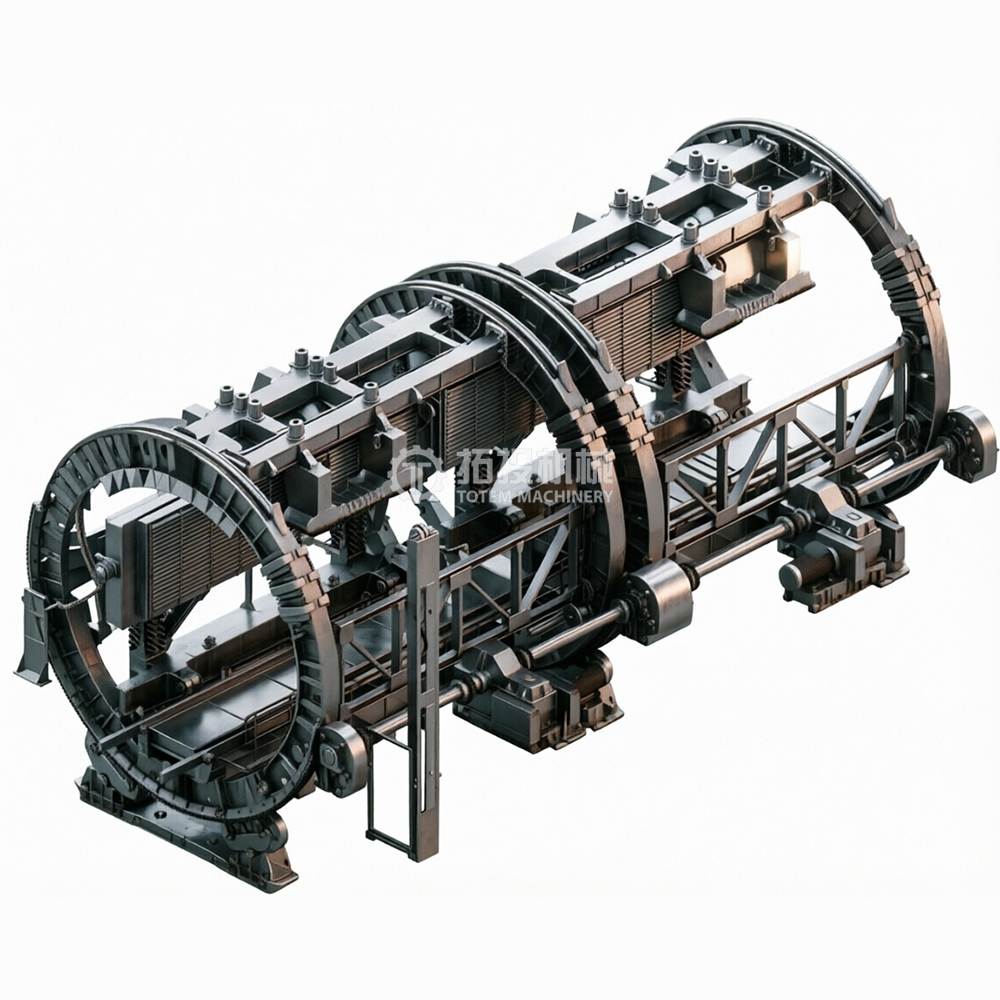

Rotary Railcar Dumper
Rotary Railcar Dumper
Built for heavy-duty continuous operation and exceptional mechanical reliability, our Rotary Railcar Dumper serves as a vital infrastructure component across multiple heavy industries where bulk material throughput is critical:
The fabrication of a large-scale OEM Rotary Railcar Dumper (Wagon Tippler) follows a rigorous, multi-stage manufacturing process. As a critical piece of bulk material handling equipment for the mining industry, its structural integrity, dimensional accuracy, and long-term operational reliability are paramount. Purchasing a heavy-duty railcar dumper requires confidence in the manufacturer's fabrication capabilities. Our systematic approach guarantees that every component is engineered to withstand the extreme torsional loads and continuous operation typical in high-capacity coal unloading facilities. We employ advanced heavy machinery and strict precision control protocols at every stage to ensure optimal performance and lower long-term maintenance requirements.
The foundation of reliable heavy machinery begins with rigorous material selection. High-strength steel plates and heavy structural sections are meticulously inspected upon arrival at our facility. We verify all mill test reports to guarantee material traceability and required mechanical properties. Once approved, the steel plates are processed using advanced CNC plasma/laser cut technology. This ensures exact dimensional tolerances and clean edges. The plates are then carefully beveled for optimal weld penetration and numerically marked according to the shop drawings, establishing a precise foundation for the subsequent heavy fabrication stages.
Before assembly and welding, all cut plates and structural components undergo a comprehensive shot blasting process to achieve the Sa 2.5 standard. This critical surface pretreatment effectively removes mill scale, rust, and other surface impurities. By creating an optimal surface profile, we significantly improve coating adhesion and prepare the steel surfaces for high-integrity welding. This step is essential for ensuring long-term corrosion resistance, especially when the equipment is deployed in harsh, dust-heavy mining environments.
The core of our manufacturing capability lies in heavy structural fabrication. Major sub-assemblies—including the massive End Rings (Rotors), structural trusses, heavy-duty side plates, and hydraulic clamping brackets—are precisely tack-welded in custom fixtures. For the main structural joints, we utilize submerged arc welding (SAW) and CO₂ shielded arc welding to ensure deep penetration and exceptional weld strength. Because large circular structures like end rings are highly susceptible to heat deformation, our manufacturing engineers apply symmetrical multi-welder techniques and temporary process stiffeners to strictly control welding distortion. By carefully managing thermal input, we maintain the strict geometric tolerances required for heavy-duty rotary equipment, ensuring safe load distribution during the tipping cycle.
Following the completion of heavy welding and necessary stress-relief processes, the welded structures are transferred to our heavy-duty CNC machining centers. Precision machining of key mating surfaces is vital for the smooth operation and longevity of the wagon tippler, reducing mechanical stress on drive components and lowering long-term maintenance costs.
End Ring Raceways / Track Surfaces: Machined to exact specifications to guarantee precise roundness and flatness. This ensures smooth, vibration-free rotation on the trunnion support rollers, minimizing wear and extending the equipment's service life.
Drive Gear Segments / Pinion Meshing Surfaces: Precision milled to ensure accurate gear engagement, facilitating reliable torque transmission during the heavy-duty dumping cycle.
Bearing Housings and Mounts: Bearing housings, hydraulic clamp mounts, and critical bolt hole patterns are finish-bored or match-drilled during pre-assembly. This high-precision machining guarantees accurate alignment for all mechanical and hydraulic components.
To ensure efficient and risk-free installation at the mining site, every rotary railcar dumper undergoes a comprehensive mock-up pre-assembly in our workshop. Sub-assemblies are temporarily bolted and fitted together to verify overall engineering integrity.
Dimensional Verification: We strictly verify overall dimensional tolerances and structural symmetry to ensure all components align precisely as engineered.
Match-Drilling: We match-drill high-strength bolt holes between the end rings, working platforms, and connecting trusses to ensure exact alignment for final field erection.
Clearance Checks: We meticulously check the installation clearances for clamping devices, drive units, and spill plates. This rigorous trial fit process drastically reduces on-site adjustment workload, mitigating installation risks and ensuring a faster commissioning phase for our clients.

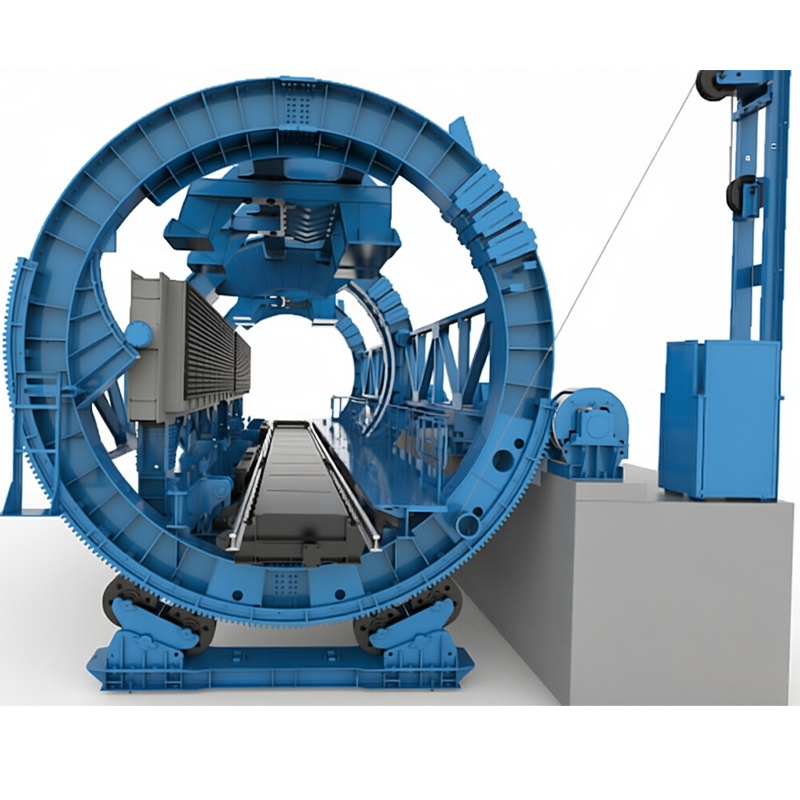

Wagon Tippler
Wagon Tippler
Wagon Tippler
To ensure every OEM Wagon Tippler meets stringent international heavy-equipment standards and performs reliably under continuous full-load mining operations, we implement a rigorous, zero-tolerance multi-stage inspection and testing procedure. Our comprehensive quality control framework is designed to eliminate procurement risks, verify structural integrity, and guarantee that the equipment is fully prepared for demanding on-site deployment.
The foundation of a durable coal wagon tippler begins with raw material verification. All structural steels, heavy-duty plates, and critical purchased components (such as bearings, drive motors, and hydraulic units) are strictly inspected against their respective Mill Test Certificates (MTC). We independently verify the chemical composition and mechanical properties of the steel to ensure it can withstand the extreme torsional stresses of railcar dumping before any material is released to the production floor.
Visual inspection of all welds is conducted strictly per AWS/ISO welding codes to detect any surface irregularities.
NDT (Non-Destructive Testing): Critical full-penetration welds—especially those located on the end rings and primary load-bearing trusses—are subjected to rigorous UT (Ultrasonic Testing) and/or MT (Magnetic Particle Inspection). This guarantees internal weld soundness and prevents fatigue failures under dynamic loads.
Dimensional checks are continuously performed during and after the welding process. We closely monitor the flatness, the exact roundness of the end rings, and overall assembly tolerances to prevent structural distortion.
After precision machining, we conduct critical measurements to ensure seamless mechanical integration:
End Ring Raceways / Track Surfaces: Roundness, radial runout, and surface roughness are meticulously measured to guarantee smooth rotation and minimize wear on the supporting trunnion rollers.
Drive Gear Segments: Pitch accuracy and tooth profile are checked to ensure precise engagement with the drive pinion, reducing operational vibration.
Clamping Device Mounts & Bolt Hole Patterns: Verified by match-drilling records and gauge checks to ensure exact alignment during final assembly.
To eliminate installation issues at the mining site, major sub-assemblies (including the rotor, clamping system, and drive unit) are temporarily assembled in our workshop for physical verification:
Overall structural symmetry and diagonal dimensions are confirmed to match the engineered drawings.
Clearances between rotating components and stationary frames are thoroughly checked to prevent mechanical interference during the tipping cycle.
Clamping devices are function-tested to ensure proper grip travel and secure locking positions for various railcar sizes.
Hydraulic Clamping System: We conduct a pressure holding test, seal integrity check, and overload protection verification to ensure the system can safely secure fully loaded wagons without pressure drops.
Drive System (Motor + Reducer + Pinion): A comprehensive no-load run test is performed to confirm correct rotation direction, verify low noise levels, and monitor for stable current draw, indicating healthy mechanical transmission.
Mining environments demand exceptional corrosion resistance. Dry Film Thickness (DFT) is measured at multiple critical points using an Elcometer to ensure uniform coverage. Paint adhesion is strictly spot-checked via a cross-cut/tape test in accordance with ISO 12944/ SSPC standards, guaranteeing long-lasting protection against harsh industrial elements.

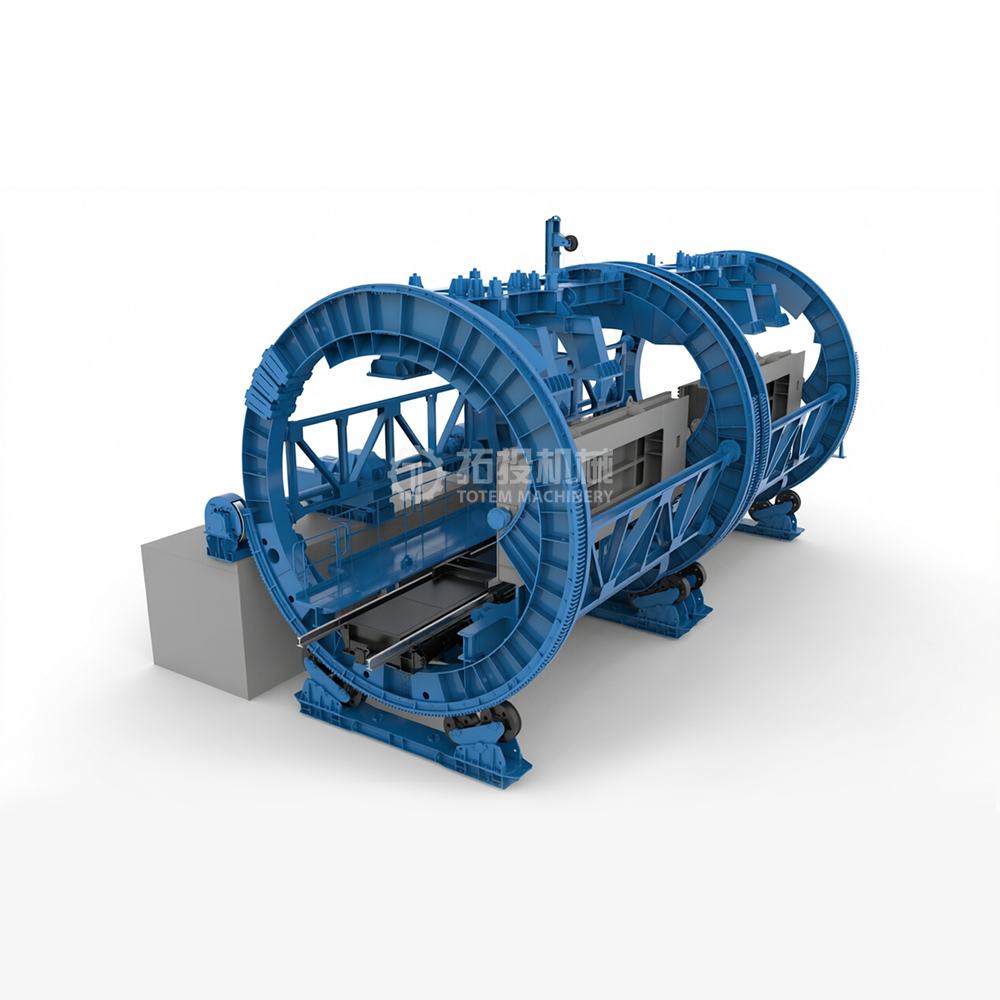

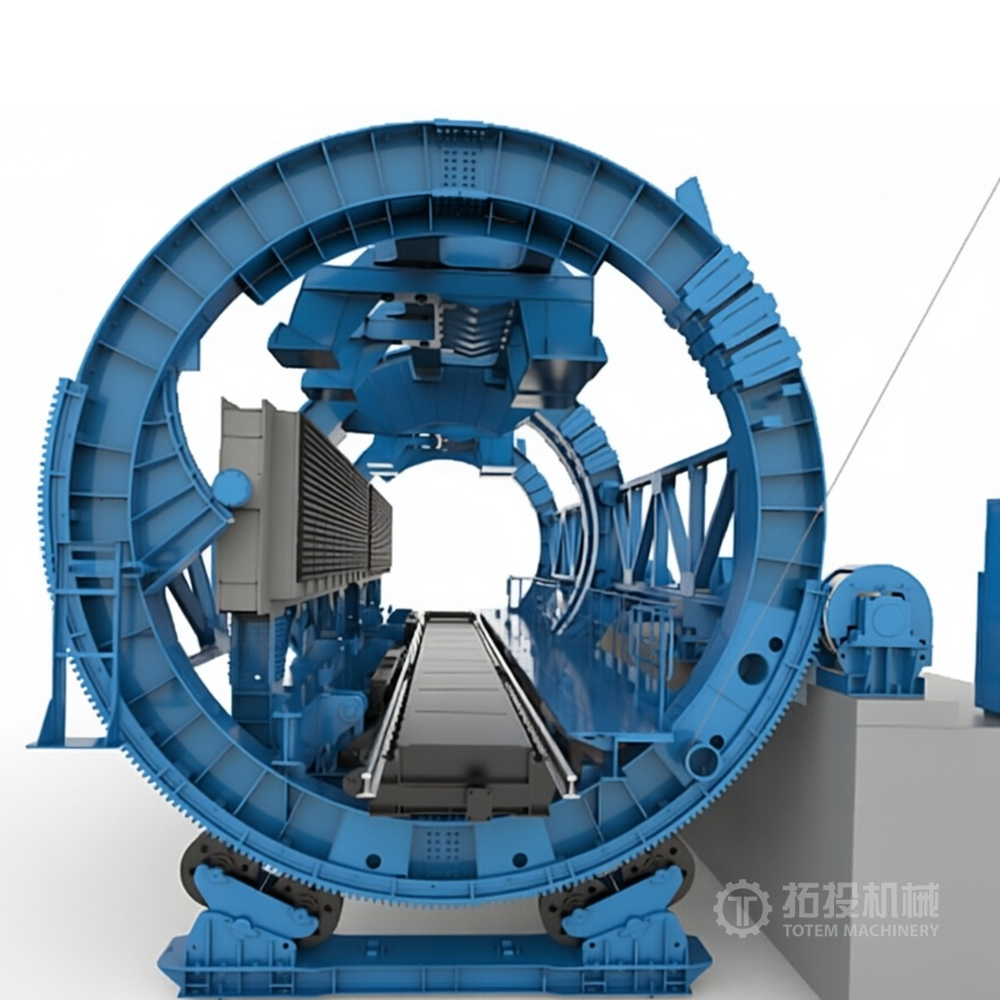

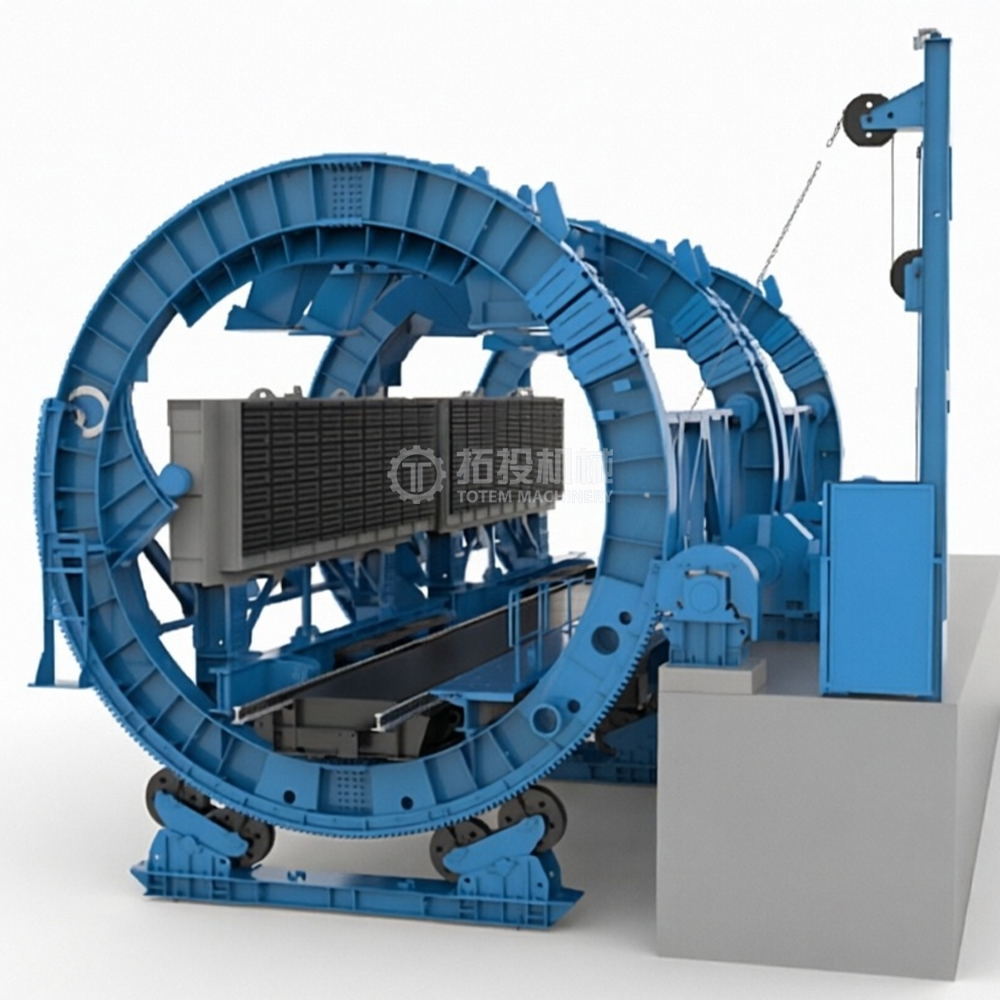

Coal Wagon Tippler
